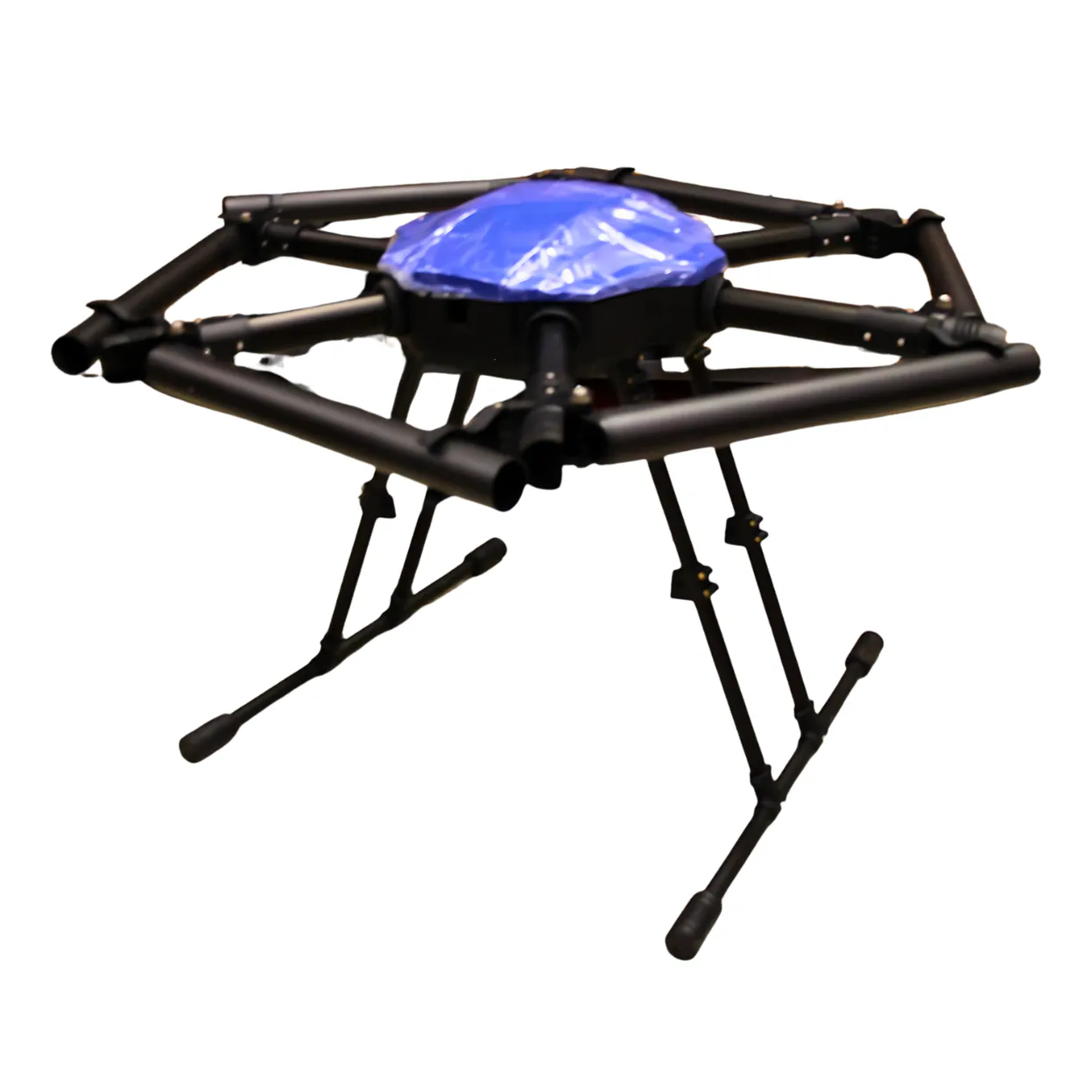

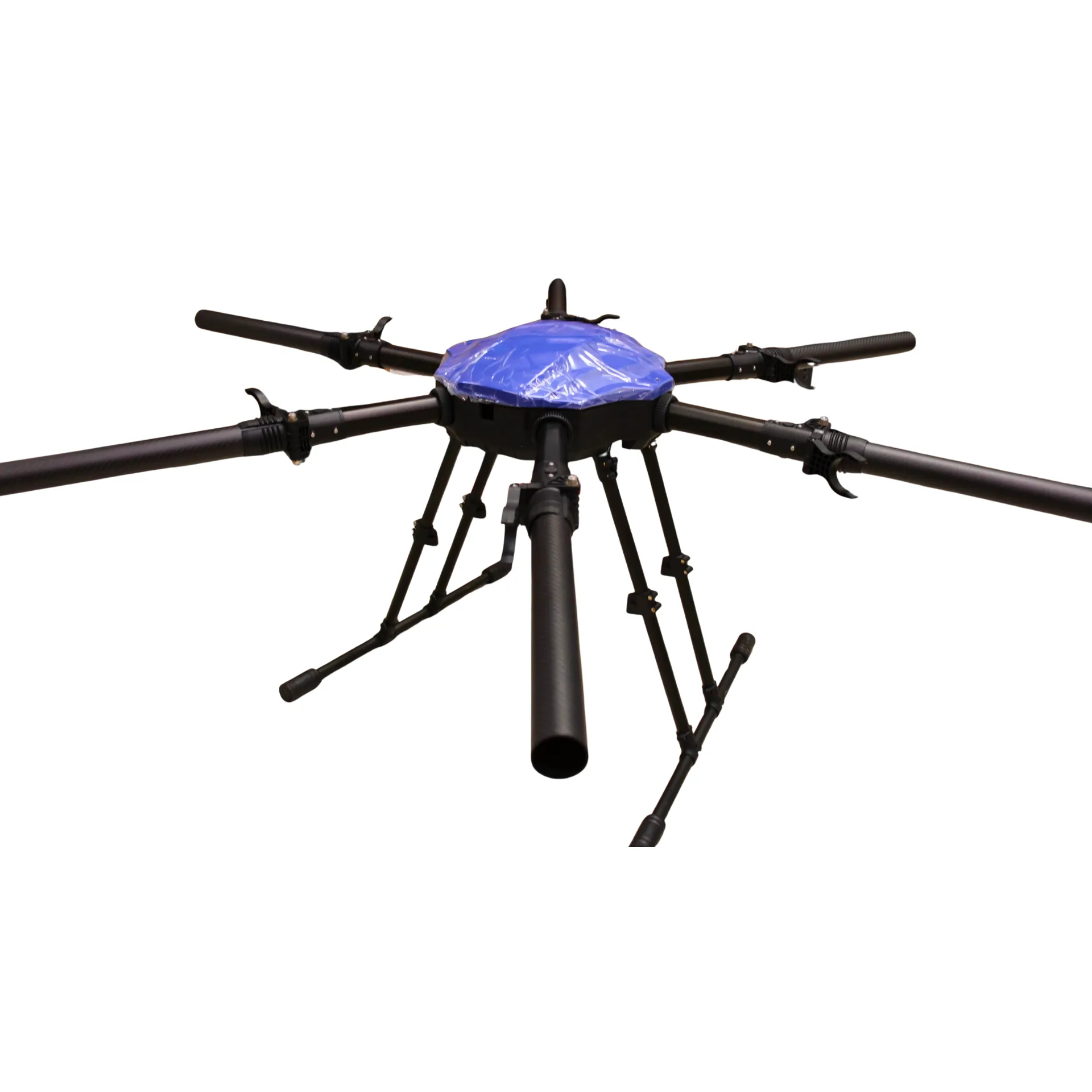

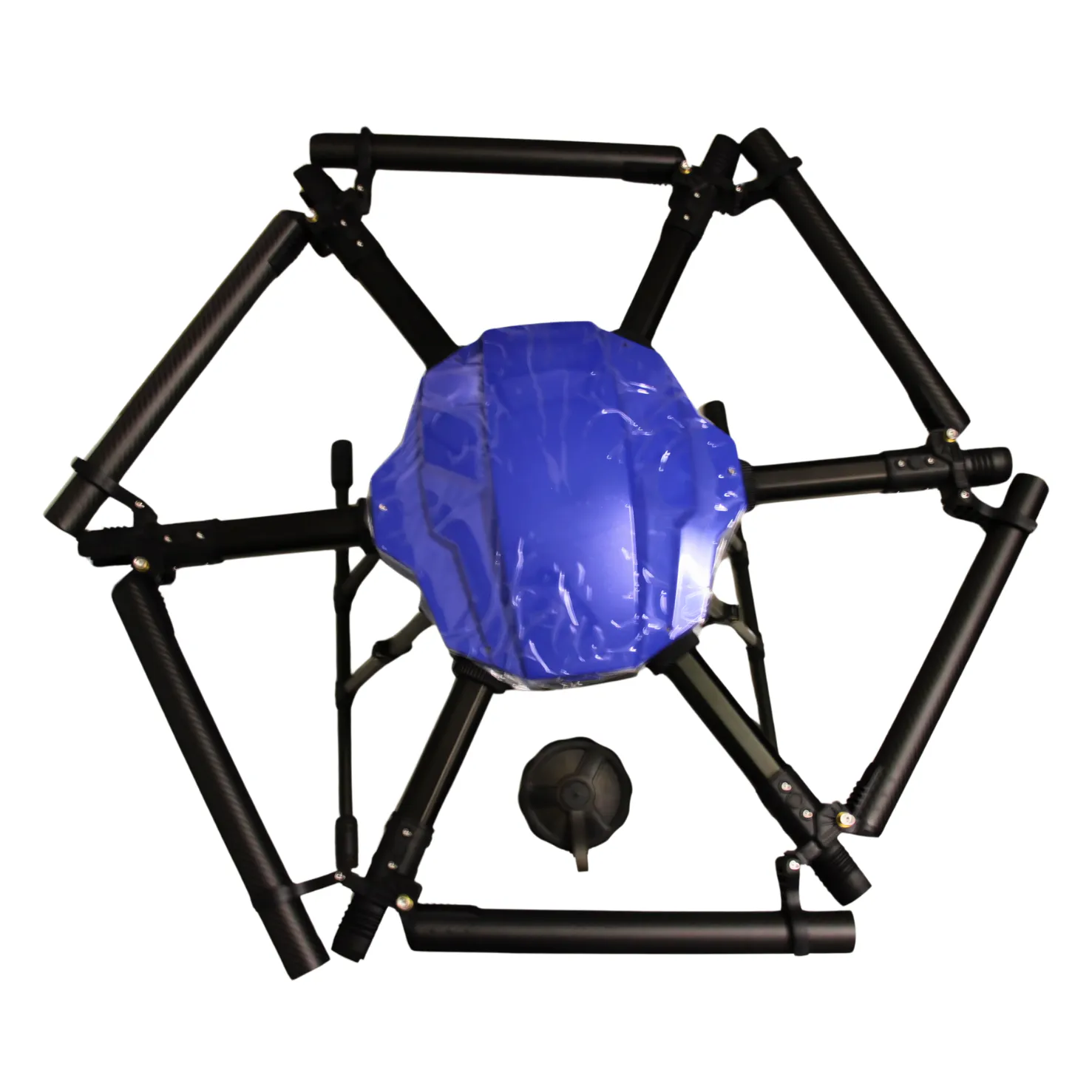

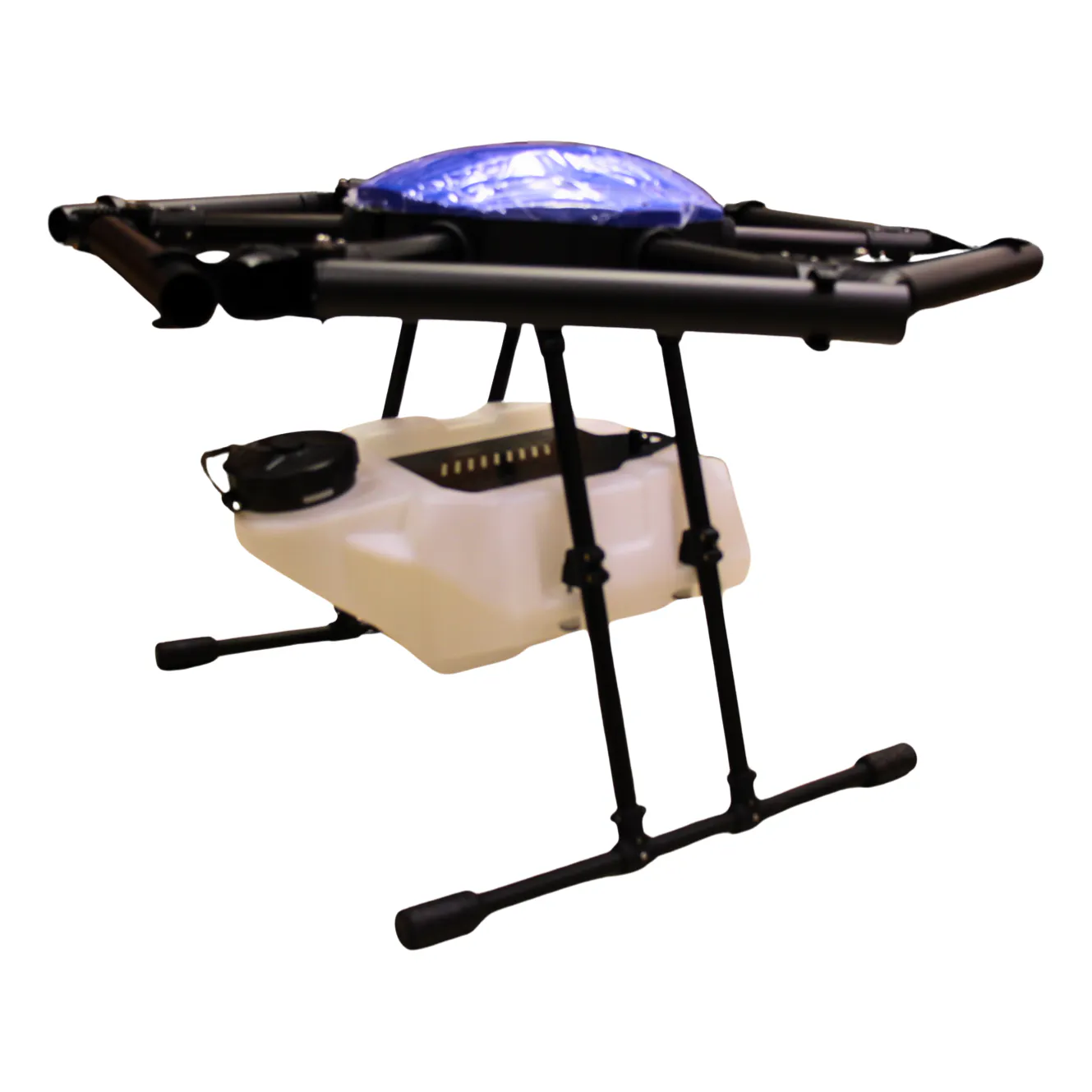

Skyrath SR616P 6-Axis Agricultural Drone Frame
₹39,399Incl. GST
SKU SKYRATH-SR616P-NOTANK
Tank: Without Tank
Prop Size: 28", 32", 30"Made in India: NoBrand: SkyrathWeight: 7000 g
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

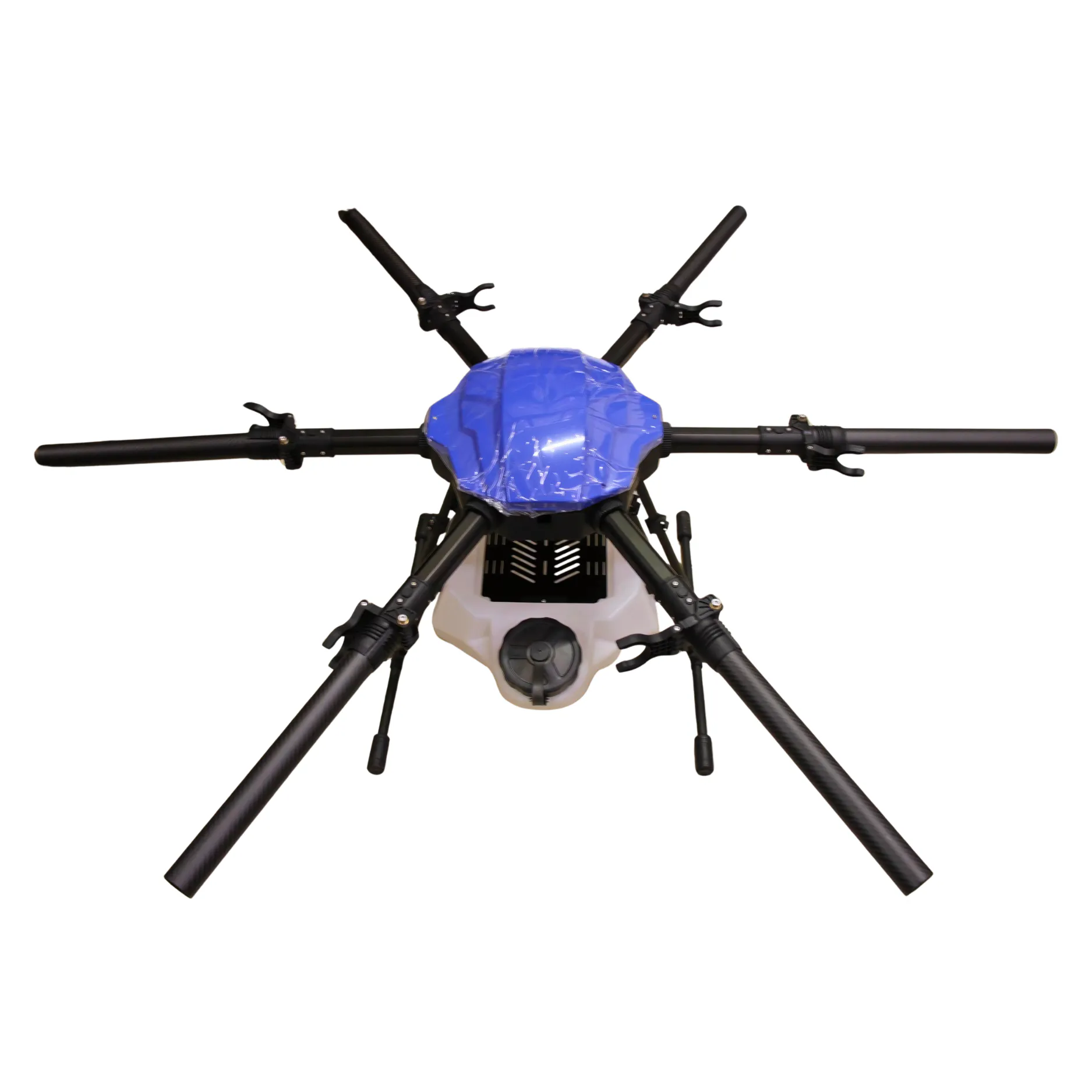

The Skyrath SR616P is a large foldable hexacopter frame for 16-litre-class agricultural spraying drones. It is offered with a 16L tank, a 10L tank or no tank, so you can match the spray payload to your power system or reuse a tank you already own.
Key features
- Six-arm layout specified for 8118-size motors, 80A FOC ESCs and 28–32 inch propellers on 12S
- Rated for up to 36 kg maximum take-off weight
- Folds from 1720 × 1500 × 556 mm to 1073 × 956 × 546 mm for transport between fields
- 7 kg frame on a 1628 mm wheelbase
- Modular structure that assembles and strips down easily for maintenance
Specifications
- Configuration: 6-axis (hexacopter)
- Wheelbase: 1628 mm
- Unfolded size: 1720 × 1500 × 556 mm
- Folded size: 1073 × 956 × 546 mm
- Frame weight: 7 kg
- Tank: 16 L, 10 L or none (by variant)
- Recommended motors: 8118 size
- Propellers: 28–32 inch
- Recommended ESC: 80A FOC
- Battery: 12S LiPo (44.4 V nominal)
- Max take-off weight: 36 kg
Motors, ESCs and flight electronics are bought separately. A full 16L tank adds roughly 16 kg, so budget the frame, power system and battery within the 36 kg take-off limit; the 10L tank variant leaves more margin for a larger battery.
| Prop Size | 28", 32", 30" |
|---|---|
| Made in India | No |
| Brand | Skyrath |
| Weight | 7000 g |
| Axis | 6 |
| Tank Capacity | 10 L, 16 L |
| Wheelbase | 1628 mm |
| Max Takeoff Weight | 36 kg |
