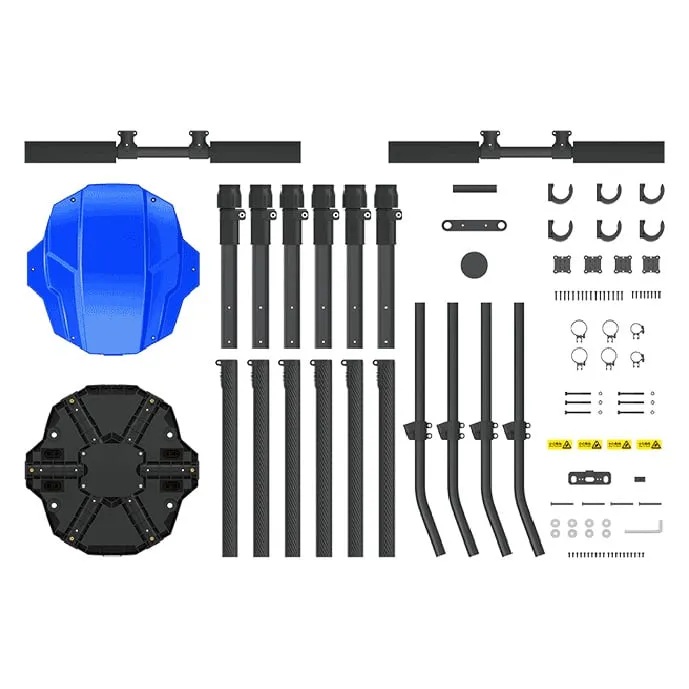

EFT E610M 10L 6-Axis Agricultural Drone Frame

The EFT E610M is a heavy-duty 6-axis hexacopter frame engineered for 10-litre agricultural spraying payloads. Built around a lightweight injection-moulded body, this frame provides a stable, vibration-resistant platform for crop dusting, liquid dispensing, and commercial heavy-lift applications. Its hexacopter layout guarantees motor redundancy and payload stability over standard quadcopter configurations.

Key features

• 10-litre liquid payload capacity tailored for efficient agricultural spraying

• 6-axis hexacopter configuration for improved flight stability and motor redundancy

• Cross-folding arm design reduces the folded volume by about 25% for transport

• Lightweight injection-moulded body, compact and sturdy

• Modular centre plate design ensures rapid maintenance and easy electronics routing

Specifications

• Frame type: 6-Axis (Hexacopter)

• Tank capacity: 10 Litres (with-tank version); also sold as the frame without a tank

• Wheelbase: 1402 mm

• Frame weight: 3.6 kg

• Maximum take-off weight: under 25 kg

• Recommended power system: Hobbywing X6 Plus with 24-inch propellers, 12S 16000mAh battery

• Arm diameter: 30mm

• Folding mechanism: Cross-folding

• Unfolded size: 2011 x 2011 x 547mm

• Folded size: 772 x 703 x 592mm

Compatible with agricultural flight controllers like the JIYI K++ or DJI N3-AG, the E610 serves as a reliable foundation for custom crop-spraying drone builds running a 12S power system.
