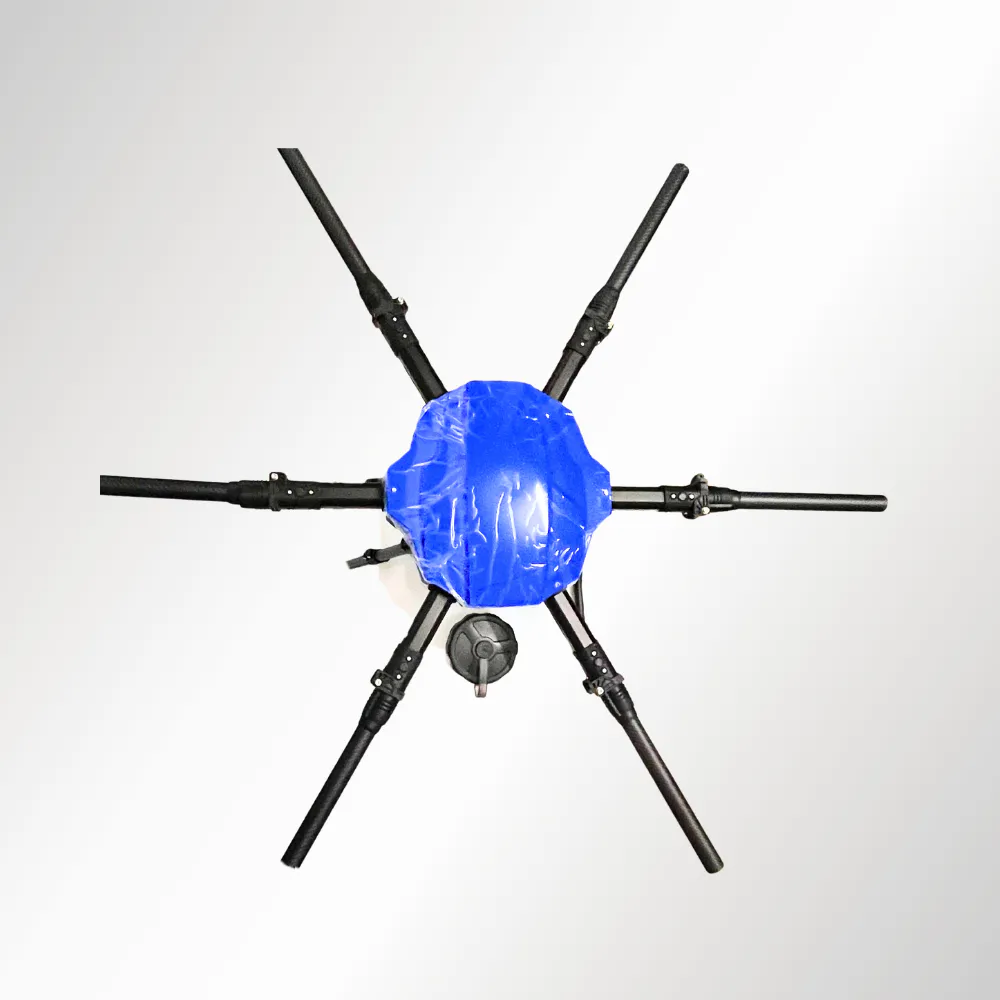

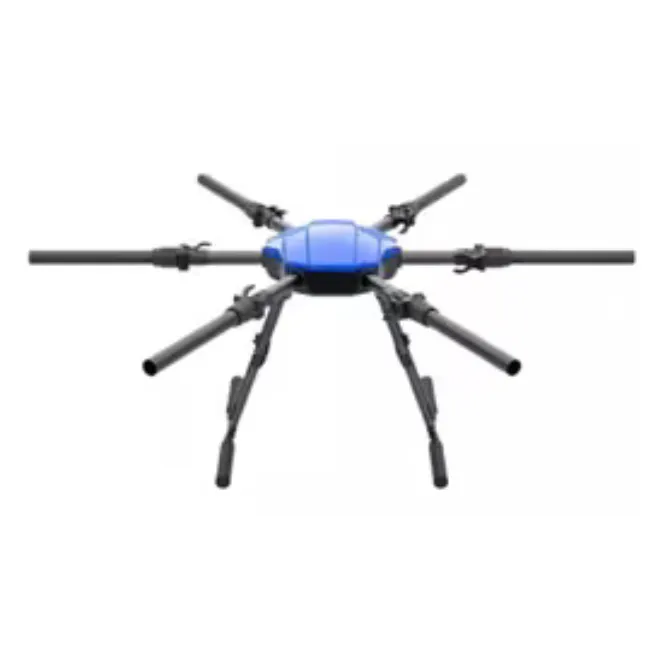

Skyrath SR610P 10L 6-Axis Agricultural Drone Frame
₹42,099Incl. GST
SKU SKYRATH-SR610P-10L-NOTANK
Tank: Without Tank
Color: Random Color
Prop Size: 23", 24"Made in India: NoBrand: SkyrathWeight: 5000 g
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Skyrath SR610P is a foldable six-arm frame for 10-litre agricultural spraying drones. Buy it with its 10L tank for a complete airframe, or as a bare frame if you already own a tank, and build it up for pesticide, fertiliser or herbicide spraying on 12S power.
Key features
- Hexacopter layout specified for 23–24 inch propellers and 80A FOC ESCs on 12S
- Rated for a maximum take-off weight of 25 kg

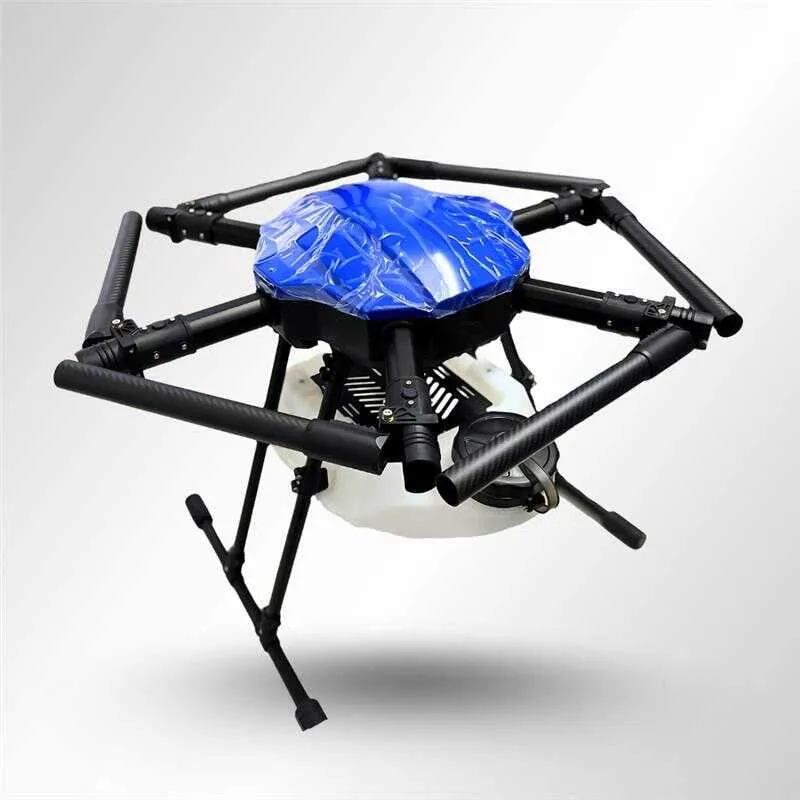

- Folds from 1495 × 1308 × 500 mm down to 945 × 848 × 500 mm for transport between fields
- 5 kg frame on a 1404 mm wheelbase

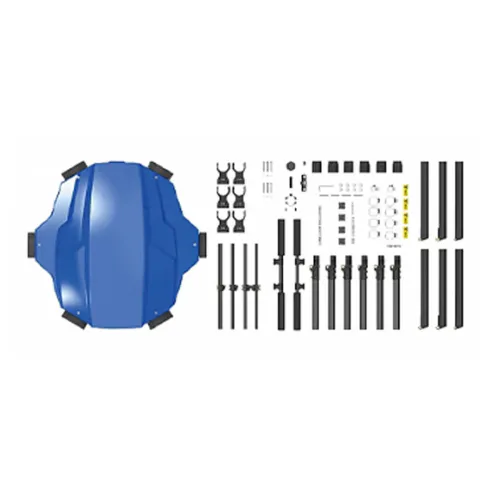

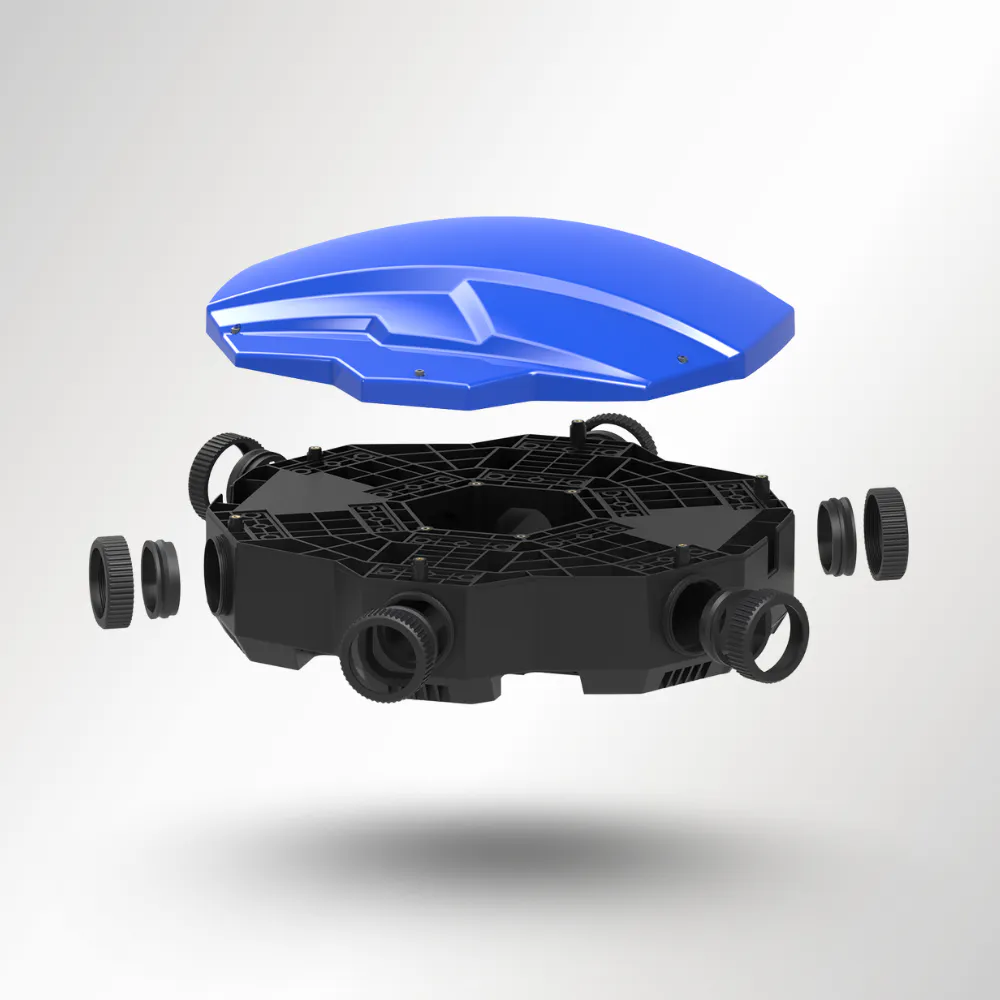

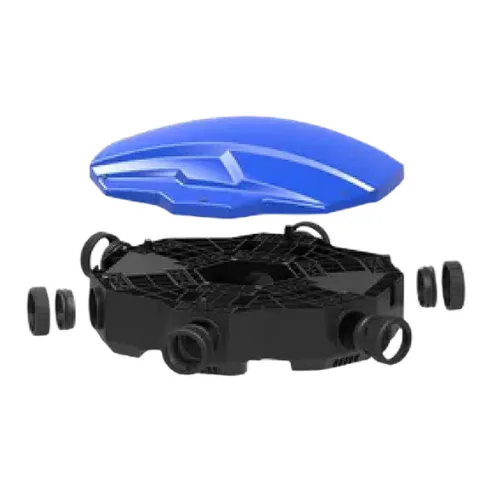

- Modular structure that assembles and strips down easily for field maintenance
Specifications
- Configuration: 6-axis (hexacopter)
- Wheelbase: 1404 mm
- Unfolded size: 1495 × 1308 × 500 mm
- Folded size: 945 × 848 × 500 mm
- Frame weight: 5 kg

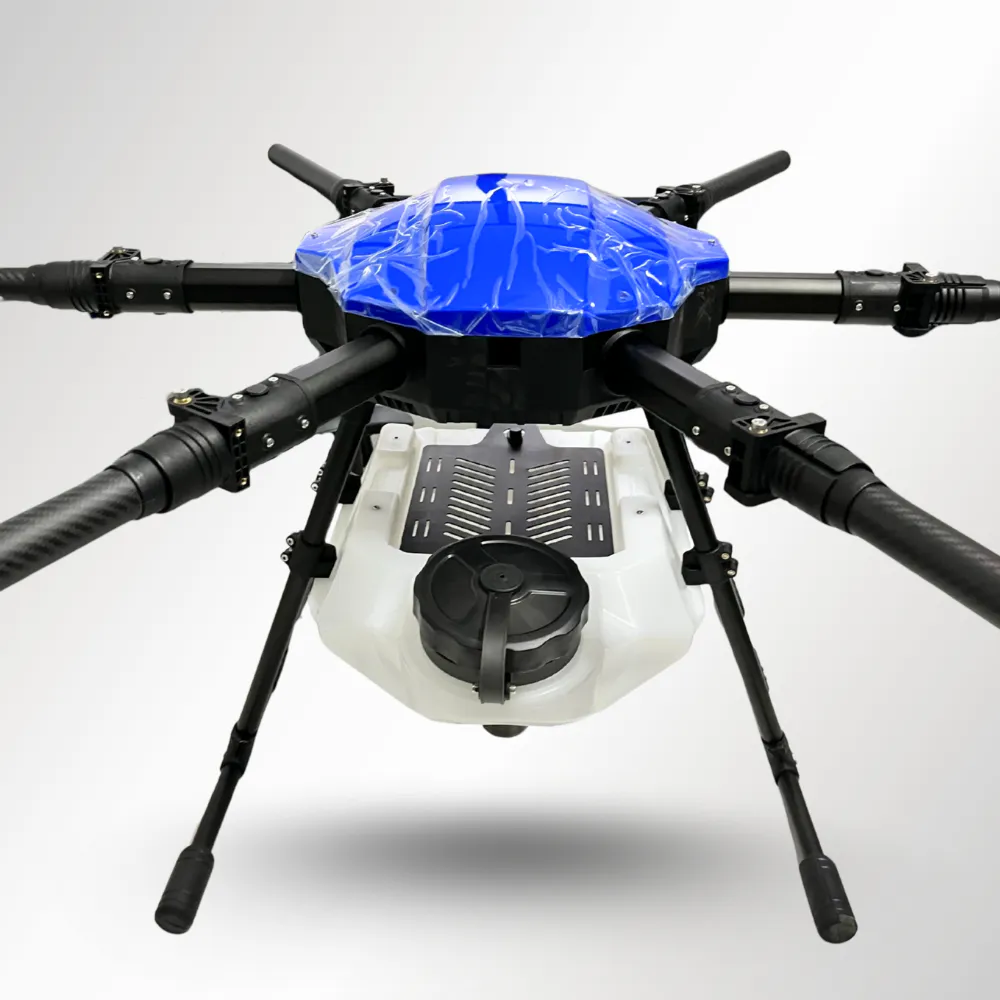

- Tank: 10 L (10L Tank variant) or none
- Propellers: 23–24 inch
- Recommended ESC: 80A FOC
- Battery: 12S LiPo (44.4 V nominal)
- Max take-off weight: 25 kg
Motors, ESCs and flight electronics are not part of the frame kit. Match a 12S power system to 23–24 inch props and keep the all-up weight under 25 kg, remembering that a full 10L tank adds roughly 10 kg.
| Prop Size | 23", 24" |
|---|---|
| Made in India | No |
| Brand | Skyrath |
| Weight | 5000 g |
| Axis | 6 |
| Tank Capacity | 10 L |
| Wheelbase | 1404 mm |
| Max Takeoff Weight | 25 kg |
