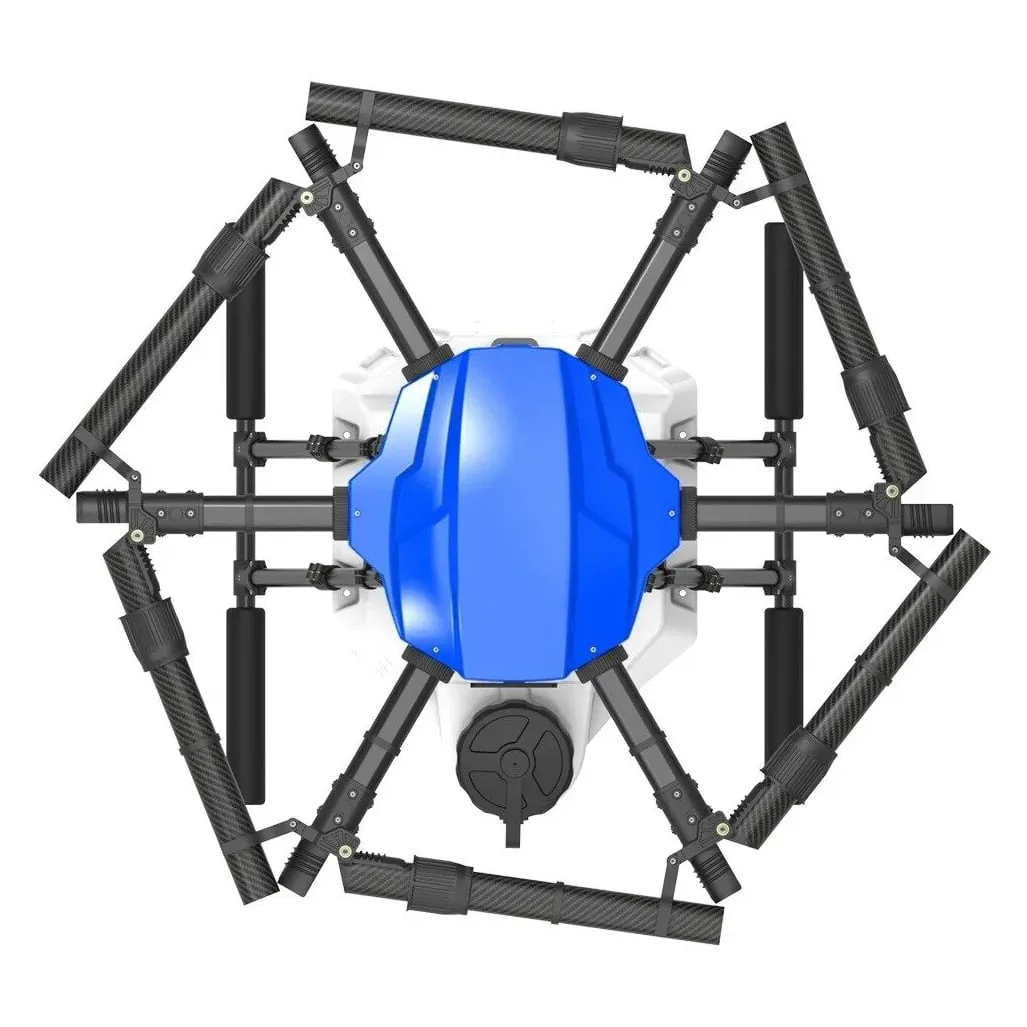

EFT E620P 20L Hexacopter Agricultural Drone Frame
SKU EFT-E620P-NO-TANK
Tank: Without Tank
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

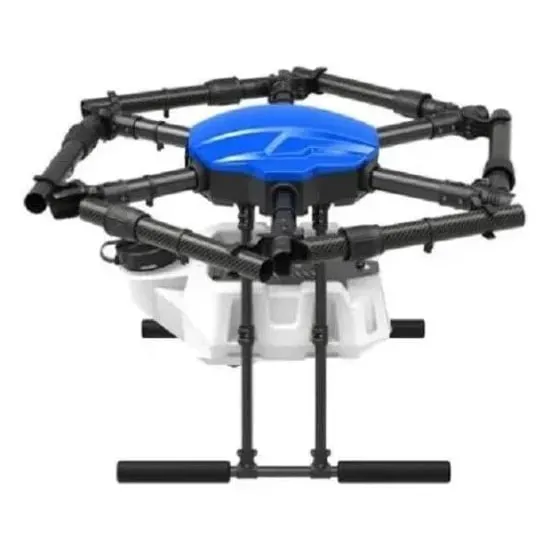

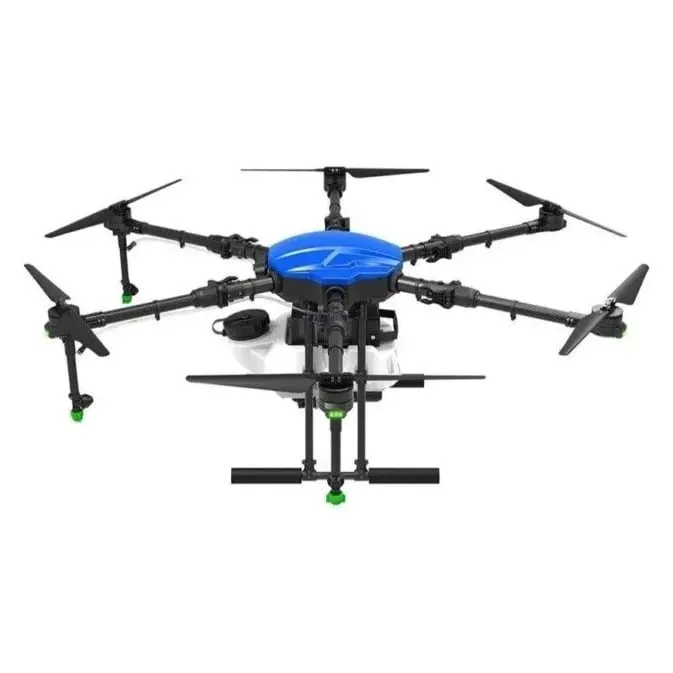

The EFT E620P is a folding six-axis (hexacopter) frame for 20-litre crop-spraying drones. It suits operators and integrators building a mid-size agricultural sprayer on an EFT platform. It comes with the 20L tank or without one, if you already have a tank or spray system.
Key features
- Hexacopter layout with a 1854mm wheelbase, sized for 34-inch propellers
- Classic EFT folding body: folds from 2717 x 2717 mm open to 1224 x 1203 mm for transport
- Integrated power wiring with centralised power supply, and signal lines run separately from power to cut interference
- Rated for 46.5kg maximum take-off weight on its specified power system
Specifications
- Configuration: 6-axis (hexacopter), folding
- Wheelbase: 1854mm
- Unfolded size: 2717 x 2717 x 660mm
- Folded size: 1224 x 1203 x 660mm
- Frame weight: 8.25kg
- Tank capacity: 20L (tank variant)
- Maximum take-off weight: 46.5kg
- Specified power system: EFT X9 motor, 80A FOC ESC, 34-inch propellers
- Supply voltage: 14S
Plan the rest of the build around the 14S power system the frame is specified for: six X9-class motors with 34-inch props, a 14S agricultural battery, and an agri flight controller with GPS. The tank-less option suits builders fitting their own tank or spray system.
| Prop Size | 34" |
|---|---|
| Made in India | No |
| Brand | EFT |
| Weight | 8250 g |
| Axis | 6 |
| Tank Capacity | 20 L |
| Wheelbase | 1854 mm |
| Max Takeoff Weight | 46.5 kg |
