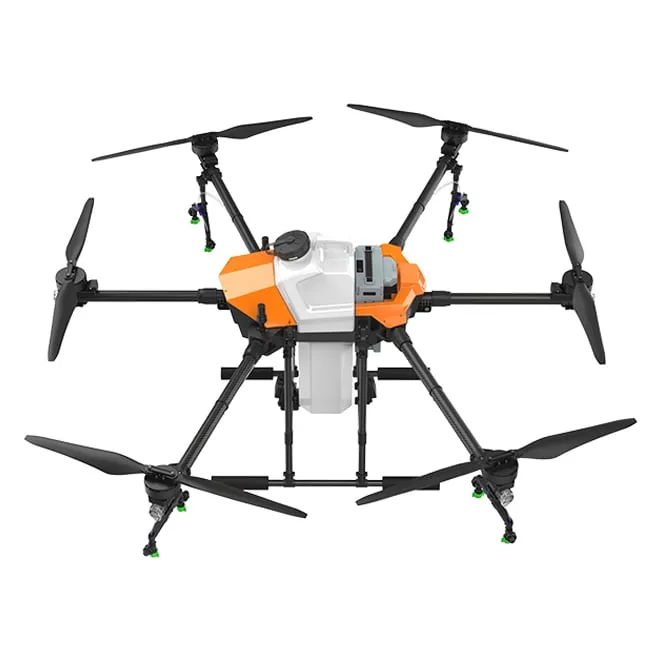

EFT G630 30L 6 Axis Agricultural Drone Frame
SKU EFT-G630-FRAME-AS150U
Tank: Without Tank
Connector: AS150U
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The EFT G630 is a 6-axis agricultural drone frame built around a 30-litre tank for crop spraying, seeding and broadcast spreading. Its three-stage layout keeps the flight controller at the front, the tank in the middle and the battery at the rear in one integrated body designed for strength and water resistance, with quick-release mounts for both the tank and the battery so field changes are fast.
Key features
- Integrated hexacopter body reduces the number of separate parts and improves water resistance over a bolted-together frame
- Rectangular arm layout maximises the distance between nozzles and the airframe, widening the effective spray swath
- Quick-release tank and battery mounts cut turnaround time between fields
- Foldable arms shrink the frame for transport despite its 30-litre capacity
- Modular construction simplifies maintenance and part replacement
- Supports an optional fixed-height radar module for precise terrain-following spraying
Specifications
- Configuration: Hexacopter (6-axis)
- Tank capacity: 30 litres
- Power connector: AS150U or 200A MOLEX, depending on variant
- Tank: 30-litre tank included only with the 30L Tank option
Choose the frame with or without its 30-litre tank. It ships without the sprayer kit or motor/ESC set, so plan for a matched agricultural propulsion system rated for the 200A-class power connector before ordering.
| Prop Size | 36" |
|---|---|
| Made in India | No |
| Brand | EFT |
| Battery Connector | AS150U, 200A Molex |
| Axis | 6 |
| Tank Capacity | 30 L |
