SIYI HM30 Long Range Full HD Video Link

The SIYI HM30 combines full HD digital video, RC control and a telemetry datalink in one long-range link for industrial and survey multirotors, VTOLs and fixed wings. The Fly More Combo bundles the HM30 ground unit and air unit with an IP camera, a quick-release NP-F750 battery, a PD fast charger and two long-range antennas, so the only extras you need are your radio and flight controller.

Key features

• Up to 20km range (SIYI rating, unobstructed and interference-free) with adaptive frequency hopping.
• 1080p full HD video at around 150ms latency; the air unit outputs 16-channel S.Bus and 5-channel PWM.
• MAVLink datalink for PX4, ArduPilot and INAV flight controllers; works with SIYI FPV, QGroundControl and Mission Planner.

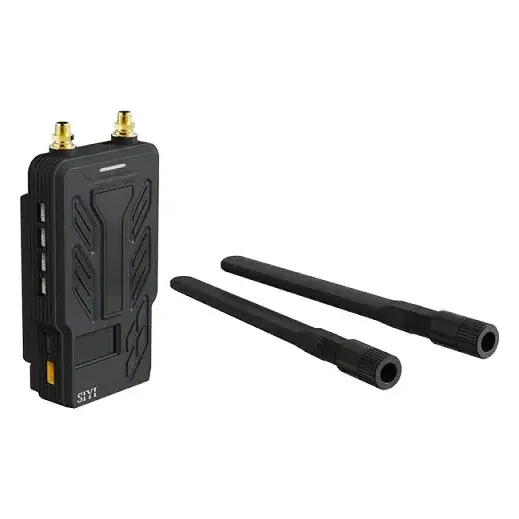

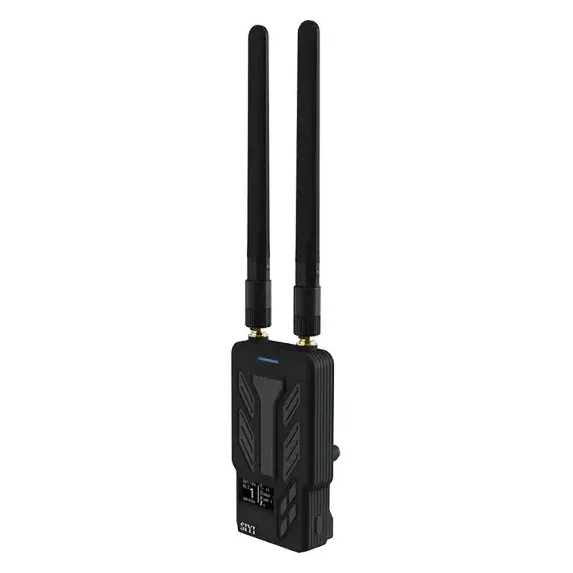

• Ground unit takes your radio's S.Bus/PPM signal and has a 0.96-inch OLED status display, Ethernet LAN, UART datalink and USB-C ports, rated IP53.
• Runs on NP-F550/F750/F950 quick-release batteries with 30W PD fast charging, plus an XT30 input for external power.
• Dual-operator mode for separate aircraft and payload control with a second ground unit.

Specifications

• Range: up to 20km (unobstructed, interference-free)
• Video: 1080p full HD, about 150ms latency
• Communication channels: 16
• Air unit outputs: 16-ch S.Bus, 5-ch PWM, UART datalink
• Air unit: 70 × 55 × 16mm, 74g
• Ground unit: 109 × 61 × 28mm, 132g, 0.96-inch OLED, IP53
• Ground unit ports: S.Bus/PPM input, UART datalink, Ethernet LAN, USB-C, XT30 power input
• Antenna gain: 5dBi omni, 11dBi long-range
• Operating temperature: −10 to 50°C

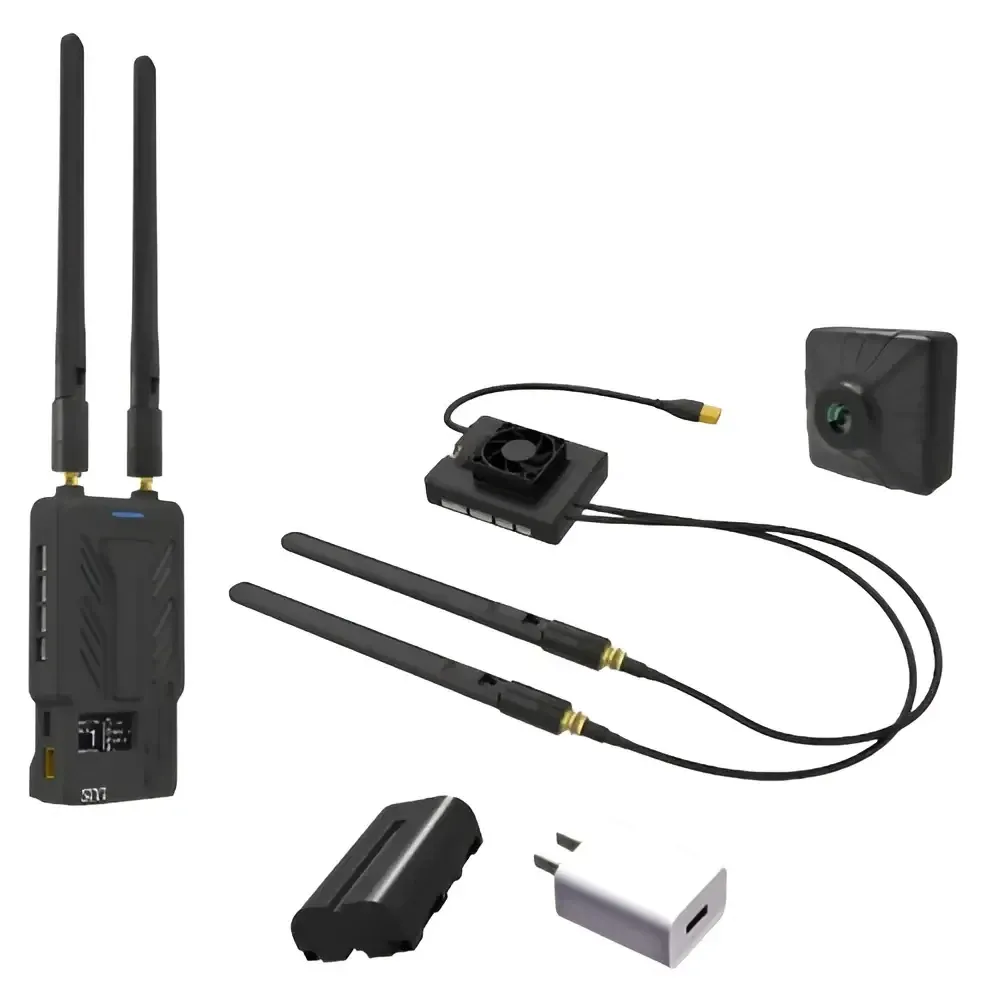

• In the box: HM30 ground unit, HM30 air unit, IP camera, NP-F750 quick-release battery, PD fast charger, 2 × long-range antennas

For a big-screen view at the field, connect the ground unit's Ethernet output to SIYI's Ethernet to HDMI converter.
