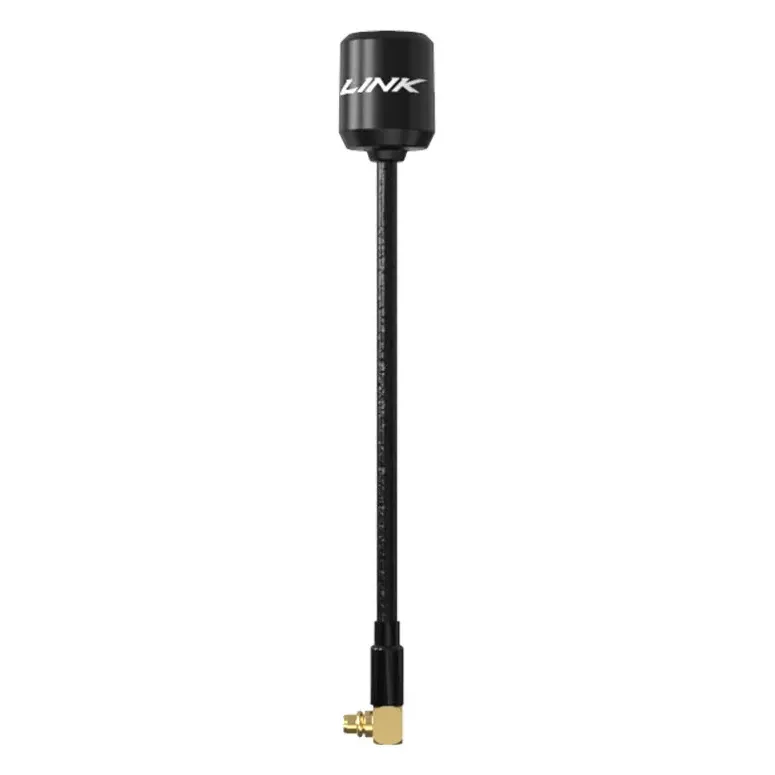

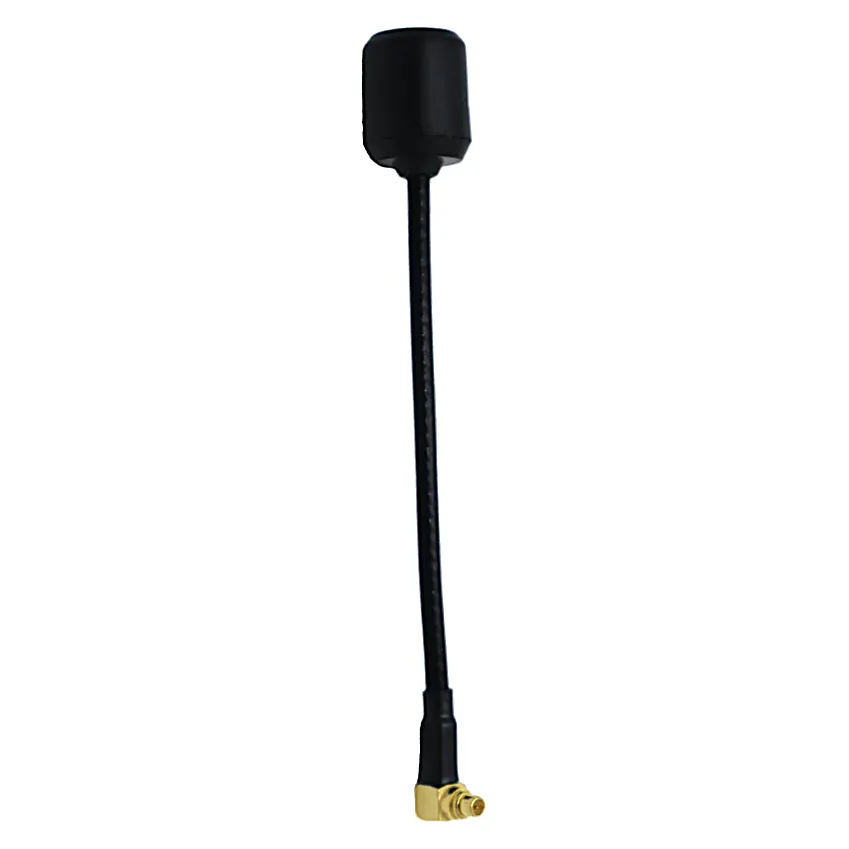

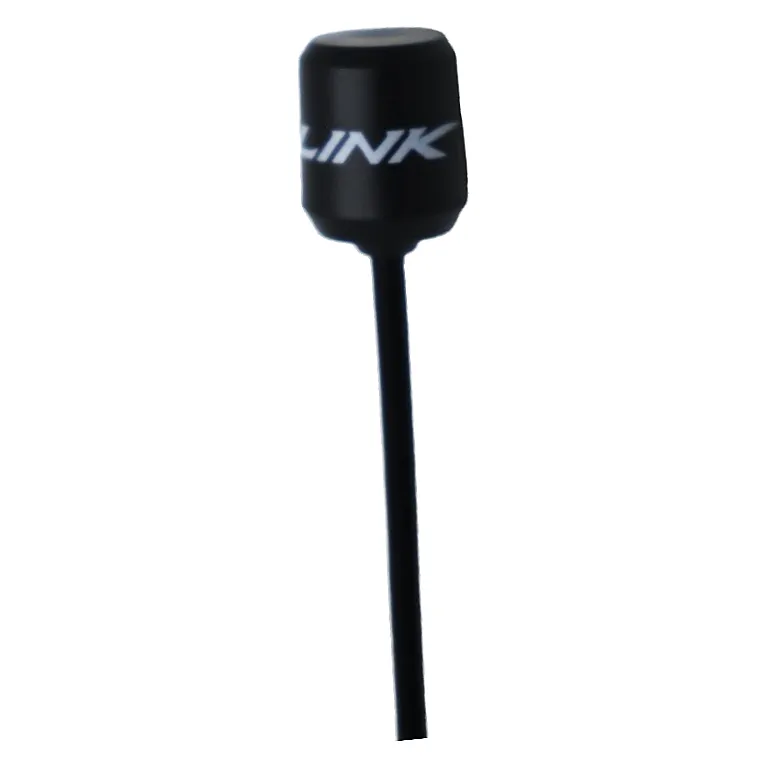

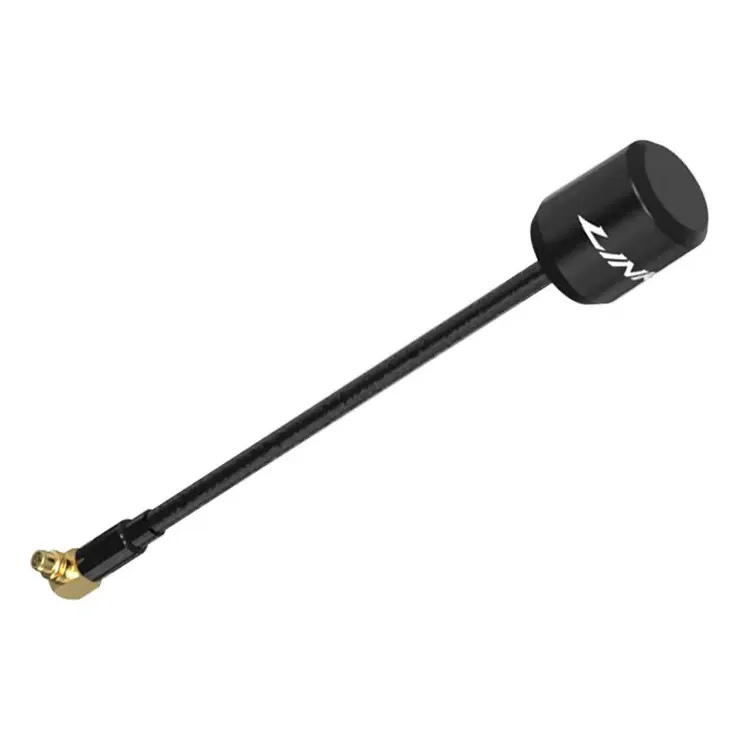

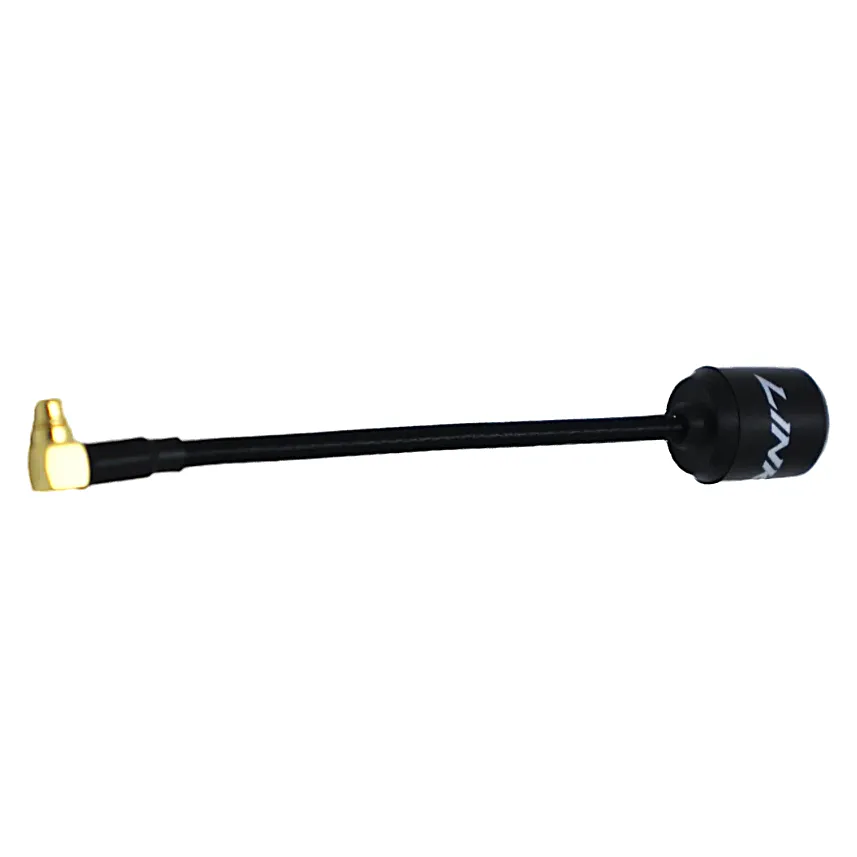

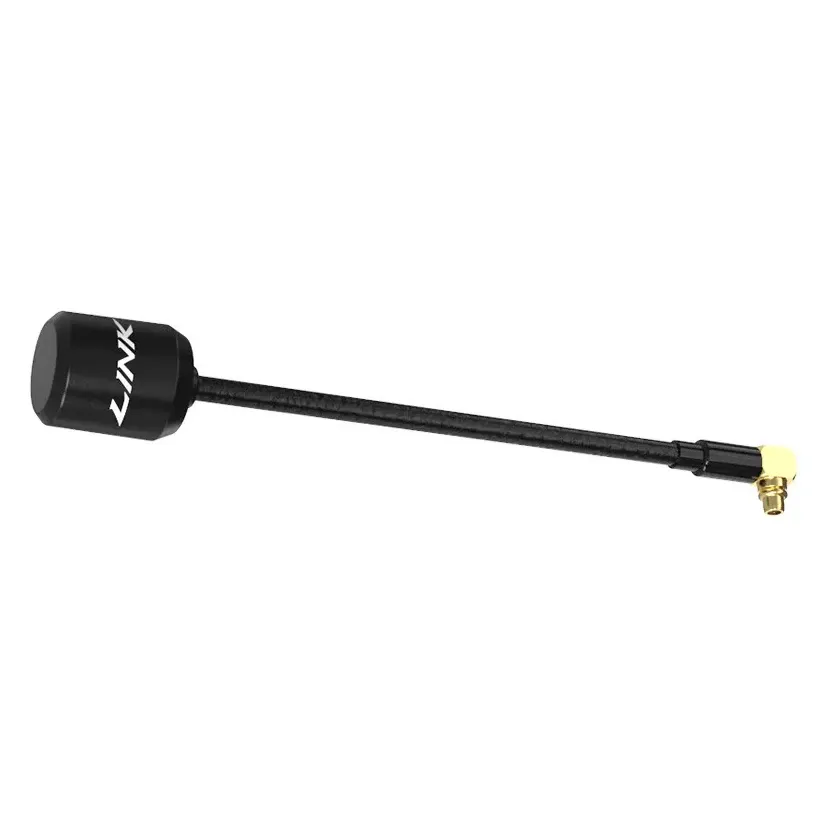

RunCam 5.8GHz MMCX-L Antenna
₹849Incl. GST
SKU RUNCAM-58GHZ-MMCX-L
Polarization: LHCPAntenna Connector: MMCXFrequency: 5.8GHzMade in India: No
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The RunCam 5.8GHz MMCX-L Antenna is a lightweight replacement antenna for analog FPV video transmitters. Featuring a right-angle MMCX connector, it allows the coaxial cable to route flat against the VTX circuit board, saving crucial vertical clearance in tight micro, toothpick, and whoop frames.
Key features
- Right-angle MMCX connector (L-type) for low-profile VTX connections
- Tuned for standard 5.8GHz analog FPV video bands
- Flexible coaxial stem to absorb impacts and resist crash damage
- Compact profile suited for micro drone builds
Specifications
- Brand: RunCam
- Operating frequency: 5.8GHz (5.5-6.0GHz)
- Gain: 2.8dBi
- Polarisation: LHCP
- Axial ratio: below 1.0
- SWR: below 1.1 at 5.8GHz
- Connector: MMCX (Right-angle)
- Dimensions: 11 x 82 mm
- Weight: 3 g
- Quantity: 1 piece
This antenna is a direct fit for any video transmitter equipped with an MMCX port. Ensure your VTX requires an MMCX connection before purchase, as it will not mate with U.FL or SMA connectors without an adapter.
| Polarization | LHCP |
|---|---|
| Antenna Connector | MMCX |
| Frequency | 5.8GHz |
| Made in India | No |
| Brand | RunCam |
