TrueRC Core 5.8 Omni FPV Antenna
SKU TRUERC-CORE-58-LHCP-UFL-45

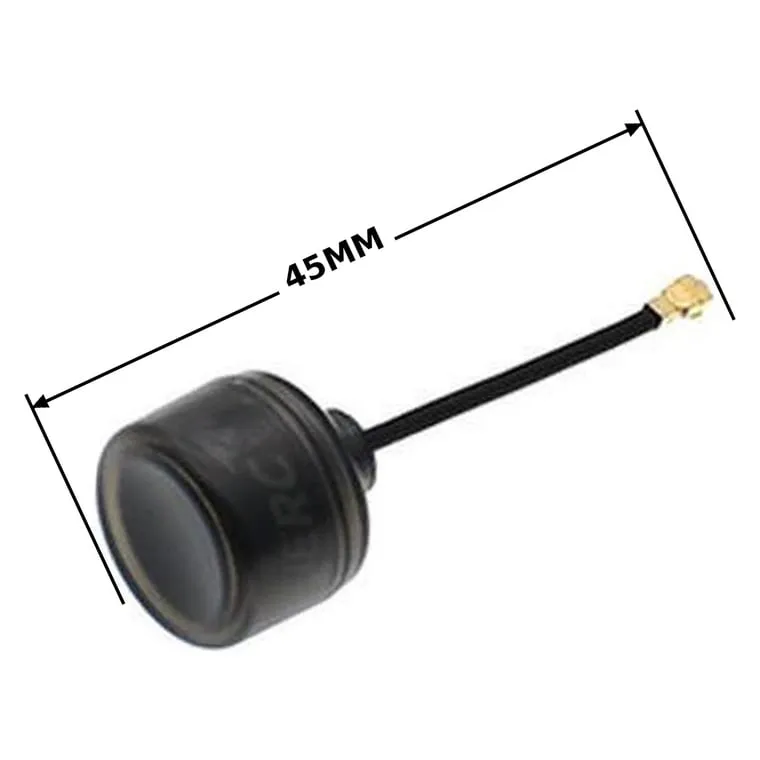

Length: 45mm
Connector: U.FL
Polarization: LHCP
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

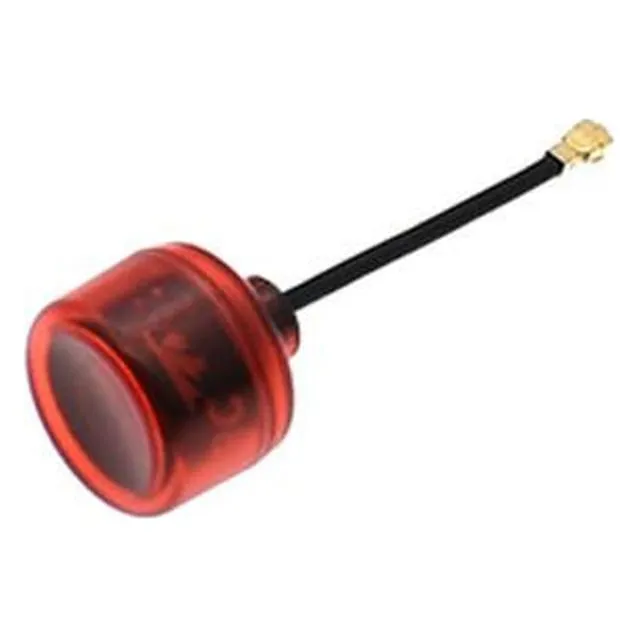

The TrueRC Core 5.8 is an omnidirectional, circularly polarised antenna for 5.8 GHz FPV video, with its element sealed in a polycarbonate housing. The U.FL versions in 45 mm or 85 mm lengths suit VTXs and air units with a U.FL socket, while the 160 mm SMA and RP-SMA versions fit goggles, video receivers and SMA-equipped VTXs.
Key features
- 1.9 dBic gain and 98% radiation efficiency
- Wide 5.5-6.7 GHz bandwidth
- SWR of 1.2:1 or better, with -10 to -20 dB cross-polar rejection
- Polycarbonate housing protects the element; the head measures 16.9 x 13.1 mm

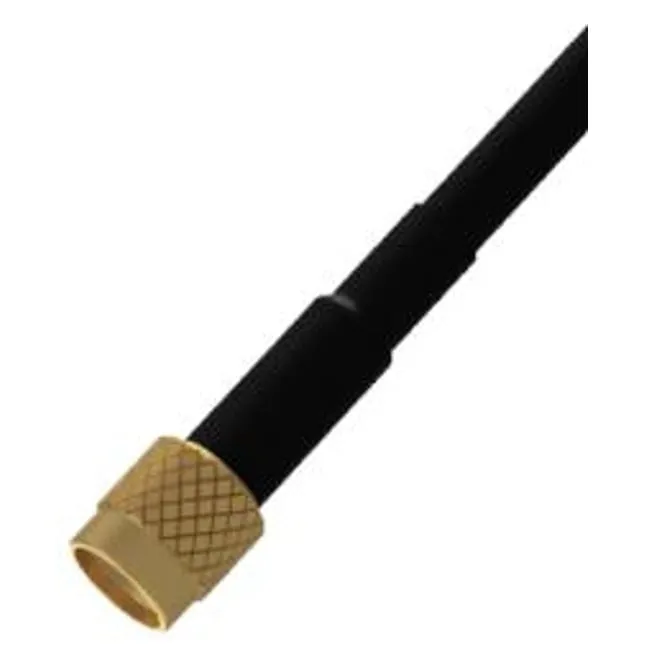

- Reinforced connector on the 160 mm SMA and RP-SMA versions
- U.FL versions come in RHCP or LHCP; the 160 mm SMA and RP-SMA versions are LHCP
Specifications
- Frequency range: 5.5-6.7 GHz
- Gain: 1.9 dBic
- Radiation efficiency: 98%
- SWR: 1.2:1 or better
- Cross-polar rejection: -10 to -20 dB
- Head: 16.9 mm diameter x 13.1 mm high

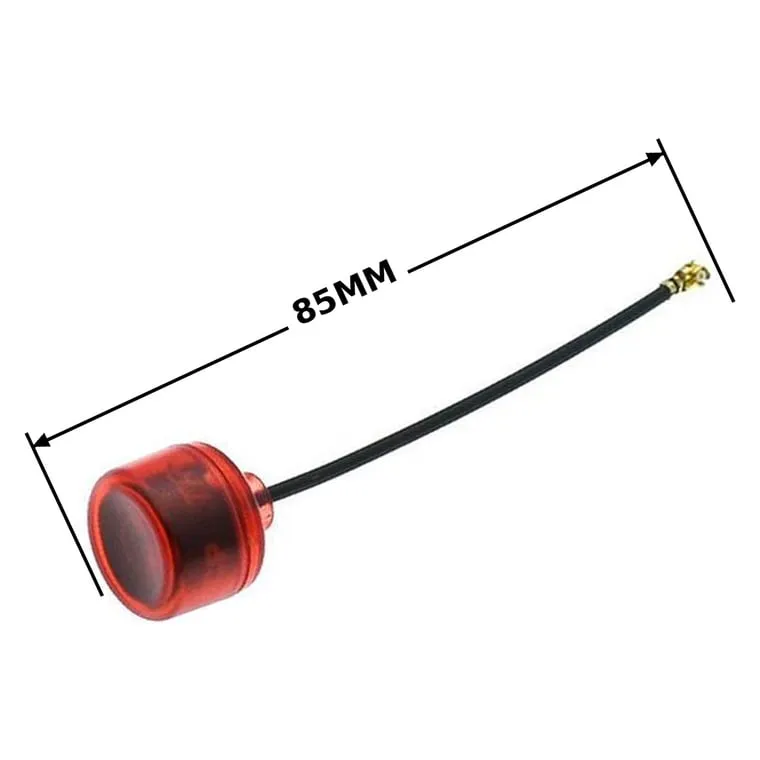

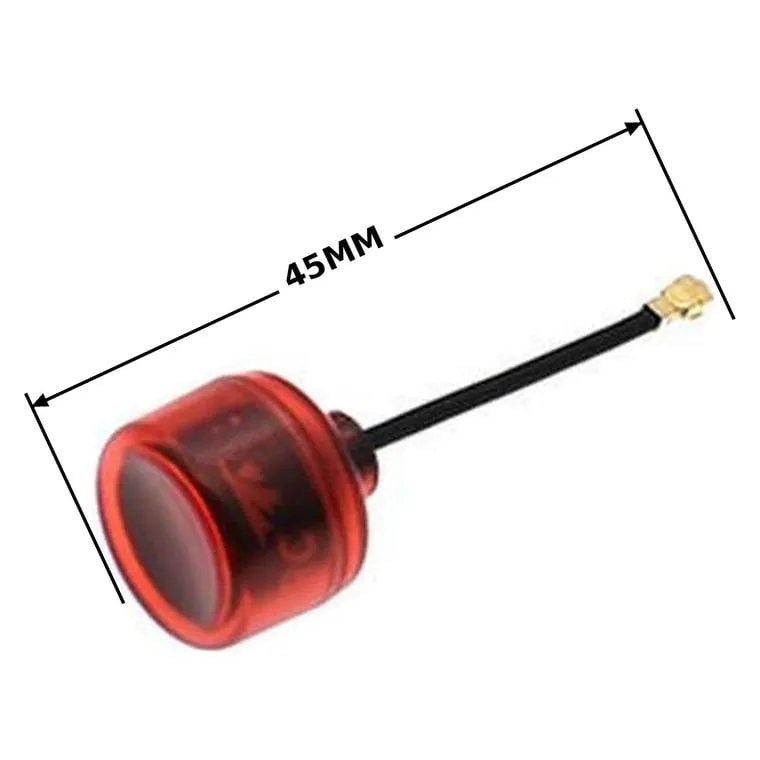

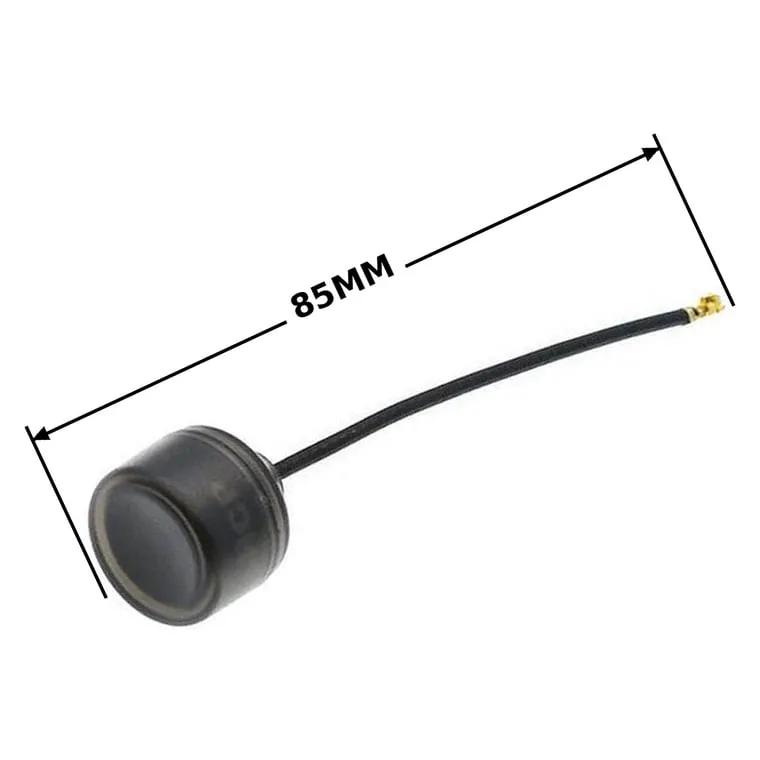

- U.FL versions: 45 mm or 85 mm, RHCP or LHCP

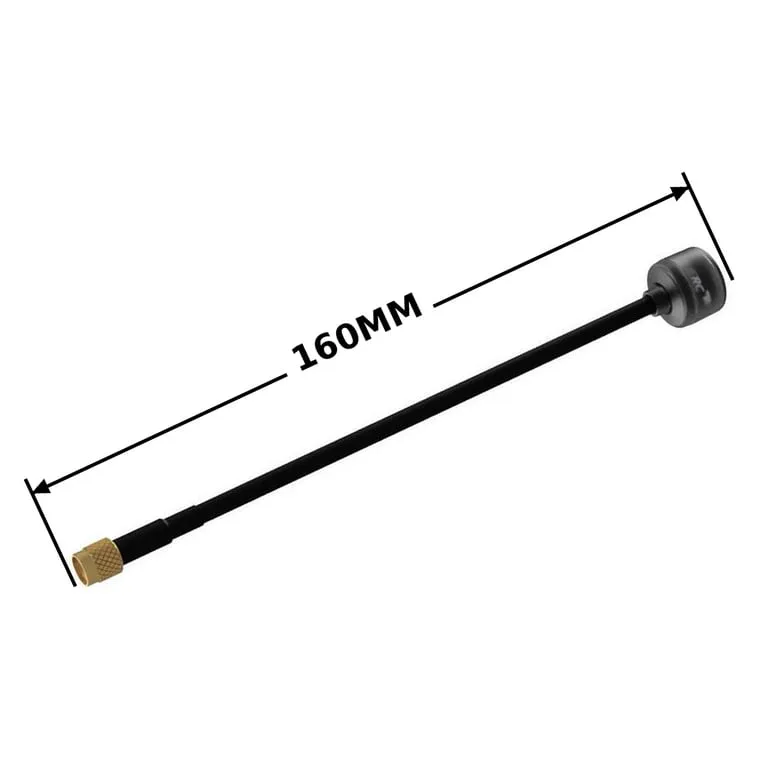

- SMA version: 160 mm, LHCP
- RP-SMA version: 160 mm, LHCP
SMA and RP-SMA look alike but do not mate: a threaded socket with a centre hole takes the SMA version, one with a centre pin takes RP-SMA. Match polarisation at both ends of the link, as mixing RHCP and LHCP costs a large share of signal.
| Polarization | RHCP, LHCP |
|---|---|
| Antenna Connector | SMA, RP-SMA, U.FL |
| Frequency | 5.8GHz |
| Made in India | No |
| Brand | TrueRC |
| Gain | 1.9 dBi |
| Antenna Type | Omni |
