PDBs & Power ModulesAPM/
APM/
₹599Incl. GST
SKU APM-PM-BEC3A-XT60
Input Voltage: 2–6SBrand: GenericBattery Connector: XT-60Output Voltage: 5V
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

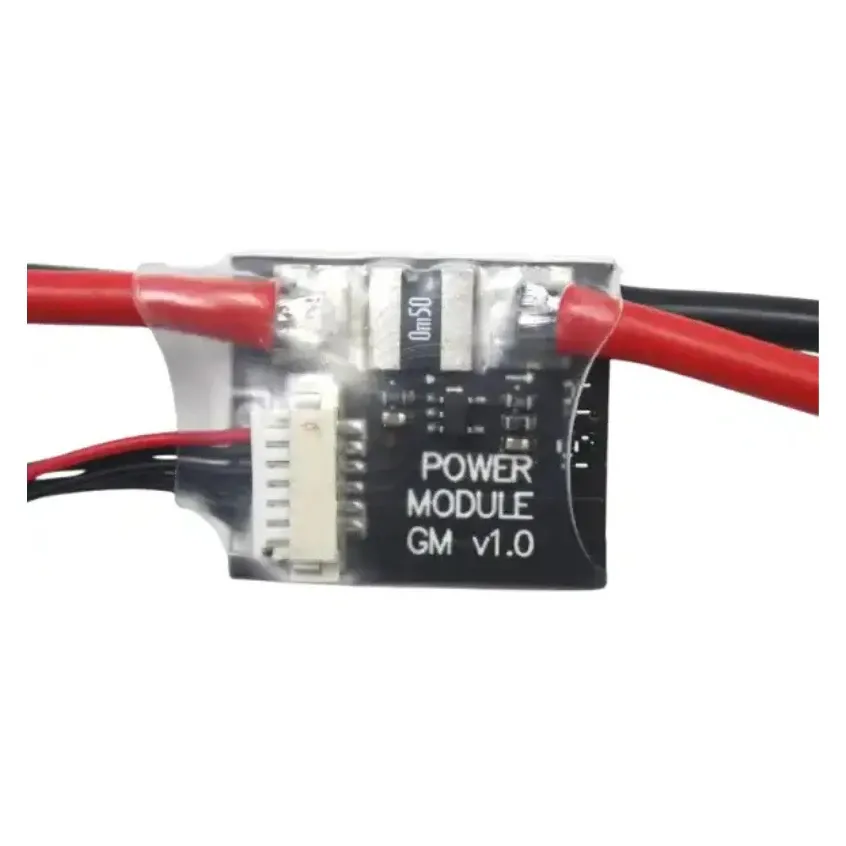

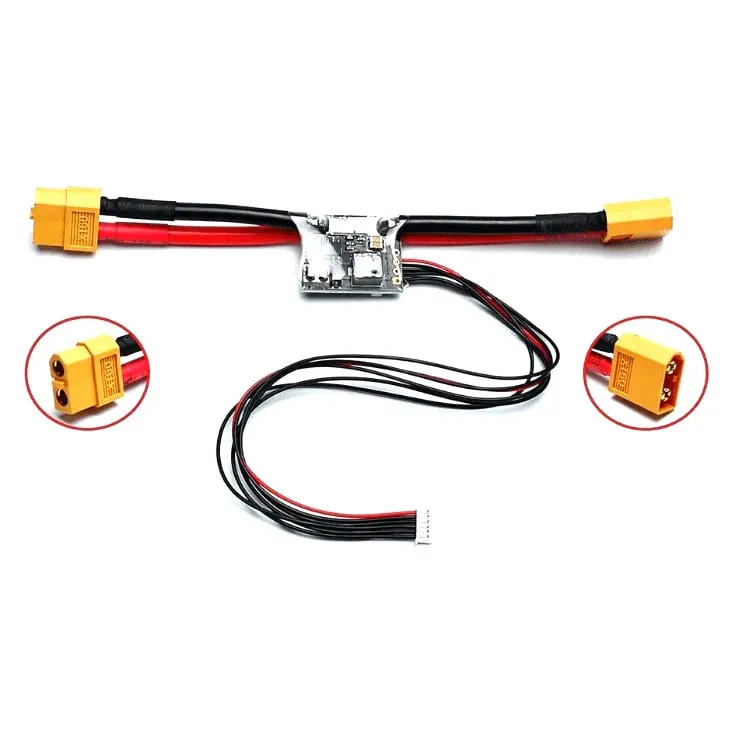

APM/Pixhawk power module with an XT60 main-power connection and integrated 3A BEC for flight-controller and electronics power distribution.
Key features
- Designed for APM and Pixhawk flight-controller systems.
- XT60 connector for the main power input.
- Integrated BEC provides a 3A regulated output.
- Suitable for installations using a 28V maximum main-power rating.
- Supports main current up to 90A according to the listed rating.
Specifications
- Main power rating: 28V, 90A
- Input voltage: 6-28 V (2-6S)
- BEC output: 3A
- Output voltage: 5.3 V
- Current sensing: up to 90 A, voltage and current configured for a 5 V ADC
- Data cable: 6-pin, plugs into the flight controller's power-module port
- Main connector: XT60
The module powers the flight controller, receiver and telemetry/GPS accessories only; it is not meant to power servos.
| Input Voltage | 2–6S |
|---|---|
| Brand | Generic |
| Battery Connector | XT-60 |
| Output Voltage | 5V |
| Current Sensing | 90 A |
