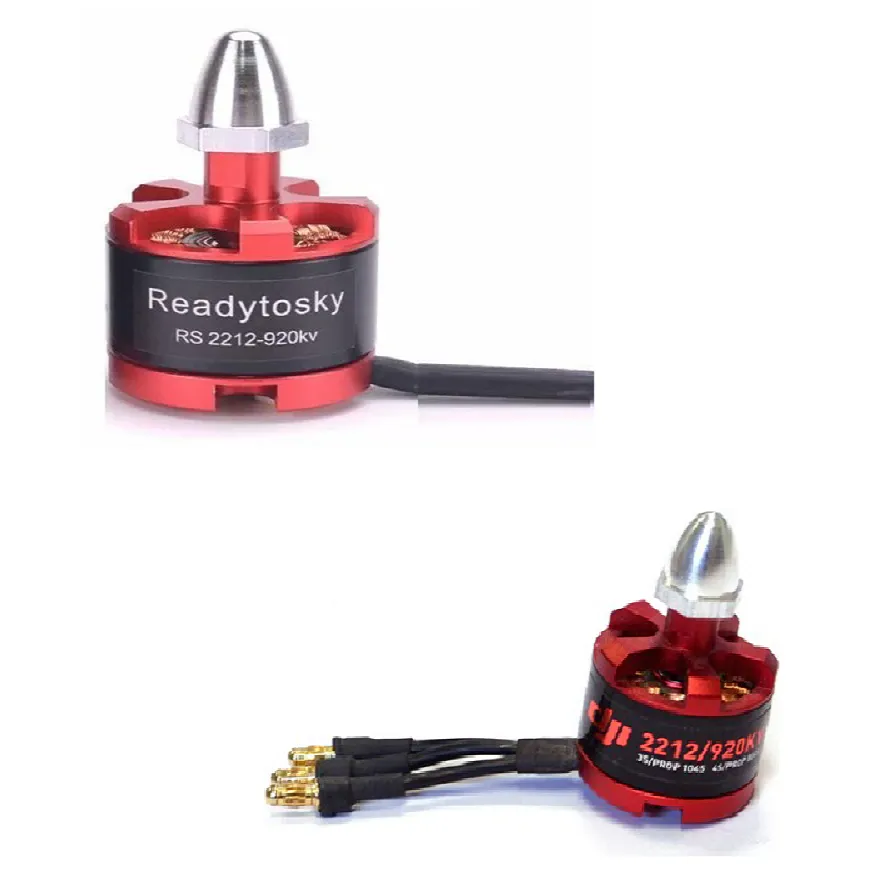

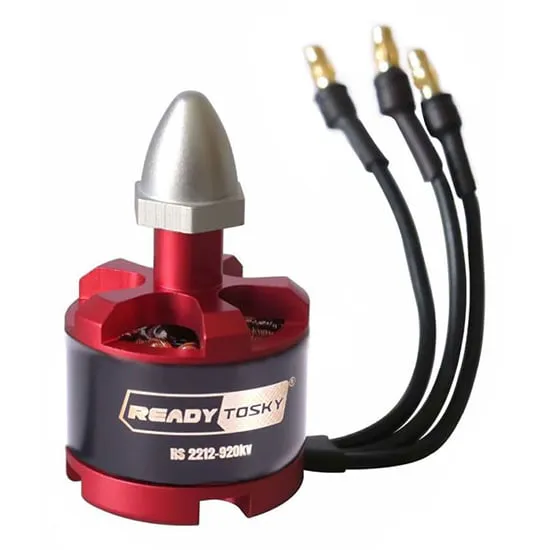

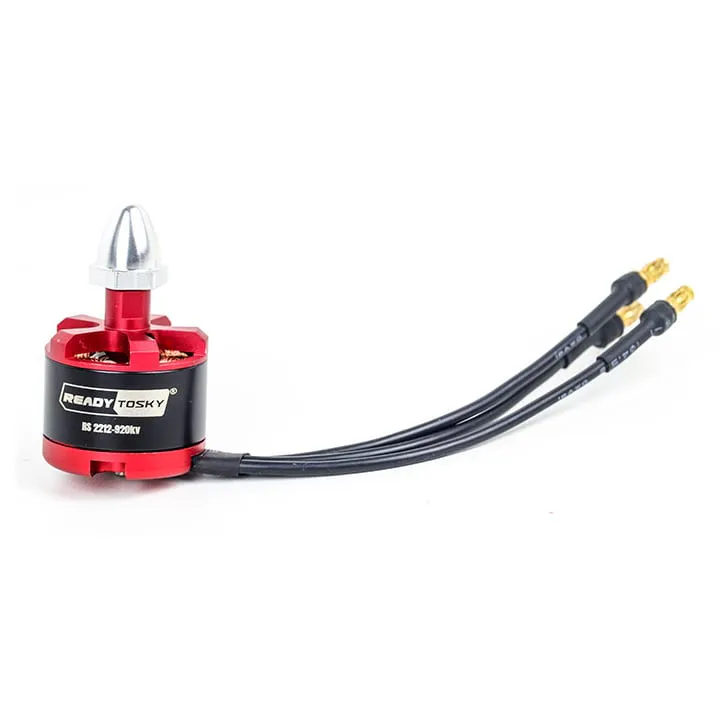

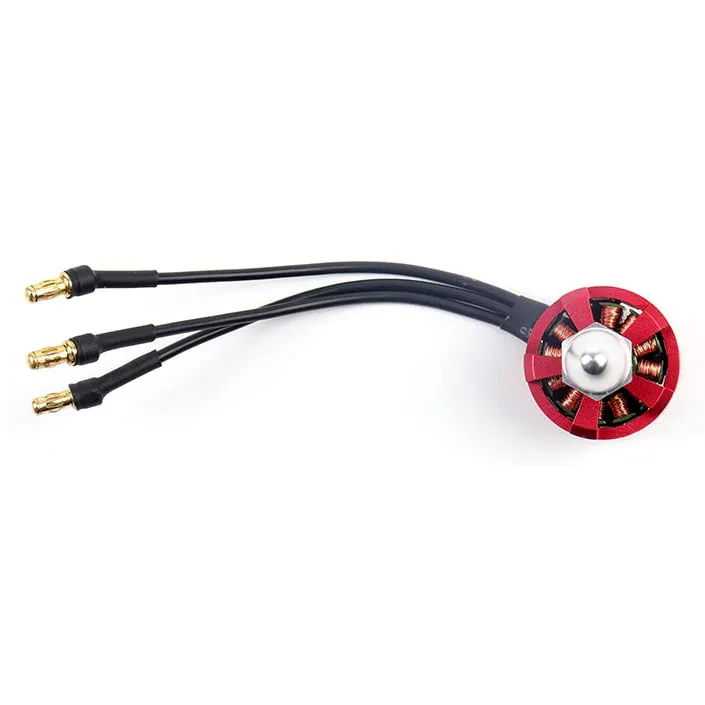

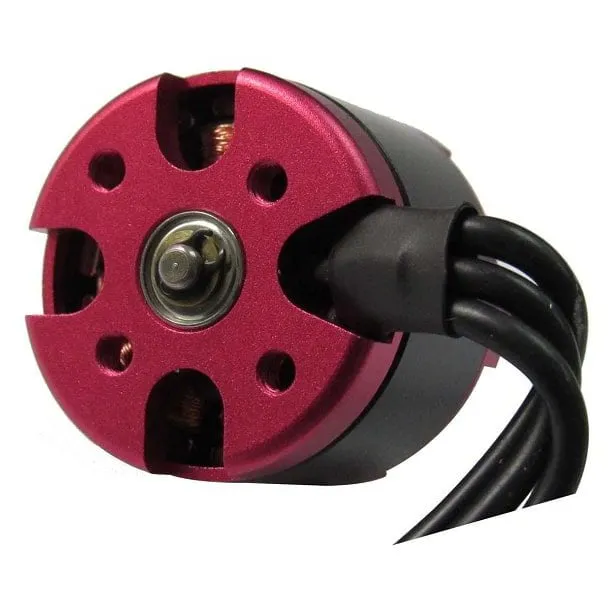

ReadyToSky 2212 920KV CCW Brushless Motor

ReadyToSky 2212 920KV CCW Brushless Motor – Fit and Performance

The ReadyToSky 2212 920KV CCW motor is a mid-power brushless outrunner designed for 3-4-inch to older 5-inch multirotor drones using 3S or 4S LiPo batteries. With a 920RPM/V rating, it trades peak top-speed for torque, giving smoother response and ample thrust (≈500 g) per motor in stable flight. It’s tailored for builds like F450/X525 hexacopters, survey platforms, aerial photography rigs, or retrofitting classic flamewheel frames. CCW (counter-clockwise) rotation makes it suitable as one element in a matched CW/CCW motor pair.

Key features

• Balanced KV Rating: 920KV offers good torque with 3S-4S packs without spinning too fast at idle for cleaner flybarless stability. ([flyrobo.in](https://www.flyrobo.in/readytosky-2212-920kv-brushless-motor-for-drone-ccw-counter-clockwise-direction?utm_source=openai))

• High thrust capacity: Delivers around 0.5 kg of static thrust per motor with suitable props. ([zbotic.in](https://zbotic.in/product/2212-920kv-ccw-brushless-motor-with-readytosky-logo/?utm_source=openai))

• 6 mm shaft diameter: Supports large-hub propellers and solid mounting, reducing flex/stress at the prop motor interface. ([pixelelectric.com](https://www.pixelelectric.com/drones-parts/drone-assembly-parts/motors/2212-920kv-ccw-brushless-motor/?utm_source=openai))

• Robust current handling: Recommended ESC rating around 30 A matching the motor’s demands under heavy hover or full-throttle climbs on 4S. ([pixelelectric.com](https://www.pixelelectric.com/drones-parts/drone-assembly-parts/motors/2212-920kv-ccw-brushless-motor/?utm_source=openai))

• Compact size: With dimensions about 28×28×46 mm and weight ~56-60 g, helps in balancing frame mass and douser of momentum. ([pixelelectric.com](https://www.pixelelectric.com/drones-parts/drone-assembly-parts/motors/2212-920kv-ccw-brushless-motor/?utm_source=openai))

• CCW rotation: Silver-cap marking denotes counter-clockwise spin; required for paired CW/CCW setups to cancel yaw torque. ([creol.ucf.edu](https://creol.ucf.edu/wp-content/uploads/sites/2/2024/08/2023_Spring_G3_Presentation_Slides.pdf?utm_source=openai))

Specifications

• Brand: ReadyToSky

• Model: 2212

• KV rating: 920 KV

• Rotation direction: CCW

• Cell count: 3-4 S LiPo

• Rated current: 30 A

• Shaft diameter: 6 mm

• Dimensions (diameter × stator housing): ≈ 28×28×46 mm

• Weight: ≈ 56-60 g

• Thrust: ~500 g static

Use this motor when you need solid lifting power at moderate RPMs paired with 3S or 4S packs. It excels in quadcopters in the 450-mm class or retro builds where modern high-KV motors overheat or draw too much current. Ensure you use matching CW motors for full quads, frame plates that support the 6 mm shaft hub, and ESCs rated ≥30 A to avoid voltage sag or thermal limits at full throttle.
