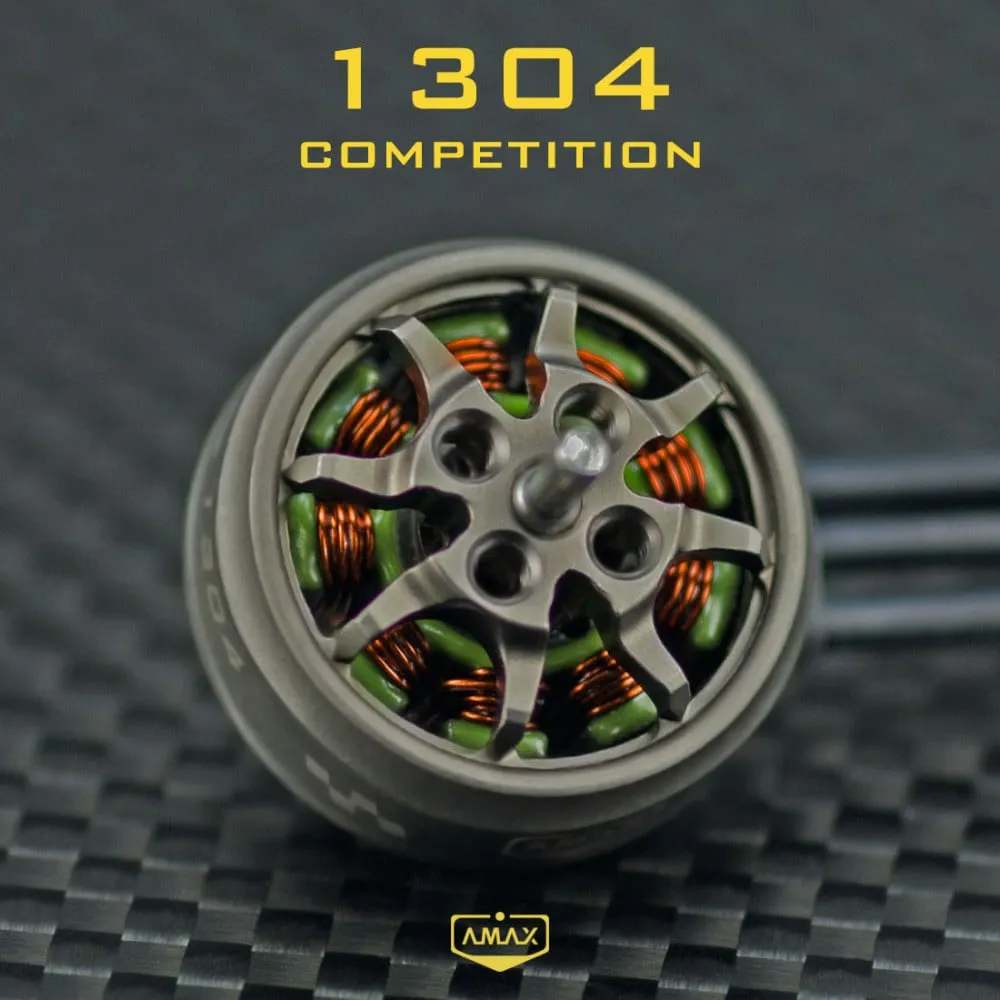

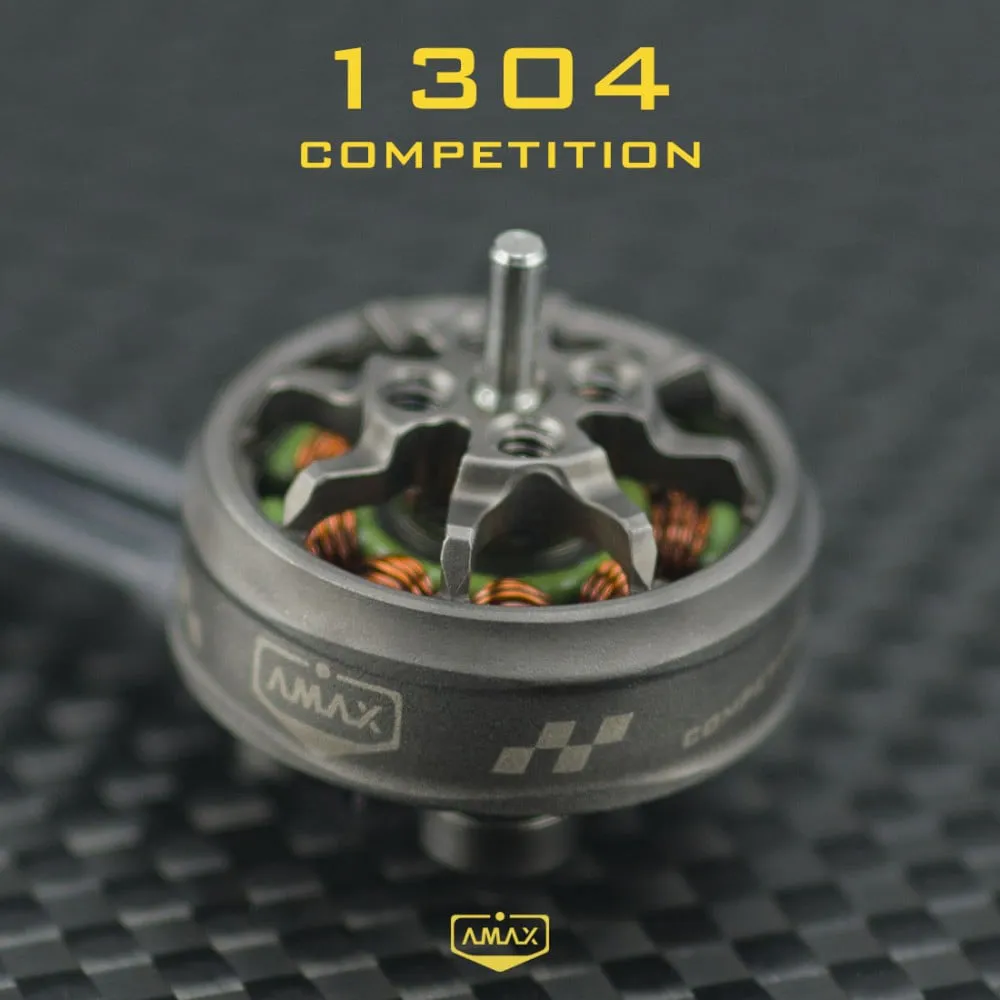

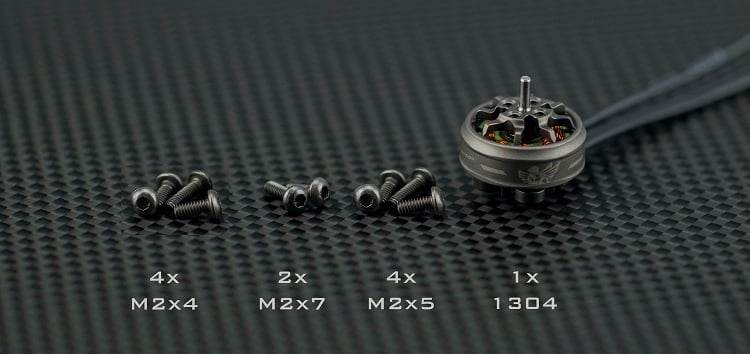

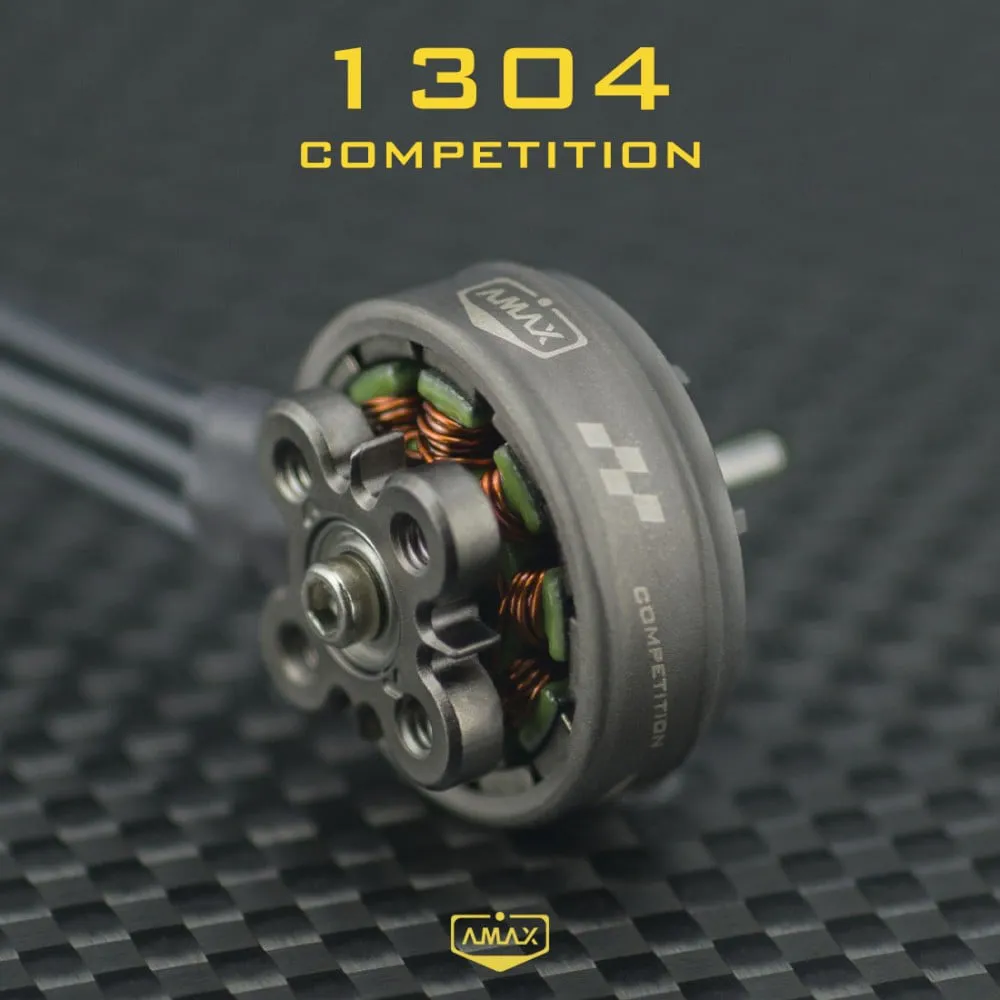

AMAX Competition 1304 Motor
SKU AMAX-COMP-1304-5000KV
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The AMAX Competition 1304 is a precision-engineered micro brushless motor designed for 2.5-inch to 3-inch toothpick drones and sub-250g cinewhoops. Featuring a broad 1304 stator, this motor delivers the aggressive low-end torque required to recover quickly from dives and maintain stability through prop-wash. The 5000KV rating hits the sweet spot for lightweight 3S and 4S LiPo setups, striking a careful balance between raw thrust and flight-time efficiency for micro freestyle or cinematic flying.
Key features

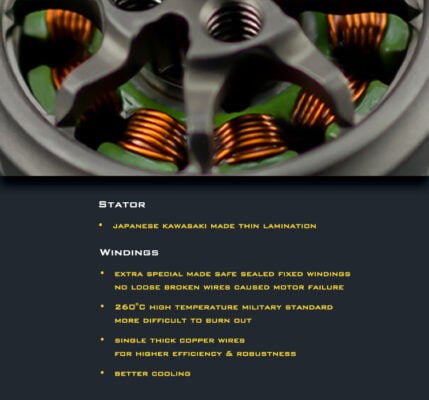

Wide 13mm stator yields excellent throttle response and torque for 2.5-inch and 3-inch propellers
Optimal 5000KV rating tailored for 3S to 4S micro and toothpick builds

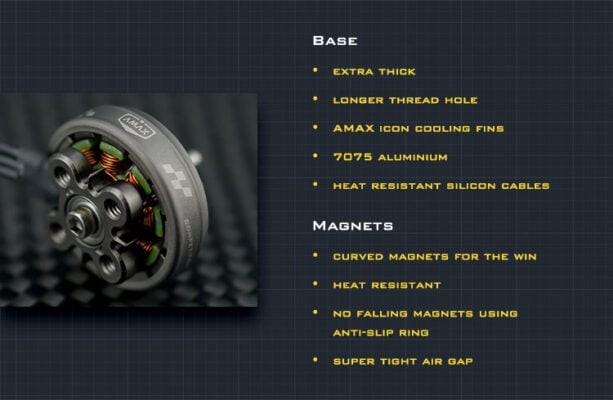

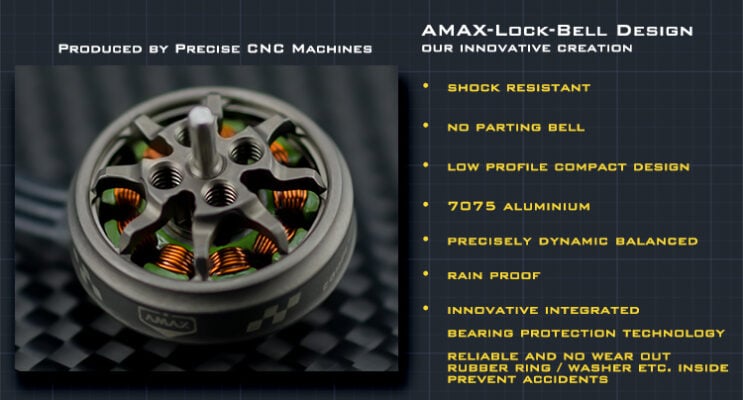

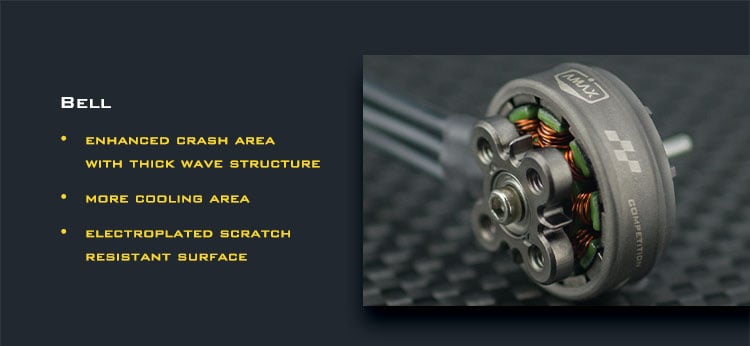

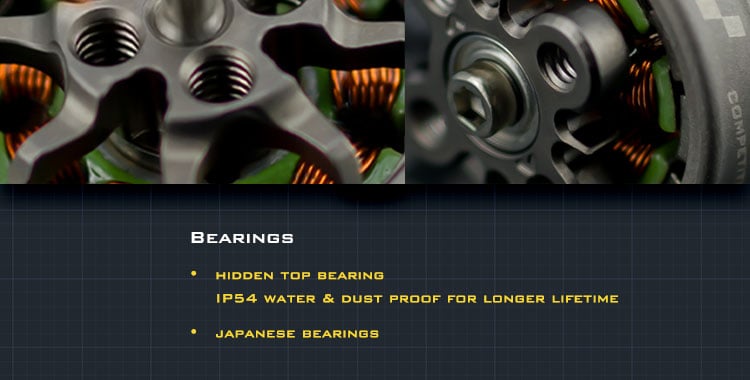

Competition-grade bell and bearing construction minimizes mid-throttle vibrations

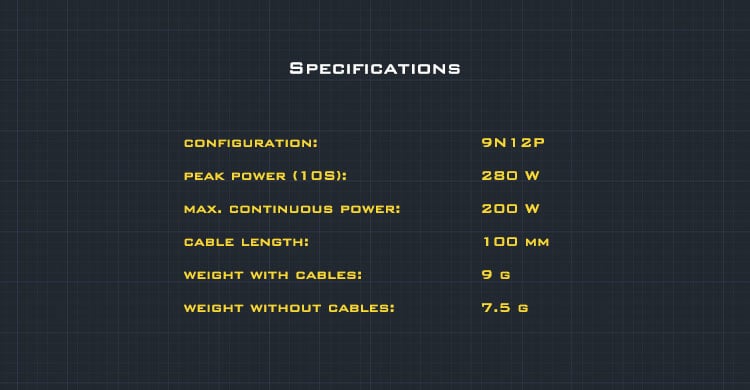

Specifications
Brand: AMAX
Stator Size: 1304
KV: 5000
Supported Voltage: 3-4S LiPo

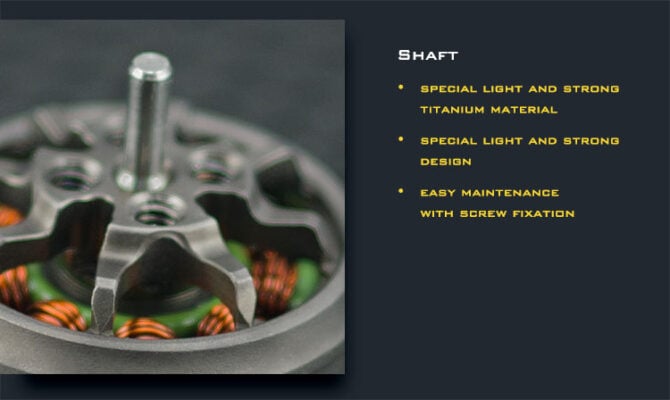

Shaft Diameter: 1.5mm
Match these motors with a 12A to 20A AIO flight controller and a lightweight carbon fibre micro frame to build a highly agile, punchy quadcopter that excels in tight spaces.

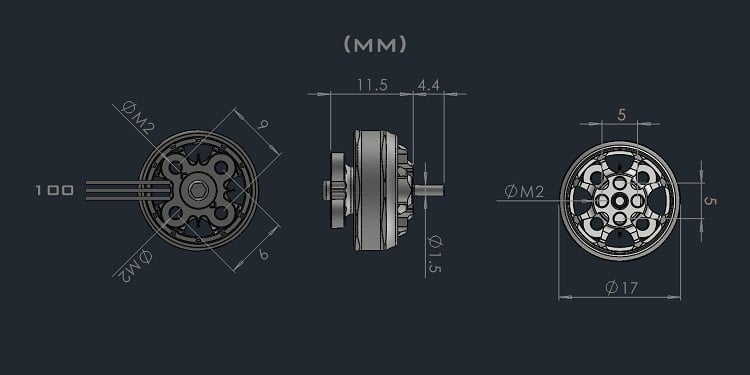

| Stator Size | 1304 |
|---|---|
| Stator Diameter | 13mm |
| Stator Height | 4mm |
| KV | 5000 KV |
| Prop Mount | 1.5mm |
| Shaft | 1.5mm |
| Motor Mount | 9x9mm |
| Input Voltage | 3–4S |
| Brand | AMAX |
| Made in India | No |
