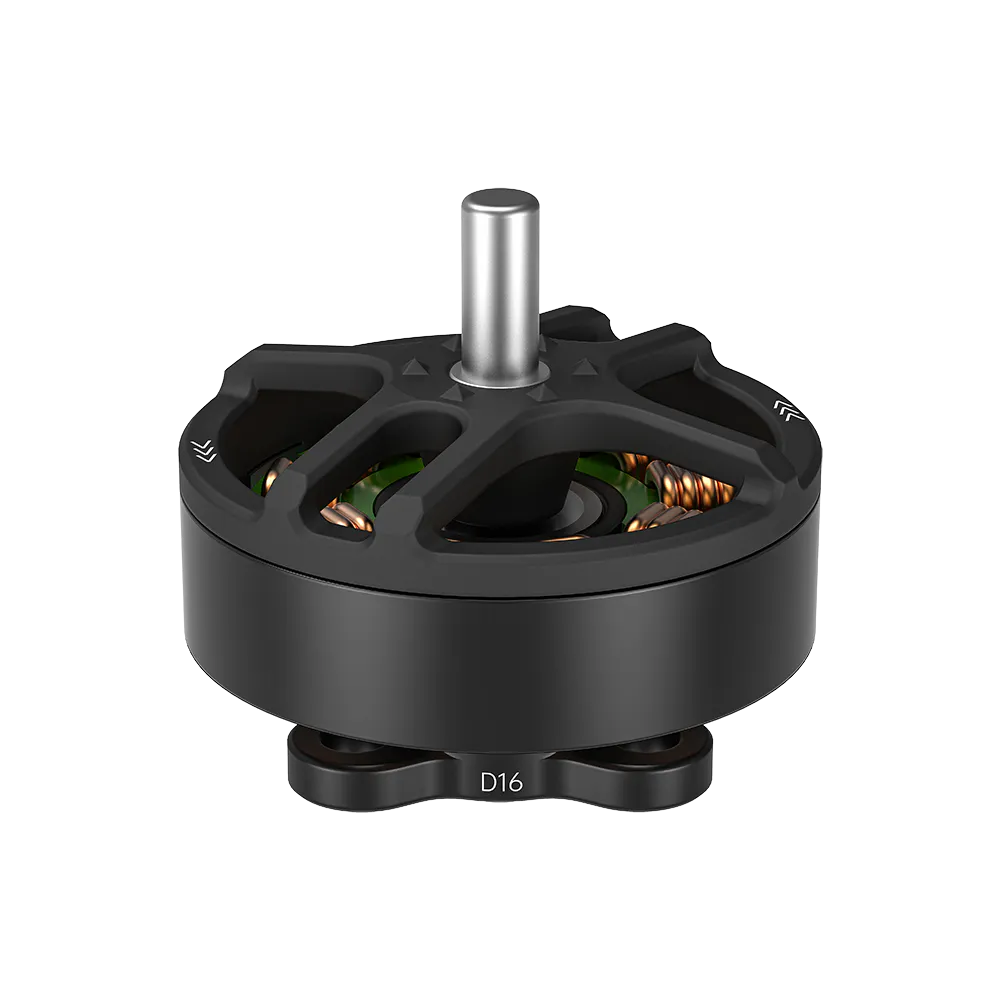

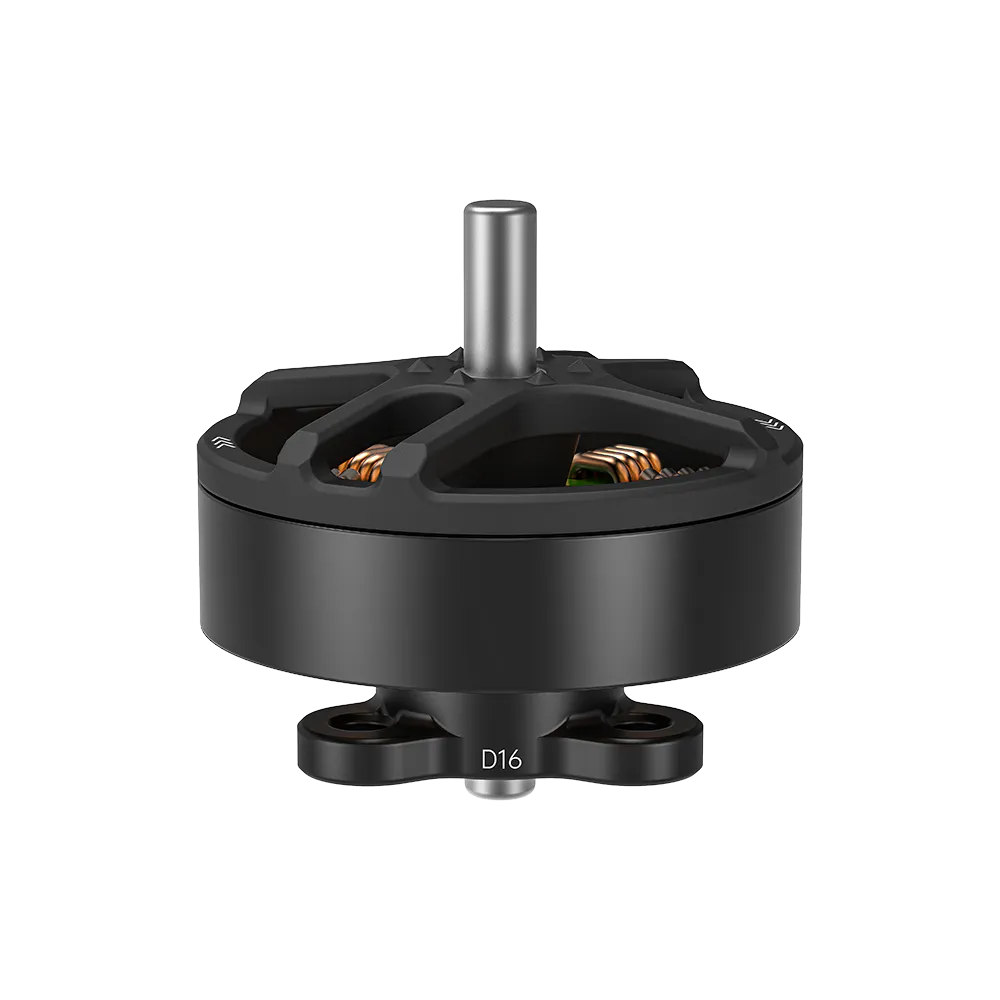

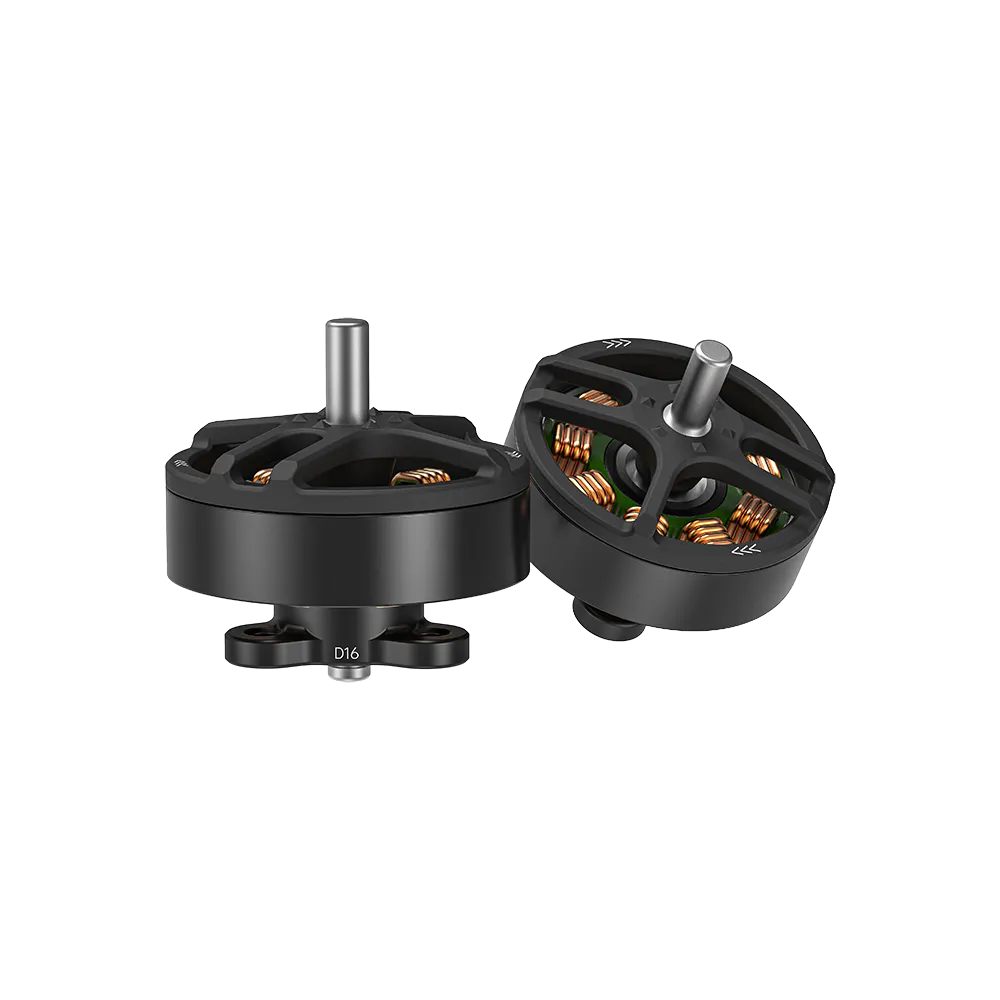

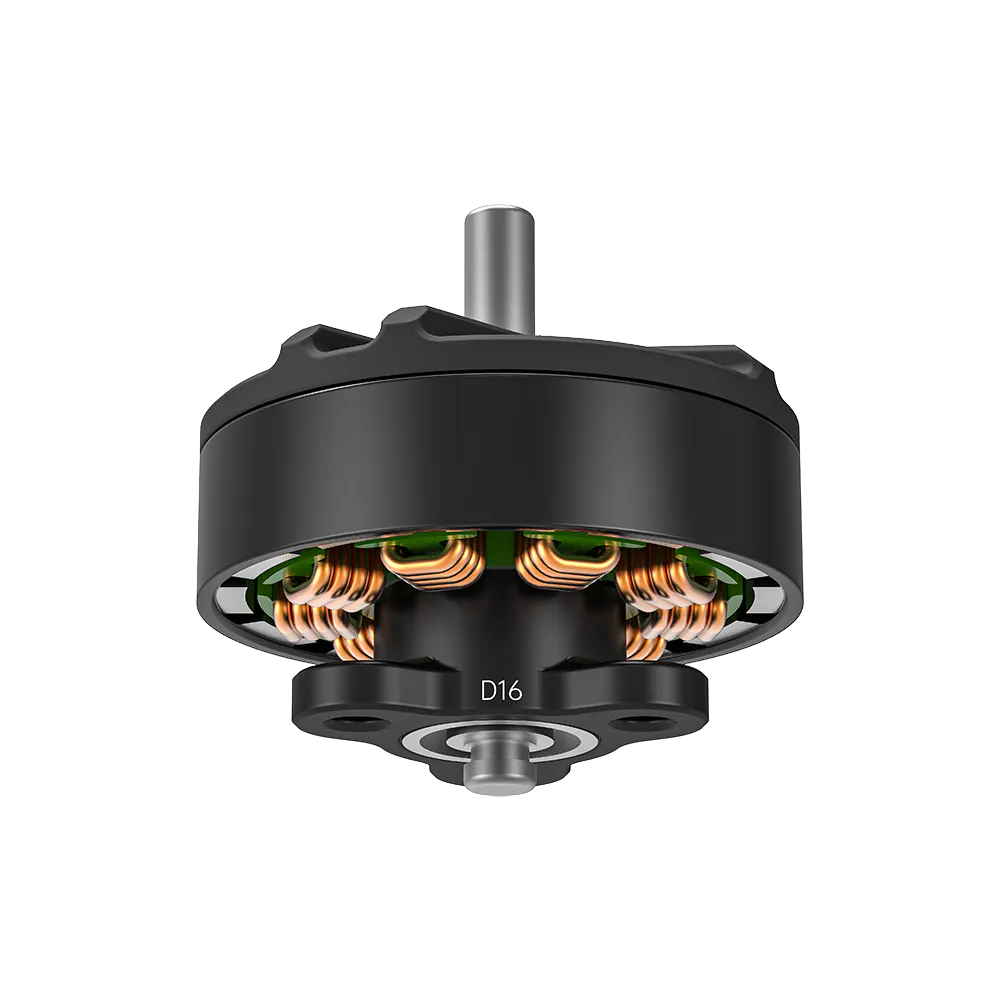

iFlight Defender 16 Motor

These micro FPV motors are direct OEM replacements designed specifically for the iFlight Defender 16 cinewhoop. Built to handle 2S voltage on sub-250g frames, they are offered in two stator sizes to match your quadcopter's weight and VTX payload. The 1103 version is iFlight's upgrade of the original 1002 motor, with the same 14000KV but a higher 10.58A peak current and 121.6W maximum power.

Key features

• Direct replacement motors for the custom iFlight Defender 16 frame
• Optimised for 1.6-inch propellers and 2S LiPo power
• Available in specific CW and CCW configurations for exact matched thrust vectors
• 50 mm 28AWG leads terminated in an SH1.25 3-pin plug (both versions)

Specifications

• Manufacturer: iFlight
• Stator Size: 1002 / 1103 (dependent on variant)
• KV Rating: 14000KV (both versions)
• Input Voltage: 2S
• Shaft Diameter: 1.5mm
• Propeller Mount: press-fit on 1.5mm shaft (3.5mm protrusion)
• Mounting: 3 x M1.4 on 6.6 mm
• 1002 version: 2.7 g with wire, 12.5 x 12.5 mm, 6.87 A peak current, 53.2 W max power
• 1103 version: 3.3 g with wire, 13.3 x 13 mm, 10.58 A peak current, 121.6 W max power

Always verify your existing drone's stator size and motor direction before ordering. Mixing 1002 and 1103 motors on the same quadcopter will cause uneven thrust distribution and poor flight performance.
