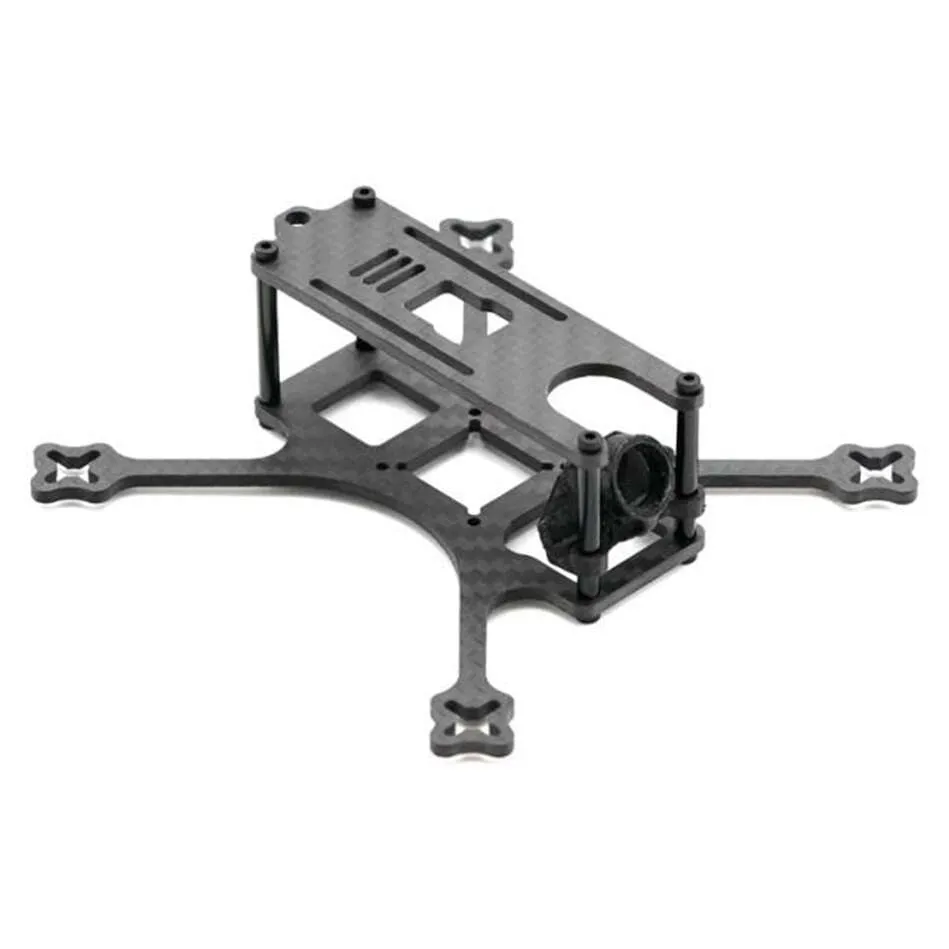

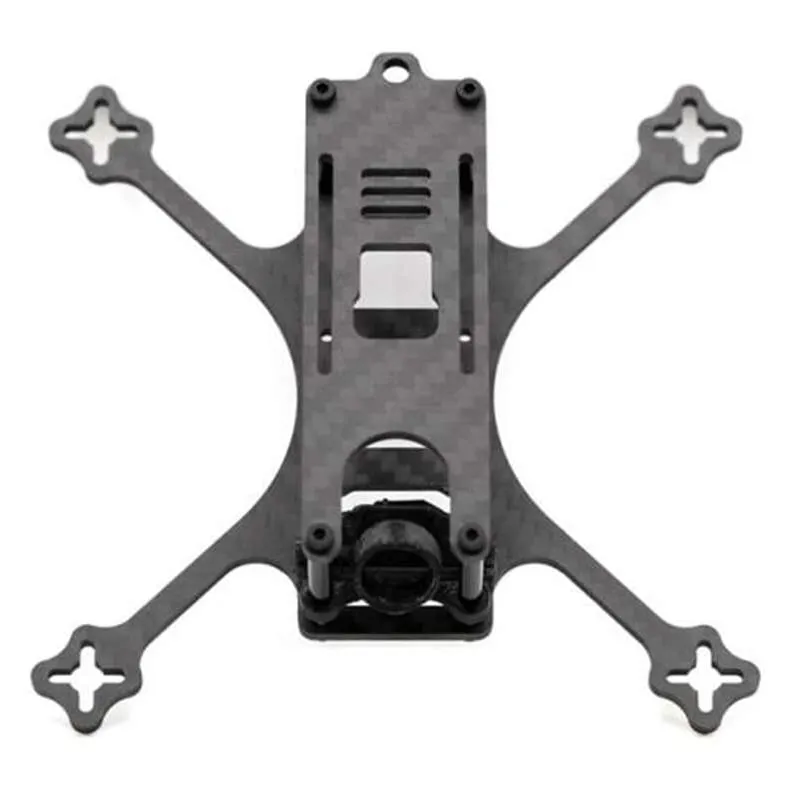

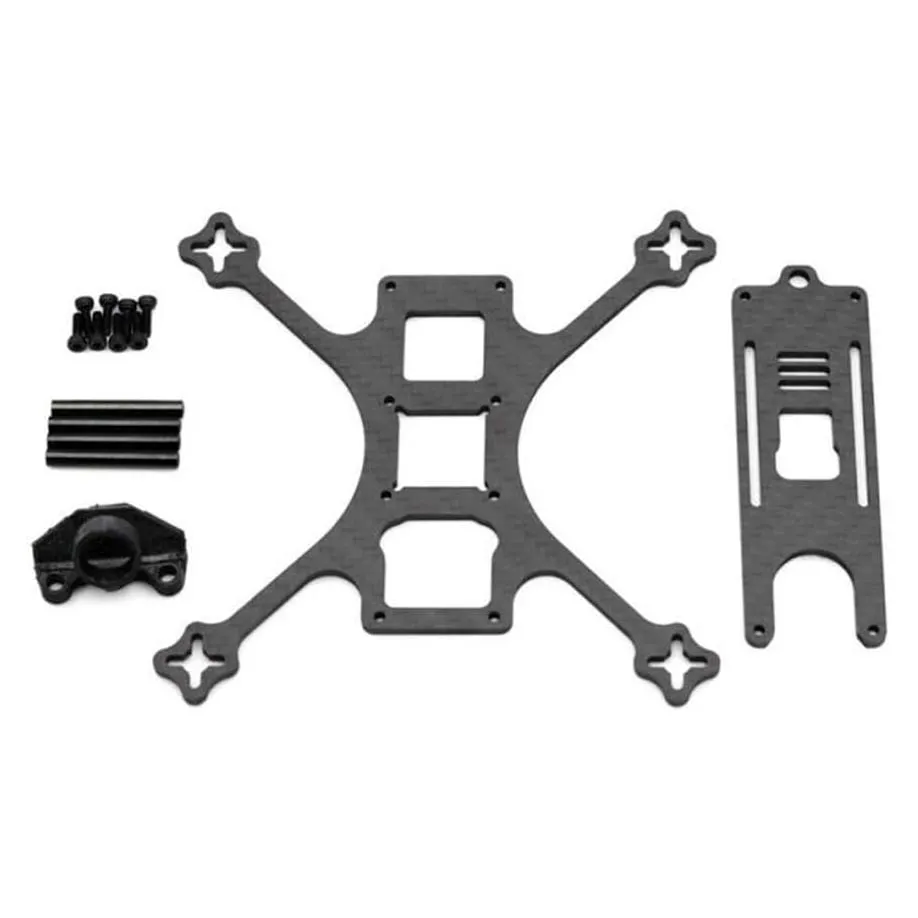

TBS Source Micro V0.2 Frame
₹1,349Incl. GST
SKU TBS-SRC-MICRO-V02
Prop Size: 2"Wheelbase: 120 mmCamera Size: 14mmMade in India: No
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

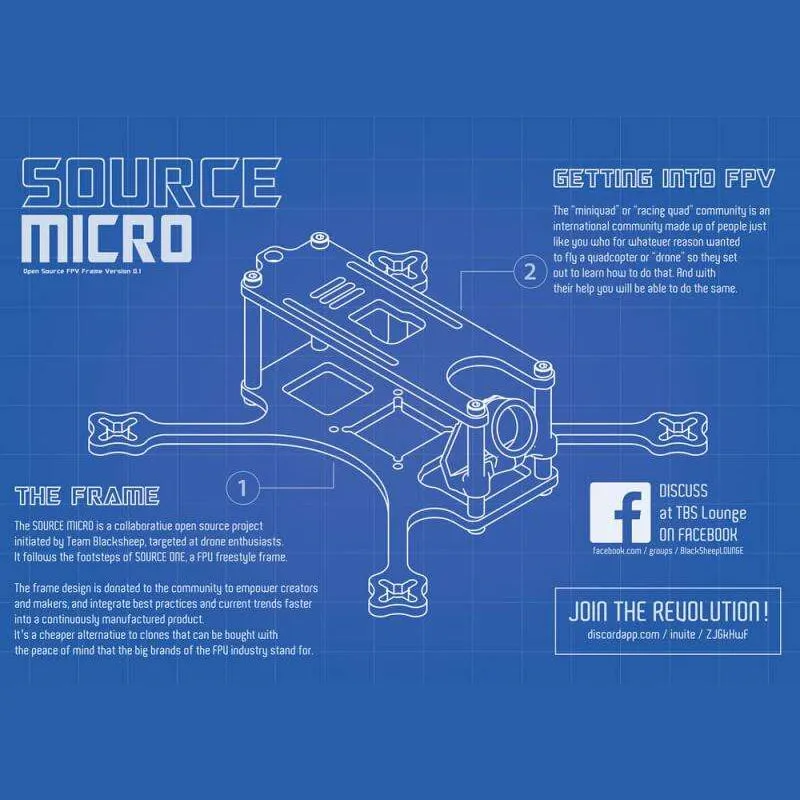

The TBS Source Micro V0.2 is Team BlackSheep's community-designed micro frame for 2 to 2.5-inch FPV builds, built as a low-cost, well-documented base for a small quad that still takes a proper stack.
Key features
- 120mm wheelbase sized for 2 to 2.5-inch propellers.
- 2.5mm carbon fibre top and bottom plates on 20mm standoffs for a rigid, crash-resistant build.
- Takes both 20x20 and 16x16mm stacks, so most micro flight controllers, ESCs and AIO boards fit.
- Best paired with 1103 to 1105 motors and a 450-600mAh 2S-3S battery.
- Design files are published openly, so replacement TPU parts are easy to print or find.
Specifications
- Wheelbase: 120 mm
- Propeller size: 2-2.5 inch
- Top/bottom plate thickness: 2.5 mm
- Standoff height: 20 mm
- Stack mounting: 20x20 and 16x16 mm
- Weight: 19 g
The recommended camera is the TBS Tiny Cam with a TBS Unify Pro32 Nano or Pro Nano VTX, giving a complete micro stack sized to match the frame.
| Prop Size | 2" |
|---|---|
| Wheelbase | 120 mm |
| Camera Size | 14mm |
| Made in India | No |
| Brand | TBS |
| Weight | 19 g |
| Material | Carbon Fiber |
| Mounting Size | 20x20, 16x16 |
