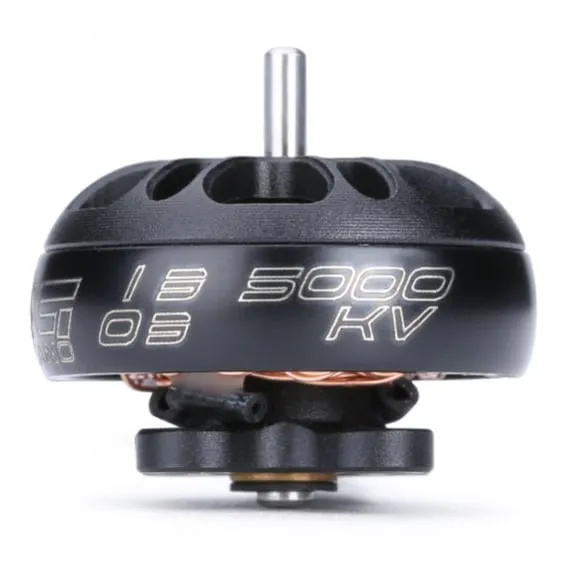

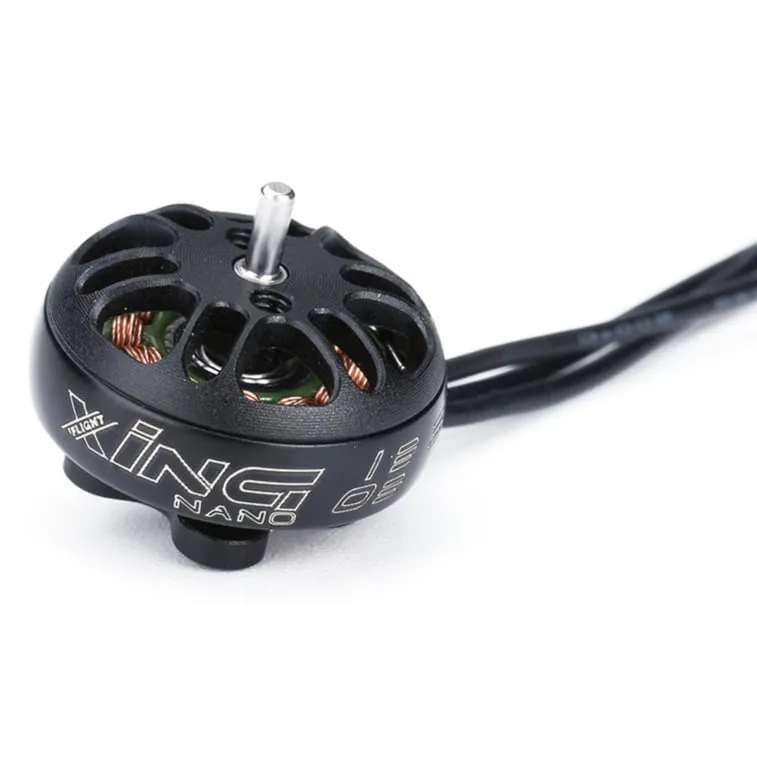

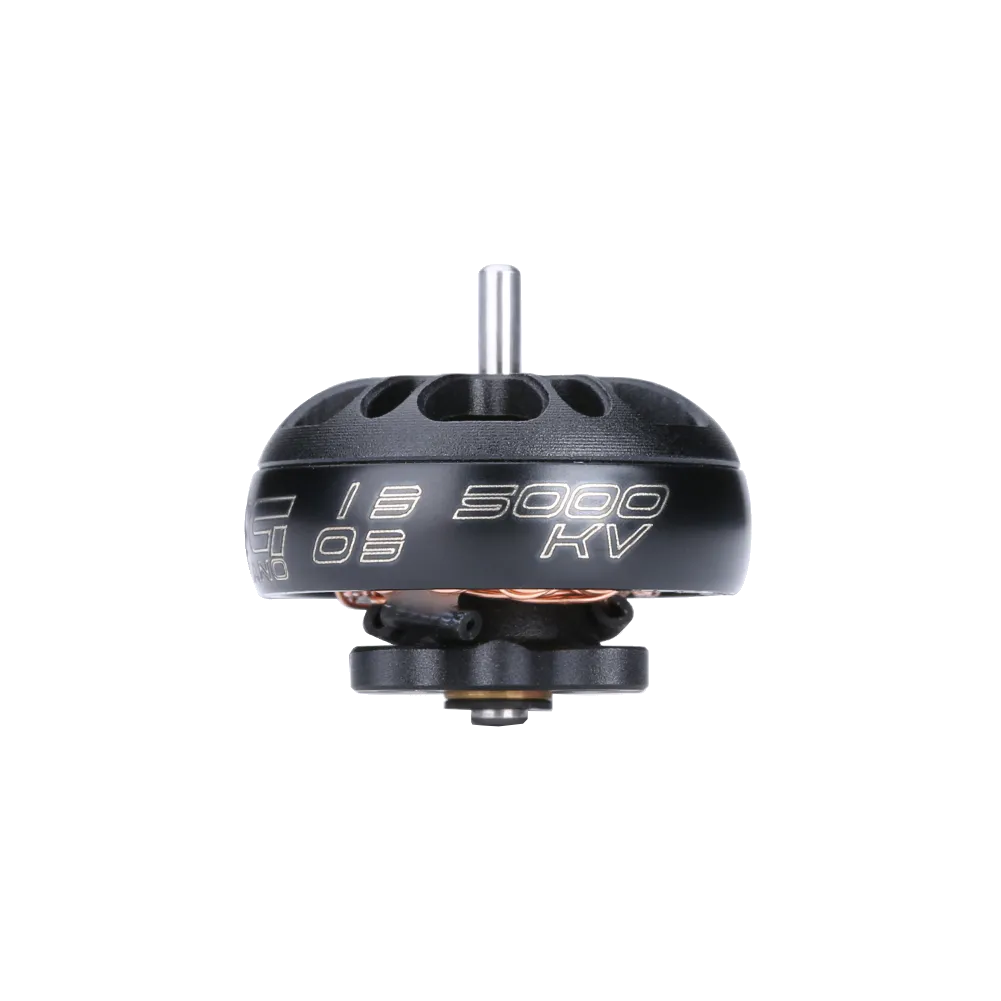

iFlight XING 1303 5000KV FPV Motor

The iFlight XING 1303 5000KV is a micro motor engineered for 2-inch and 3-inch cinewhoops, alongside ultralight toothpick frames. Optimised for 2S to 4S LiPo setups, it provides precise throttle resolution and the torque required to carry HD cameras in tight indoor proximity flights or micro freestyle rigs.

Key features

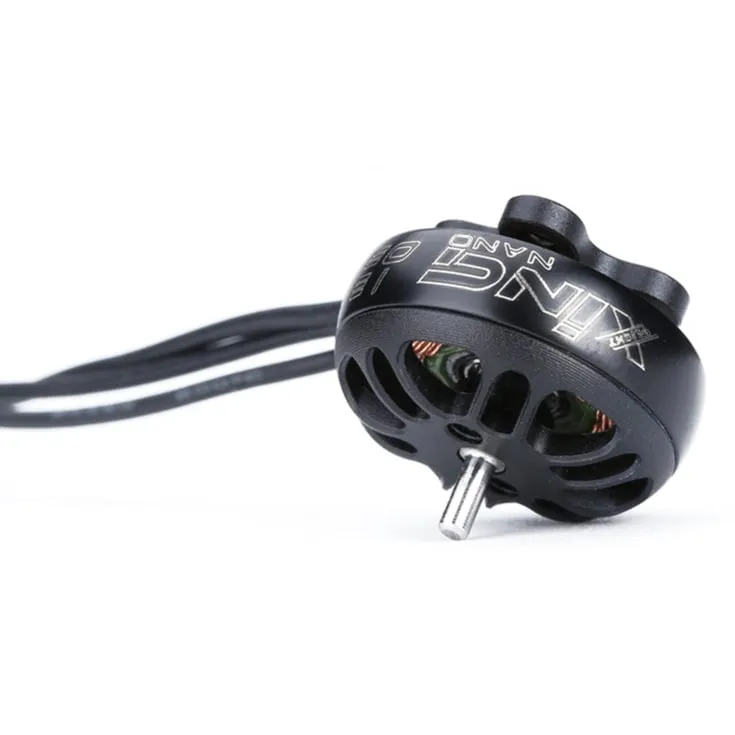

• Durable unibell housing resists bell warping and limits damage during hard crashes
• Built with high-temperature N52H magnets and premium Japanese NSK bearings for reduced vibration

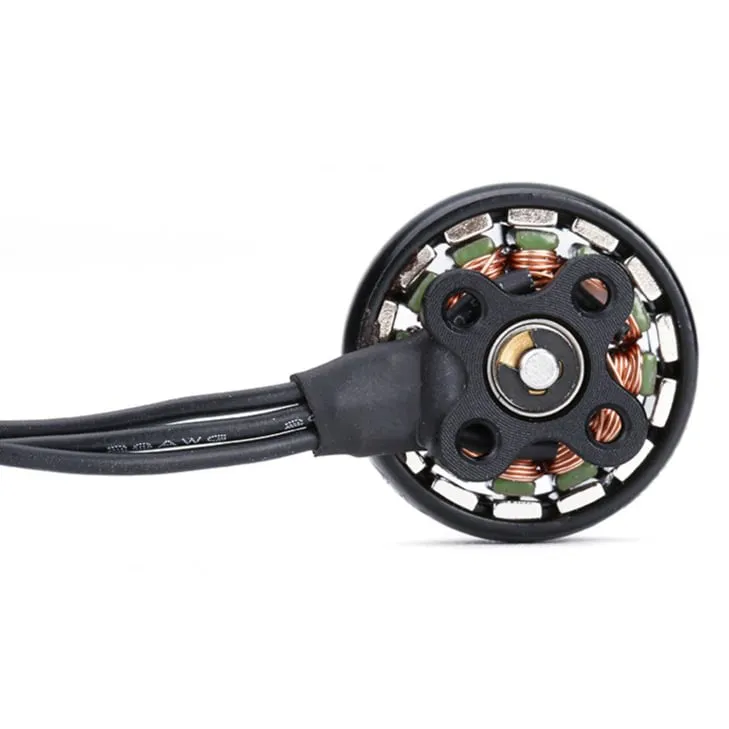

• Standard 9x9mm base matches the majority of modern whoop and micro frames

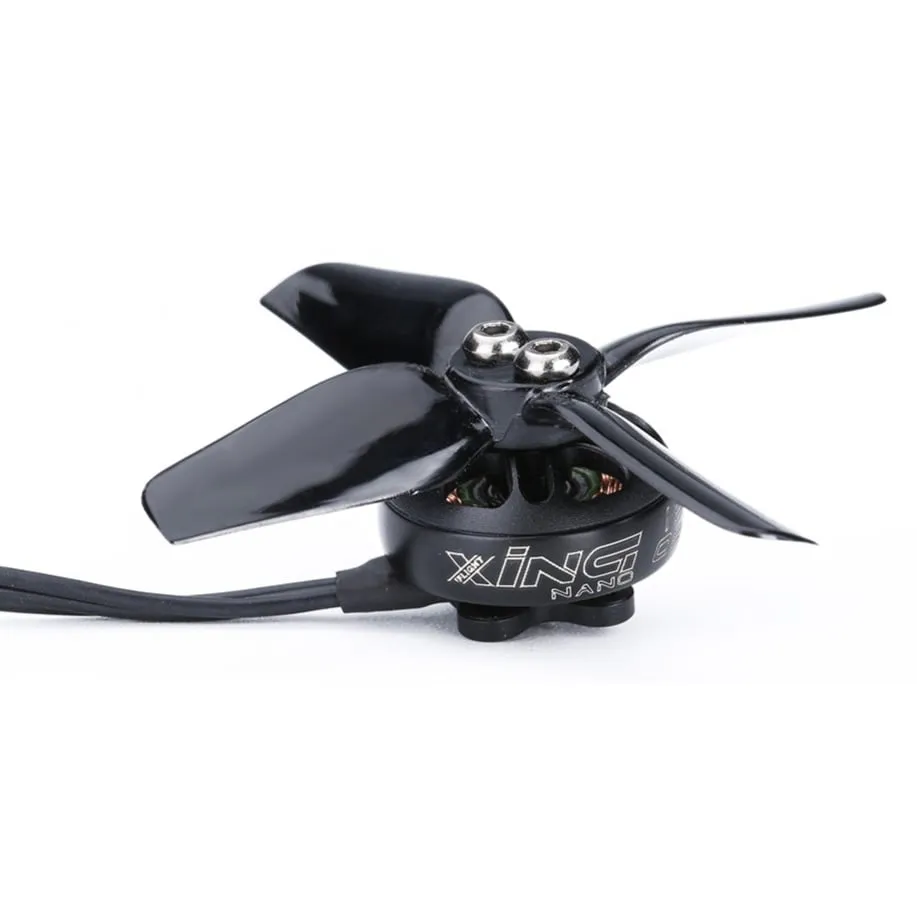

• Outfitted with a 1.5mm shaft to accept a wide variety of T-mount and press-fit propellers

Specifications

• KV: 5000
• Configuration: 9N12P
• Stator Dimensions: 13x3mm
• Shaft Diameter: 1.5mm
• Mounting Pattern: 9x9mm, M2
• Input Voltage: 2-4S LiPo

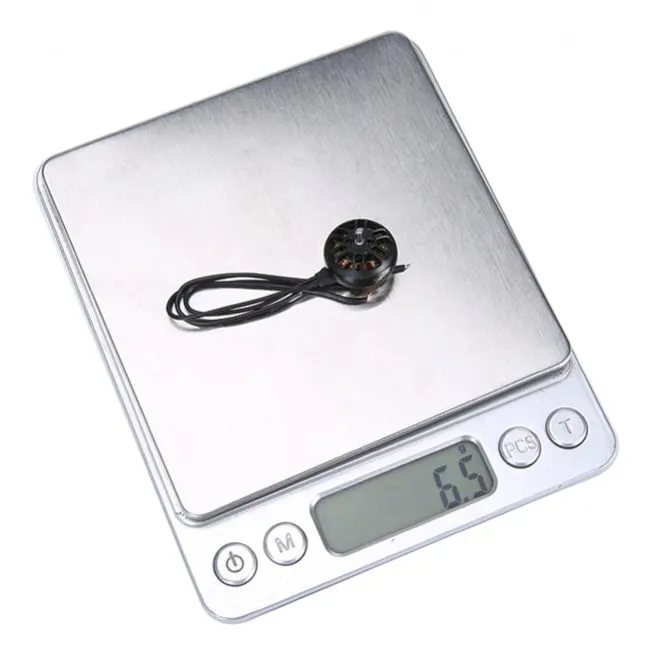

• Weight: 6.5g (including wires)

Pair these motors with a 15A to 20A AIO flight controller and 2.5-inch propellers to balance thrust and flight time on a sub-250g build.
