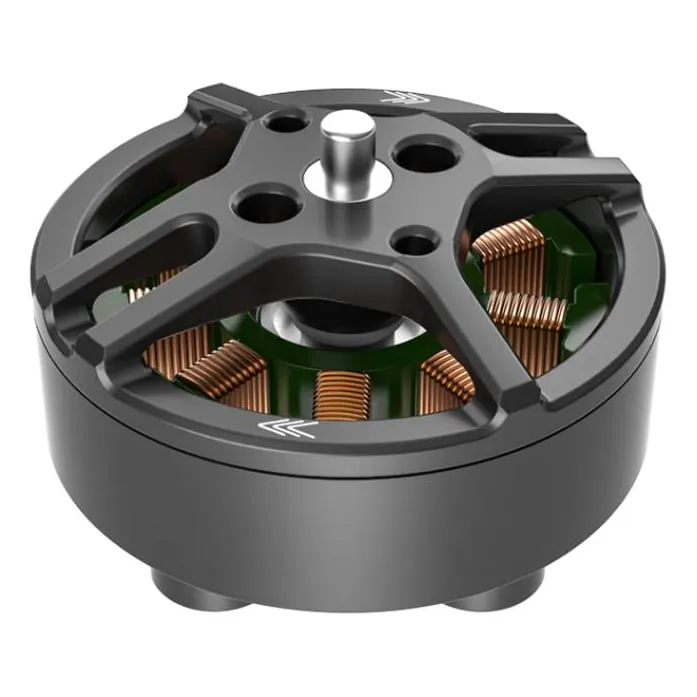

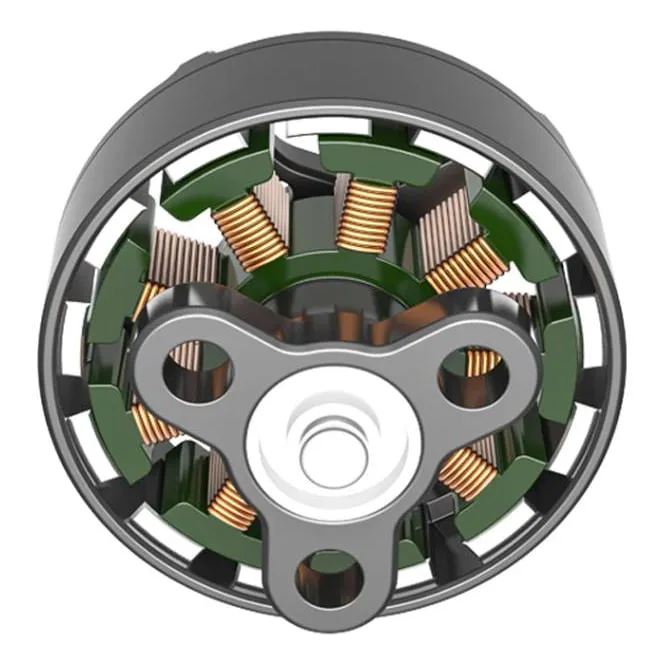

iFlight Defender 25 1404 4150KV Motor
SKU IFL-DEFENDER25-1404-4150KV-CCW

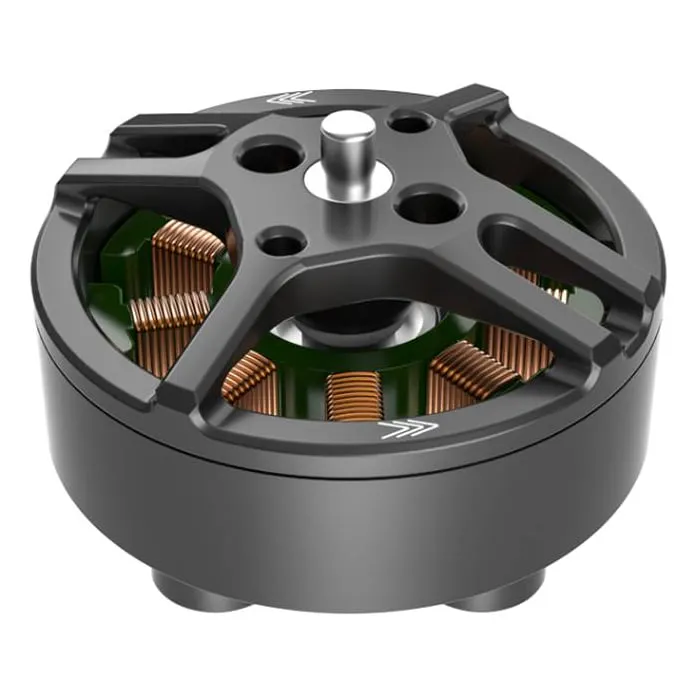

Rotation: CCW
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The iFlight Defender 25 1404 4150KV is a replacement brushless motor for the iFlight Defender 25 sub-250g cinewhoop, tuned for 4S power systems and 2.5-inch propellers. Available in CW and CCW rotation, its segmented-bell design delivers smooth throttle response and efficient cruising for micro pushers, toothpicks and lightweight cinematic builds.
Key features
- Direct replacement motor for the iFlight Defender 25 pusher cinewhoop
- Segmented-bell rotor with N52H curved magnets for quick, efficient spin-up
- Optimised for 4S LiPo voltage (16.8V) and 2.5-inch lightweight propellers
- Available in CW and CCW rotation variants to match your motor layout

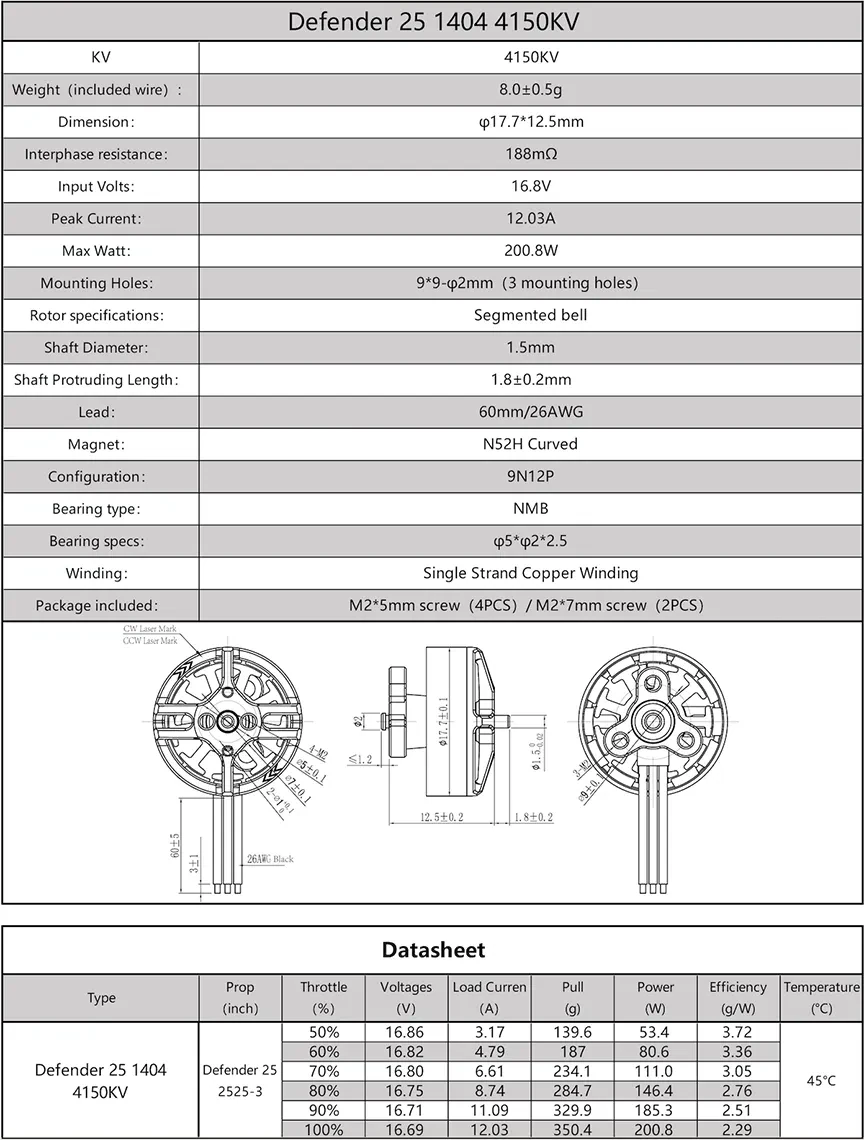

Specifications
- Stator size: 1404
- KV: 4150
- Configuration: 9N12P
- Input voltage: 4S LiPo (16.8V)
- Shaft diameter: 1.5mm (1.8mm protrusion)
- Mounting pattern: 3x 9x9mm, M2
- Weight: 8g (including wire leads)
- Dimensions: 17.7 x 12.5 mm
- Peak current: 12.03 A
- Max power: 200.8 W
- Leads: 65 mm, 26AWG
This is a single motor — choose CW or CCW rotation to match your flight controller's motor mapping, and confirm your propeller hub bore matches the 1.5mm shaft before fitting.
| Stator Size | 1404 |
|---|---|
| Stator Diameter | 14mm |
| Stator Height | 4mm |
| KV | 4150 KV |
| Pack Size | 1 |
| Prop Mount | 1.5mm |
| Shaft | 1.5mm |
| Motor Mount | 9x9mm |
| Input Voltage | 4S |
| Weight | 8 g |
| Brand | iFlight |
| Made in India | No |
