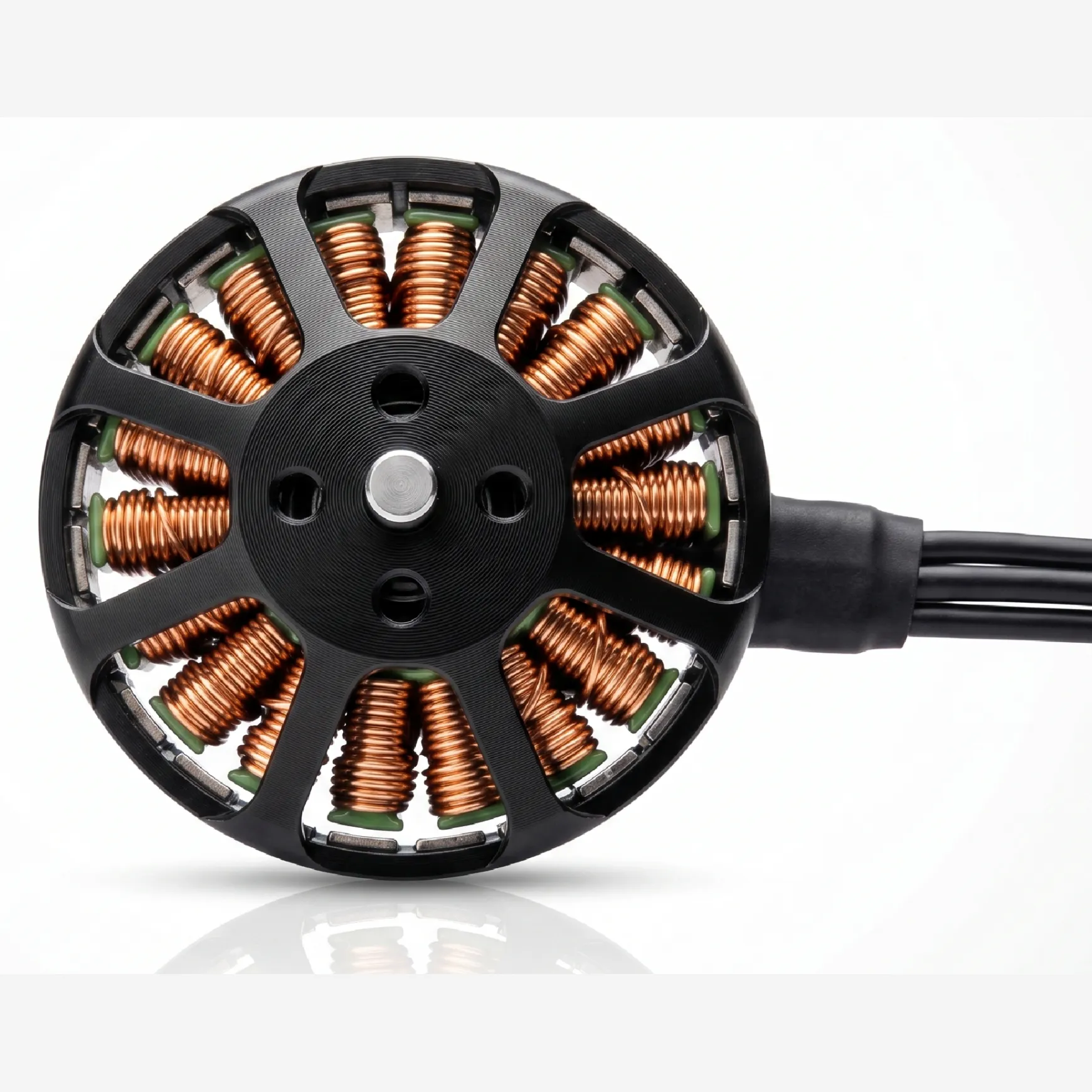

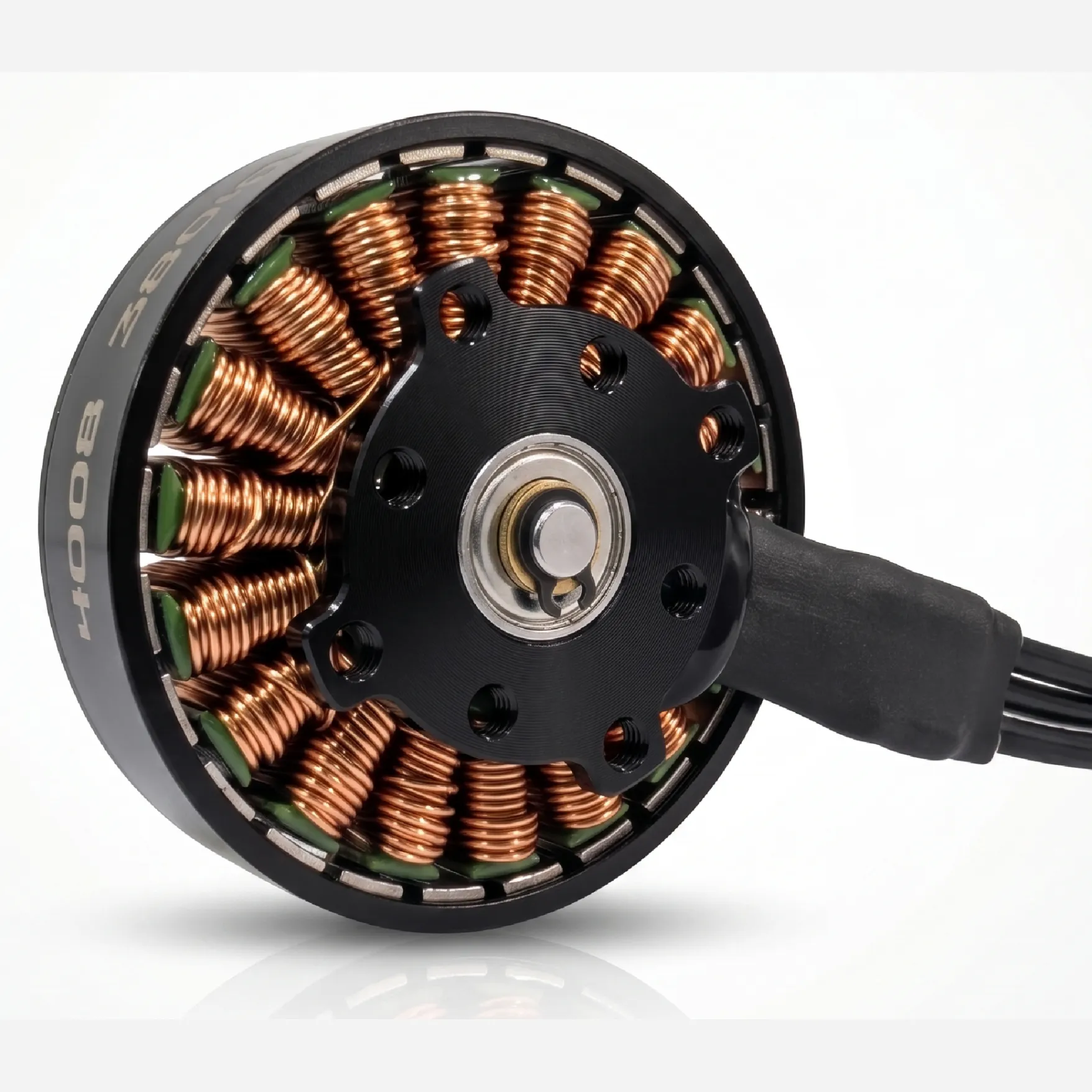

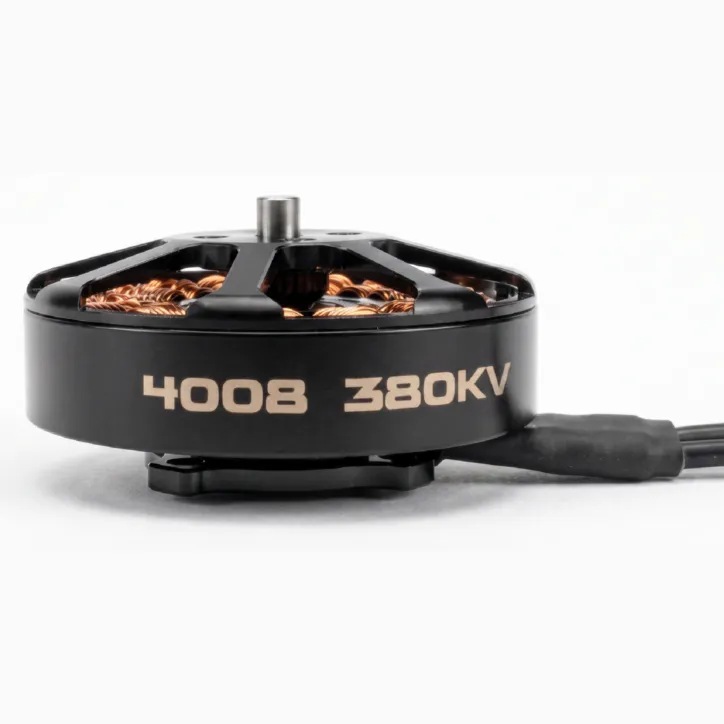

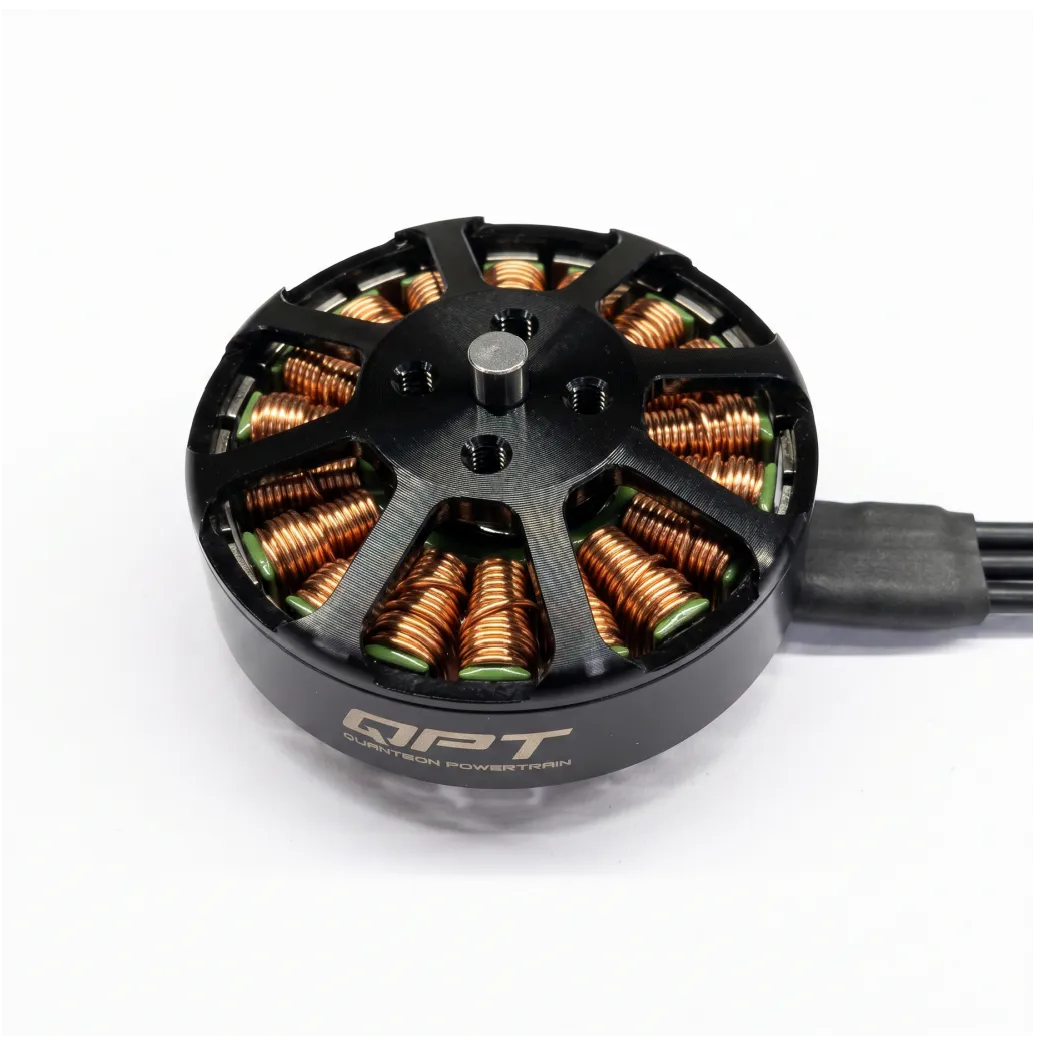

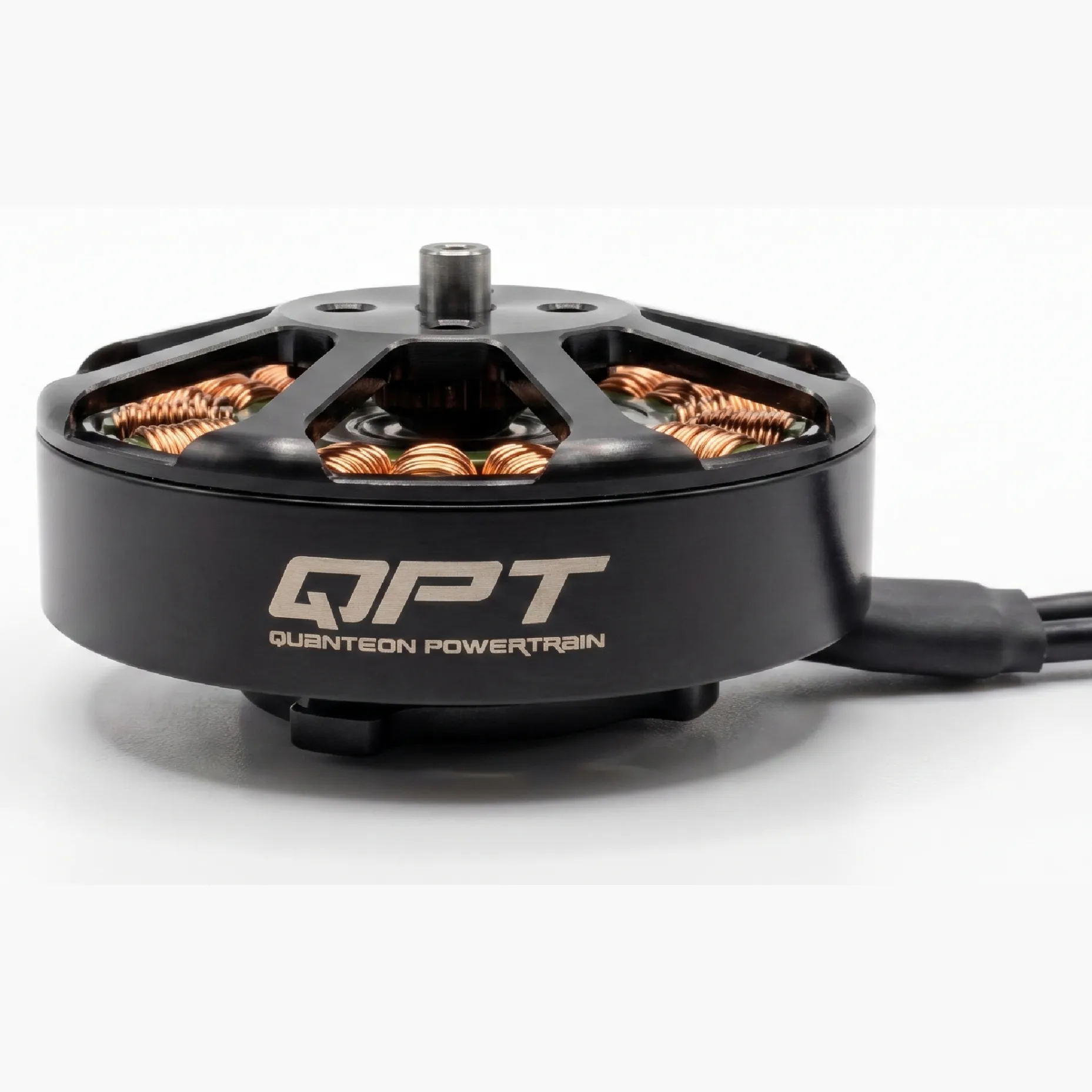

Quanteon QPT 4008 380KV Brushless Motor
₹4,139Incl. GST
SKU QPT-4008-380KV
Stator Size: 4008KV: 380 KVPack Size: 1Shaft: 4mm
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Quanteon QPT 4008 380KV is a low-KV pancake motor made in India for heavy-lift multirotors, mapping drones and long-endurance VTOL platforms that need efficient torque rather than outright speed.
Key features
- 18N24P winding and N52SH magnets deliver strong low-RPM torque with smooth, low-vibration output.
- Rated for 4S to 6S LiPo, with 6S recommended for best output.
- Optimised for 14 to 18-inch bi-blade propellers, generating up to 2.6kg of maximum thrust.
- Suits payloads of roughly 700g to 1,300g per rotor, depending on airframe and prop choice.
- Pancake stator shape keeps the motor short and wide, useful where arm clearance is tight on a folding frame.
Specifications
- Stator size: 4008
- KV: 380 KV
- Configuration: 18N24P
- Input voltage: 4-6S LiPo
- Max thrust: 2.6 kg
- Recommended propeller: 14-18 in
Good fit for aerial-mapping hexacopters or long-range heavy-lift quads that prioritise flight time and steady thrust over sharp throttle response. Order four (or six, for a hex) and match propeller pitch to your target payload.
| Stator Size | 4008 |
|---|---|
| Stator Diameter | 40mm |
| Stator Height | 8mm |
| KV | 380 KV |
| Pack Size | 1 |
| Shaft | 4mm |
| Motor Mount | 19x19mm, 25x25mm |
| Input Voltage | 4–6S |
| Brand | Quanteon |
| Made in India | Yes |
| Integrated ESC | No |
