Amass MR60 3-Pin Motor Connector (1 Pair)

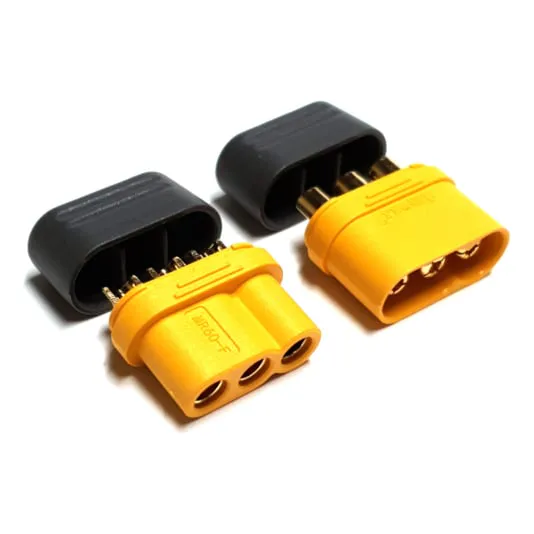

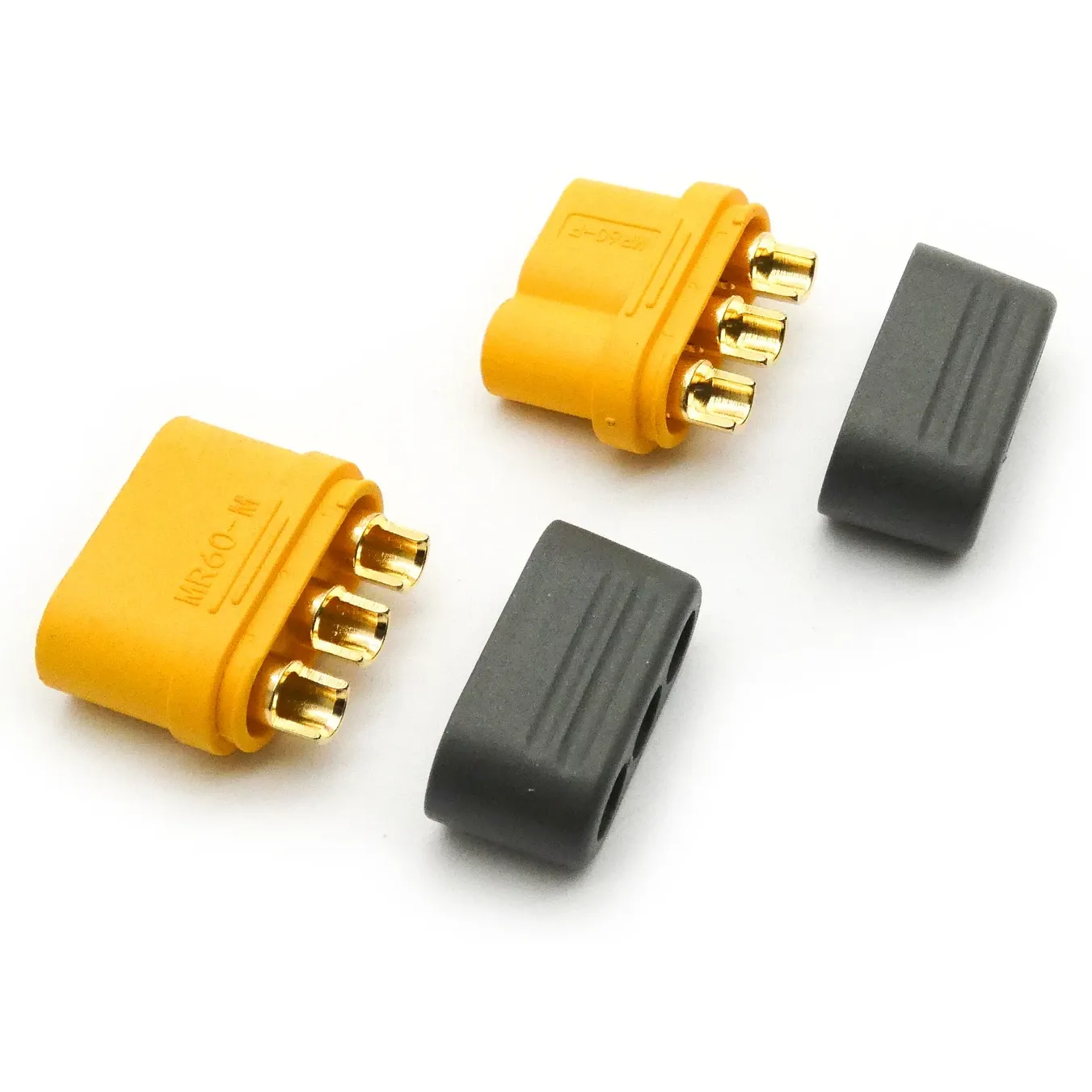

The Amass MR60 is a three-pin connector, in effect a three-pole XT60, for joining brushless motors to ESCs so a motor or arm can be swapped without desoldering the phase wires. The pair contains one male and one female plug, each with a protective sleeve.

Key features

• Three 3.5 mm bullet contacts in one moulded housing keep all three phase wires together
• Rated 30 A continuous and 60 A peak, at up to 500 V
• Brass contacts with gold flash plating
• UL94 V-0 flame-retardant housing rated from -20 °C to 120 °C
• Rated for 1,000 plug/unplug cycles

Specifications

• Pins: 3
• Contacts: 3.5 mm bullets, brass, gold flash
• Current rating: 30 A continuous, 60 A peak
• Rated voltage: 500 V
• Wire size: 12AWG
• Flammability: UL94 V-0
• Operating temperature: -20 °C to 120 °C
• Durability: 1,000 cycles

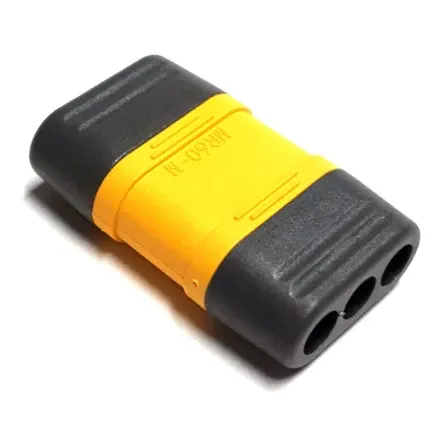

• In the box: 1 male and 1 female MR60 with protective sleeves

The MR60 mates only with another MR60; it does not plug into an XT60 or MT30. Check that your motor's maximum current stays within the 30 A continuous rating before fitting it.
