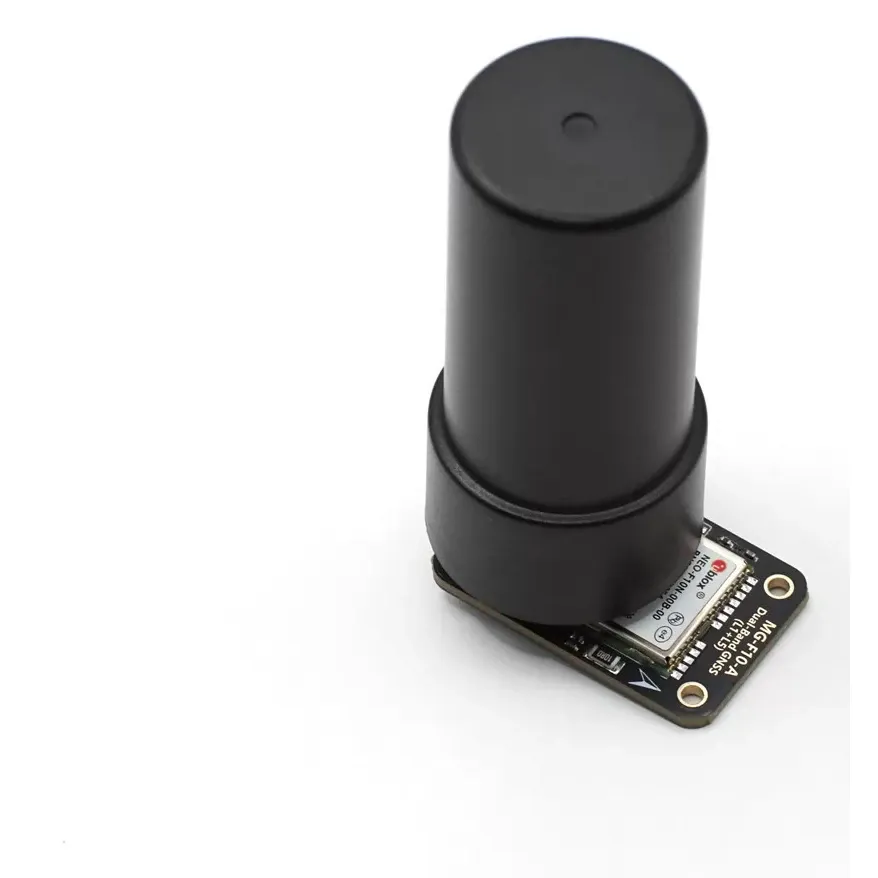

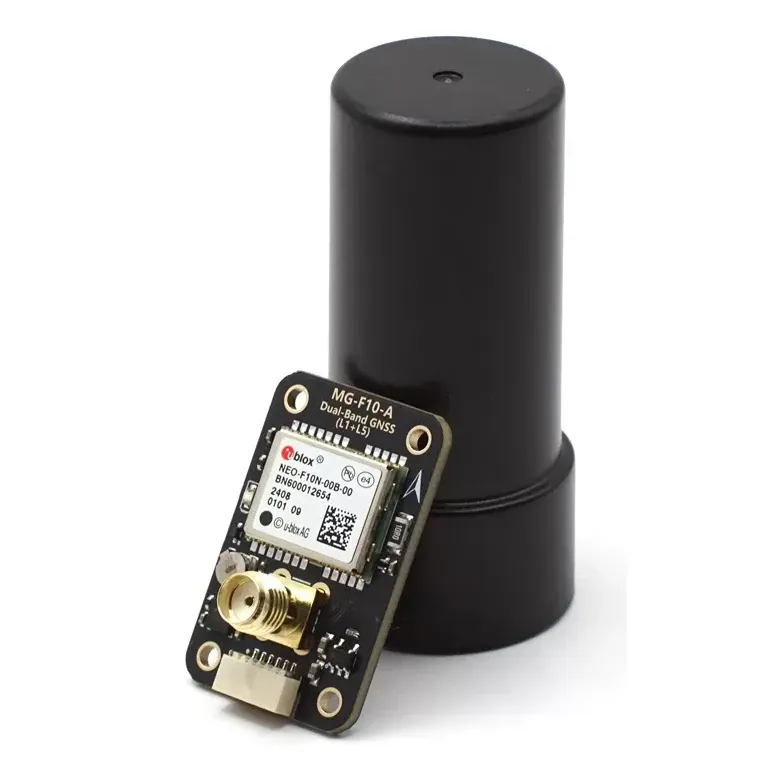

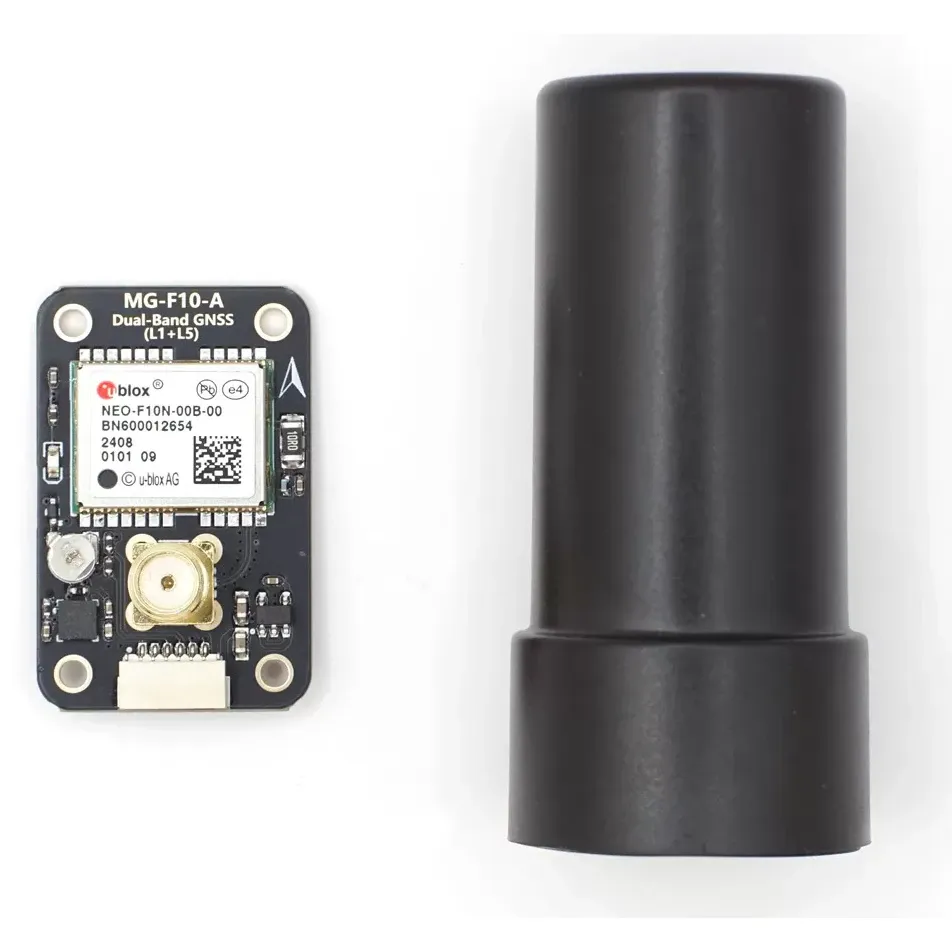

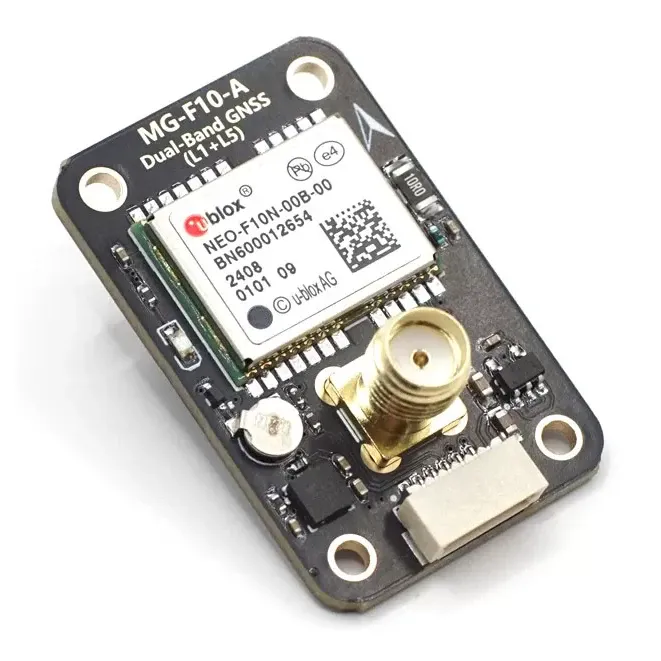

MicoAir MG-F10 Dual Band GNSS Module

The MicoAir MG-F10 is a dual-band GNSS module designed to deliver rapid satellite locks and precise positioning for FPV and autonomous drone builds. By operating on both L1 and L5 frequencies simultaneously, this receiver mitigates multipath signal errors caused by buildings or terrain, ensuring reliable telemetry in challenging environments. It is highly suited for mid-to-long-range FPV cruisers relying on Betaflight GPS Rescue, as well as complex waypoint navigation using INAV or ArduPilot.

Key features

• Dual-band L1 and L5 signal reception for sub-metre positioning accuracy and significantly faster cold starts.

• Concurrent tracking of multiple GNSS constellations, including GPS, Galileo, GLONASS, and BeiDou.

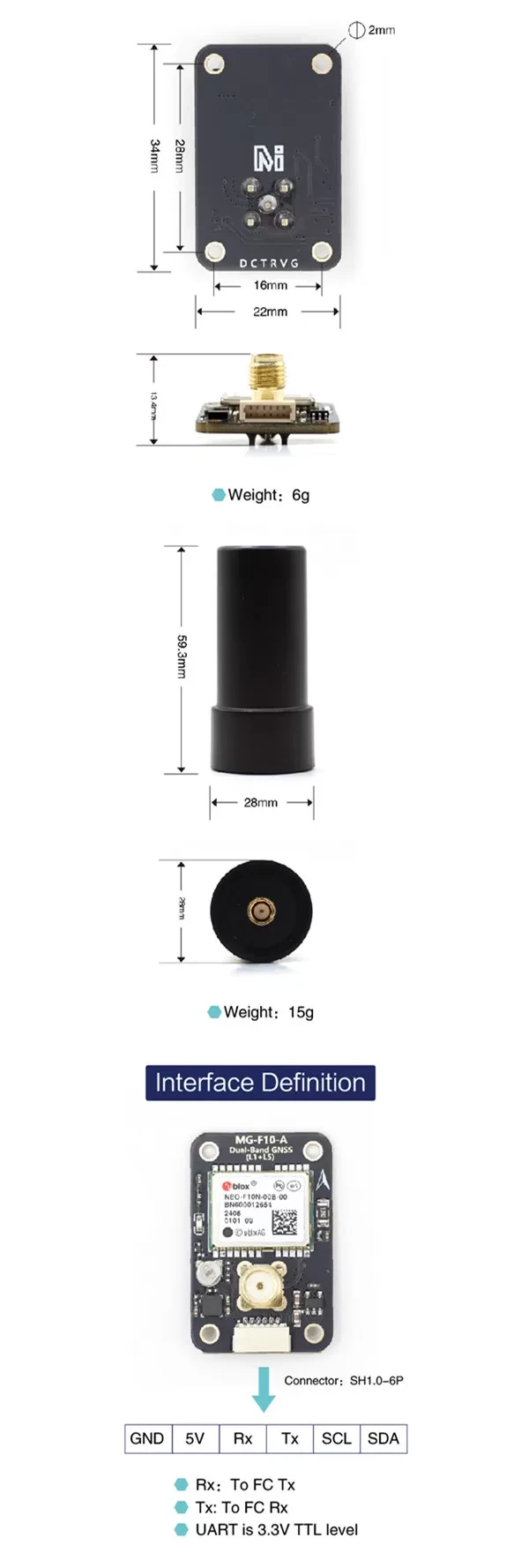

• Standard UART interfacing ensures straightforward soldering and configuration with modern flight controllers.

• Compact footprint minimises top-mount weight and drag on freestyle or cinematic frames.

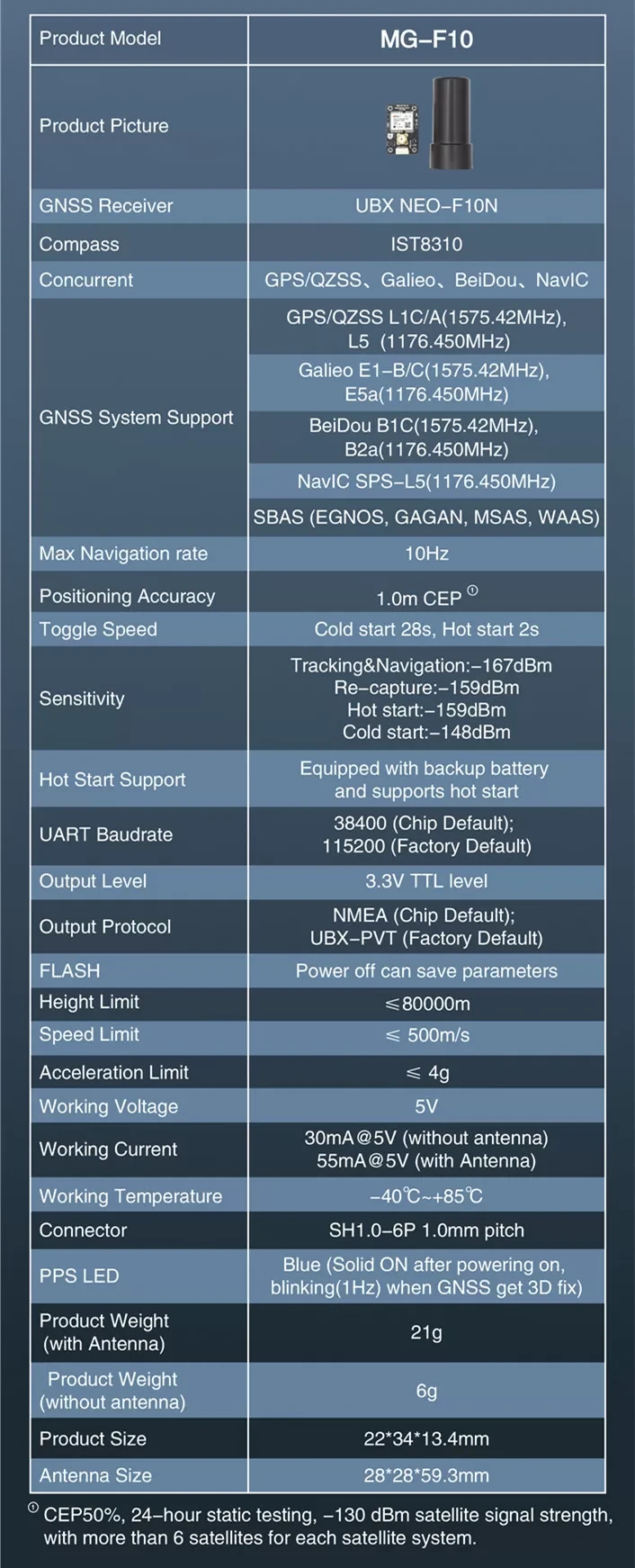

Specifications

• Constellations: GPS, Galileo, GLONASS, BeiDou

• Operating bands: L1, L5

• Supported firmware: Betaflight, INAV, ArduPilot
