Geprc GEP-M1025-MI GPS Module

The GEPRC GEP-M1025-MI is a robust 10th-generation GNSS module designed for long-range FPV, macro quads, and heavy-lift cinelifters. Built around the u-blox M10 chipset, it utilises a large 25x25mm ceramic patch antenna to provide exceptional signal acquisition and stable satellite holds, even in challenging environments.

Key features

• Powered by the u-blox M10 chipset for rapid satellite locking and enhanced positioning accuracy.

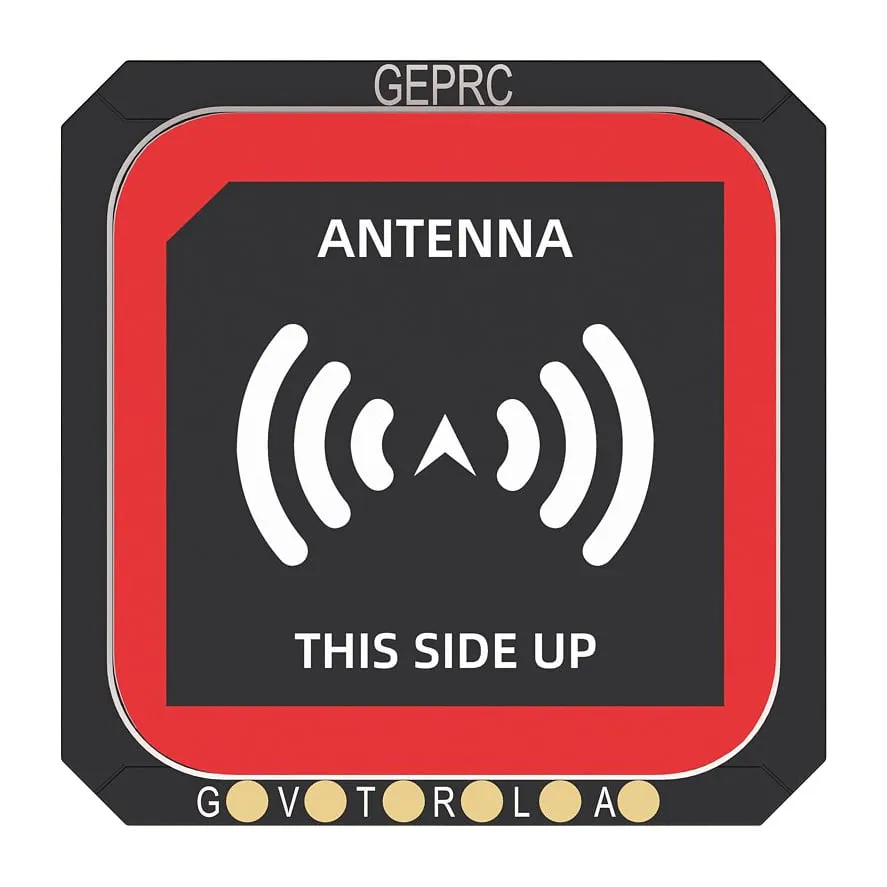

• Equipped with a high-gain 25x25mm ceramic patch antenna to maximise signal reception.

• Concurrent reception of multiple GNSS constellations including GPS, Galileo, and BDS.

• Onboard flash memory retains configuration settings across power cycles.

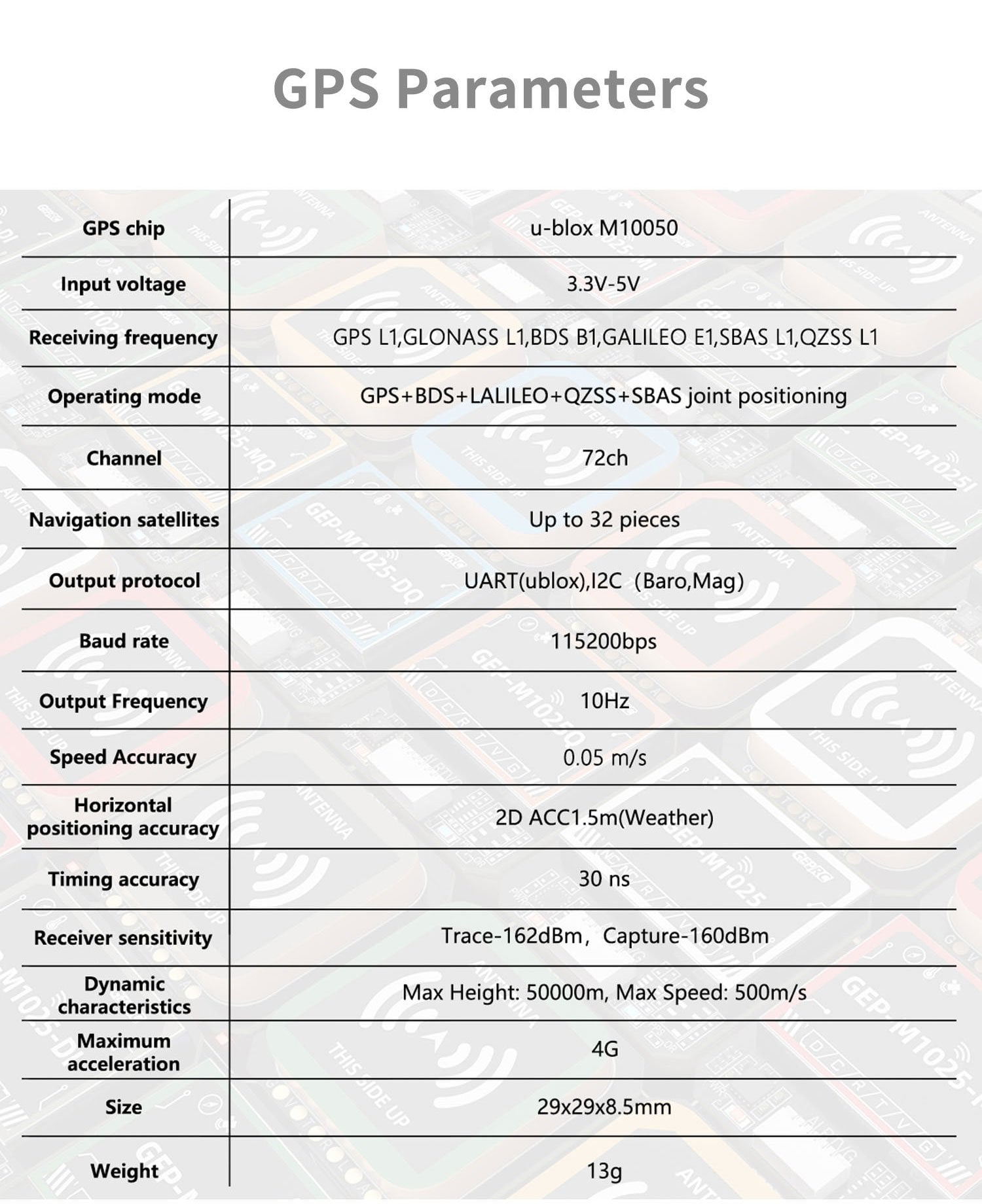

Specifications

• GNSS Chipset: u-blox M10050

• Antenna Dimensions: 25 x 25 mm

• Supported Constellations: GPS, Galileo, BDS, QZSS, SBAS

• Input Voltage: 5V

• Default Baud Rate: 115200 bps

• Output Protocol: UBLOX

This module is an excellent fit for larger 7-inch to 10-inch frames where mounting space permits a 25mm footprint, rewarding builders with highly reliable return-to-home functionality and minimal waiting times on the flight line.
