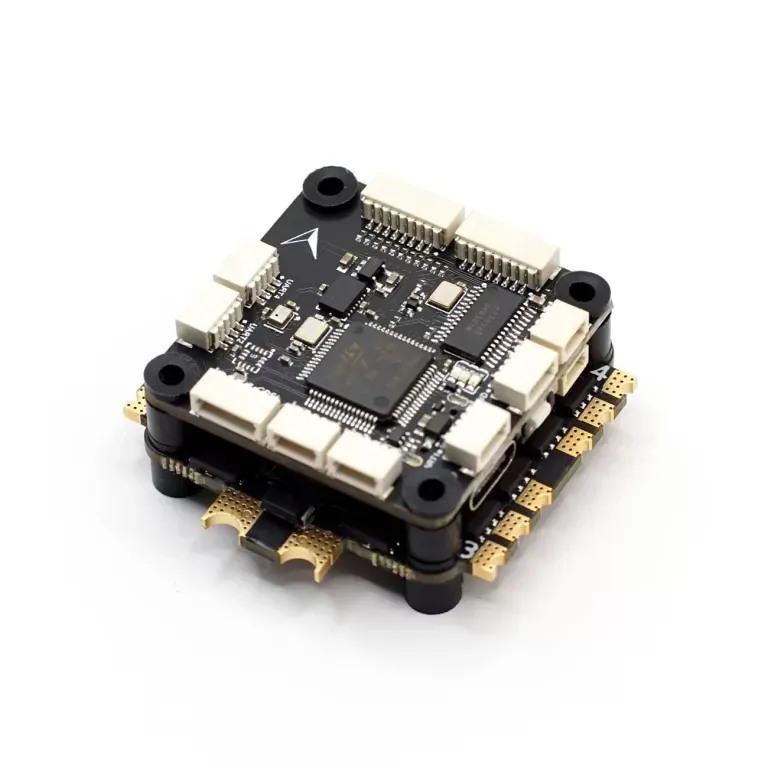

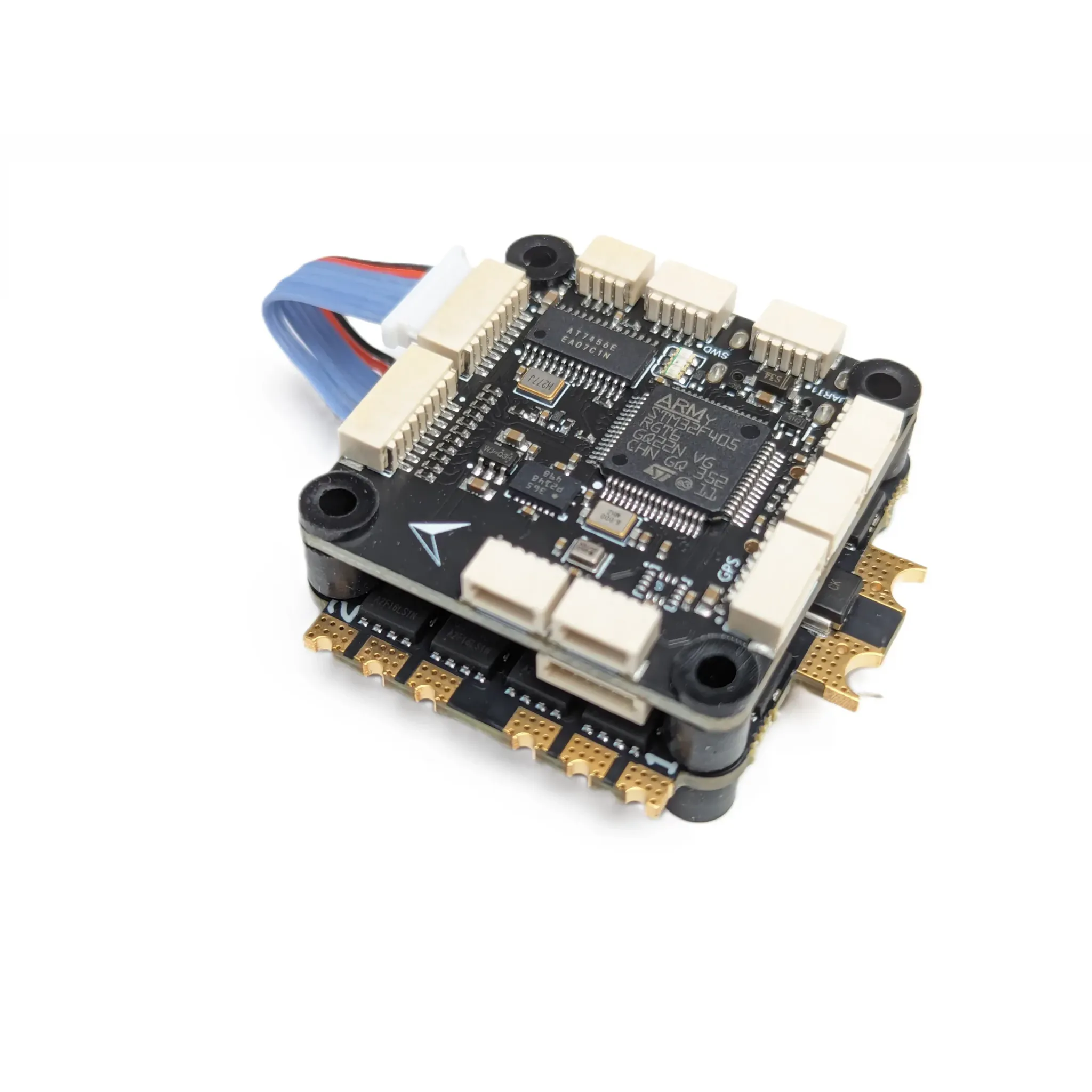

MicoAir F405 V2 FC & ESC Stack (50A Bluejay, ArduPilot/INAV)

The MicoAir F405 V2 is an F4-based flight controller and 50A Bluejay ESC stack built for ArduPilot and INAV autonomous builds as well as Betaflight freestyle rigs, on a standard 30.5x30.5mm mount.

Key features

• BMI088 IMU paired with the ESC's Bluejay 48K firmware for low-noise, high positional accuracy in GPS/position-hold flight.
• Built-in SPL06 barometer for altitude hold, plus an integrated AT7456E OSD and a microSD slot for blackbox logging.

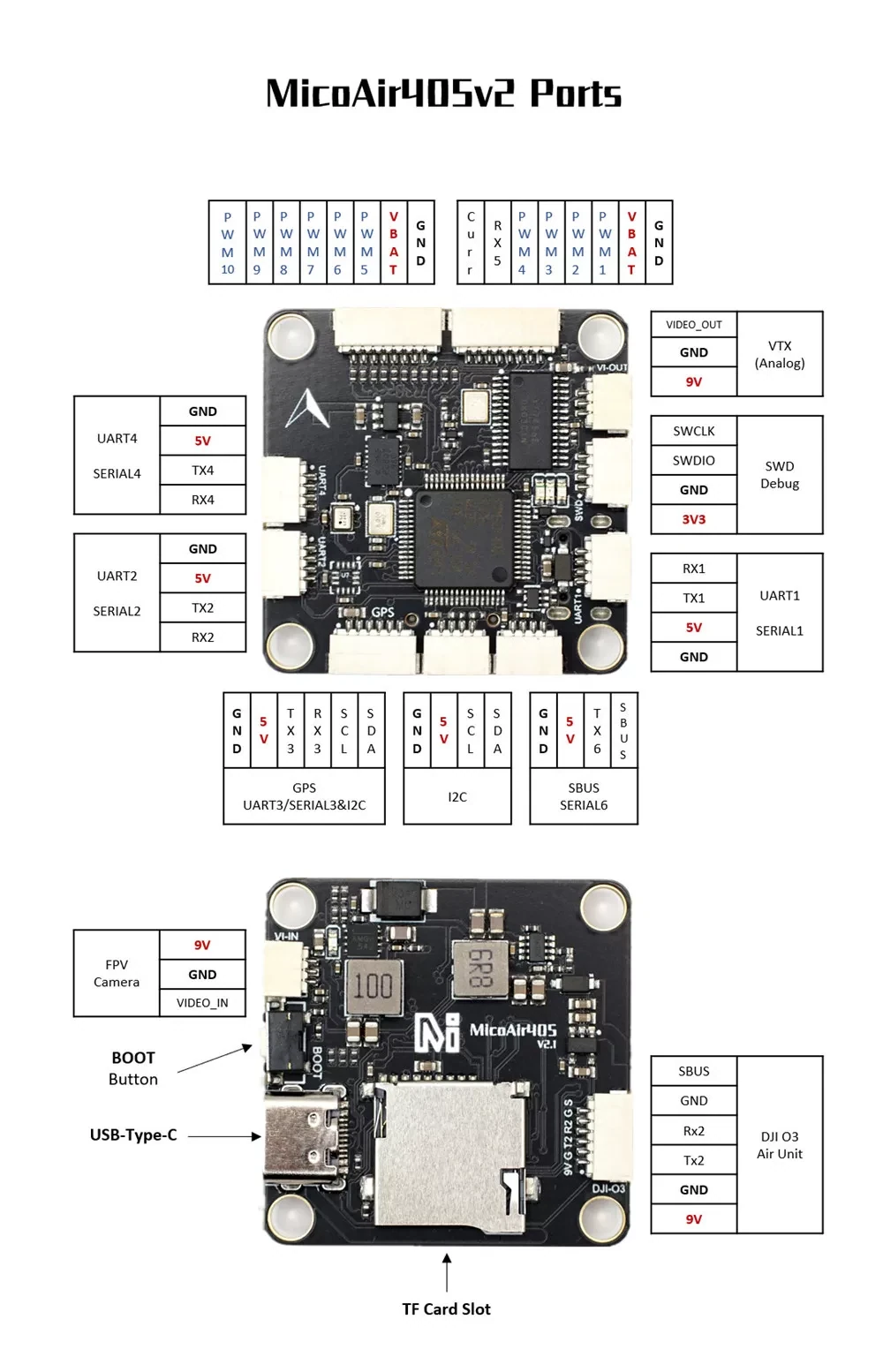

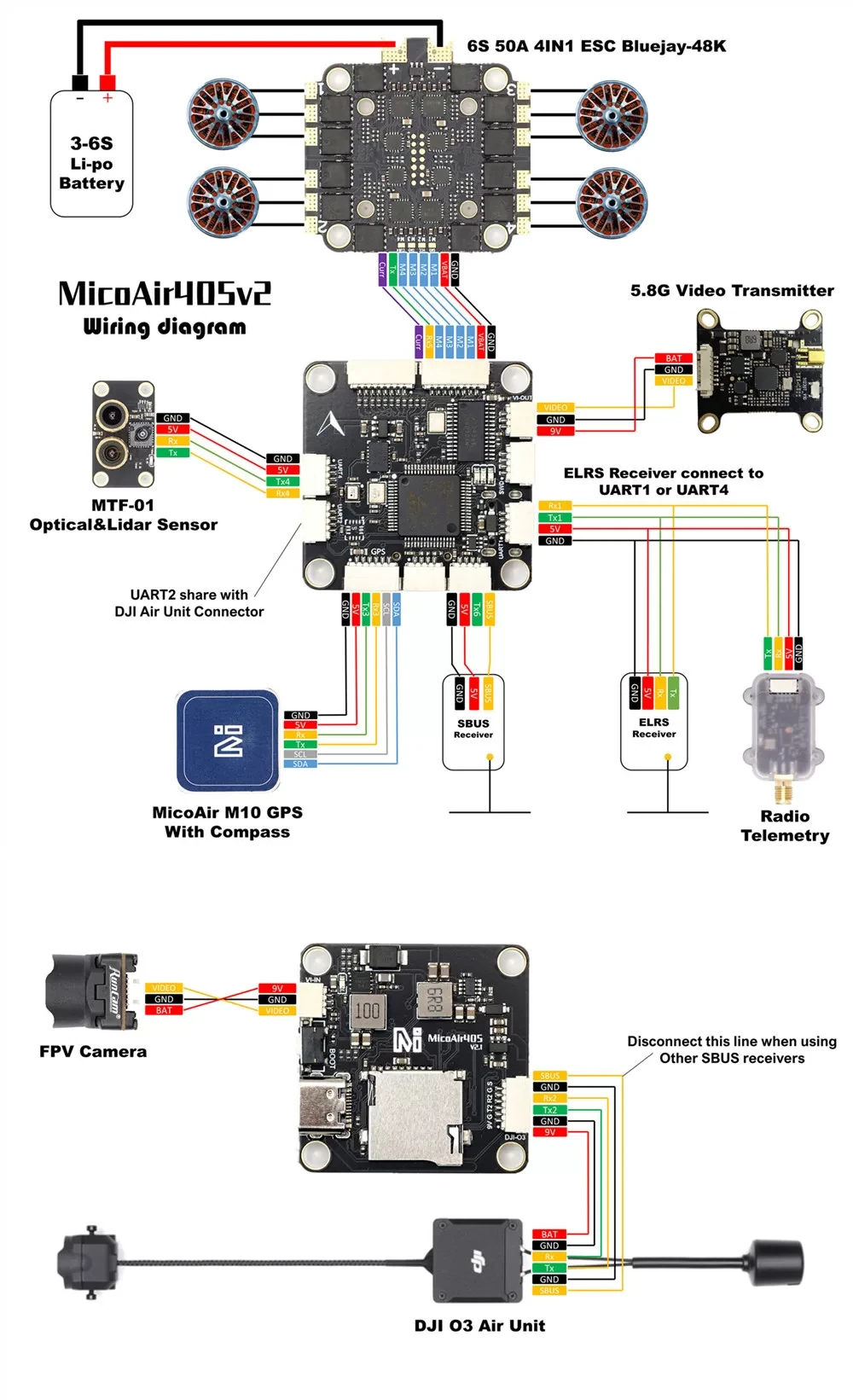

• 6 UARTs, 10 PWM outputs, I2C and USB-C give ample room for GPS, telemetry radios and digital VTX.
• 4-in-1 ESC uses socket connections for the flight-controller link, avoiding solder joints during assembly.
• OSD and ESC are tuned for clean power delivery to a DJI O3 Air Unit.

Specifications

• Processor: STM32F405
• Gyro: BMI088
• Barometer: SPL06
• Continuous ESC current: 50 A
• ESC firmware: Bluejay
• Mounting size: 30.5x30.5 mm
• Supported firmware: ArduPilot, INAV, Betaflight
• BEC: 5 V 3 A (FC, receiver, GPS) and 9 V 3 A (VTX, camera)

A strong pick for pilots moving from freestyle Betaflight rigs to autonomous GPS-waypoint builds, or heavy-lift cinematic platforms that need ArduPilot's mission planning without giving up modern ESC performance.
