iFlight Blitz F745 Stack (E55 /
₹12,199Incl. GST
SKU IFL-BLITZ-F745-E55-BLUEJAY
ESC: E55S (Bluejay)
Mounting Size: 30.5x30.5FC Processor: F745Gyro: ICM42688PESC Current: 55 A
Dispatched within 5–7 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

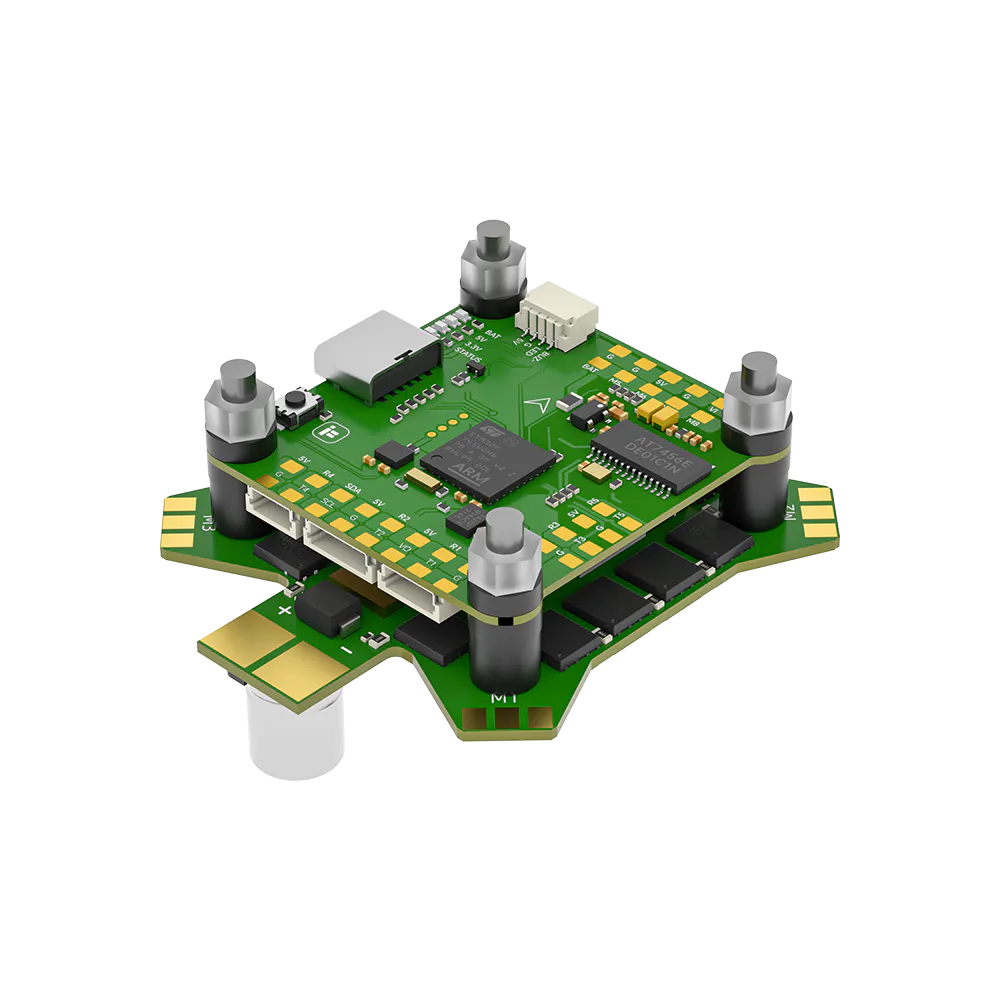

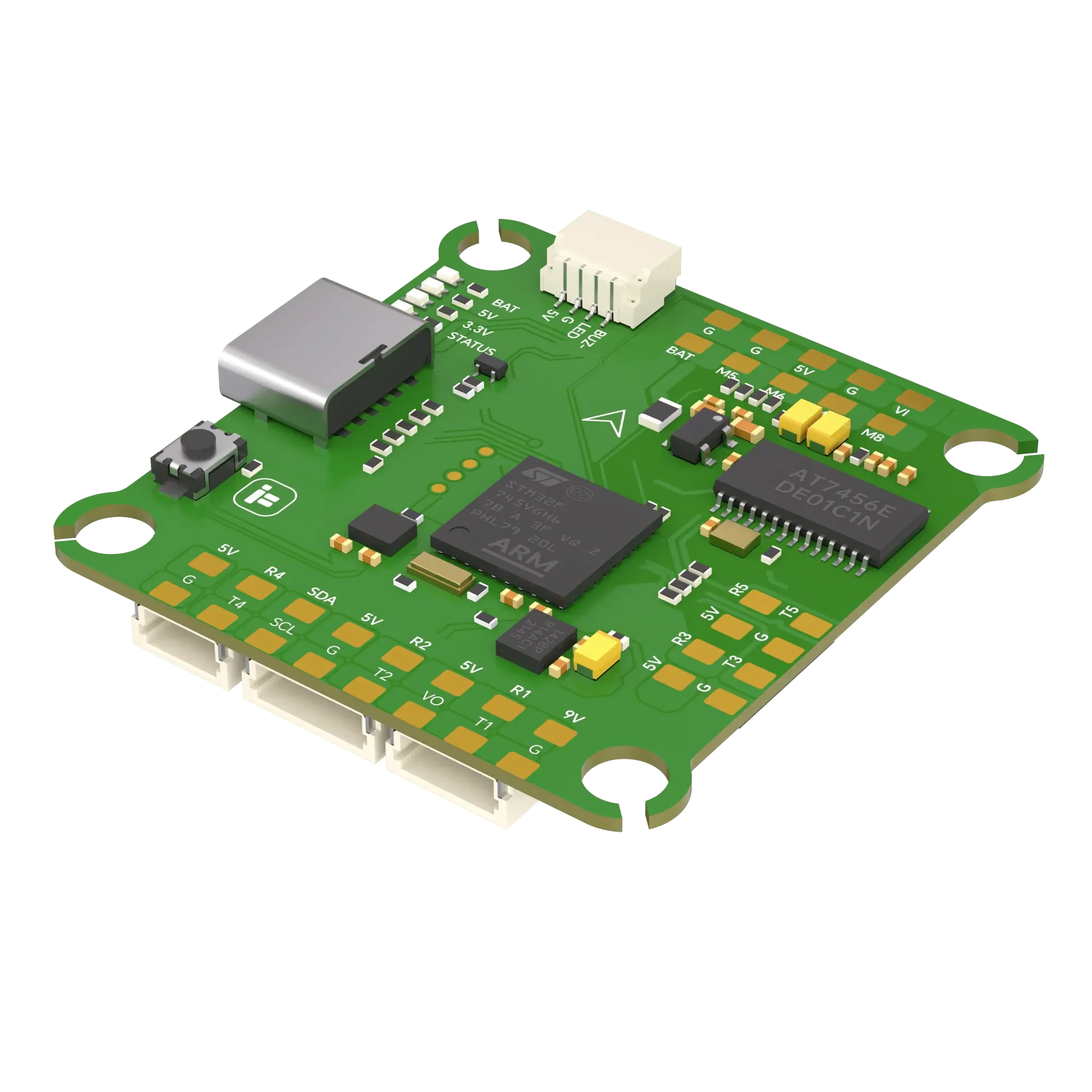

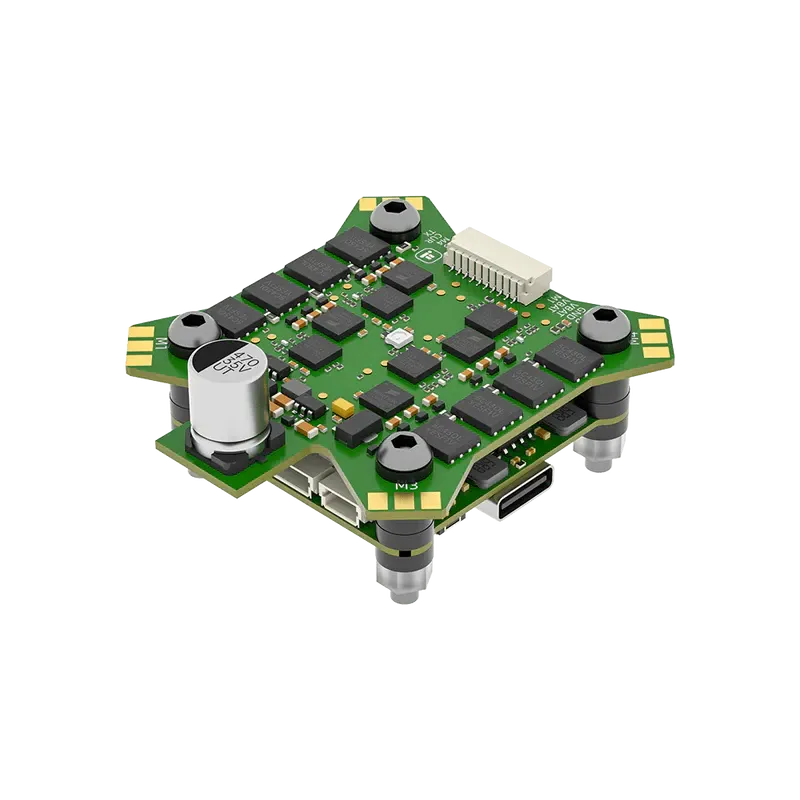

The iFlight Blitz F745 Stack pairs an STM32F745 flight controller with a 55A 4-in-1 ESC (65A burst), built for 5-inch freestyle quads, 7-inch long-range builds and heavier cinelifters on 2–6S power.
Key features

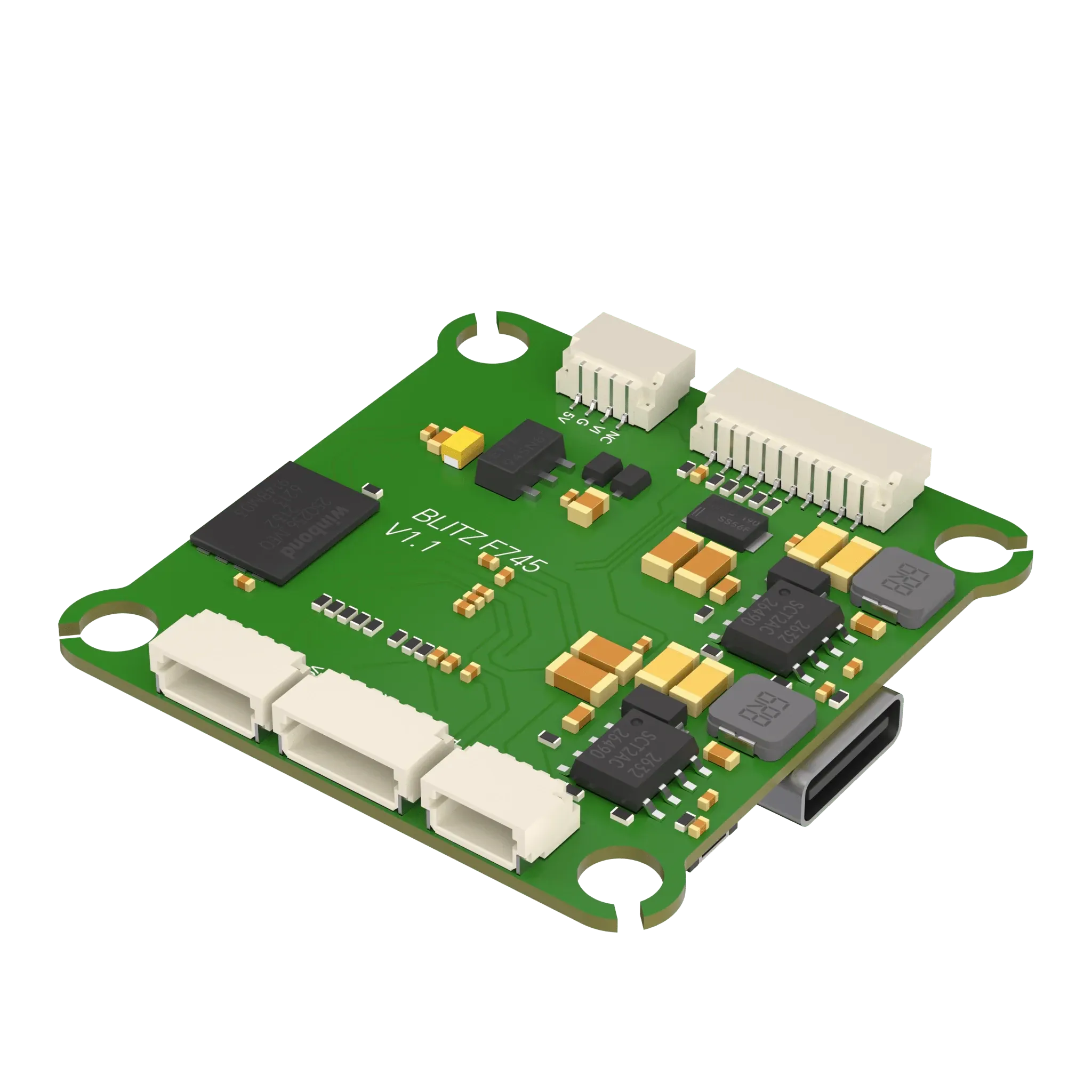

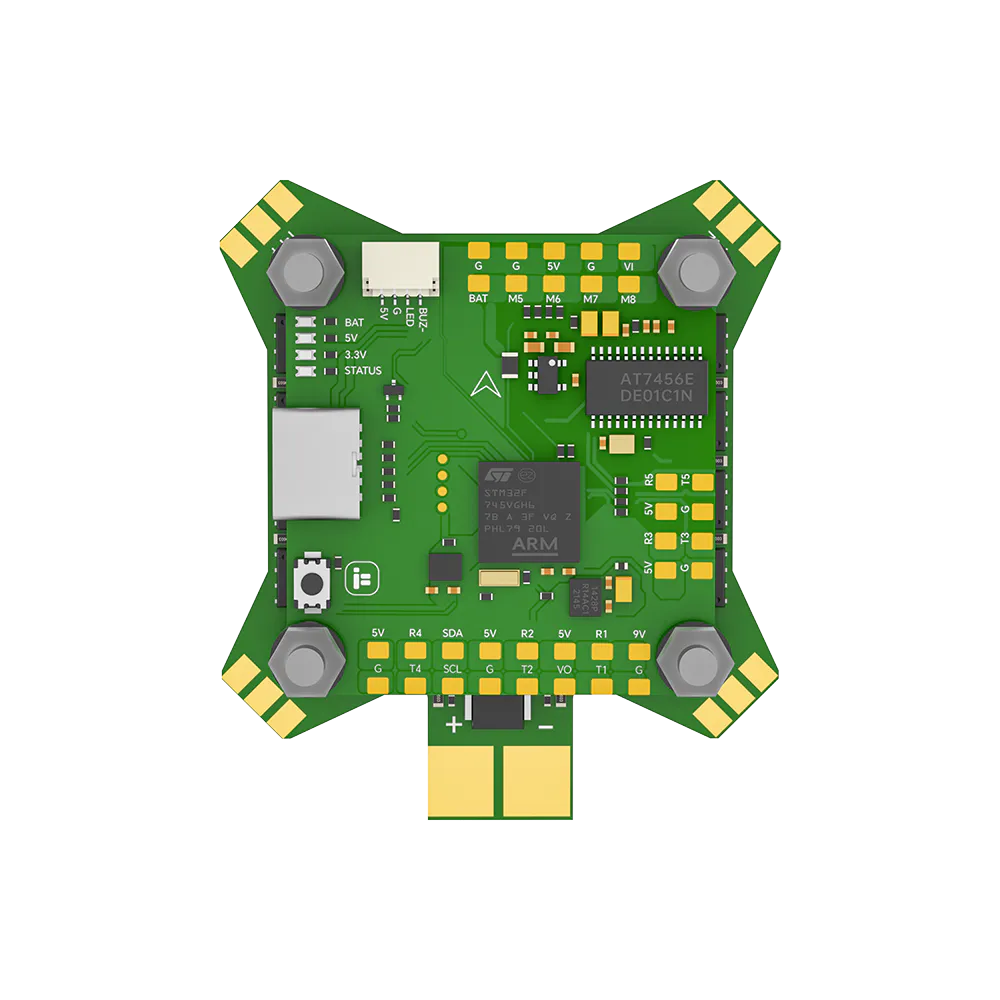

- STM32F745 MCU with an ICM42688 gyro and a DPS310 barometer, giving 6 UARTs of headroom for GPS, telemetry and a digital VTX link.
- Plug-and-play DJI HD VTX connector needs no soldering, with SmartAudio/IRC Tramp support for analogue setups too.

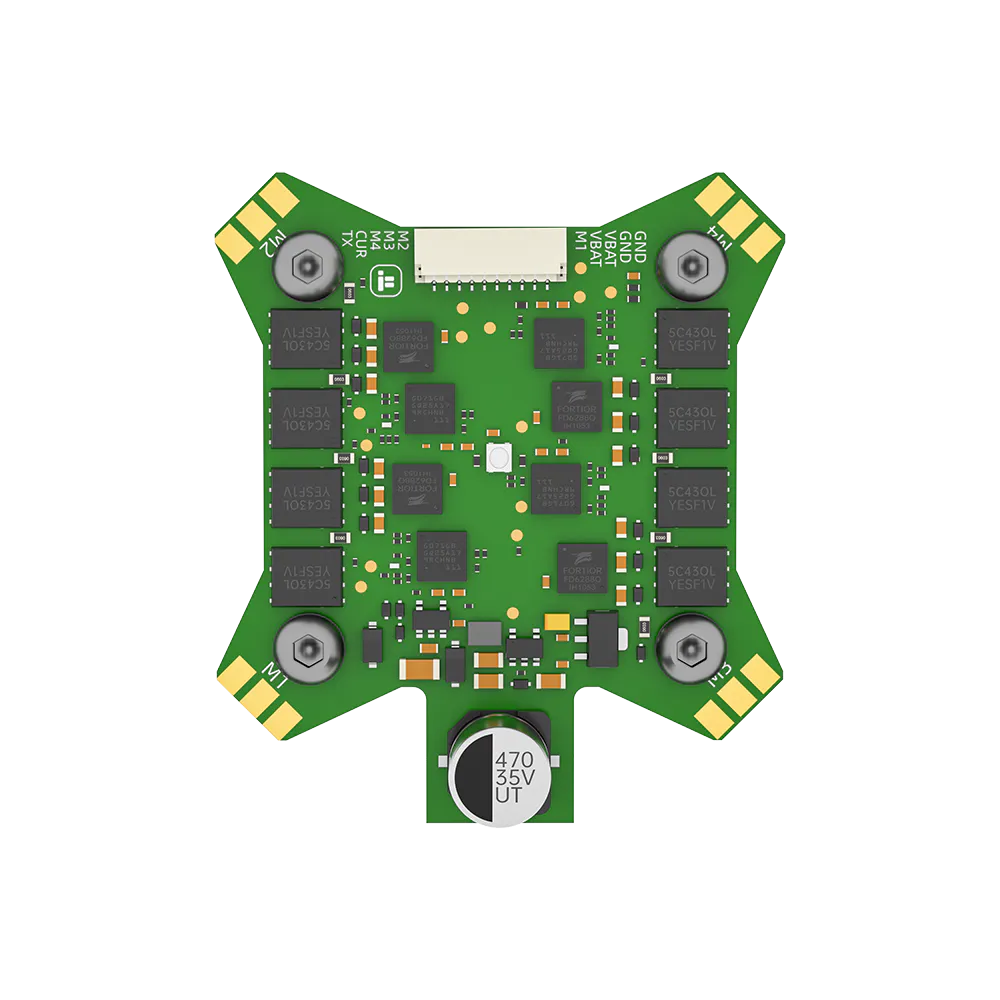

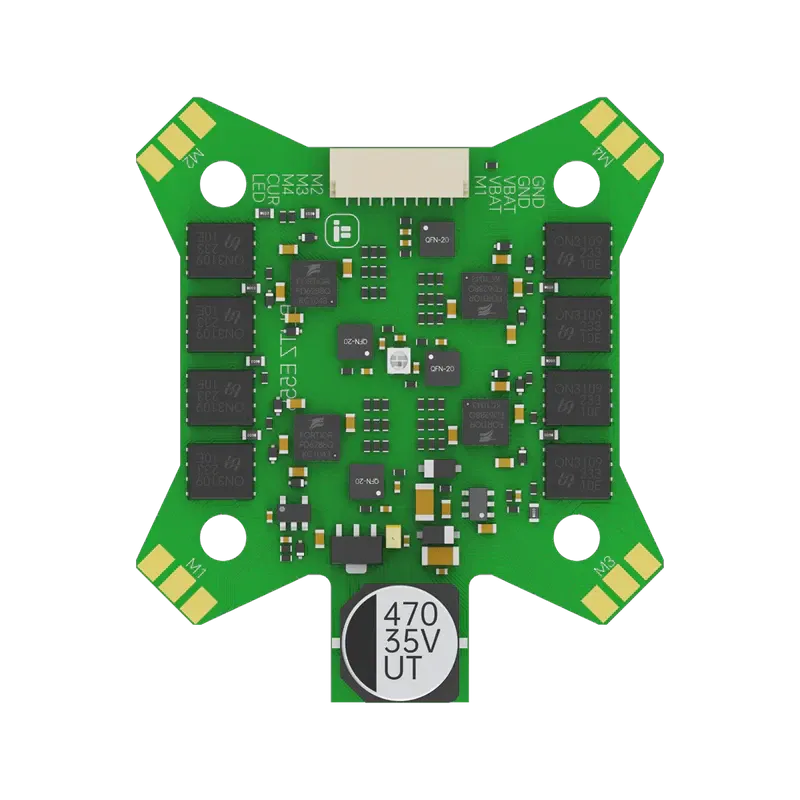

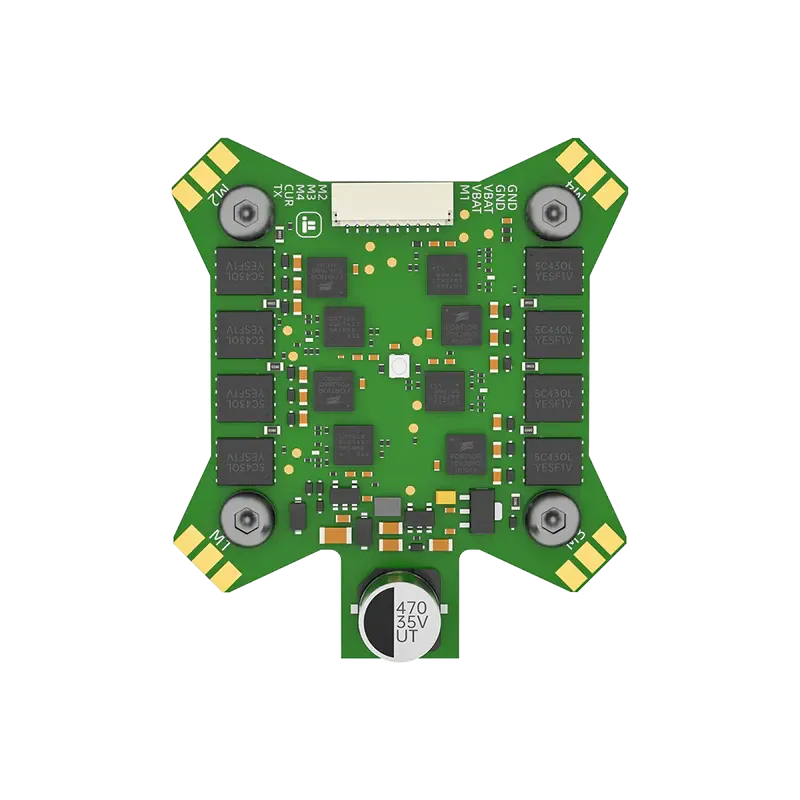

- 55A continuous, 65A burst ESC current handles high-KV 6S motor combinations without derating.
- 32MB onboard blackbox flash logs full-resolution data for PID tuning and vibration analysis.

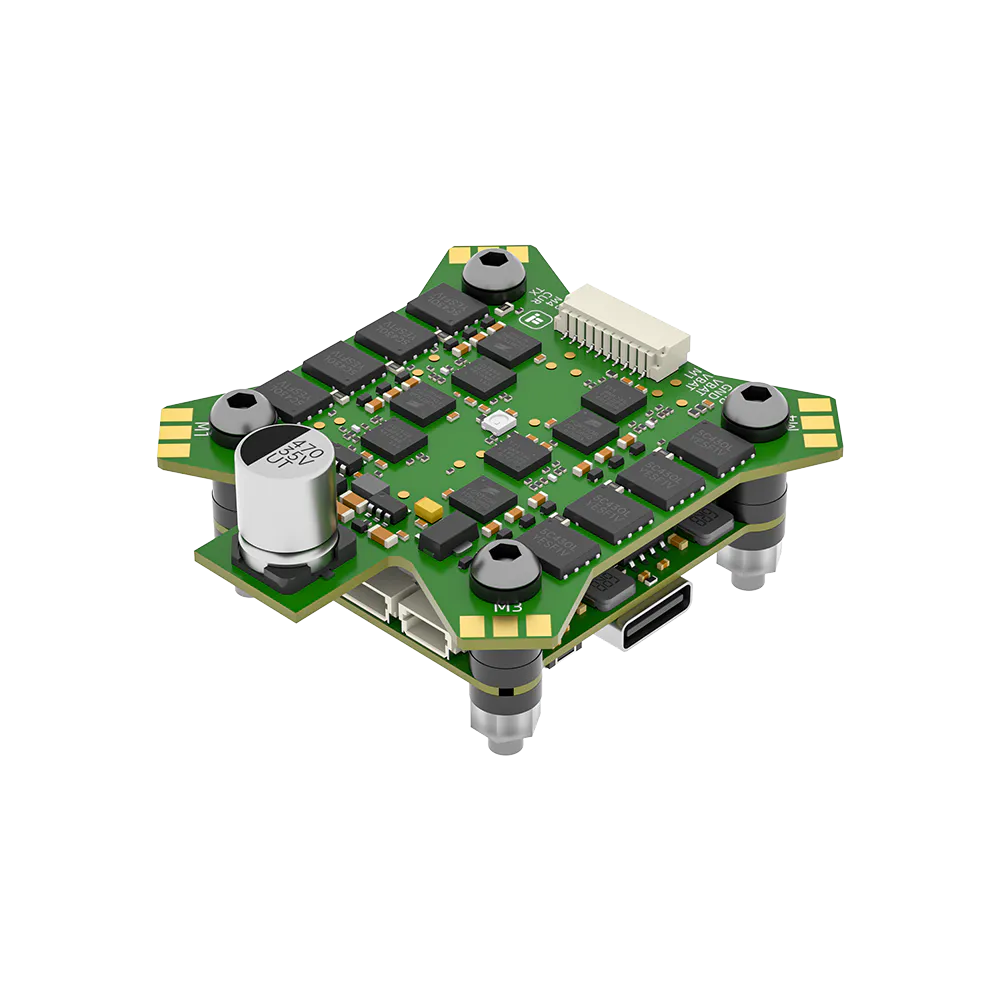

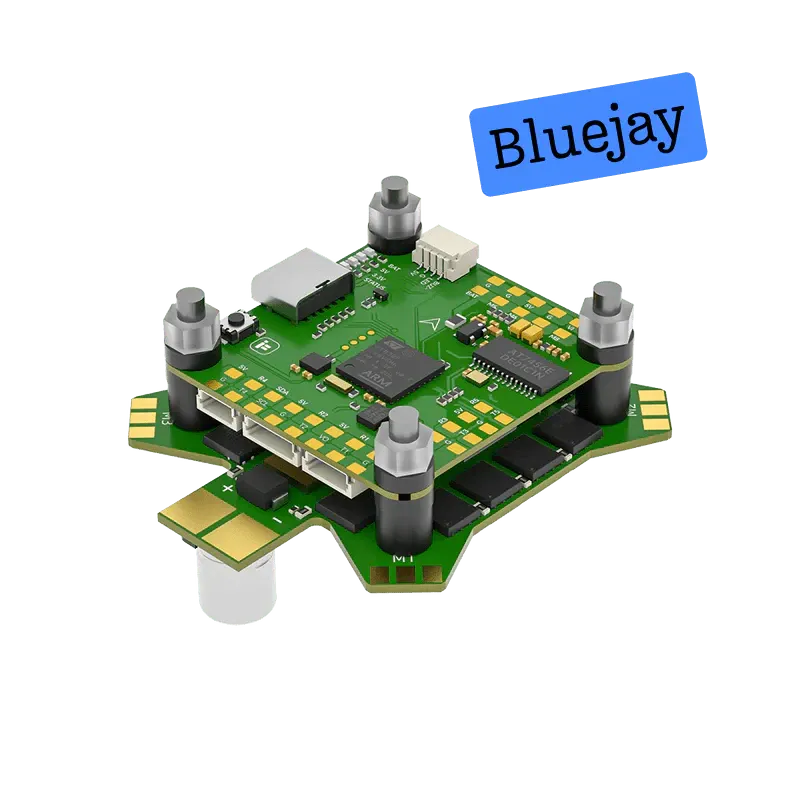

- Runs Betaflight or ArduPilot on the same hardware. Choose the E55 ESC (G071 MCU, BLHeli_32) or the E55S ESC (BB21 MCU, BLHeli_S / Bluejay).
Specifications
- FC processor: STM32F745
- Gyro: ICM42688
- ESC current: 55A continuous / 65A burst
- Input voltage: 2–6S LiPo
- Mounting: 30.5 x 30.5mm
- UARTs: 6
- Blackbox: 32MB onboard flash
Choose the E55 (BLHeli_32) or E55S (Bluejay) ESC version to match your preferred tuning workflow.
| Mounting Size | 30.5x30.5 |
|---|---|
| FC Processor | F745 |
| Gyro | ICM42688P |
| ESC Current | 55 A |
| Input Voltage | 2–6S |
| Integrated Receiver | No |
| Integrated VTX | No |
| Made in India | No |
| Brand | iFlight |
| Supported Firmware | ArduPilot, Betaflight |
| Barometer | Yes |
| UARTs | 6 |
| ESC Firmware | BLHeli_S, BLHeli_32, Bluejay |
