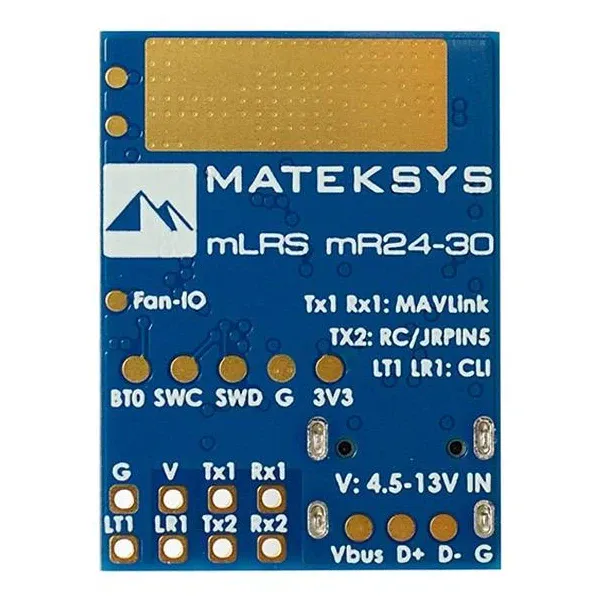

MATEKSYS mLRS 2.4GHz Receiver (MR24-30)

The MatekSys mR24-30 is a dedicated 2.4GHz receiver engineered for the open-source mLRS radio control system. Designed primarily for autonomous drones, fixed-wing cruisers, and long-range UAVs, it leverages LoRa modulation to provide a robust control link alongside high-bandwidth, bidirectional telemetry.

Key features

• Native support for the open-source mLRS protocol, offering true full-duplex communication.
• Transmits bidirectional MAVLink telemetry directly to your ground station, eliminating the need for standalone radio modems.
• Supports standard CRSF serial output for cross-compatibility with flight controllers running INAV or Betaflight.
• Operates on the 2.4GHz ISM band, delivering long-range LoRa penetration with a compact antenna footprint.

Specifications

• Brand: MatekSys
• Model: mR24-30
• Operating frequency: 2.4GHz ISM
• RF protocol: mLRS
• Supported serial interfaces: MAVLink (bi-directional), CRSF or SBUS RC output
• Output power: selectable up to 30dBm (1000 mW)
• Supply voltage: 4.5-13 V DC
• Current draw: 360 mA average, 900 mA peak at 5 V (30dBm)

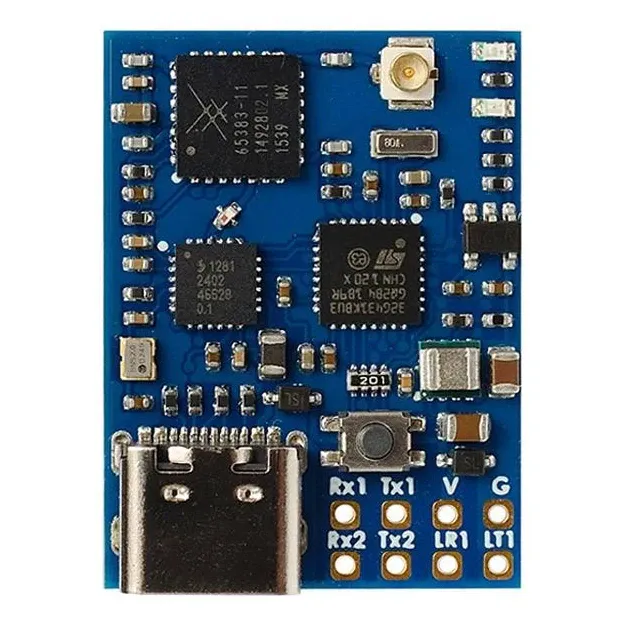

• MCU / RF: STM32G431KB, LoRa SX1281 with TCXO
• Antenna connector: IPEX MHF-1
• PCB size: 28 x 21 mm
• Weight: 4.5 g with antenna
• In the box: mR24-30, 15 cm IPEX MHF-1 sleeve dipole antenna, 20 x 20 x 6 mm heatsink

For ArduPilot builders requiring real-time ground station data and control over a single RF link, the mR24-30 streamlines your avionics bay by combining both functions into one integrated receiver.
