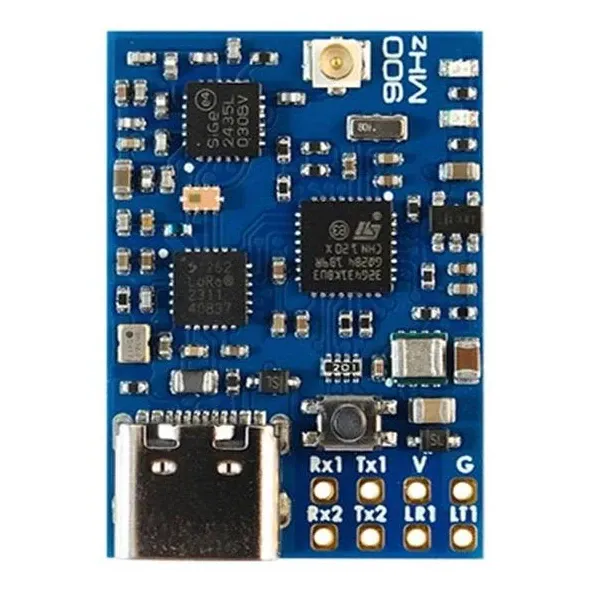

Matek mLRS 900MHz Receiver MR900-30

The Matek mR900-30 is a 900MHz mLRS module built for ArduPilot and PX4 long-range builds, carrying RC control and MAVLink telemetry over a single openly-developed radio link.

Key features

• Runs the openly-developed mLRS protocol on the 900MHz band for long-range, low-interference links.
• 30dBm output extends control range well beyond standard 2.4GHz RC links.
• Carries RC control and MAVLink telemetry on one radio link, simplifying long-range wiring.
• Suits mapping, survey and long-range fixed-wing or multirotor builds running ArduPilot or PX4.
• 900MHz band penetrates obstacles and foliage better than 2.4GHz, helping range on low-altitude flights.

Specifications

• Frequency: 900MHz (868MHz / 915MHz)
• Output power: selectable up to 30dBm (1000 mW)
• Protocol: mLRS

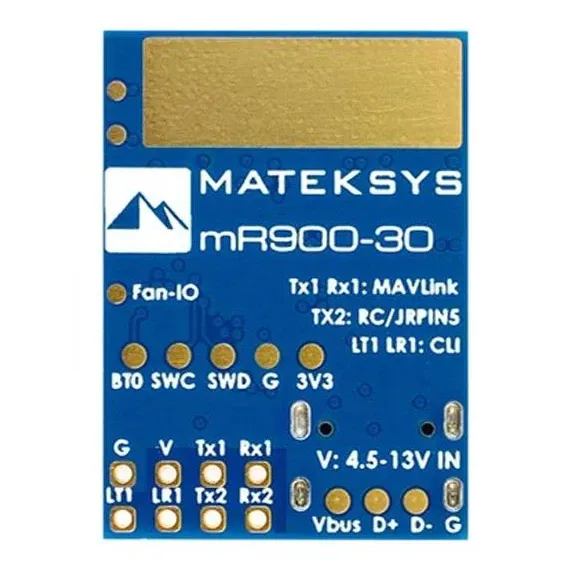

• RC output: CRSF or SBUS (TX2)
• Telemetry: bi-directional serial MAVLink (TX1/RX1)
• Supply voltage: 4.5-13 V DC
• Current draw: 340 mA at 5 V (30dBm)
• MCU / RF: STM32G431KB, LoRa SX1262 with TCXO
• Antenna connector: IPEX MHF-1
• PCB size: 29 x 21 mm
• Weight: 5.3 g with antenna

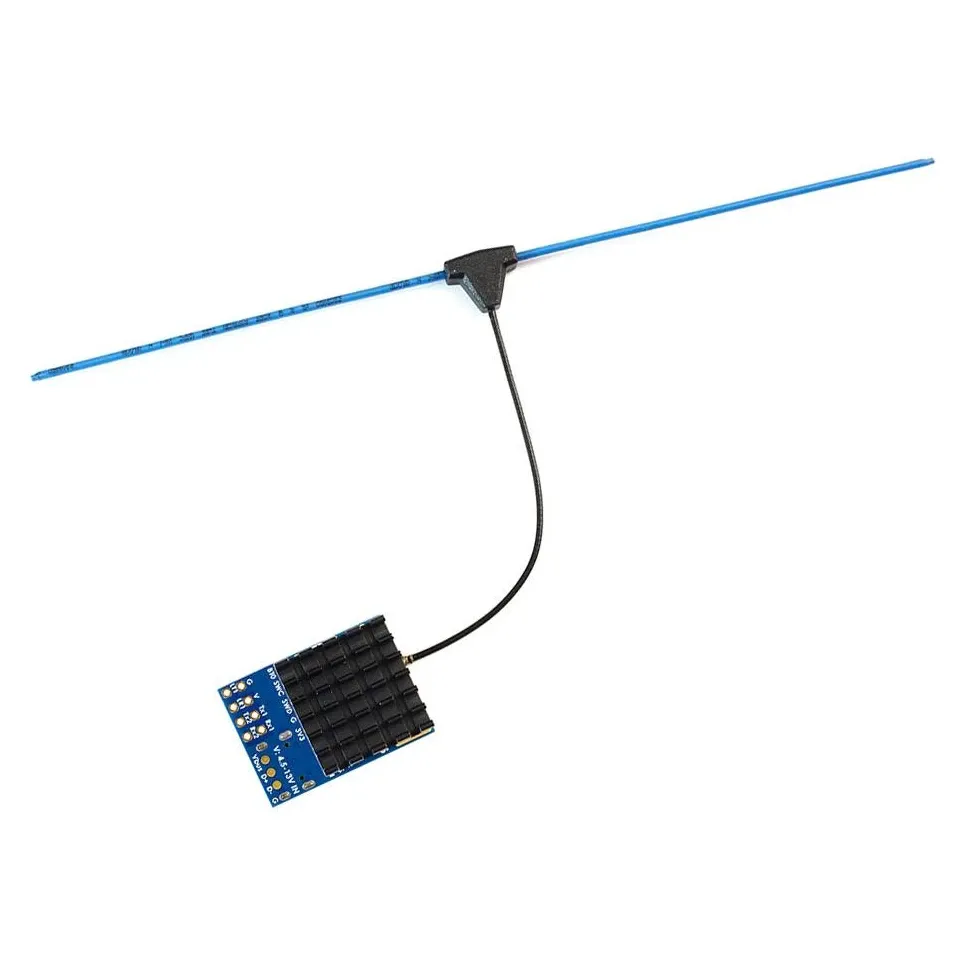

• In the box: mR900-30, 8 cm IPEX MHF-1 dipole antenna, 20 x 20 x 6 mm heatsink

Pairs with a matching 900MHz mLRS transmitter module on the ground side to complete the link.
