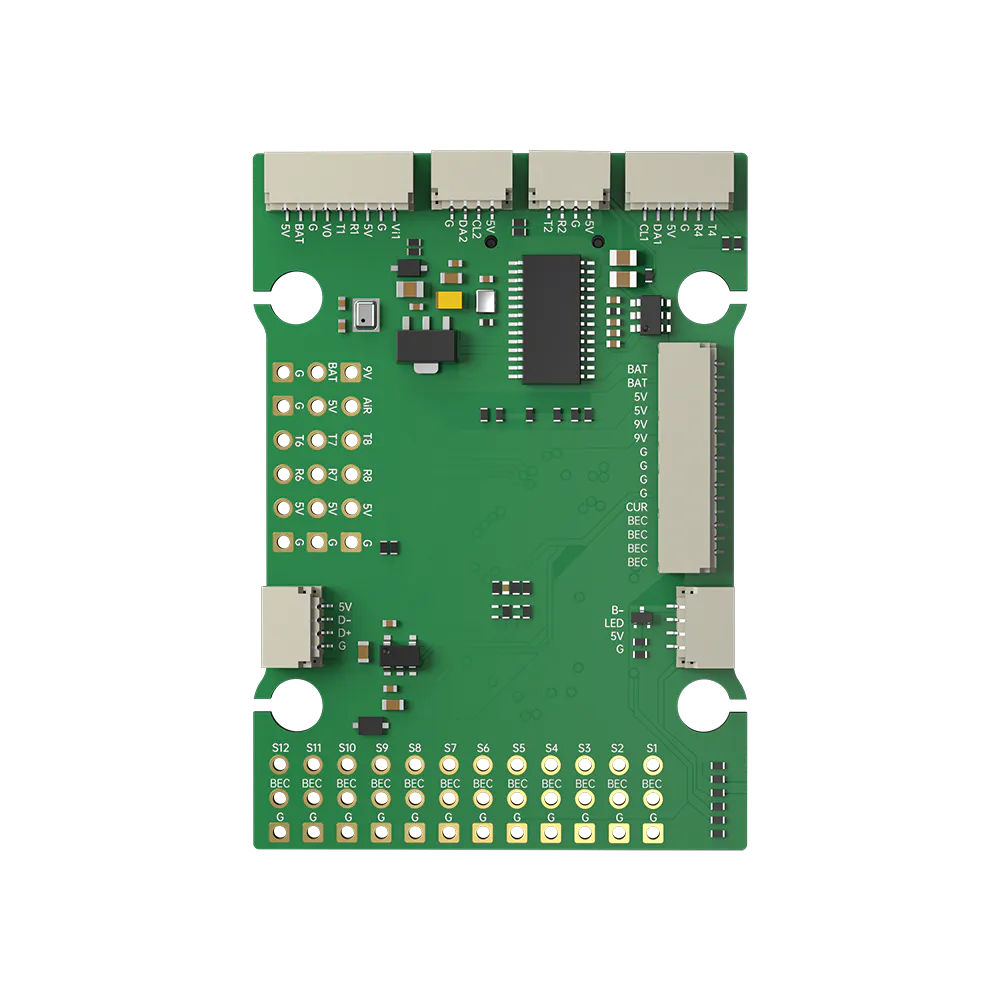

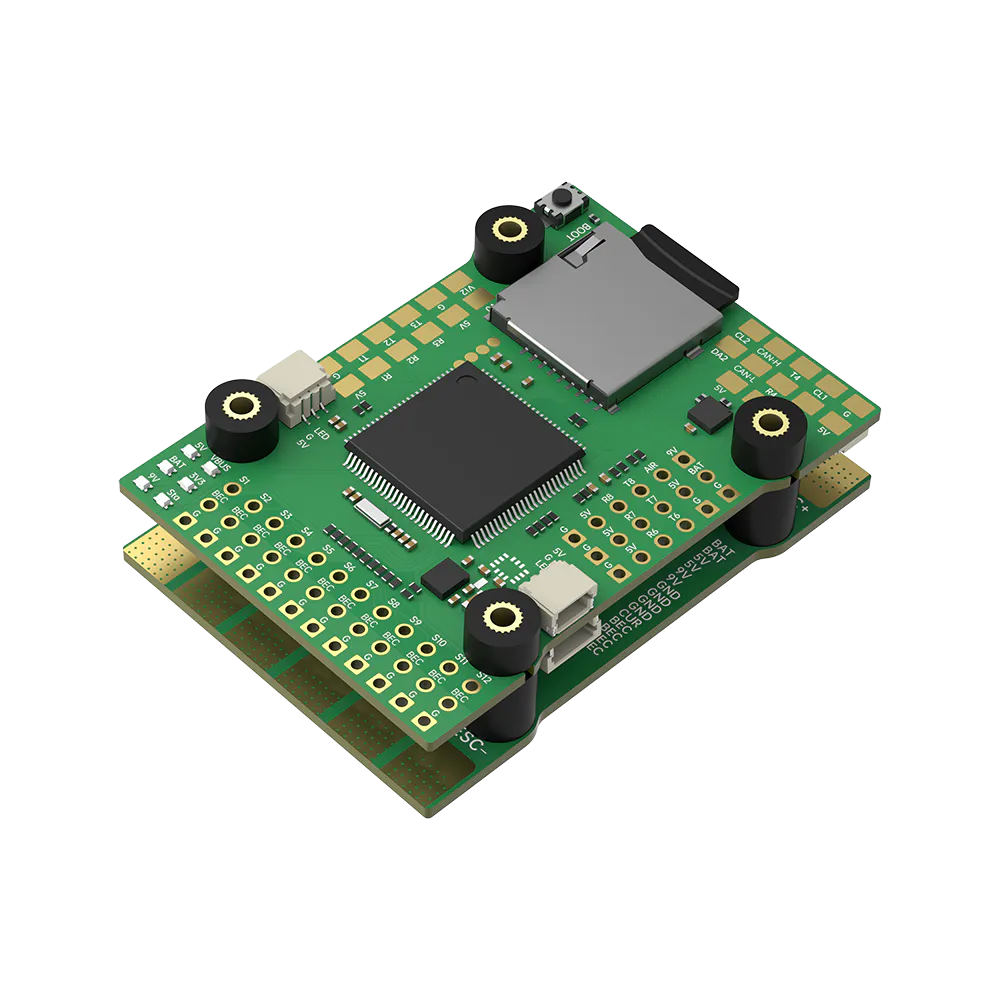

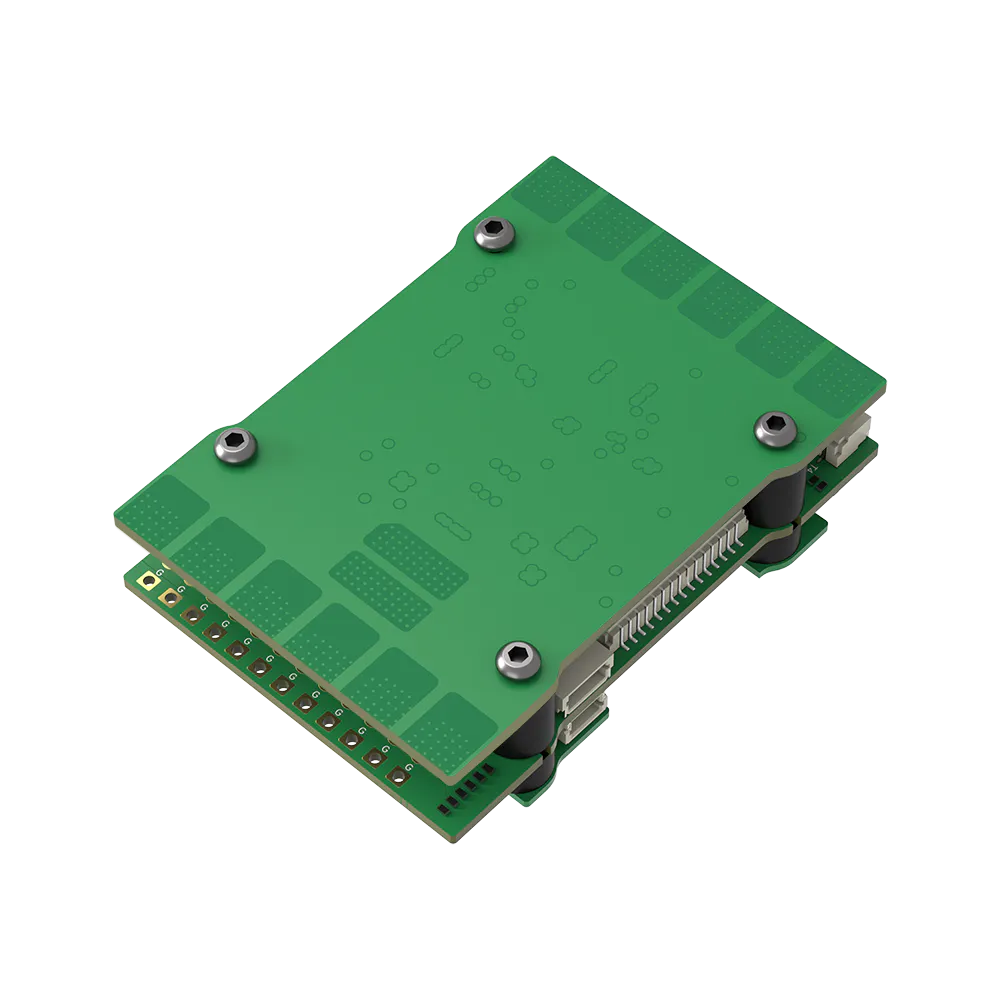

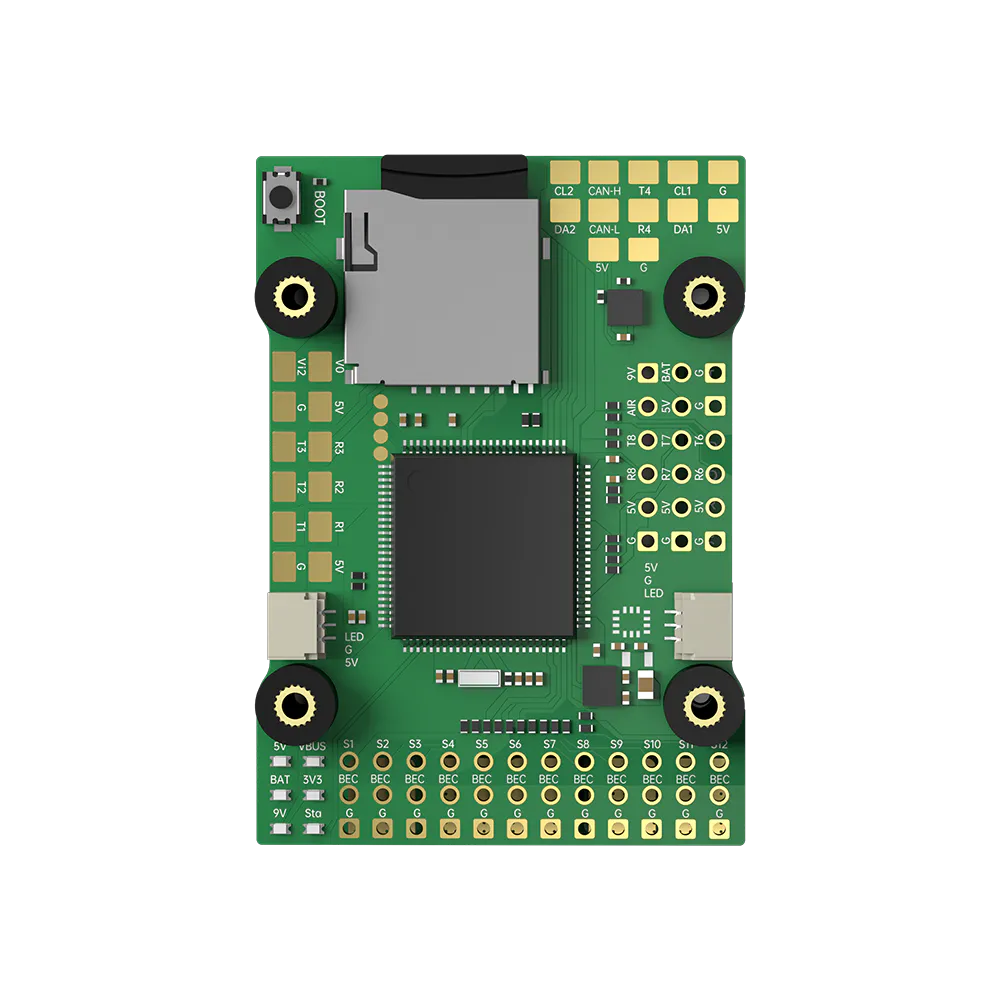

iFlight BLITZ Wing H743 Flight Controller

The iFlight BLITZ Wing H743 is a flight controller engineered specifically for fixed-wing aircraft, flying wings, and VTOL platforms. Built around the STM32H743 MCU running at 480MHz, it provides the processing bandwidth and memory required for complex autonomous navigation and mapping tasks in INAV or ArduPilot.

Key features

• Dedicated fixed-wing layout with grouped PWM outputs and header pin pads for direct servo and motor wiring.
• Integrated barometer enables accurate altitude hold and autonomous waypoint flights.
• Onboard MicroSD card slot provides extensive Blackbox logging for tuning and mission telemetry analysis.
• Independent BEC circuits isolate sensitive flight controller logic from high-current servo voltage spikes.
• Multiple hardware UARTs support the simultaneous connection of GPS modules, compasses, digital HD video transmitters, and telemetry radios.

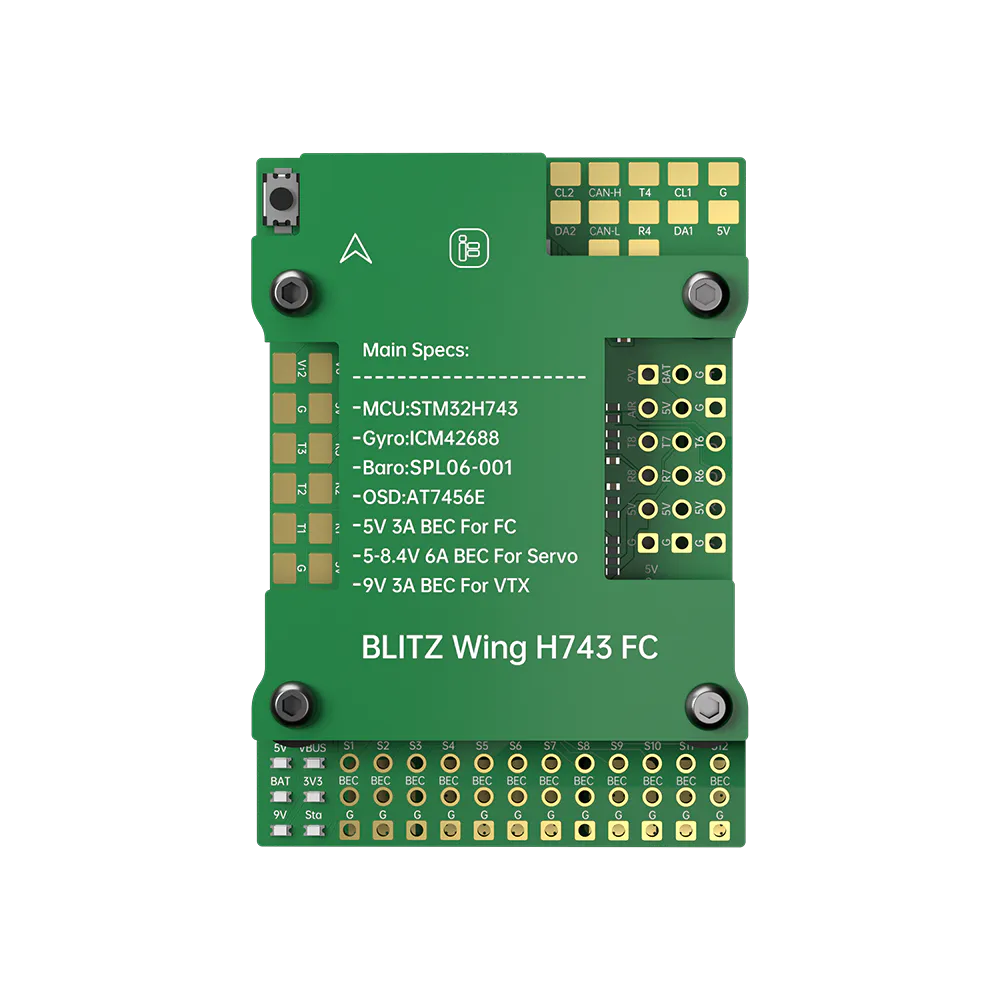

Specifications

• Processor: STM32H743 (480MHz)
• Gyro: ICM42688P
• Barometer: SPA06-001 (DPS310 on boards made before January 2025)
• OSD: AT7456E
• UARTs: 8
• Input voltage: 7-36V (2-8S)

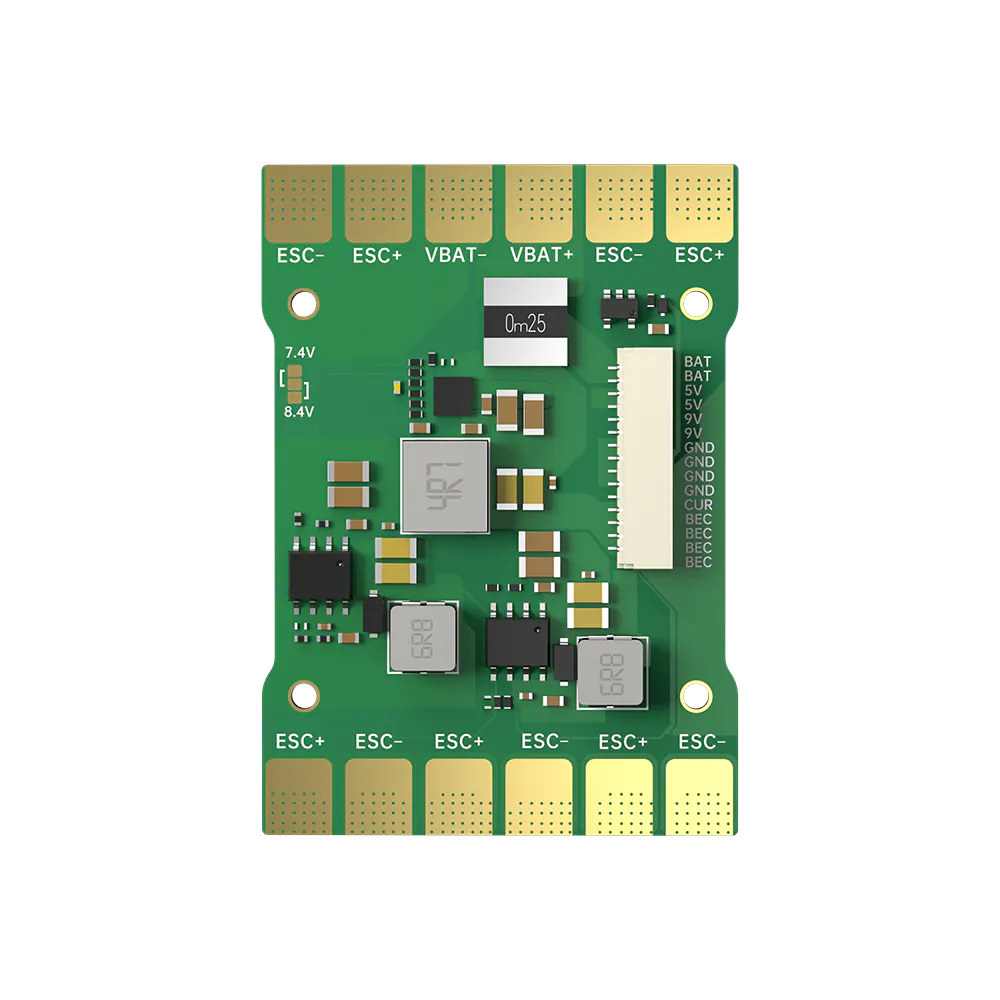

• BEC outputs: 5V/2.5A, 9V/2.5A, servo 5-8.4V/6A (switchable 5V/7.4V/8.4V)
• PDB rating: 100A continuous, 160A peak (10 s)
• Current sensor: onboard, 0-176A range
• Camera inputs: 2, switchable by remote
• Airspeed: external airspeed sensor supported
• Mounting: 30.5x30.5mm (4 mm holes)
• Dimensions: 36.9 x 52 mm
• Weight: 35 g
• Supported firmware: INAV, ArduPilot
• Logging: MicroSD card slot

This board is designed for medium to long-range FPV wings and autonomous mapping builds where standard multirotor controllers lack sufficient PWM outputs or servo-specific power distribution.
