M5Stack ATOMIC M8030-KT GPS Base

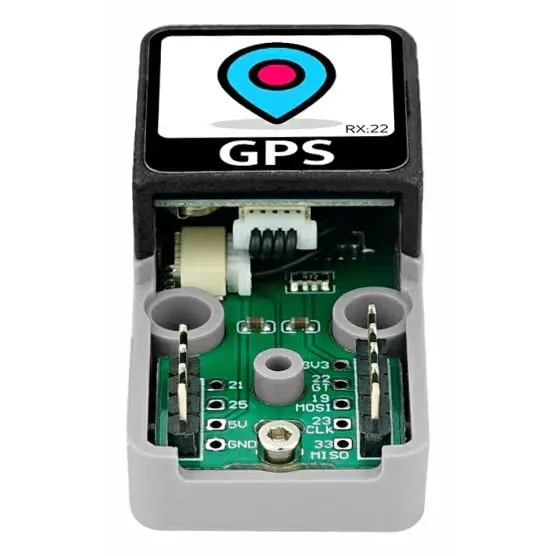

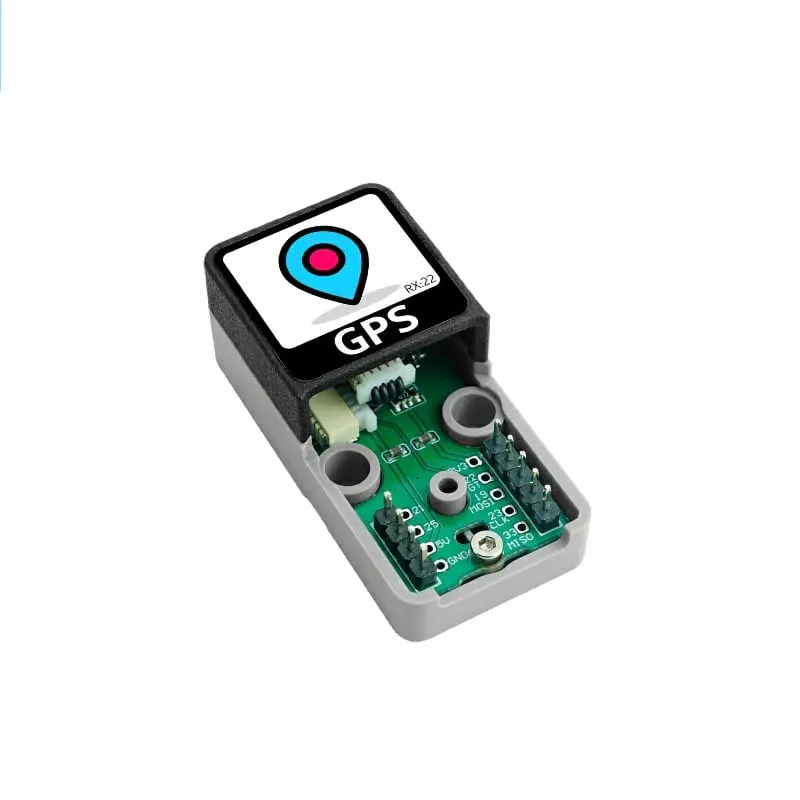

The M5Stack ATOMIC GPS Base is a GPS positioning module built around the M8030-KT chip, designed to plug straight onto M5Stack's ATOM Lite, ATOM Matrix, AtomS3 and AtomS3 Lite controllers for navigation and tracking projects.

Key features

• Tracks GPS, GLONASS, Galileo, BDS, SBAS and QZSS satellites concurrently across 72 search channels for high signal-acquisition sensitivity.
• Outputs standard NMEA-0183 position data over UART at 9600bps, 8 data bits, 1 stop bit, no parity.
• Built-in flash memory plus a coin-cell battery retain configuration settings through a power loss.

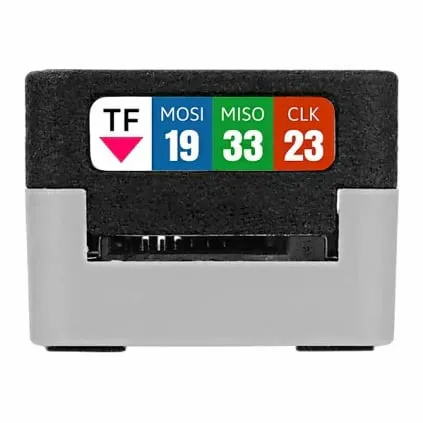

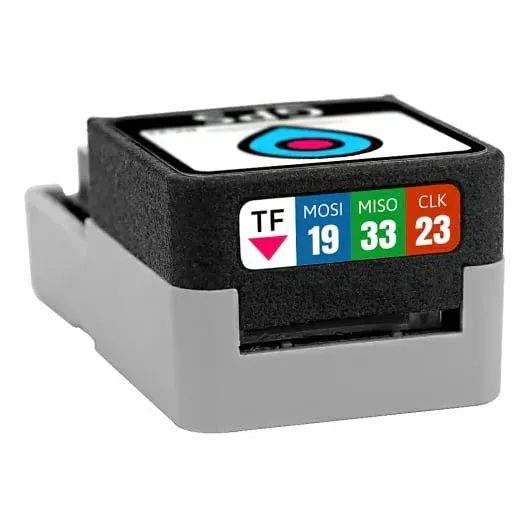

• A microSD card slot beneath the module can log GPS tracks for later viewing in mapping software, or double as a general-purpose card reader.
• Suits vehicle and marine navigation, trajectory tracking and other location-aware maker projects.
• Compact base module snaps directly onto the ATOM series controller, so no separate wiring harness is needed.

Specifications

• GNSS chipset: M8030-KT
• Satellite systems: GPS, GLONASS, Galileo, BDS, SBAS, QZSS
• Channels: 72
• Output protocol: NMEA-0183
• Compatibility: ATOM Lite, ATOM Matrix, AtomS3, AtomS3 Lite
