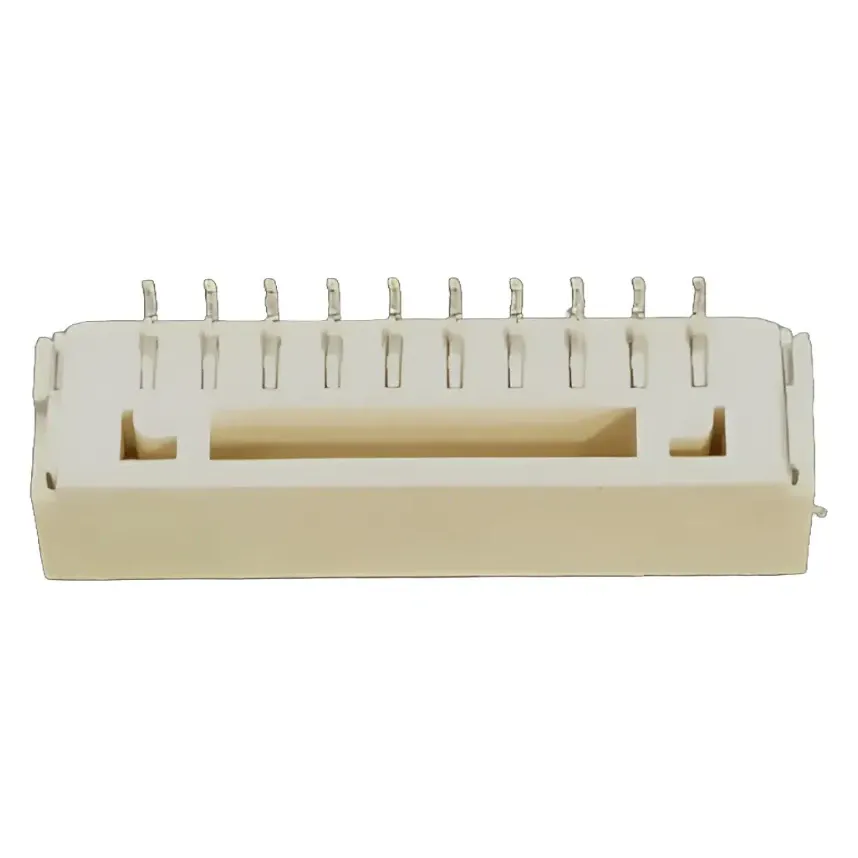

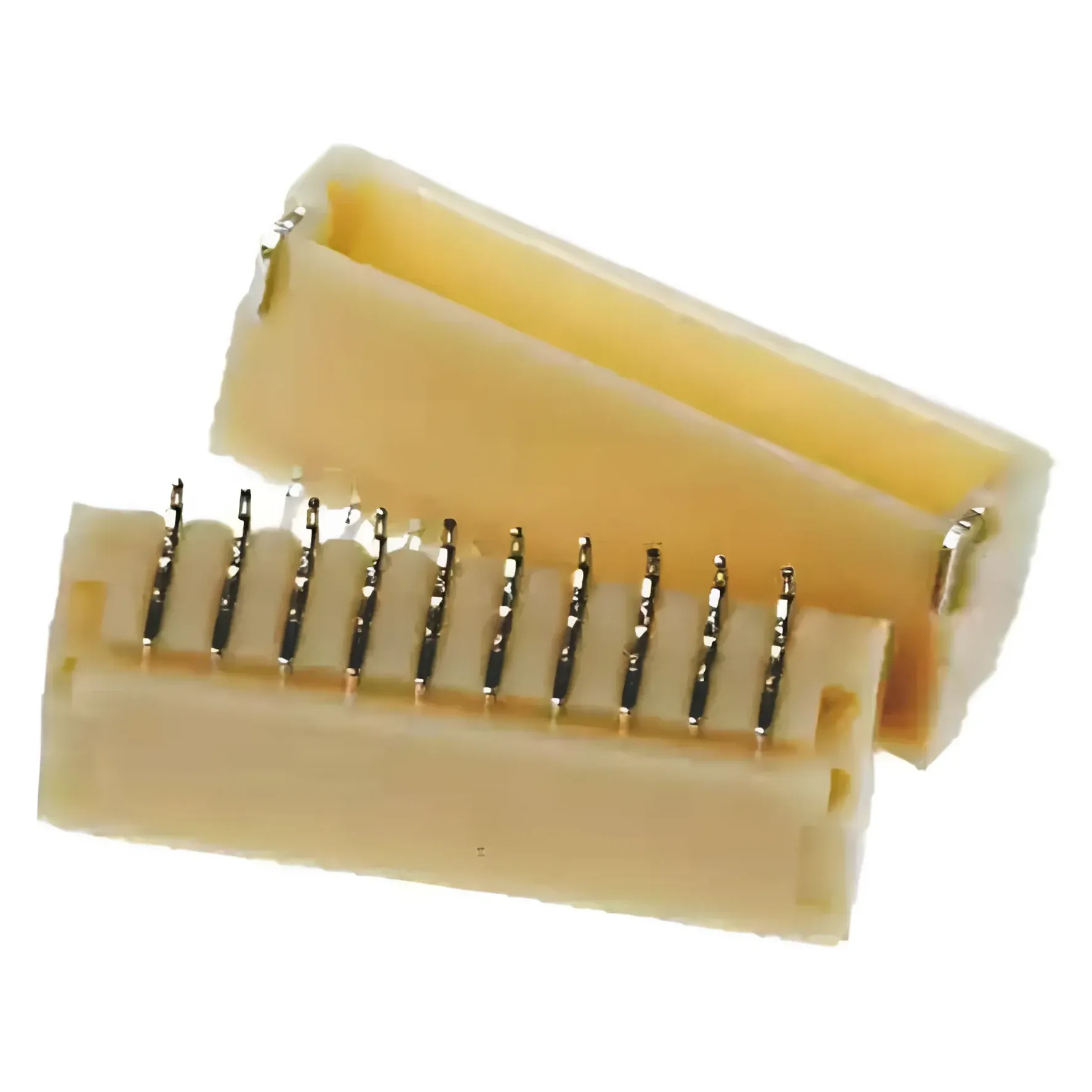

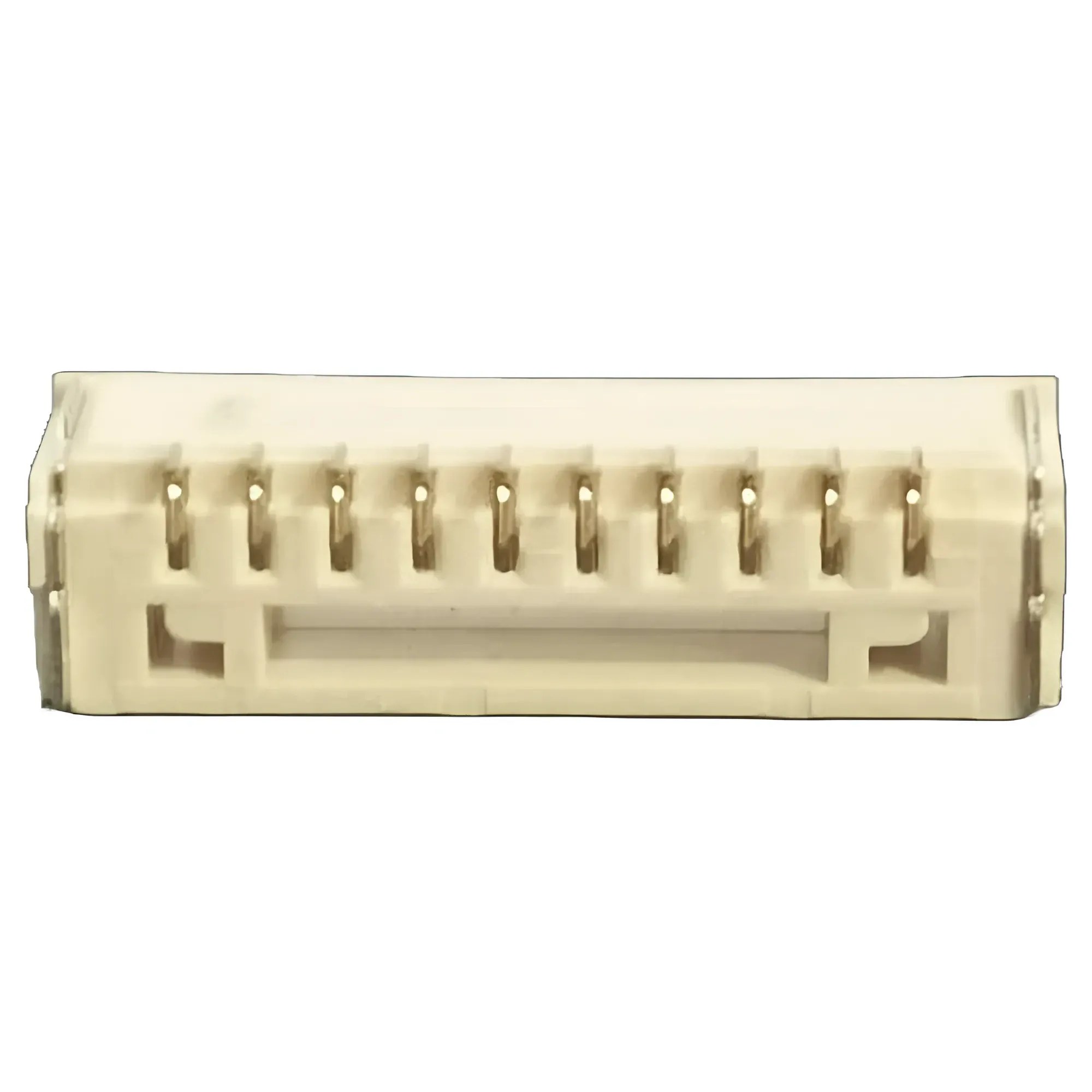

JST GH 1.25mm 10-Pin Straight Female Connector

Ten-way JST GH female connector with 1.25mm pitch, the small locking connector used on flight controller, GPS and telemetry ports. The 10-pin size is the one Pixhawk-standard autopilots use for the full GPS and safety-switch port, so it suits making up or repairing those leads.

Key features

• 10 positions at 1.25mm pitch, straight
• Positive locking latch keeps the plug seated under vibration
• Rated 1A and 50V, the JST GH series rating (1A applies with 26AWG wire)
• Easy to unplug by pressing the latch, without pulling on the wires

Specifications

• Series: JST GH
• Pitch: 1.25mm
• Positions: 10
• Gender: Female
• Current rating: 1A (26AWG)
• Voltage rating: 50V

If you are making up leads yourself, JST GH terminals take 26 to 30AWG wire and need a fine-pitch crimp tool. Check the pin-out of the port you are connecting to before wiring, as signal order differs between devices.
