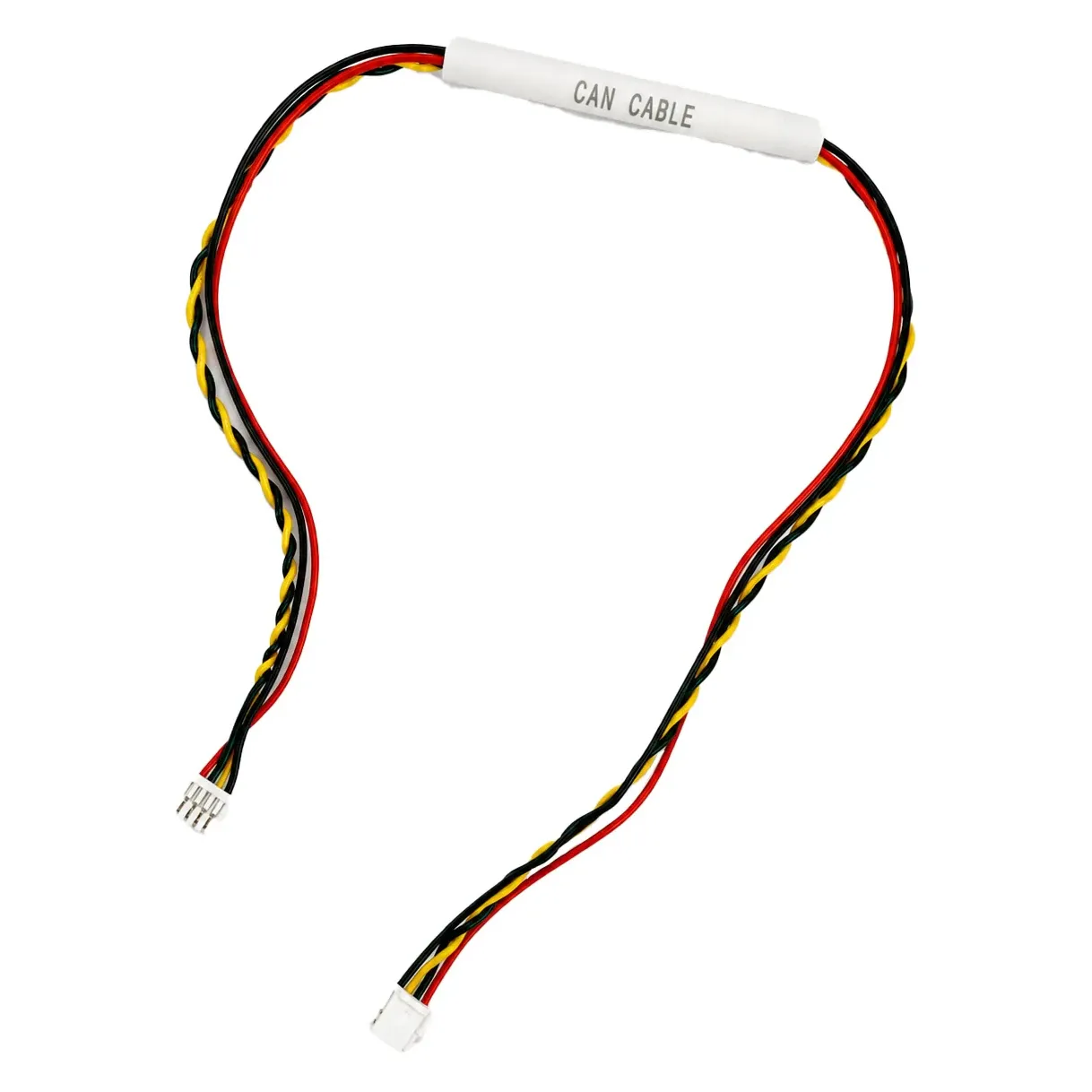

DroneCAN Cable JST-GH 4-Pin 300mm

A 300 mm DroneCAN cable terminated with JST-GH 4-pin connectors at both ends, designed for CAN bus communication between flight electronics in ArduPilot, PX4 and DroneCAN-compatible UAV systems. The compact JST-GH connectors are widely used on pixhawk-standard flight controllers, GNSS modules, airspeed sensors, power modules and other CAN peripherals, making this cable a direct fit for expanding avionics networks on heavy-lift, agriculture and long-range platforms.

Key features

• JST-GH 4-pin connectors on both ends for plug-and-play DroneCAN node connections

• 300 mm length suits short runs within a stack or between close-mounted avionics

• Four-wire construction carries CAN_H, CAN_L, power and ground per the DroneCAN standard

• Compatible with Pixhawk, Cube, Holybro and other flight controllers exposing JST-GH CAN ports

Specifications

• Connectors: JST-GH 4-pin (GHR-04V-S, 1.25 mm pitch) at both ends

• Signal pair: twisted CAN_H / CAN_L

• Conductors: 28 AWG tinned copper

• Length: 300 mm

• Weight: 3 g

Use this cable to daisy-chain GPS modules, external magnetometers, ESCs with CAN telemetry, or redundant power monitors in autopilot builds where reliable, noise-resistant communication is required.
