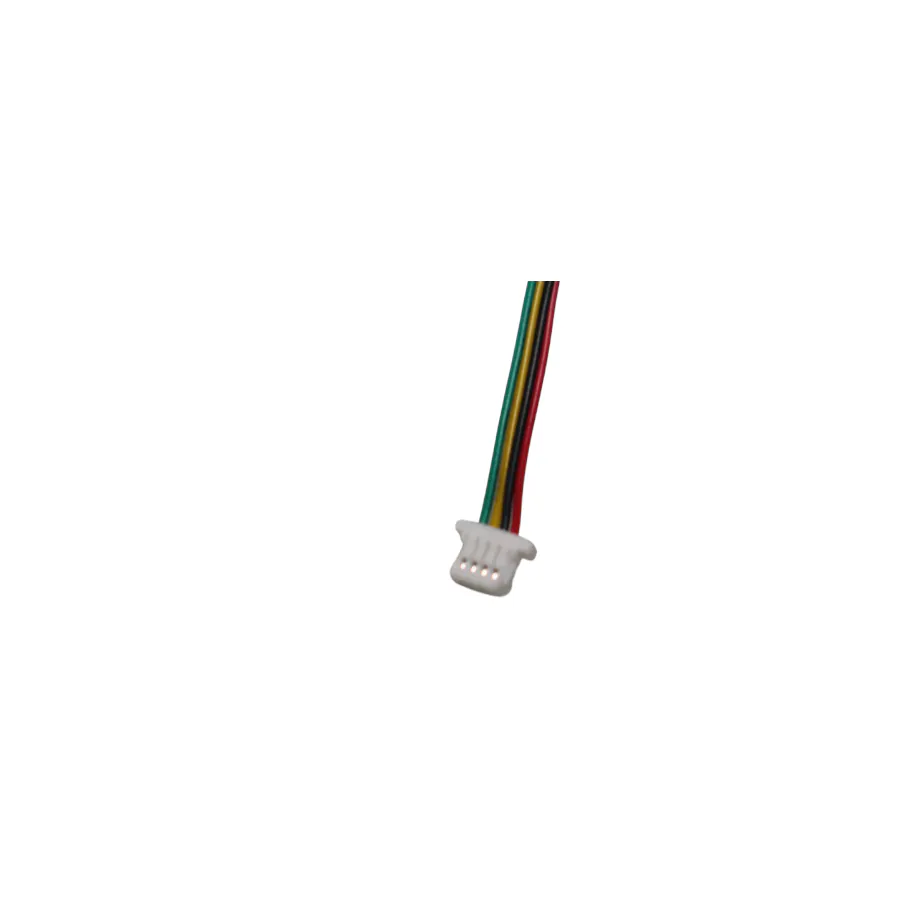

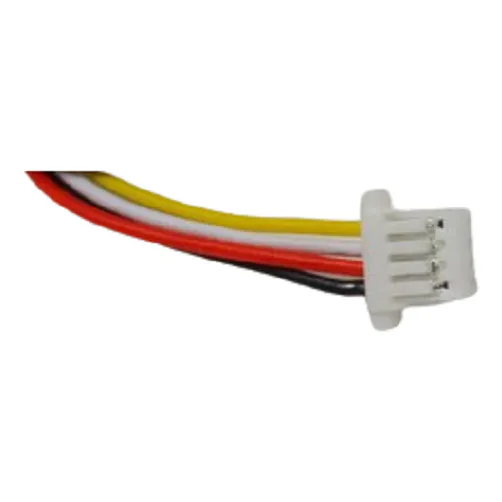

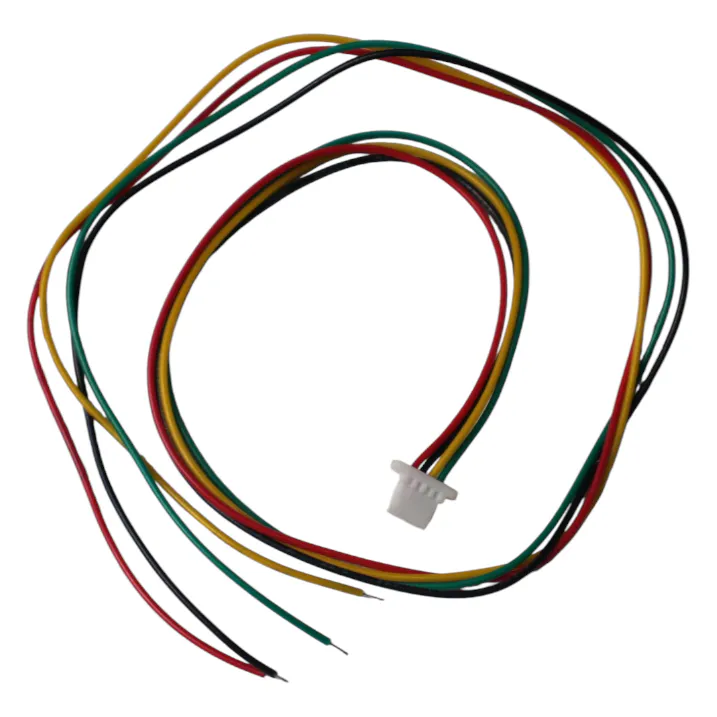

JST-SH 1mm 4-Pin Female Connector with 300mm Wire (30AWG)

A JST-SH 1.0 mm pitch, 4-pin female housing supplied pre-wired with a 300 mm lead of 30AWG wire. It saves crimping the tiny SH contacts yourself when making or repairing peripheral cables for flight controllers, receivers, GPS modules and other small-connector electronics.

Key features

• 4-pin JST-SH housing with 1.0 mm contact pitch
• Pre-wired 300 mm lead, long enough to route through most frames before trimming to length
• Fine 30AWG wire for low-current signal and logic connections
• Insulation resistance of 10 MOhm at 300 V DC

Specifications

• Connector: JST-SH type female housing
• Pitch: 1.0 mm
• Pins: 4
• Wire length: 300 mm
• Wire gauge: 30AWG
• Package: 1 pre-wired connector

Check the pin order on both devices before soldering, as 4-pin SH ports are wired differently by different manufacturers. 30AWG suits signal lines, not main power feeds.
