Futaba/
SKU GEN-SERVO-EXT-FF-30
Length: 30cm
Connector: Female to Female
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

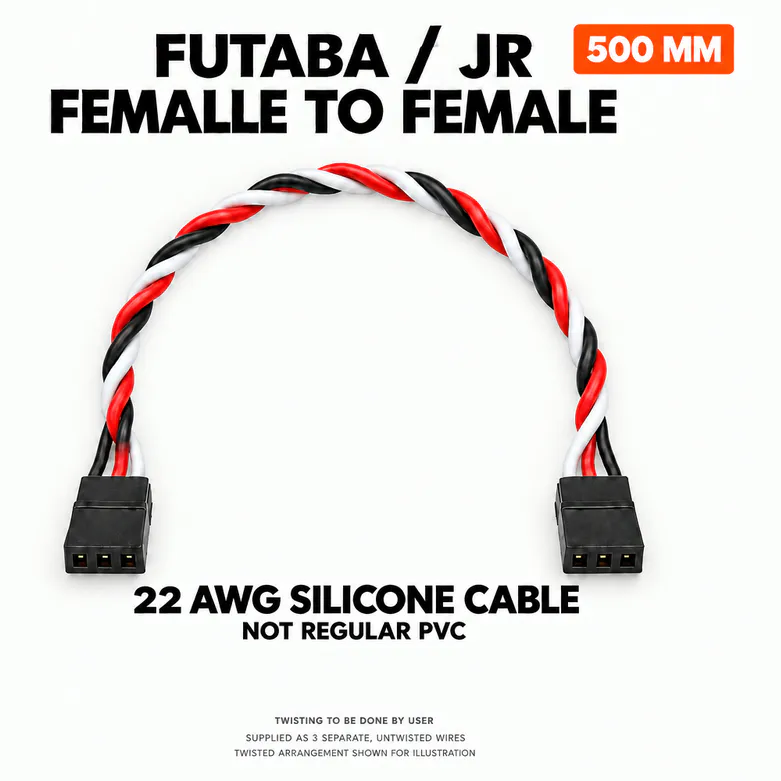

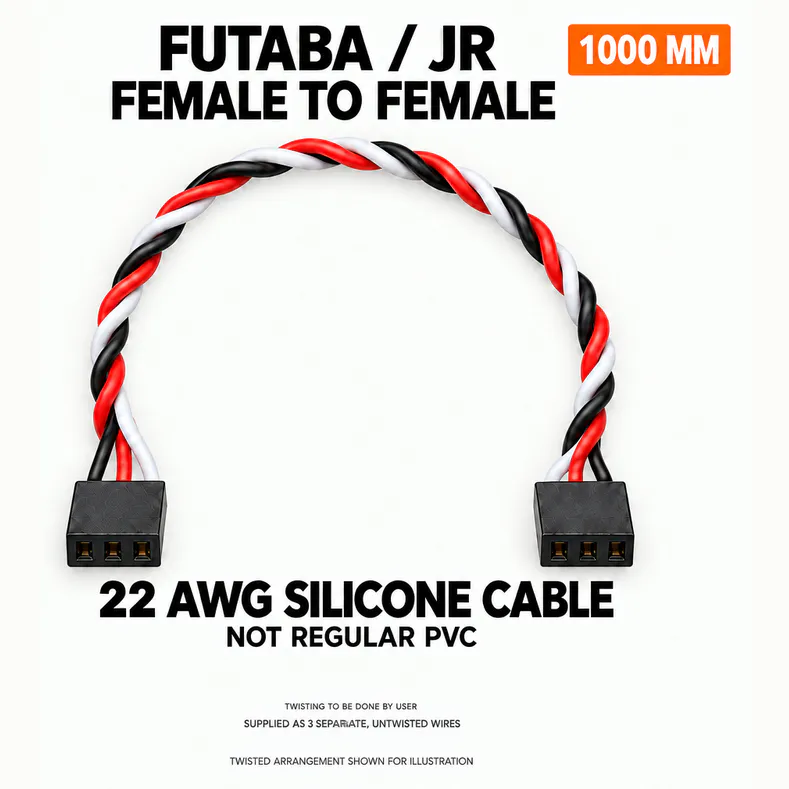

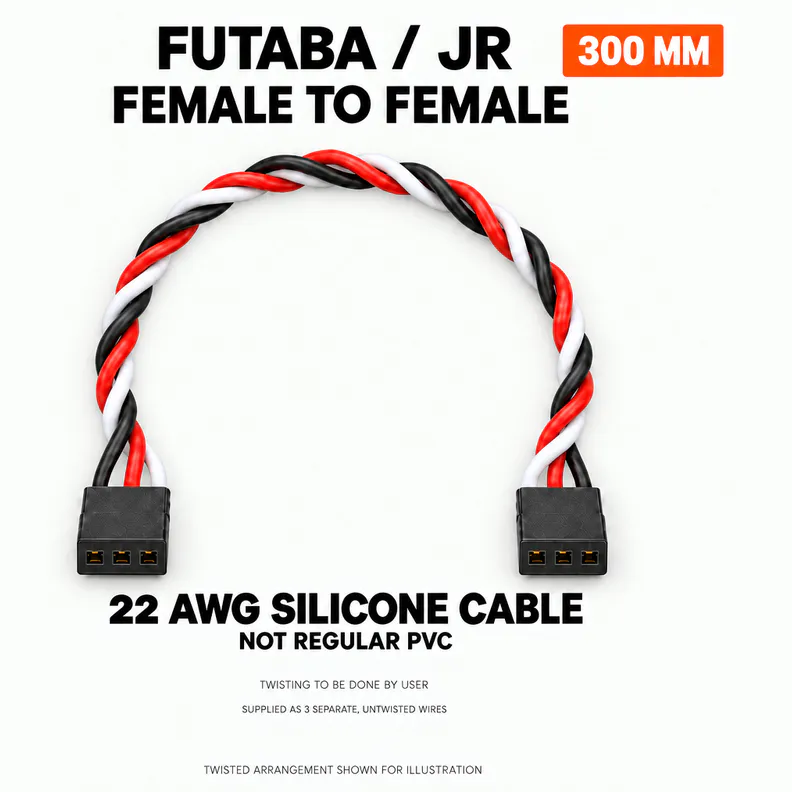

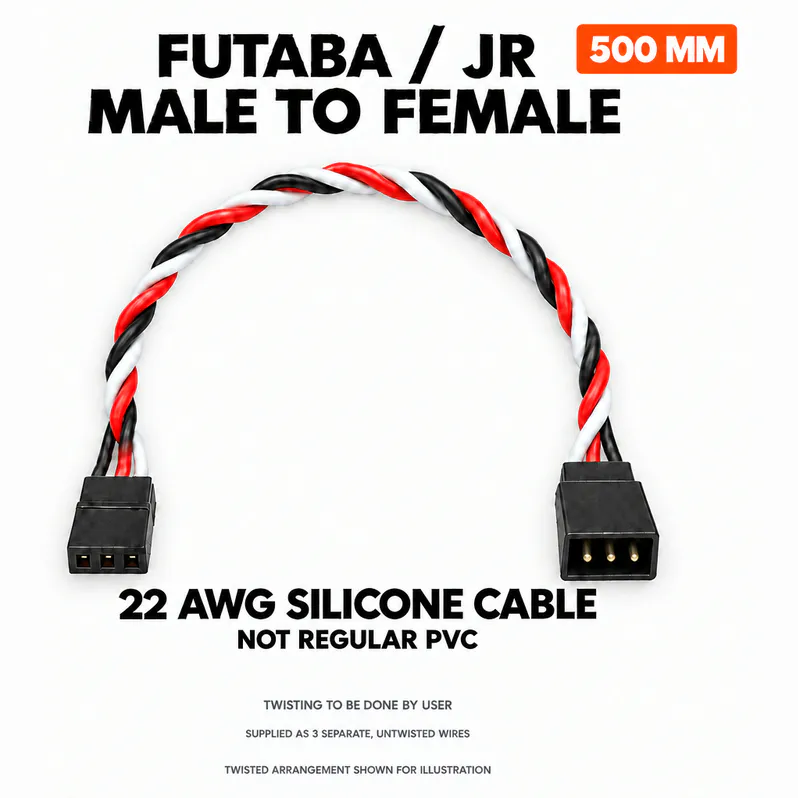

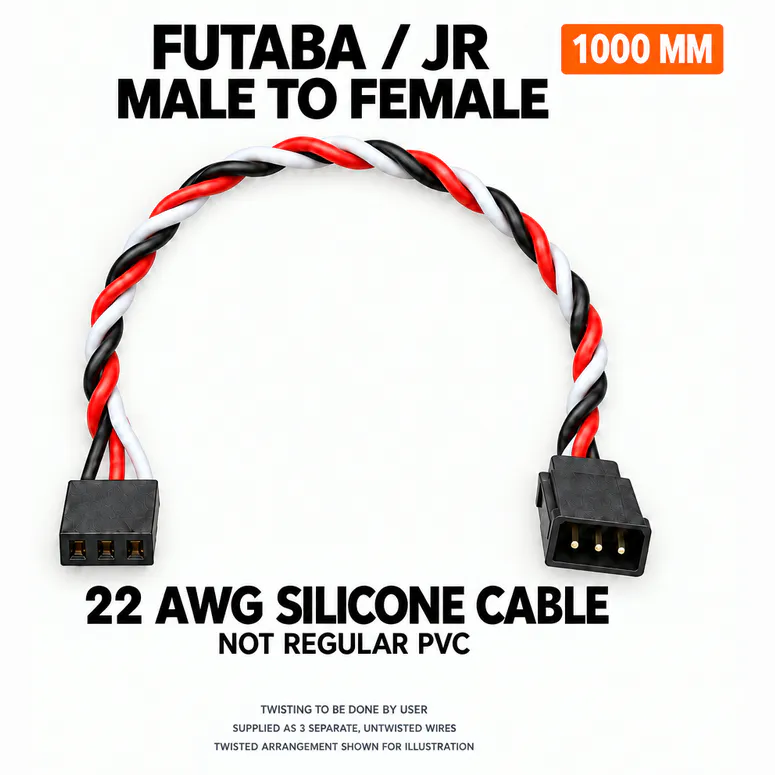

A Futaba/JR-style 3-pin servo lead made with 22AWG silicone-insulated wire, for extending servo, ESC or receiver connections in fixed-wing models, VTOLs, gimbals and retracts where the stock lead falls short. Choose male-to-female to lengthen an existing lead or female-to-female to join two male headers, in 30cm, 50cm or 100cm.
Key features
- 22AWG conductors, heavier than typical stock servo wire, for less voltage drop on long runs to high-torque servos
- Silicone insulation stays flexible for routing through wings, booms and fuselages
- Three separate red, black and white wires rather than a bonded ribbon, so you can twist them for neat routing
- Preassembled 3-pin connectors at both ends
- One cable of the selected length per order
Specifications
- Connector style: Futaba/JR compatible, 3-pin
- Configuration: male to female or female to female
- Wire gauge: 22AWG
- Insulation: Silicone
- Wire colours: red, black, white
- Lengths: 300 mm, 500 mm or 1000 mm
Check connector keying and the signal, positive and ground order on both devices before plugging in, as wire colour alone does not confirm the pinout. On runs of 50cm or more, twisting the three wires helps reject interference from nearby power wiring.
| Made in India | No |
|---|---|
| Brand | Generic |
| Connector Type | JR, Futaba |
| Cable Length | 300 mm, 500 mm, 1000 mm |
| Pin Count | 3 |
