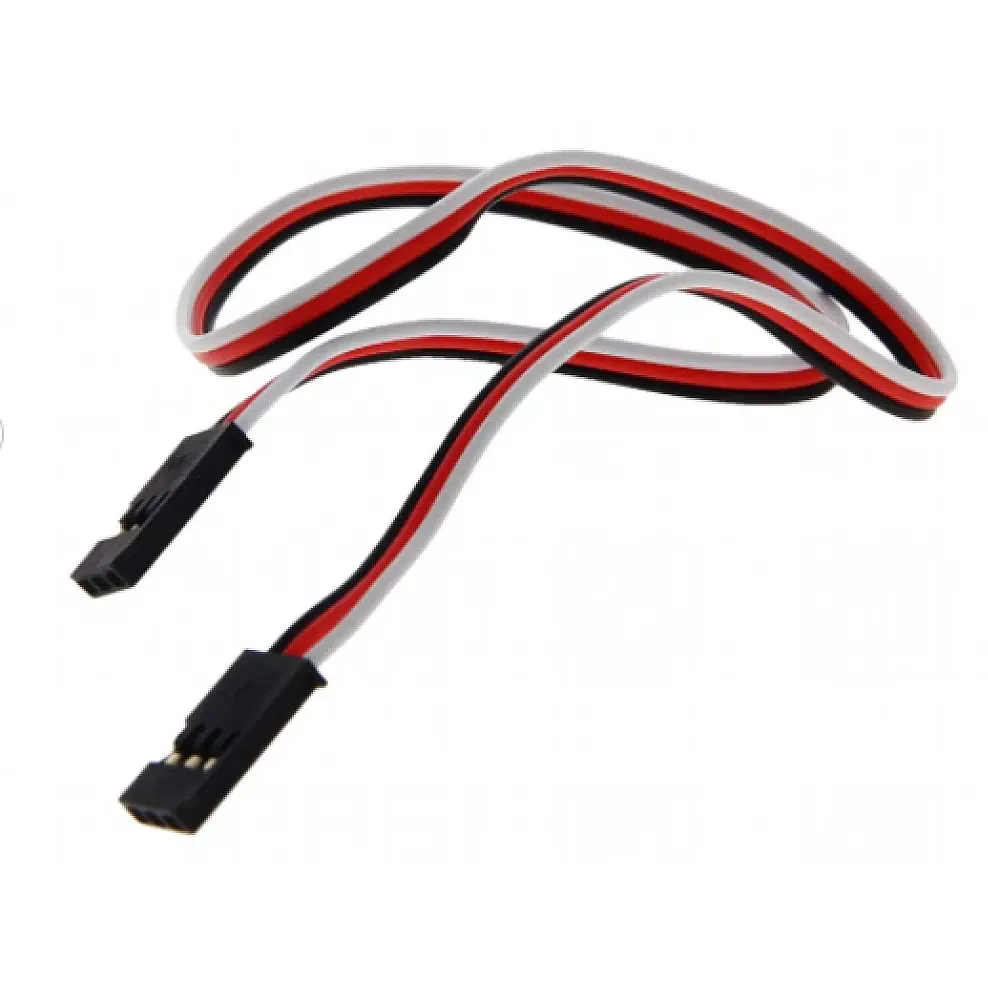

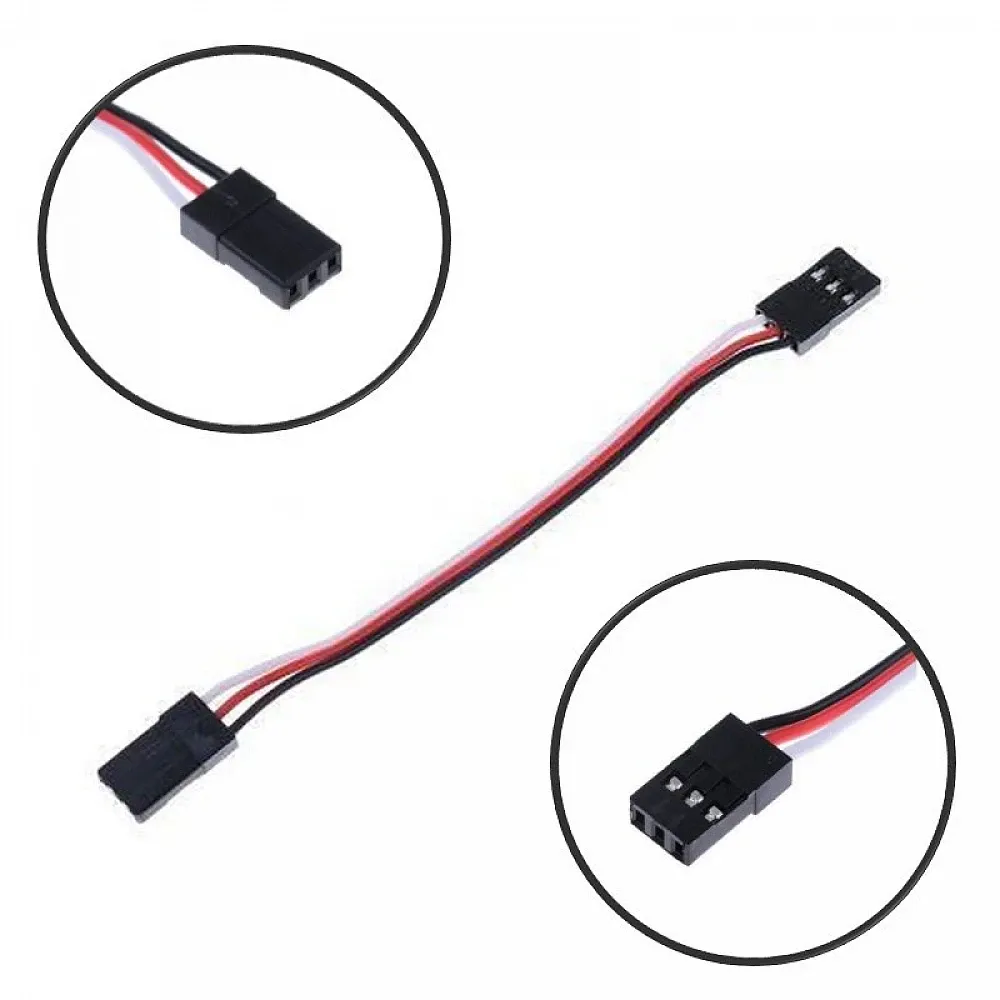

JR Male to JR Male Servo Extension Wire (10cm / 20cm / 50cm)

Three-pin servo lead with a JR-style male plug on both ends. It links two boards that both have servo pin headers, such as a receiver and a flight controller, and joins servo connections on RC models. It comes in 10cm, 20cm and 50cm lengths.

Key features

• The same JR 3-pin plug on each end connects a receiver output to a flight controller input or another pin-header device
• 10cm suits tight receiver-to-stack runs, 20cm typical frame layouts and 50cm longer runs across a fuselage
• Plugs fit both JR and Futaba receiver headers
• Pre-terminated, so no soldering or crimping is needed

Specifications

• Connectors: JR male to JR male, 3-pin
• Length: 10cm, 20cm or 50cm

Line up the signal, power and ground pins the same way on both boards. If each board has its own power supply and only the signal needs to pass, you can lift the centre power wire at one end.
