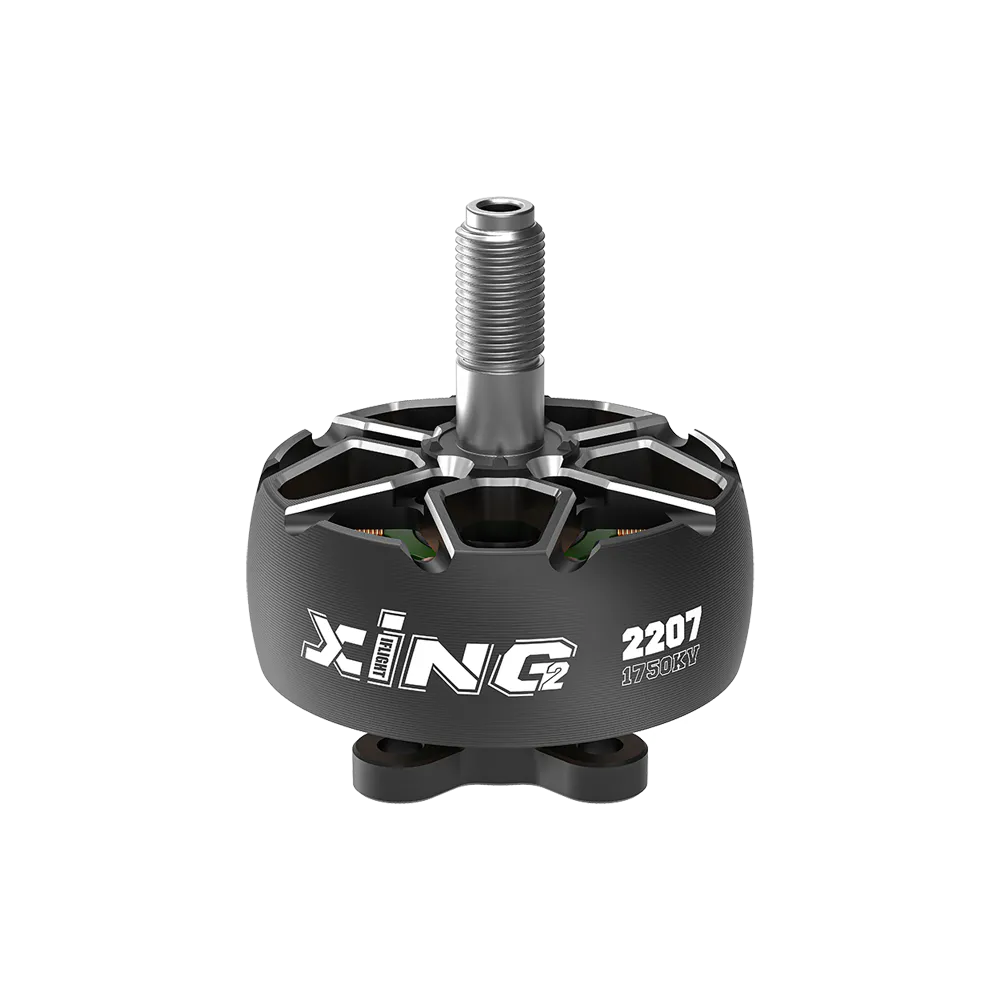

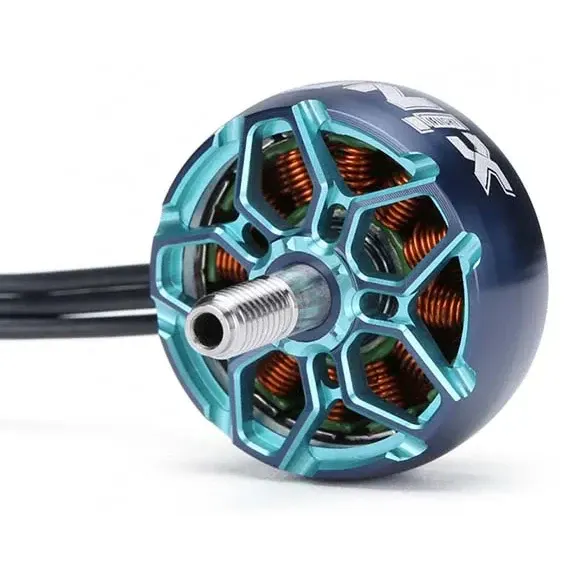

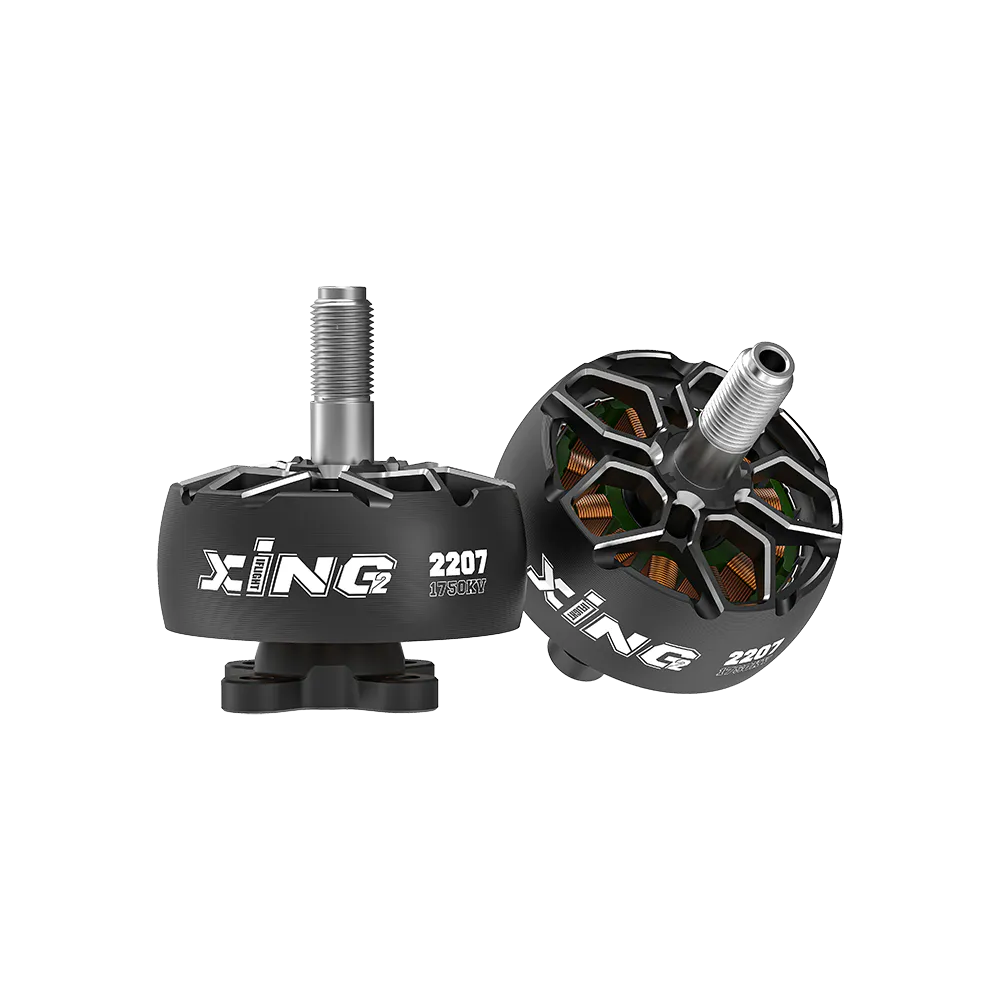

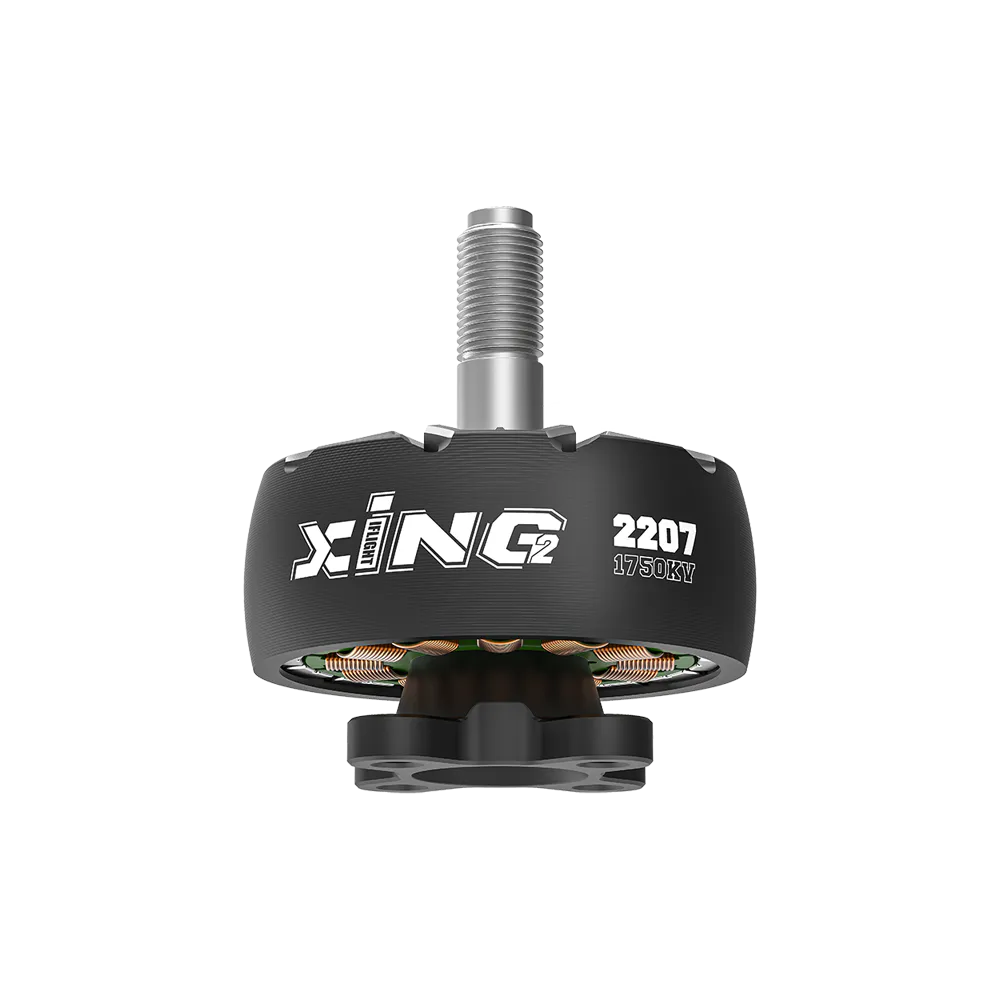

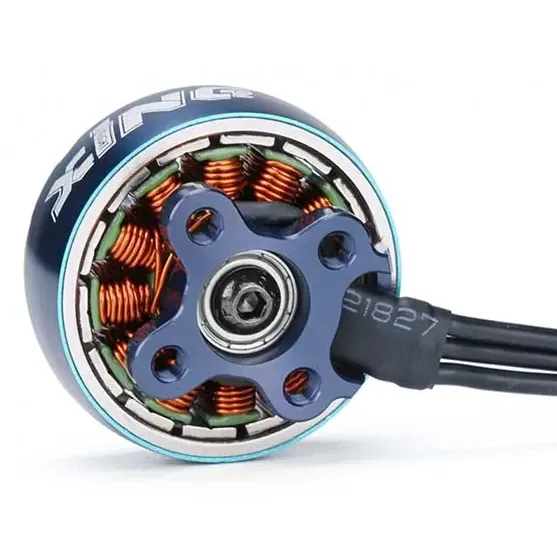

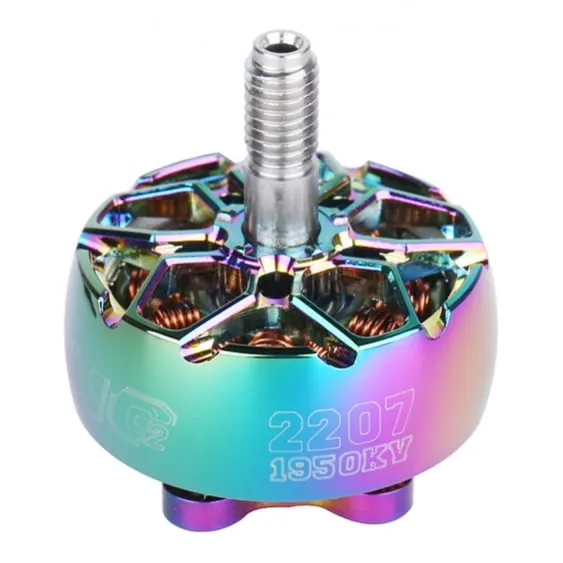

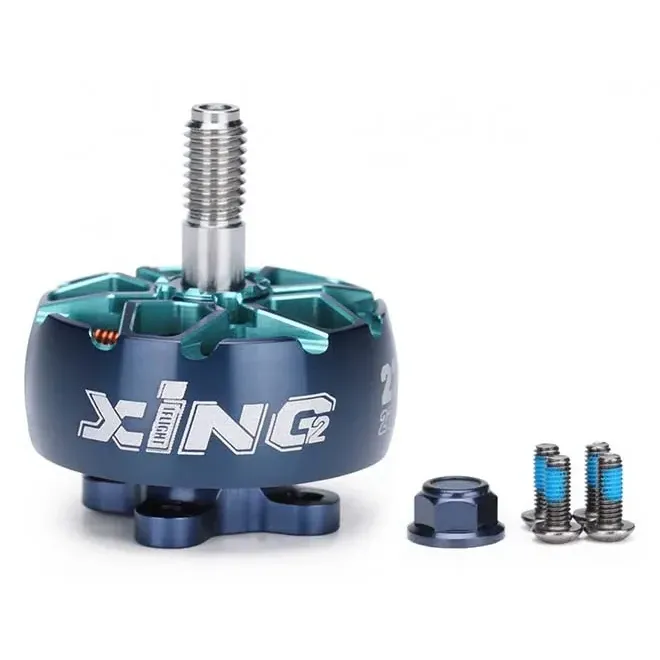

iFlight XING 2207 Unibell 1855KV/1750KV Motor

The iFlight XING 2207 Unibell 1855KV is a highly durable, performance-driven motor tailored for 5-inch freestyle and racing quads running 6S LiPo power. Built with a machined one-piece bell, this motor eliminates the structural weaknesses of traditional multi-piece designs, ensuring the bell will not fly apart during hard crashes or aggressive bando flights.

Key features

• One-piece machined unibell design for superior crash resilience and bell retention.

• High-temperature N52H curved magnets and Japanese NSK bearings ensure smooth, efficient operation.

• Optimised for 6S setups, delivering high-torque, punchy throttle response on heavy-pitch 5-inch props.

• Hollow titanium alloy shaft reduces overall weight without compromising structural strength.

• Damping ring built into the bearing base reduces vibration transfer to the flight controller.

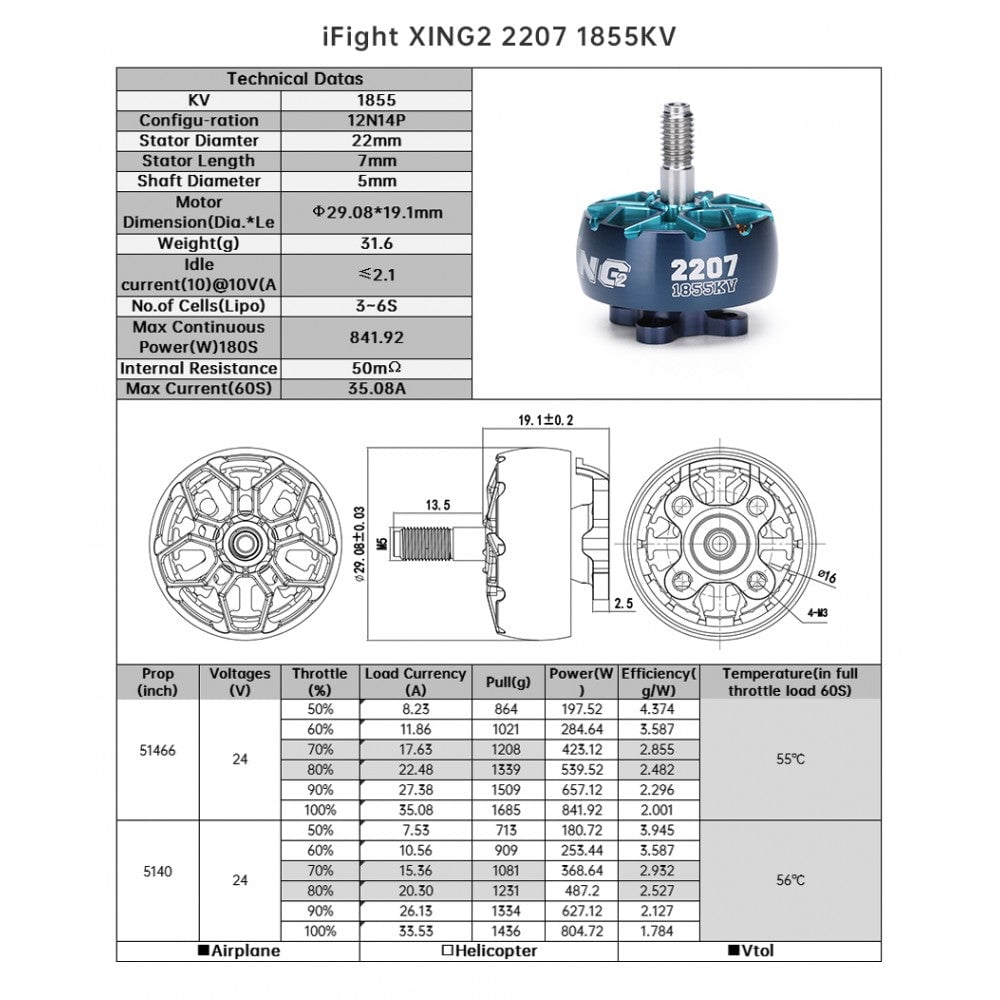

Specifications

• Stator size: 2207

• KV: 1855

• Input voltage: 6S LiPo

• Configuration: 12N14P

• Shaft diameter: 5mm

• Mounting pattern: 16x16mm (M3)

• Wire dimensions: 20AWG, 160mm

• Weight: 31.5g (including wires)
