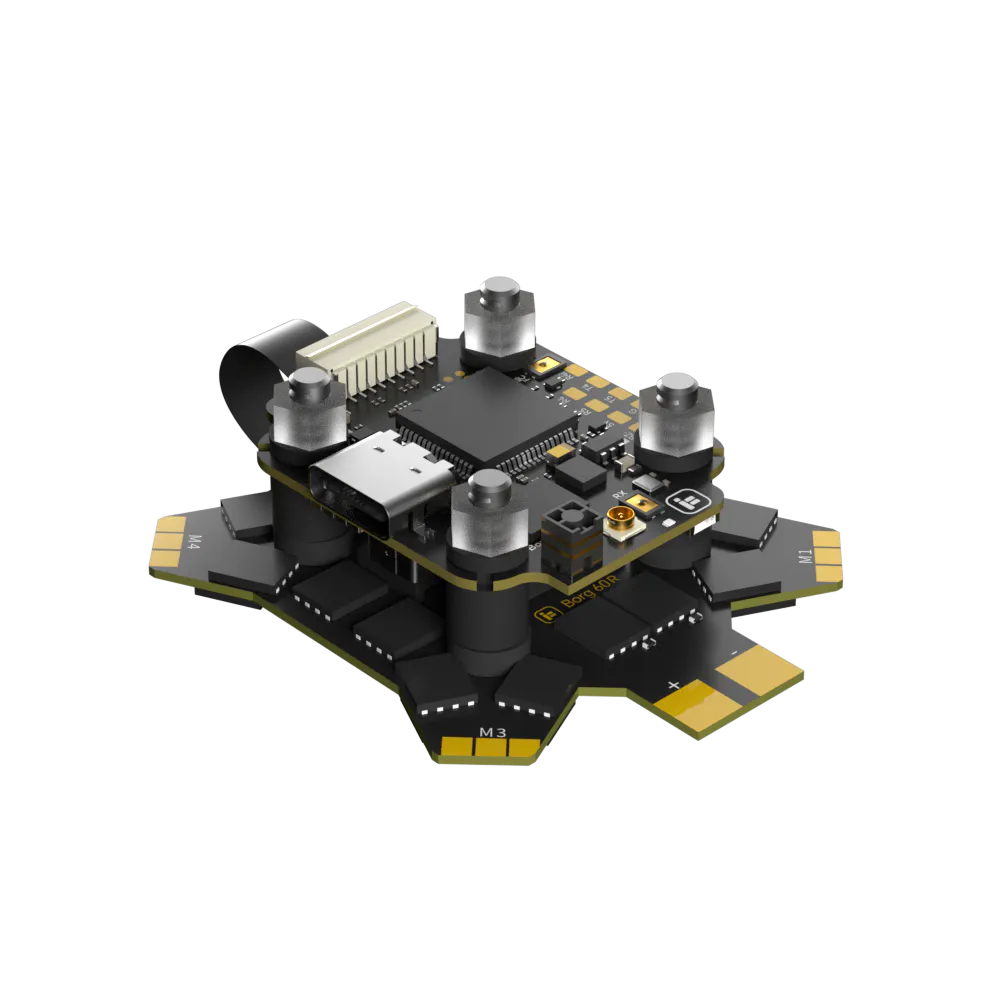

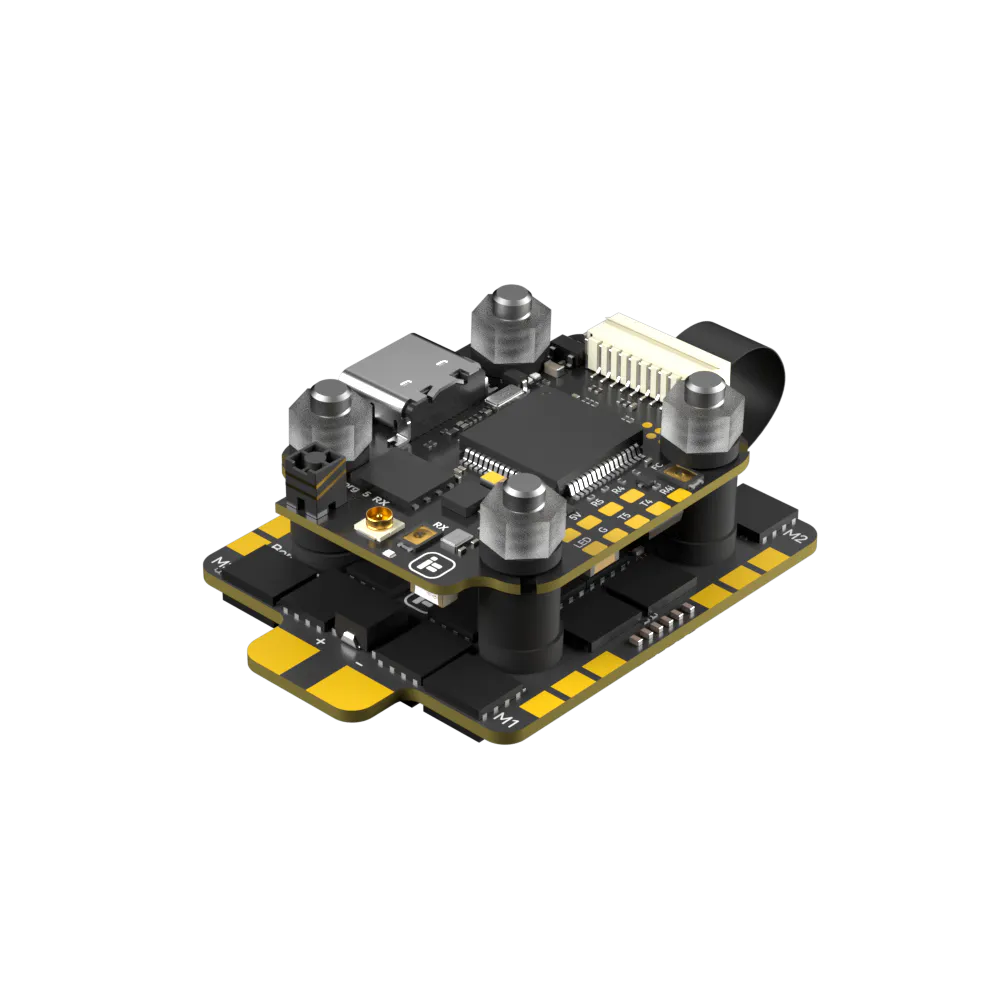

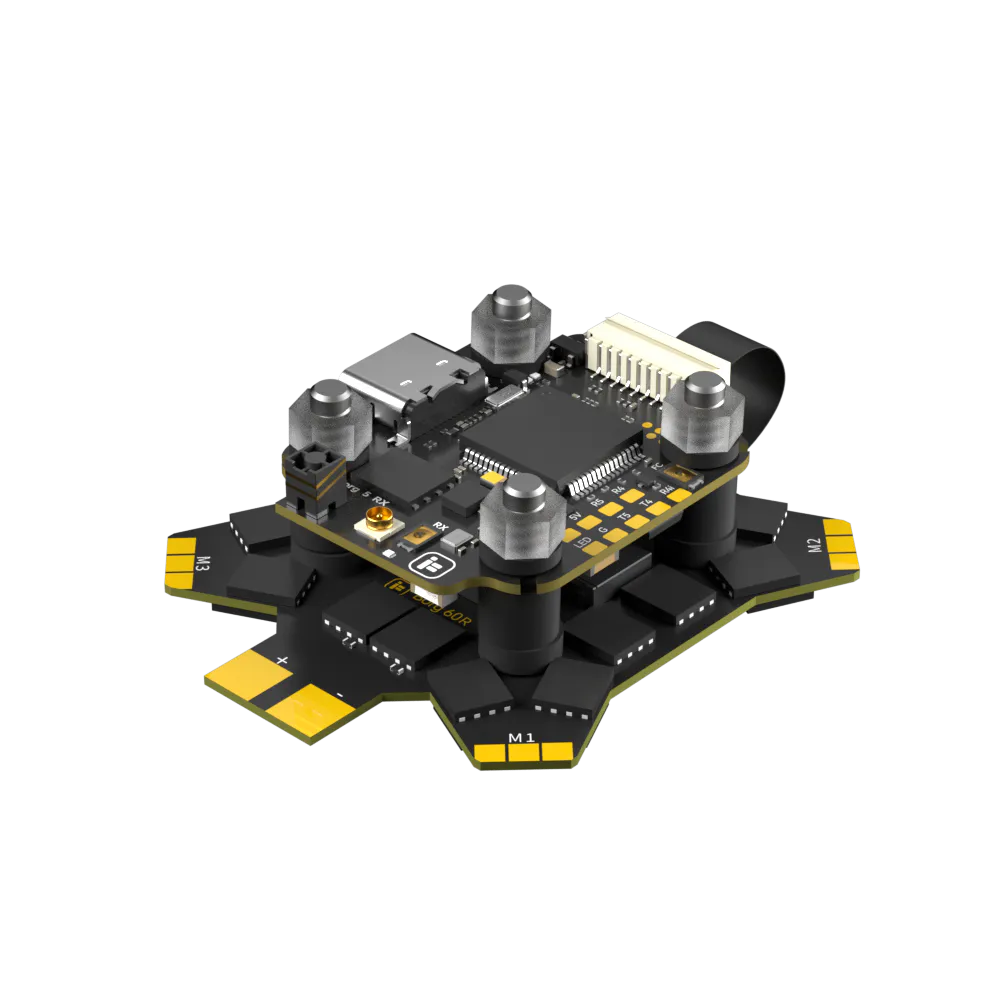

iFlight Borg 5S RX Stack with Borg 60R ESC

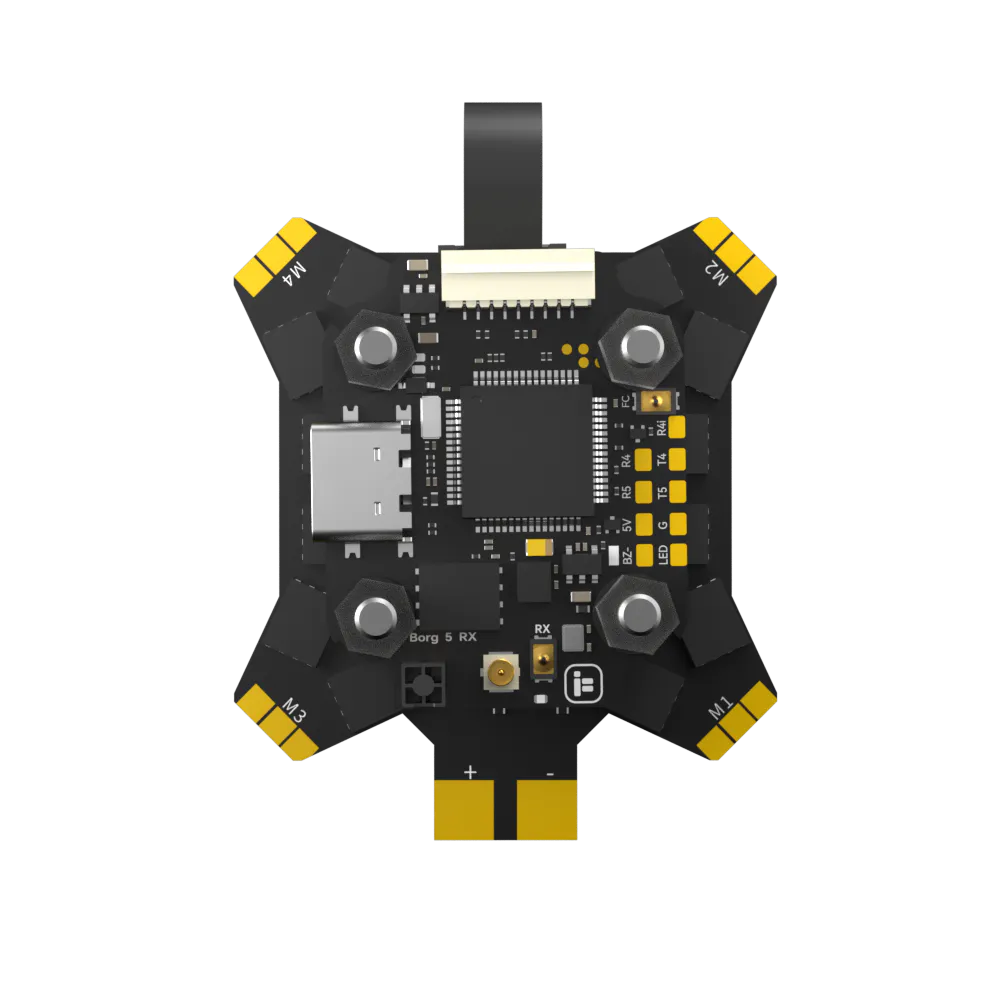

The iFlight Borg 5S RX Stack pairs the Borg 5S RX flight controller — with a built-in ELRS 2.4GHz receiver — with the Borg 60R 60A 4-in-1 ESC, a factory-matched combo for 5-inch freestyle and racing builds on 4–8S power.

Key features

• Built-in ELRS 2.4GHz receiver with an integrated antenna saves the weight and wiring of a separate RX, while still supporting an external receiver if needed.

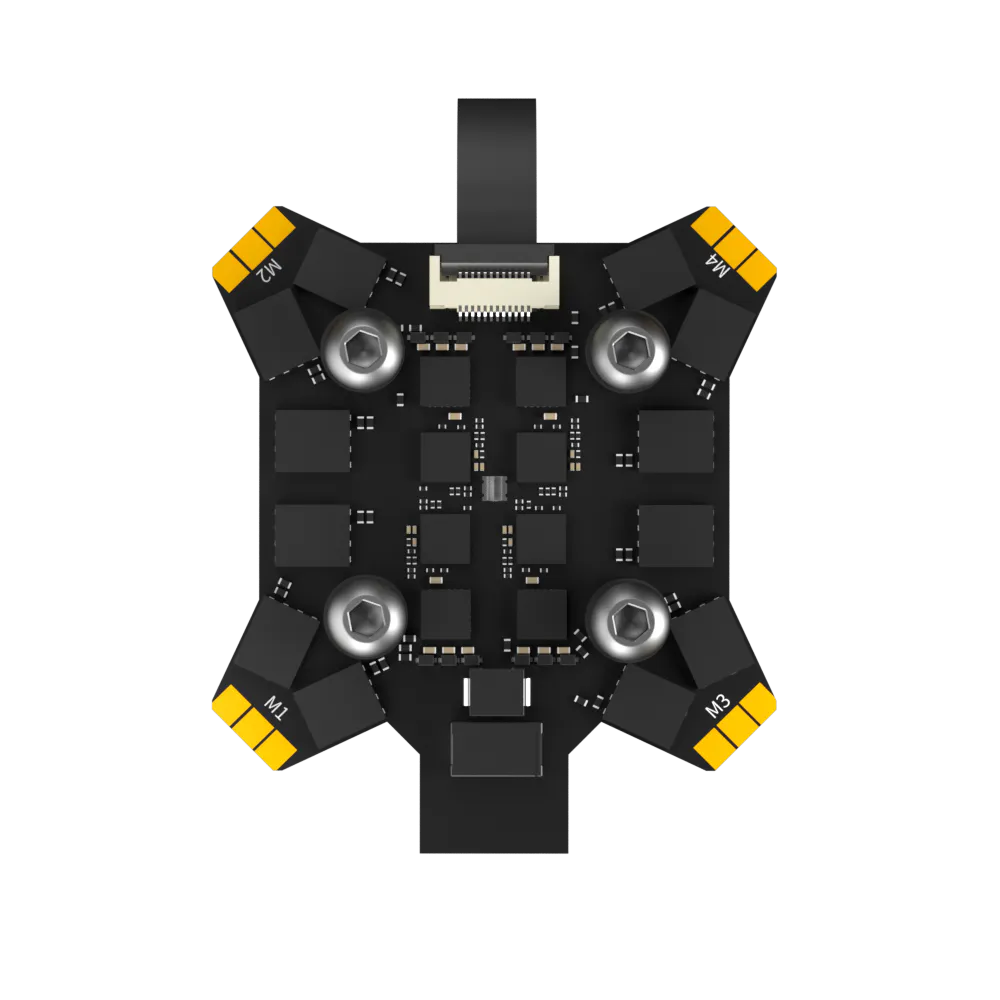

• Borg 60R ESC delivers 60A continuous (65A burst) per motor for aggressive throttle punches under large-stator motors.
• Onboard 12V BEC (plus 5V) powers a VTX directly, with remote on/off switching from the radio.
• 4 UARTs cover HD/analog VTX, ESC telemetry, the built-in receiver and a spare port for GPS or other sensors.

Specifications

• FC processor: AT32F435
• Gyro: ICM42688
• Input voltage: 4–8S LiPo/LiHV
• ESC current: 60 A continuous (65 A burst)
• Mounting: 20x20mm
• Firmware: Betaflight
• OSD: AT7456E
• Blackbox: 16 MB flash
• BEC: 5 V 2.5 A, 12 V 2 A (12 V switchable for the VTX)
• VTX protocols: DJI MSP, SmartAudio, IRC Tramp, HDZero
• ESC firmware: 32-bit BL32, telemetry and bidirectional DShot supported
• FC size and weight: 34 x 27 mm, 6.8 g
• ESC size and weight: 45 x 52 mm, 14.5 g
• In the box: flight controller, ESC, cable set, 5 silicone grommets

A factory-matched pair straight out of the box — no need to find or verify a compatible flight controller and ESC separately.
