iFlight Borg Mini F7 Stack 60A 4-IN-1 20x20 Nazgul Evoque F5
₹10,599Incl. GST
SKU IFLT-BORG-MINI-F7-60A-STK
Mounting Size: 20x20FC Processor: F722, F7Gyro: ICM42688PESC Current: 60 A
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

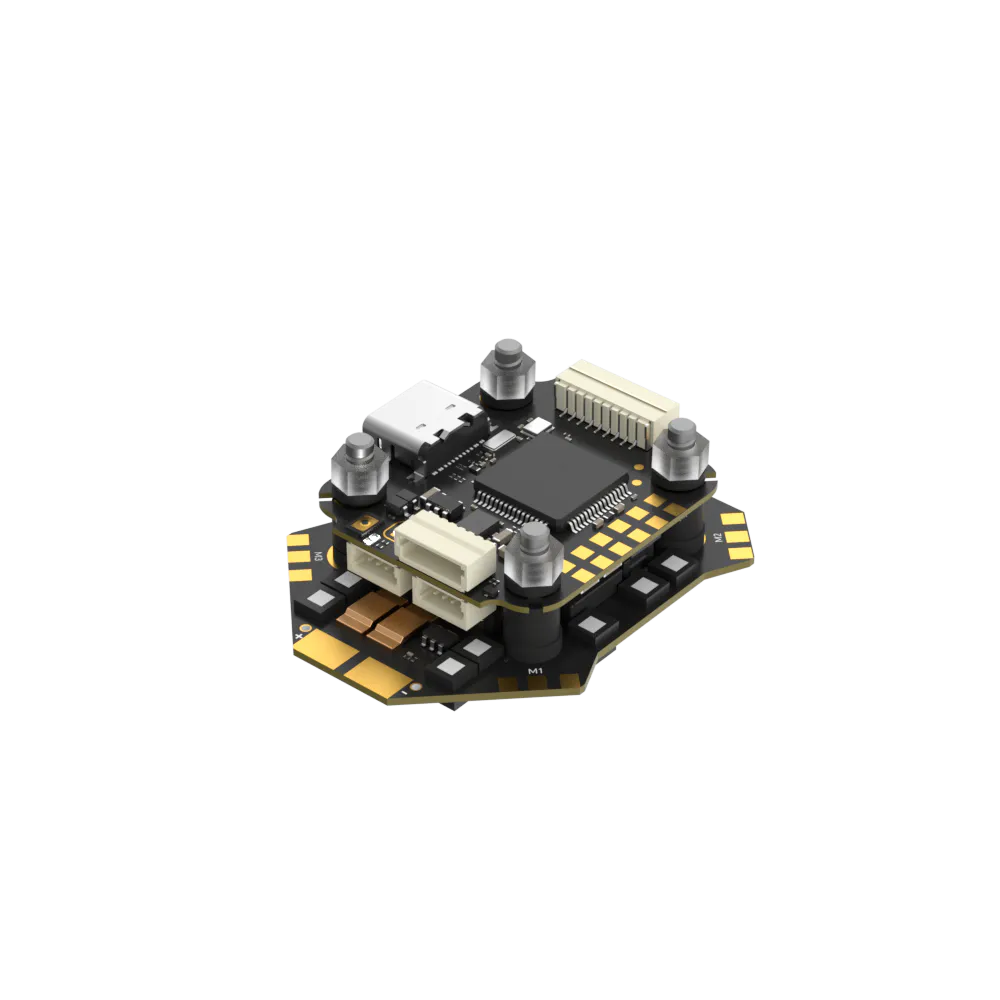

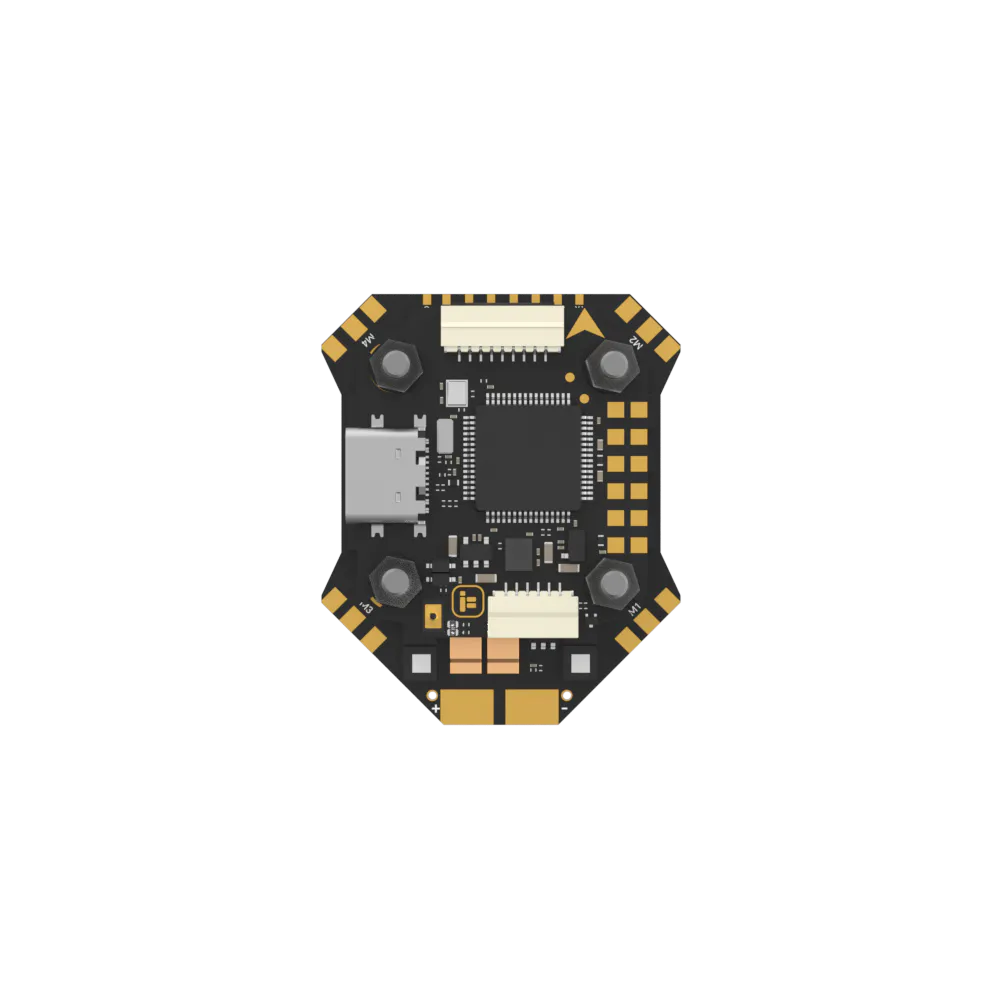

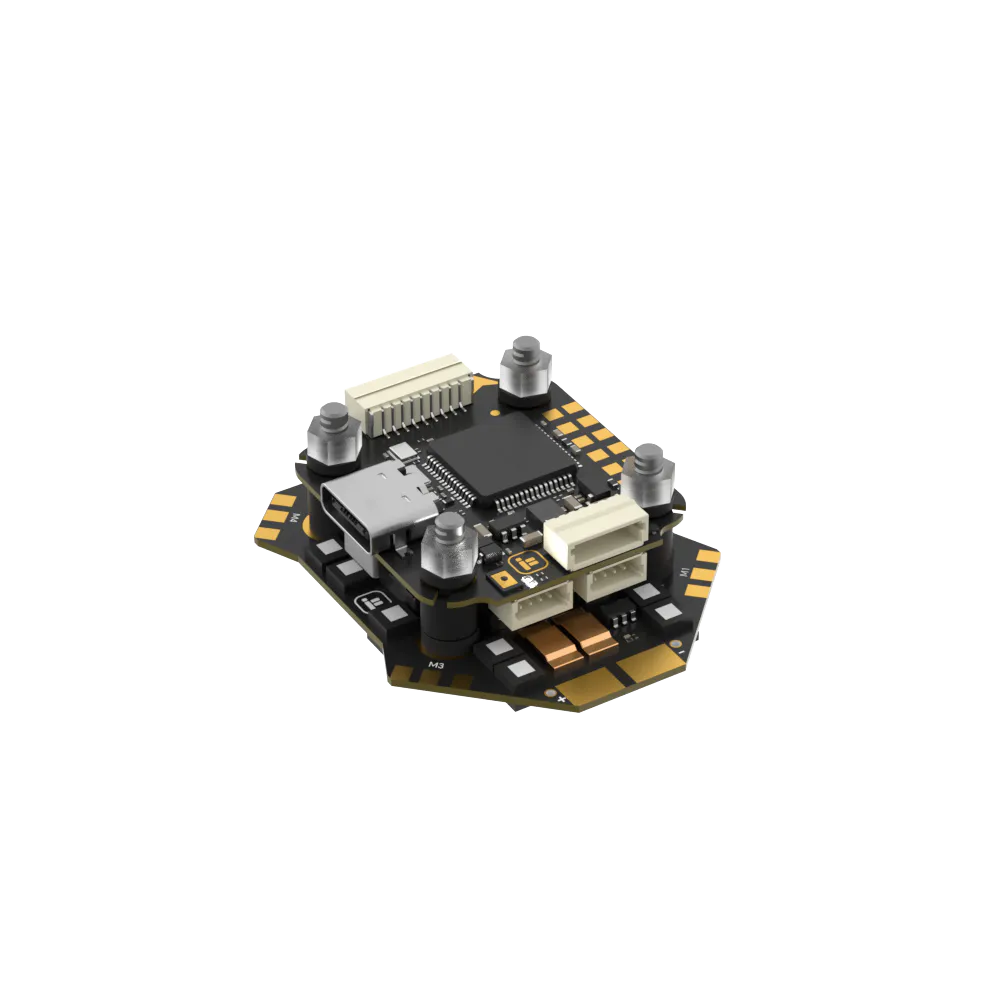

The iFlight Borg Mini F7 Stack combines an F7 flight controller with a 60A 4-in-1 ESC on 20x20 mounting, built specifically for the iFlight Nazgul Evoque F5 V3 and other compact 5-inch freestyle and racing builds.
Key features
- STM32F722 processor with an ICM42688 gyro and SPA06-003 barometer for precise flight-control sensing.
- 60A continuous (65A/10s burst) 4-in-1 ESC with bidirectional DShot and telemetry support.
- Six UARTs cover a VTX, receiver, GPS and other peripherals without running out of ports.
- Onboard AT7456E OSD and 32MB blackbox flash for logging and on-screen data.
- Dual 5V/2.5A and 12V/2A BEC outputs, with remote on/off switching for the 12V VTX rail.
Specifications
- FC input voltage: 4-8S (LiHV supported)
- ESC input voltage: 2-6S (LiHV supported)
- ESC firmware: BLHeli_32, with current sensor
- Mounting: 20 x 20 mm, 4 mm holes
- I2C: not supported
- Firmware: Betaflight and INAV (target IFLIGHT_BLITZ_F722)

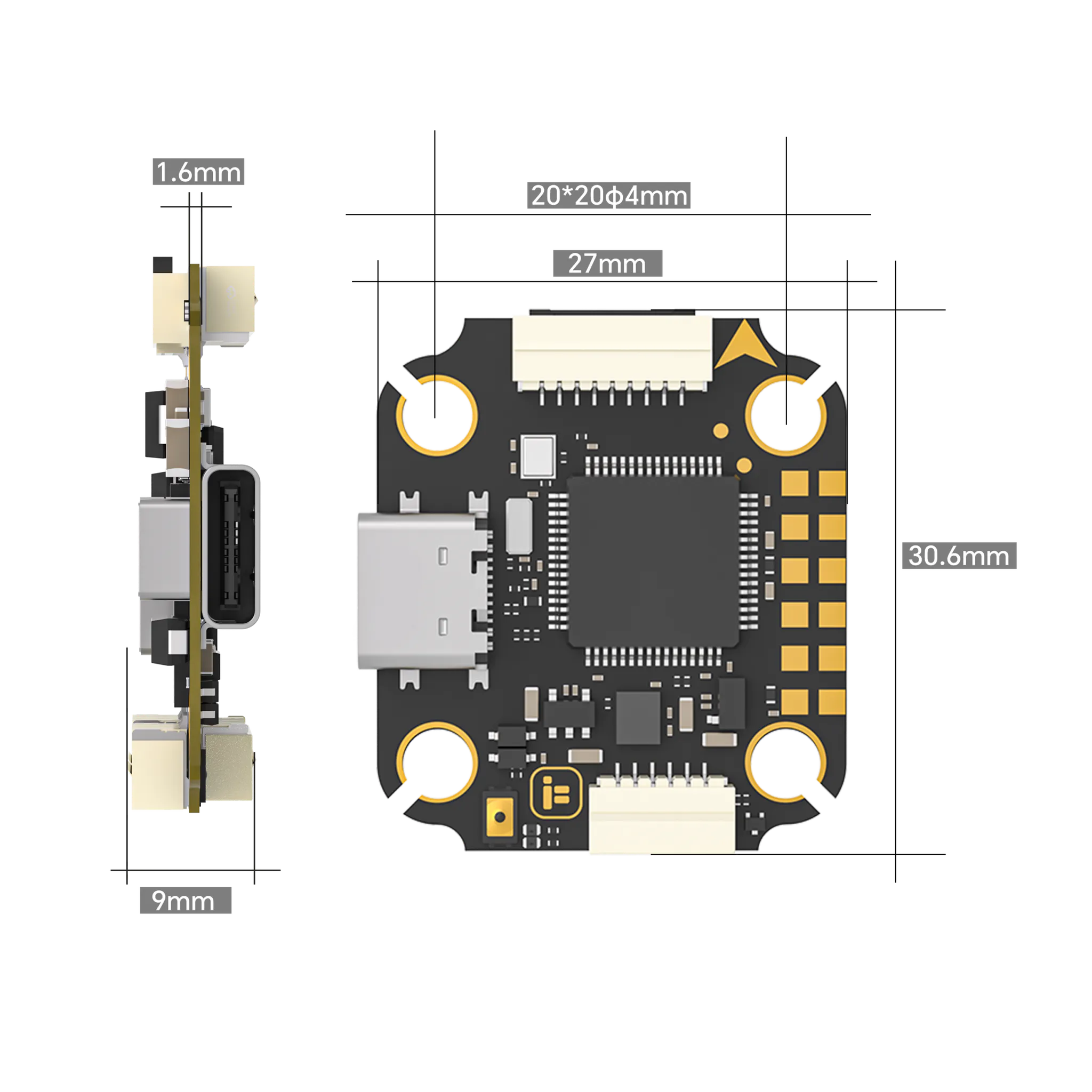

- FC dimensions: 27 x 30.6mm

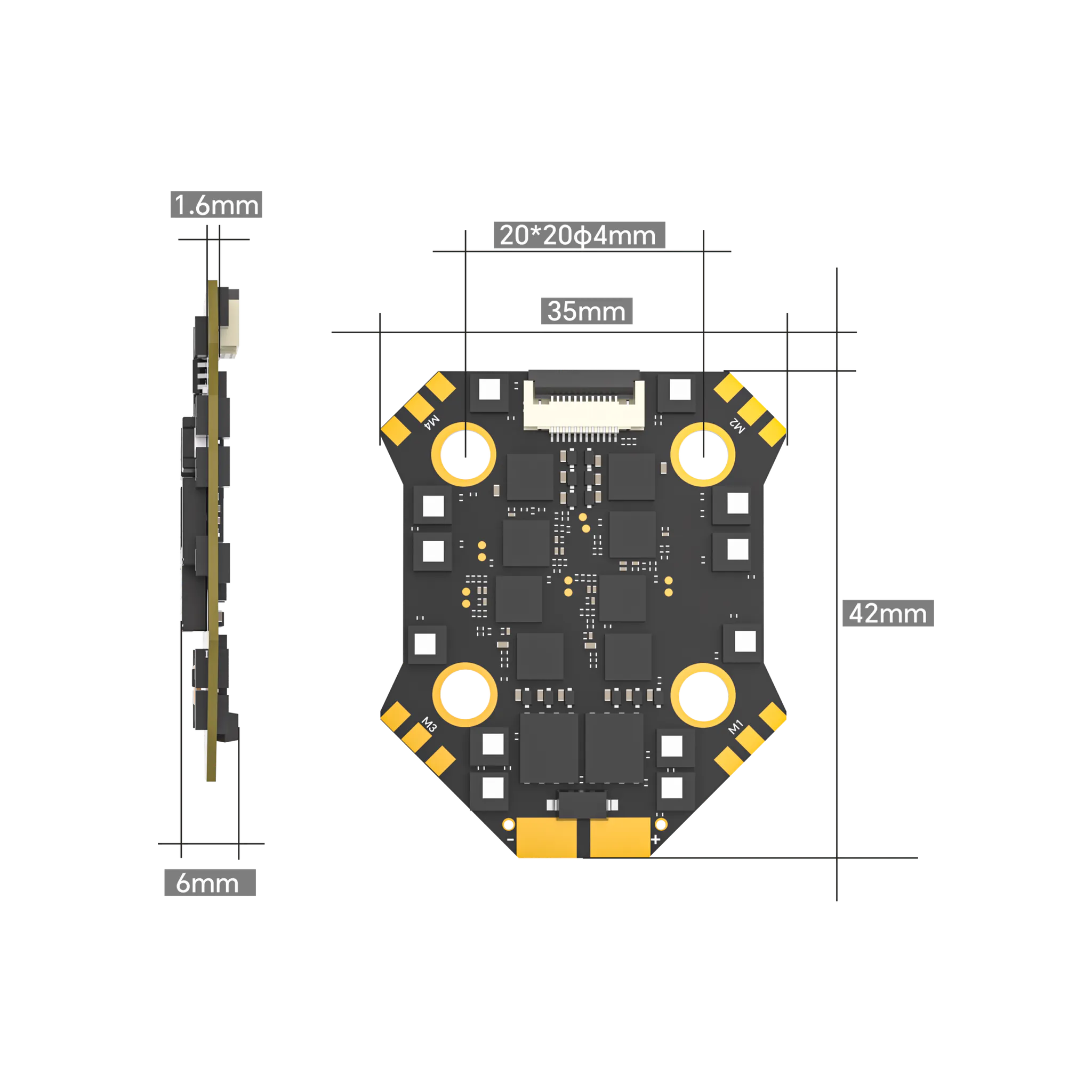

- ESC dimensions: 42 x 35mm
- Combined weight: 17.1g (FC+ESC)
- UARTs: 6
- In the box: Borg Mini F7 flight controller, Borg Mini 60 ESC, cable set, 5 silicone grommets
Verify the frame's 20x20 mounting pattern, wiring and battery voltage against your existing installation before fitting this stack.
| Mounting Size | 20x20 |
|---|---|
| FC Processor | F722, F7 |
| Gyro | ICM42688P |
| ESC Current | 60 A |
| Input Voltage | 4–6S |
| Integrated Receiver | No |
| Integrated VTX | No |
| Made in India | No |
| Brand | iFlight |
| Supported Firmware | Betaflight, INAV |
| Barometer | Yes |
| UARTs | 6 |
| ESC Firmware | BLHeli_32 |
