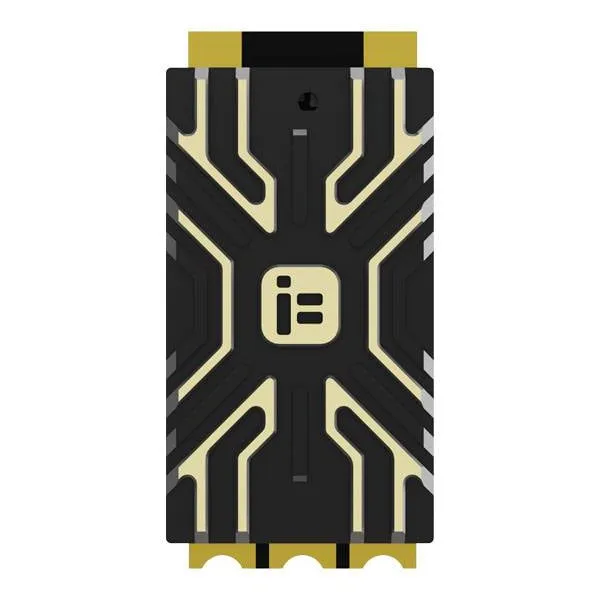

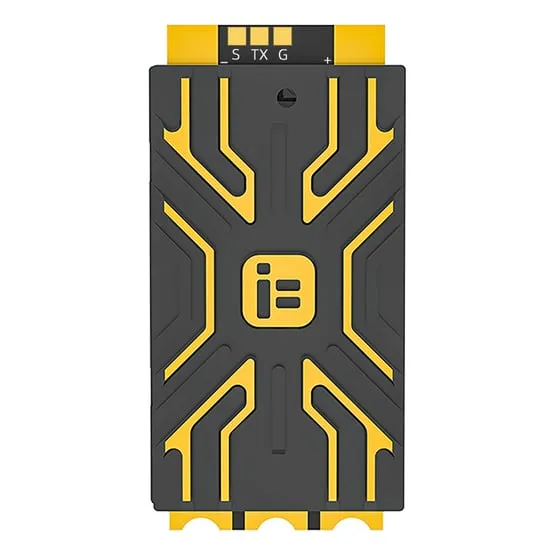

iFlight BLITZ E80 80A 2-8S BLHeli_32 Single ESC

The iFlight BLITZ E80 is a single-motor brushless ESC rated for 80 A continuous on 2-8S LiPo, aimed at X-Class quads, heavy cinelifters and other large multirotors that run one ESC per arm instead of a 4-in-1 board. Its 32-bit STM32G071 processor runs BLHeli_32, so it is set up through BLHeliSuite32 and accepts DShot150/300/600, MultiShot, OneShot and standard PWM.

Key features

• 100 A burst rating above the 80 A continuous figure for hard punch-outs and heavy lifts
• Built-in current sensor and telemetry output, so the flight controller can log current draw and motor data per arm
• Low-ESR TDK ceramic capacitors on the board, plus an electrolytic input capacitor in the box to absorb voltage spikes on high cell counts
• Heavy-copper multi-layer PCB with large solder pads for thick battery and motor leads
• Brake on stop, adjustable motor timing and a power-on LED
• No BEC: power the flight controller and accessories from a separate regulator or PDB

Specifications

• Continuous current: 80 A
• Burst current: 100 A
• Input voltage: 2-8S LiPo (7.4-29.6 V nominal)
• MCU: STM32G071, 48 MHz
• Firmware: BLHeli_32
• Protocols: DShot150/300/600, MultiShot, OneShot, PWM
• Current sensor: Yes
• Telemetry: Yes
• BEC: None
• In the box: ESC, power cables and signal wires, 50 V input capacitor

Order one per motor: four for a quad, six or eight for a hexa or octo. Check that your motor's peak current on the chosen cell count stays under 80 A, and solder the supplied capacitor as close to the ESC power pads as possible on 6-8S builds.
