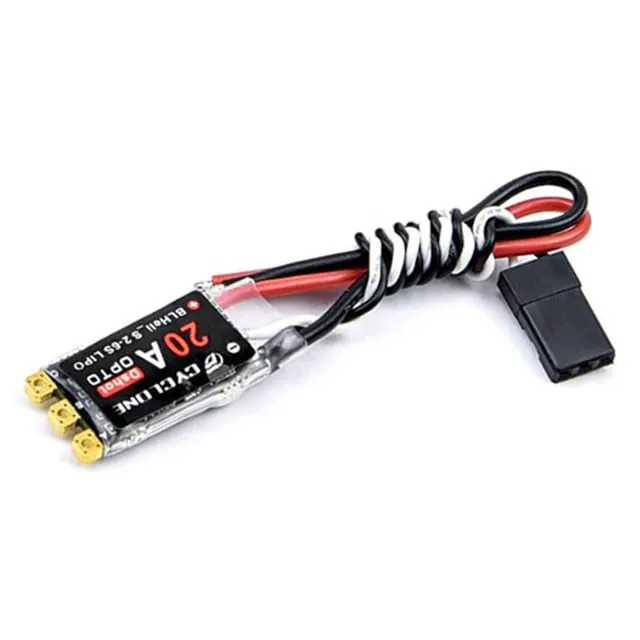

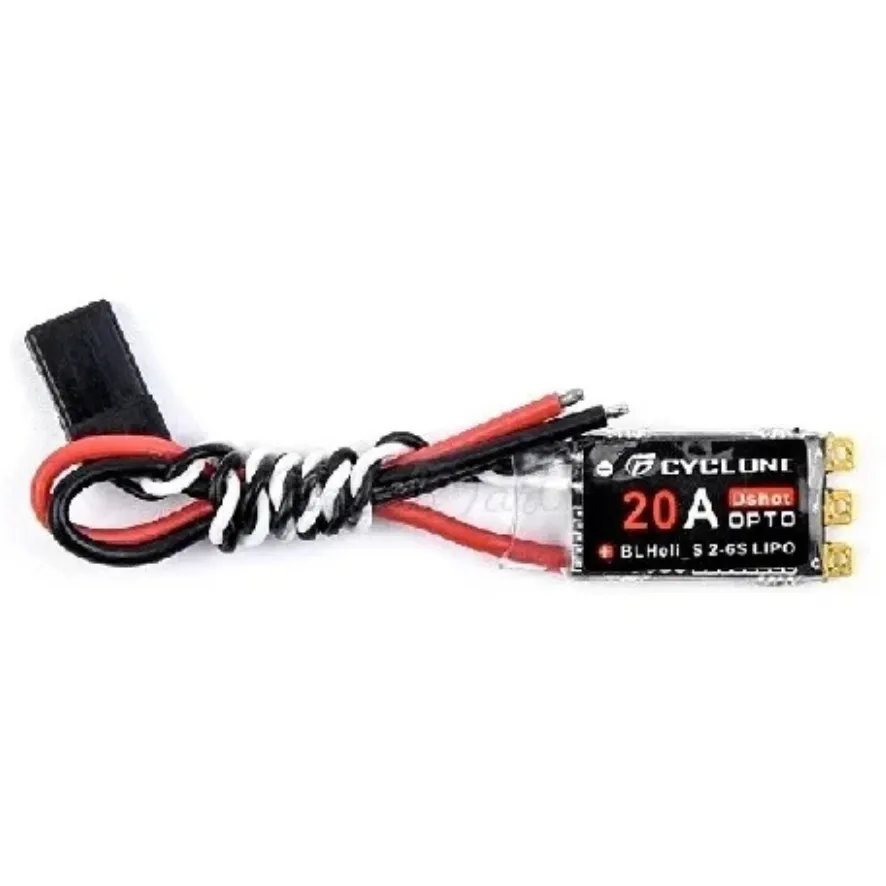

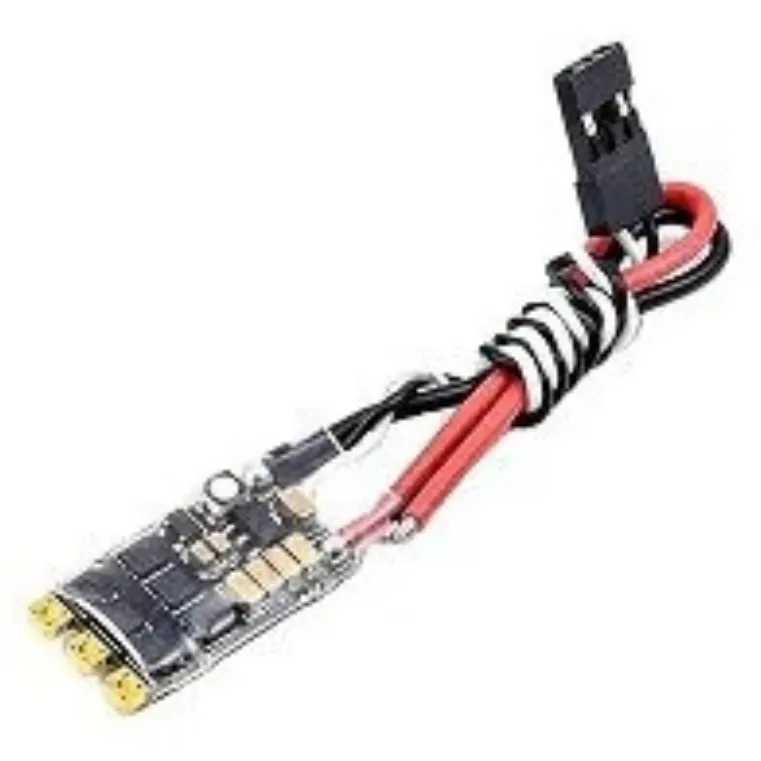

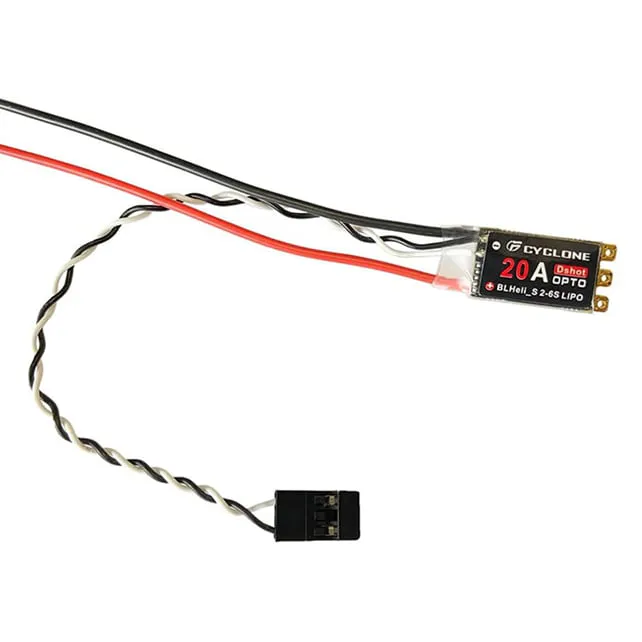

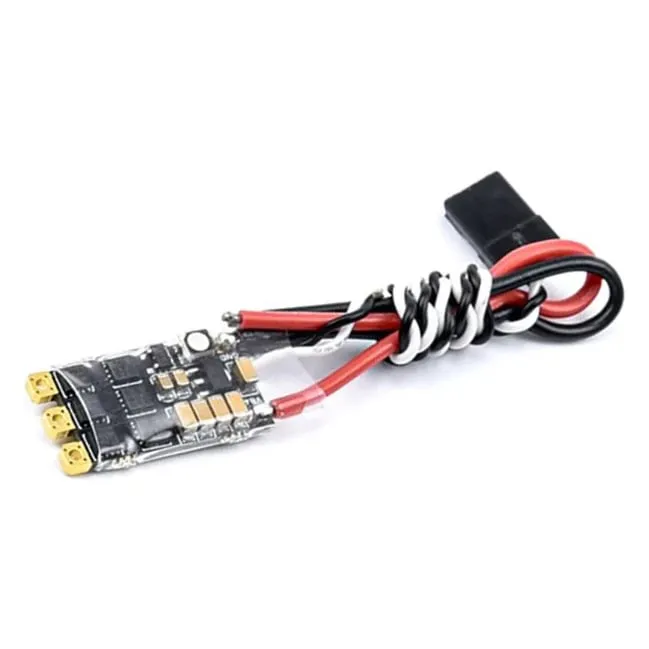

Cyclone 20A BLHeli_S ESC 2-6S
₹1,099Incl. GST
SKU CYCLONE-20A-BLHELI-S
ESC Current: 20 AInput Voltage: 2–6SESC Firmware: BLHeli_SBrand: Generic
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Cyclone 20A ESC is a single-motor speed controller for 2-6S FPV drones, toothpick builds and custom multirotors, running BLHeli_S firmware.
Key features
- 20A continuous current rating, with up to 25A peak, for individual brushless motor control.
- Supports DSHOT300, DSHOT600 and Oneshot signal protocols for low-latency throttle response.
- Automatically detects throttle stroke and neutral position, simplifying setup.
- Built-in overcurrent protection for safer operation under sustained load.
- BLHeli_S firmware works with standard BLHeli configuration tools.
- Single-ESC format suits builds that run one ESC per motor rather than a shared 4-in-1 board.
Specifications
- Continuous current: 20A
- Peak current: 25A
- Input voltage: 2-6S
- Firmware: BLHeli_S
- Protocols: DShot300, DShot600, Oneshot
Match the ESC wiring, motor direction and battery connector to the rest of the power system before installation.
| ESC Current | 20 A |
|---|---|
| Input Voltage | 2–6S |
| ESC Firmware | BLHeli_S |
| Brand | Generic |
