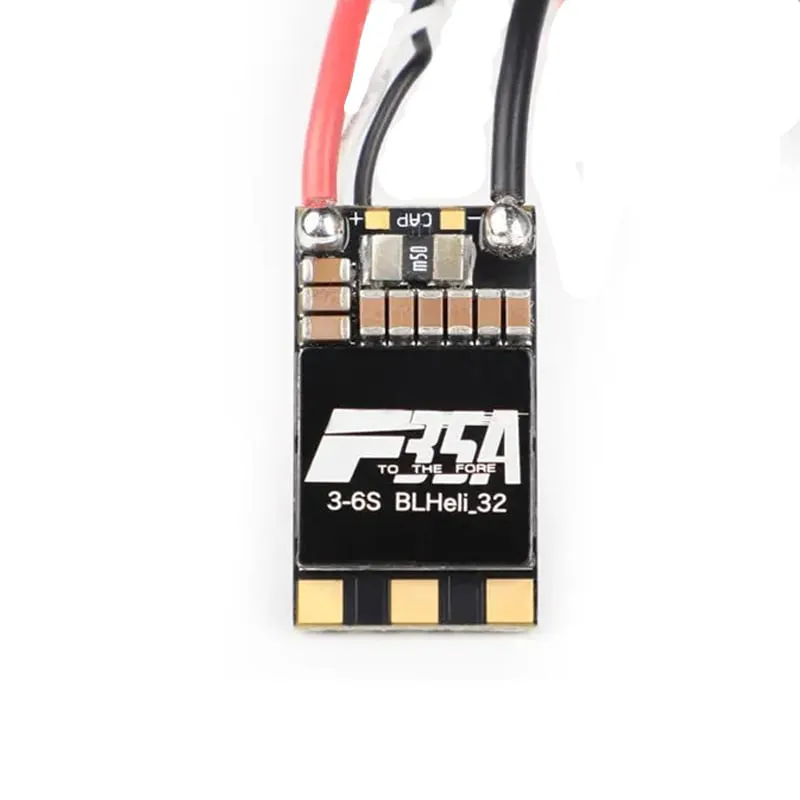

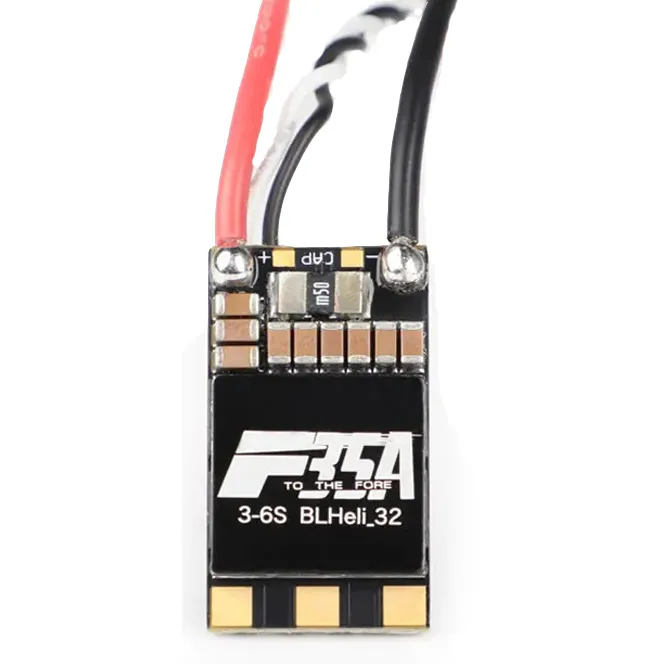

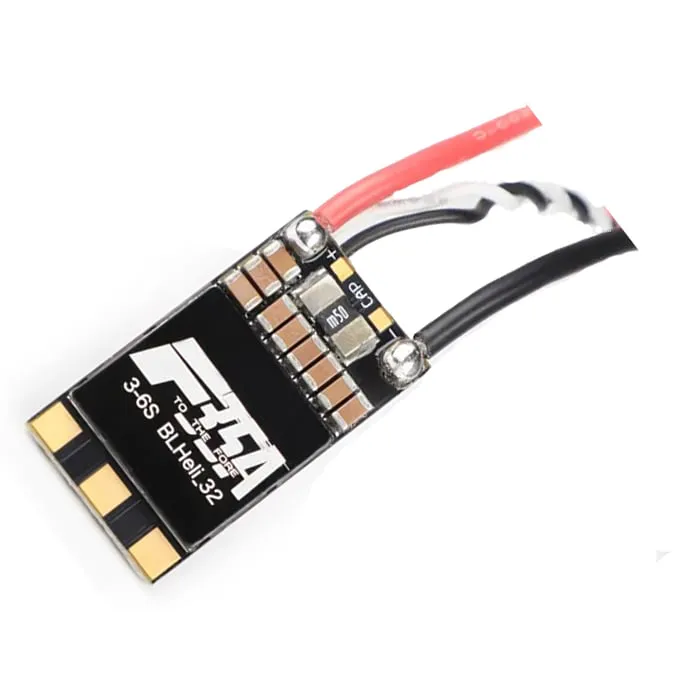

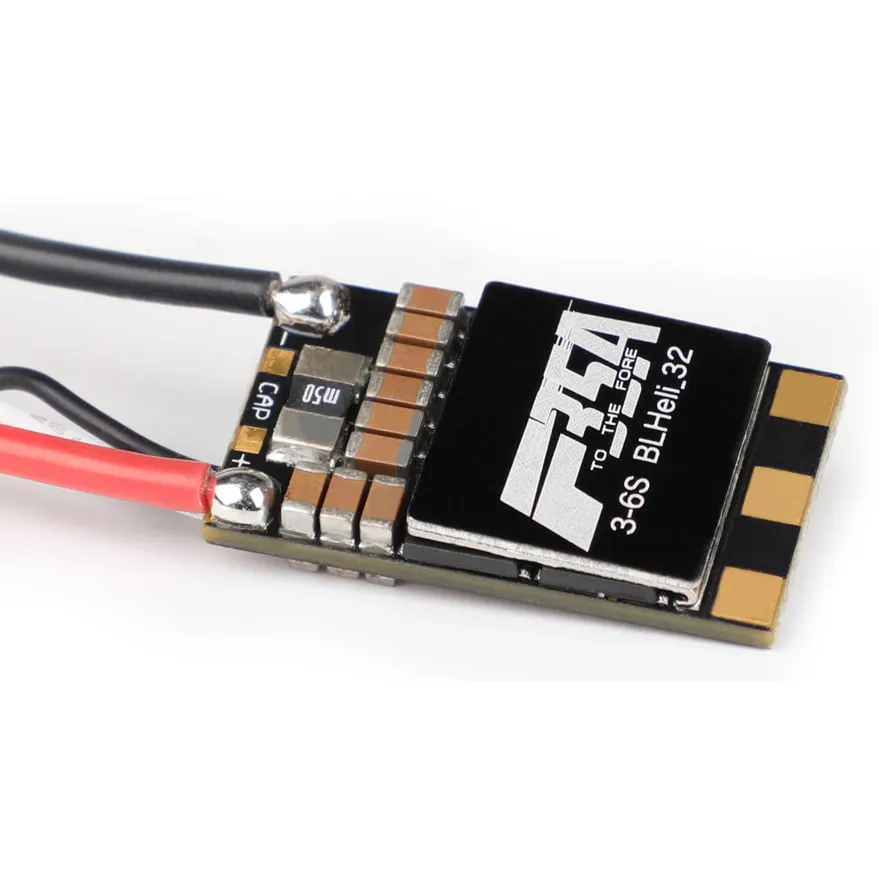

T-Motor F35A 35A 3-6S 32-bit Single ESC

The T-Motor F35A is a compact single ESC for 3-6S multirotors and FPV quads, rated for 35 A continuous. It suits classic four-ESC builds where each motor runs from its own board, and works as a direct spare for an existing F35A set.

Key features

• 32-bit controller running AM32 or BLHeli_32 firmware, depending on production batch

• Accepts DShot1200/600/300, Oneshot125 and standard 1-2 ms PWM throttle signals

• No onboard BEC: power the flight controller and receiver from a PDB or separate 5 V regulator

• Twisted-pair signal lead to reduce noise on the throttle line

• 29 x 17 x 5 mm footprint fits neatly on an arm

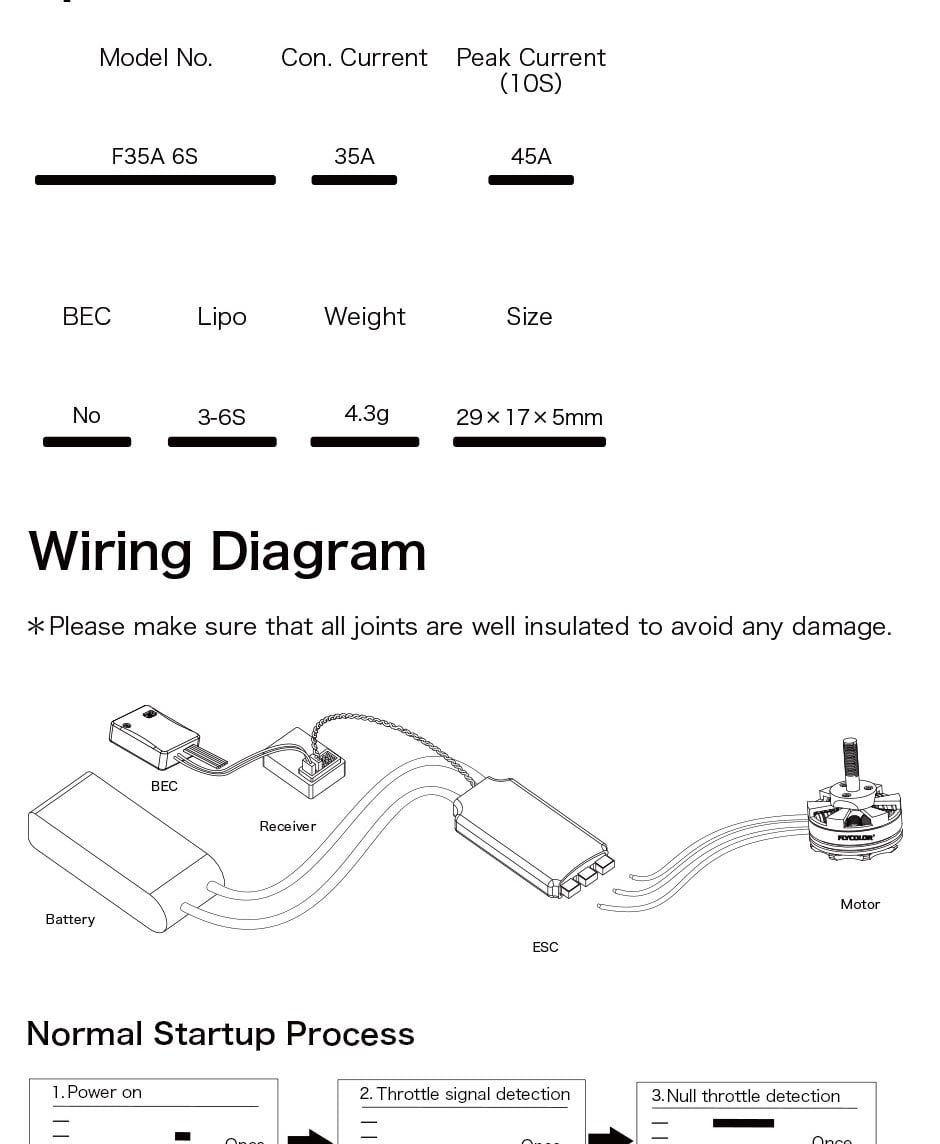

Specifications

• Input voltage: 3-6S LiPo (11.1-25.2 V)

• Continuous current: 35 A

• BEC: None

• Dimensions: 29 x 17 x 5 mm

• Weight: 4.3 g (without cables)

Order four for a quad and check that your flight controller outputs DShot for the cleanest motor control. On 6S, keep motor and prop choices within the 35 A continuous rating per ESC.
