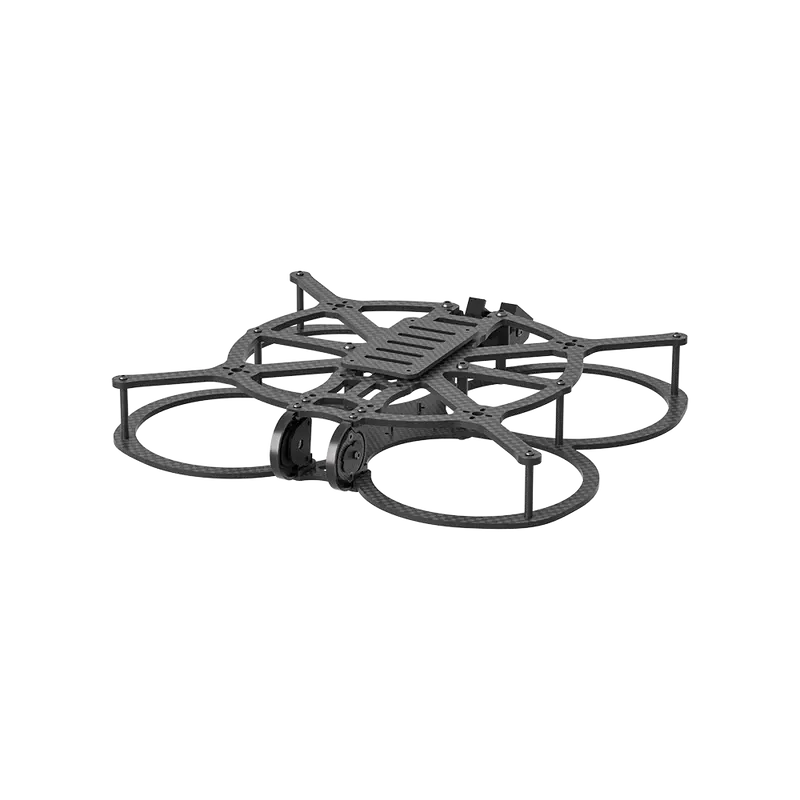

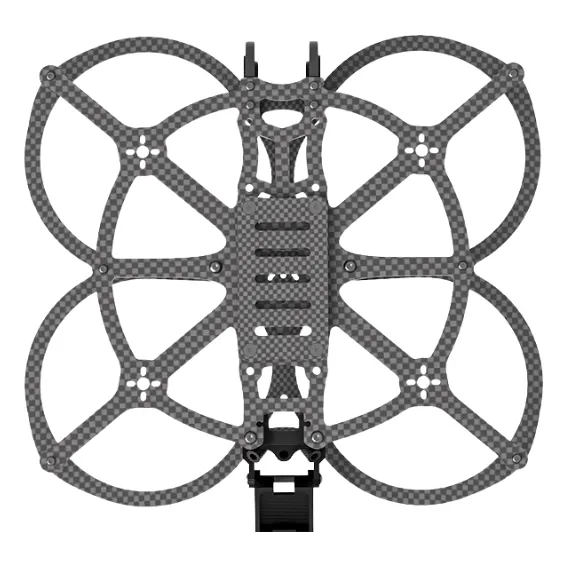

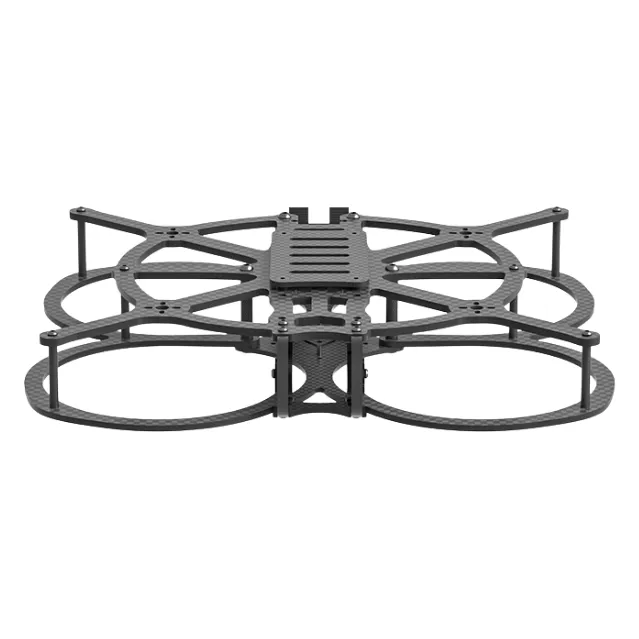

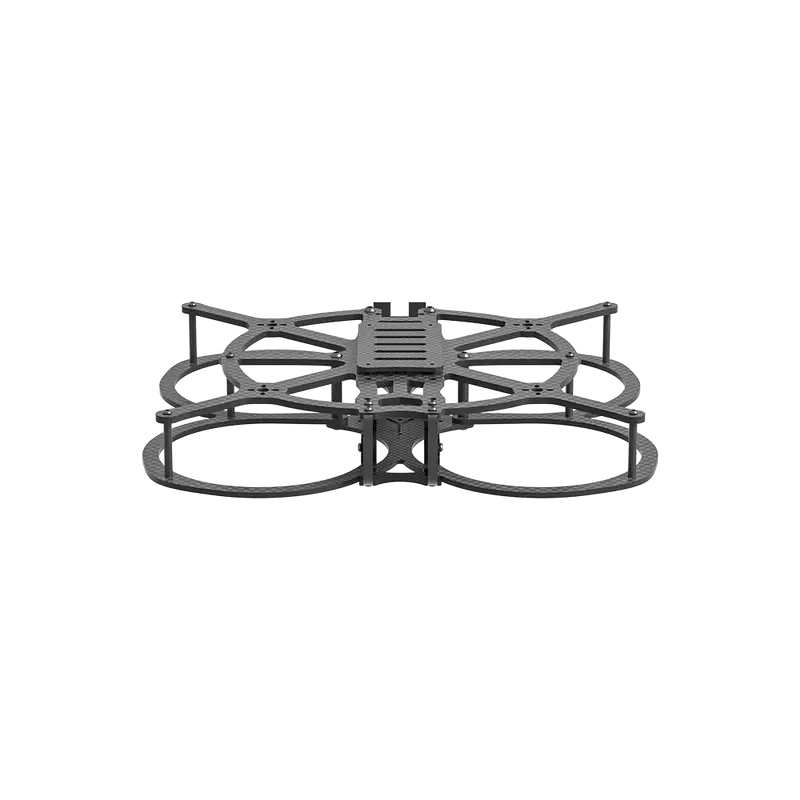

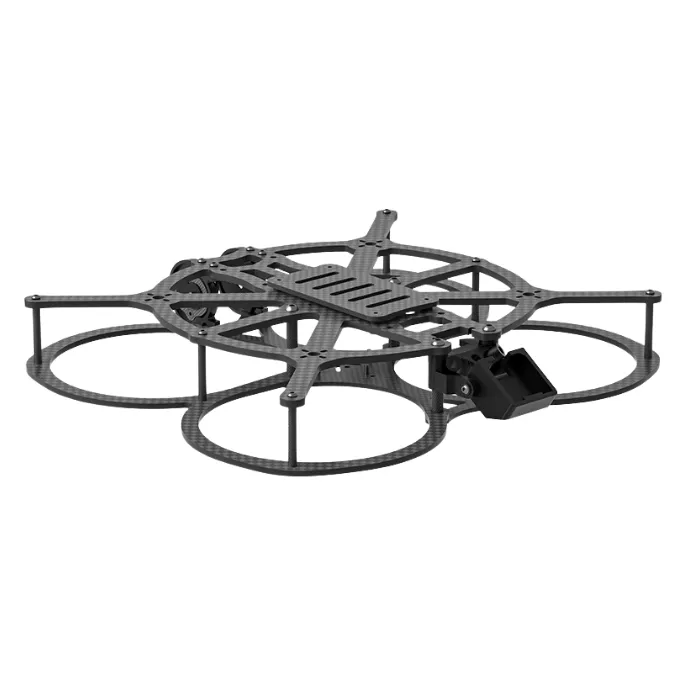

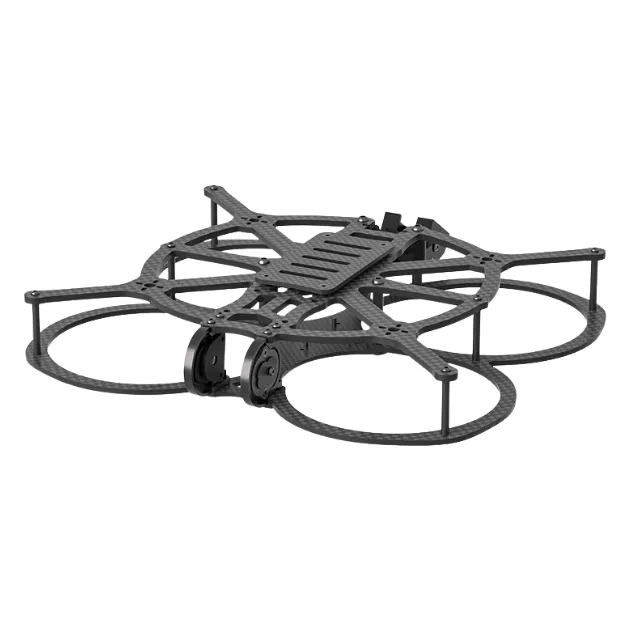

iFlight AOS Cine35 V5 3.5" Cinewhoop Frame Kit

The AOS Cine35 V5 is a 3.5-inch cinewhoop frame kit designed by AOS RC and manufactured by iFlight for HD cinematic flying. It suits pilots building a guarded, camera-carrying quad around DJI O3 or O4, Walksnail Avatar, HDZero or analog video.

Key features

• Flexible battery mounting: lengthwise or upright "toilet tank" mounting lets you balance the centre of gravity around your camera setup, and captive straps speed up battery swaps.
• 155° clear camera view: the FPV camera sees a 155° field of view with no props in frame, well suited to DJI O3 and O4.
• Carbon fibre prop guards: integrated guards with reinforced screw holes protect the props while keeping airflow efficient.
• 7075 aluminium camera cage: fits 19–20 mm cameras, with an integrated soft mount for the DJI O3 and support for the O4 camera with ND filters; hard mounting for analog, Walksnail Avatar and HDZero; 14 mm cameras fit with a 3D-printed adapter from the published STL file.
• Front and rear action-camera mounting: a GoPro can face forwards or backwards.
• Two stack patterns: 20 × 20 mm and 25.5 × 25.5 mm for both the flight stack and the VTX.

Specifications

• Wheelbase: 153 mm
• Dimensions: 223 × 203 × 36.5 mm
• Weight: 145 g
• Max prop size: 3.5 inch
• Plate thickness: 3 mm top, 2 mm bottom, 2 mm battery plate
• Flight stack mounting: 20 × 20 mm / 25.5 × 25.5 mm, M2, up to 25 mm tall
• VTX mounting: 20 × 20 mm / 25.5 × 25.5 mm, M2, up to 25 mm tall
• Motor mounting: 9 × 9 mm / 12 × 12 mm, M2
• Camera width: 19–20 mm (14 mm with printed adapter)
• In the box: frame kit, TPU parts set, screw set, 2 battery straps, 2 anti-slip battery pads

iFlight lists the DJI O4 Air Unit Pro, DJI O3 Air Unit, HD Vista and the BLITZ Whoop 1.6W analog VTX as fitting video systems, so plan the build around one of these or another 19–20 mm camera.
