AOS Cine35 EVO V1.2 Frame Kit
₹10,799Incl. GST
SKU AOS-CINE35-EVO-V12
Prop Size: 3.5"Wheelbase: 161.5 mmCamera Size: 19mm, 20mmMade in India: No
Dispatched within 3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

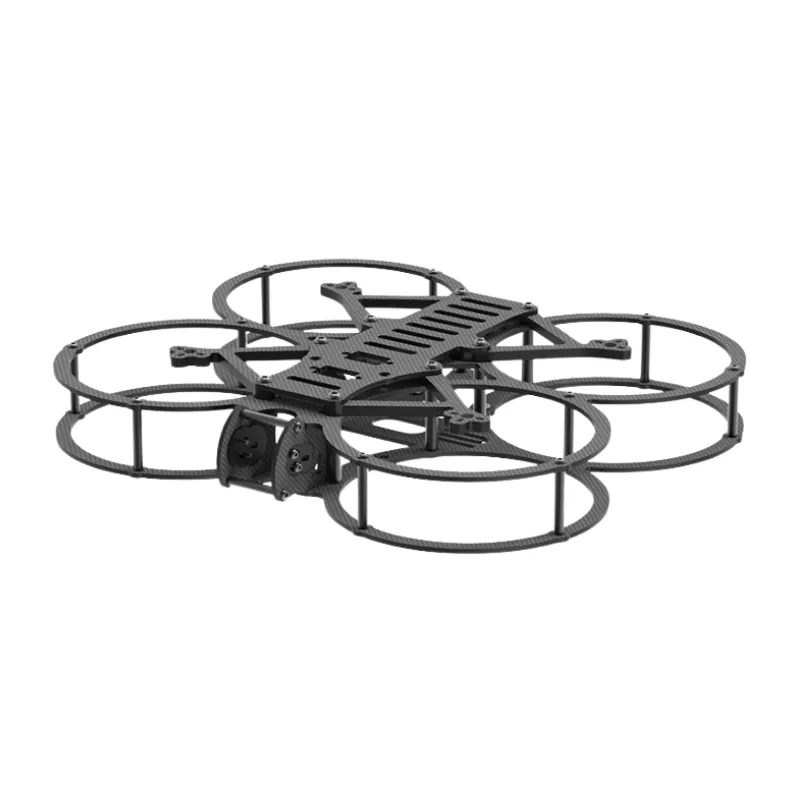

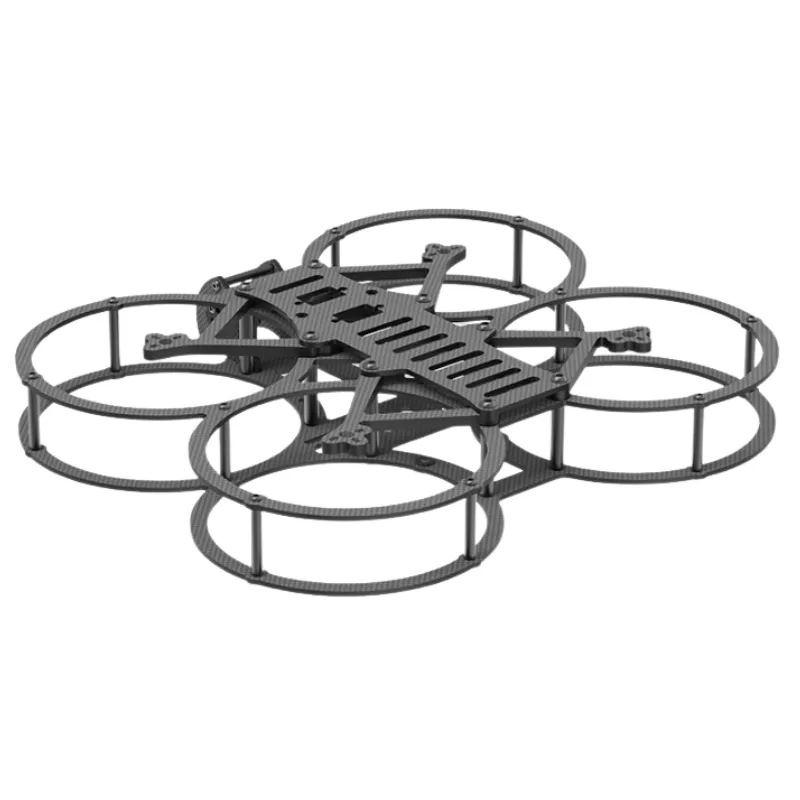

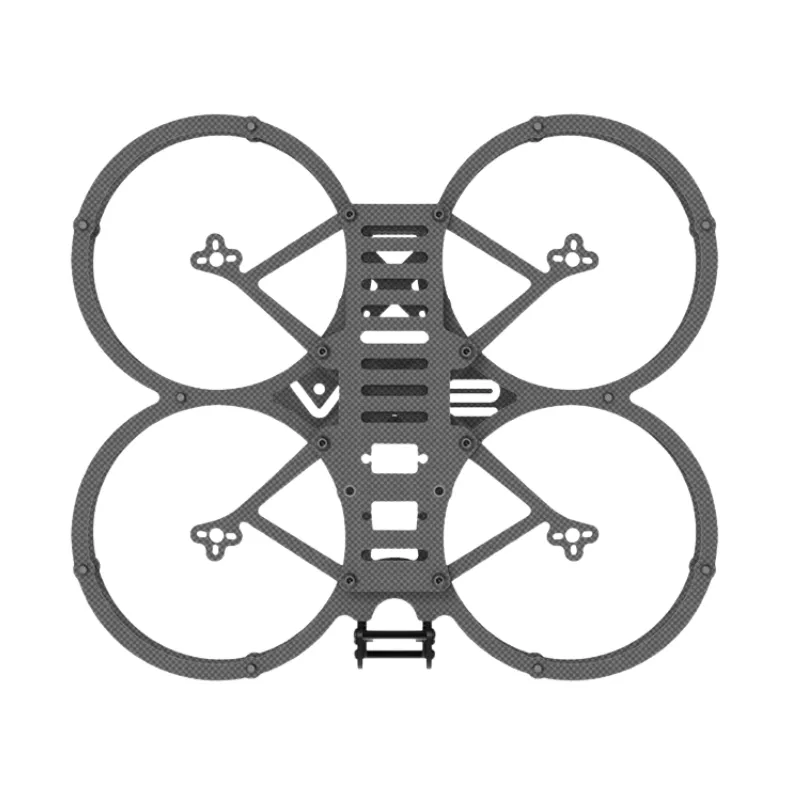

The AOS Cine35 EVO V1.2 is a 3.5-inch cinewhoop frame kit designed for close-range cinematic FPV, with carbon fibre prop guards and adjustable ducts that trade off protection against drag depending on the shot.
Key features
- 3D-printable modular ducts switch between full ducts, half ducts or no ducts, so drag can be tuned for slower subjects or fast-moving targets
- Carbon fibre prop guards resist deforming and cracking compared with injection-moulded or 3D-printed guards on cheaper cinewhoops
- Reversible top plate with additional underside mounting points supports both forward- and rear-facing GoPro shots, with 32x32mm GoPro mounting holes and press-nuts fitted
- Stacks up to three 25.5mm or 20mm boards plus one 30.5mm board (front, centre and rear), with an XT60 pass-through top plate
- Fits 19–20mm FPV cameras including the DJI O3, with captive battery strap slots for lengthwise or toilet-tank mounting
Specifications
- Propeller size: 3.5"
- Wheelbase: 161.5mm
- Frame dimensions: 128 x 99 x 35mm (233 x 204 x 35mm with prop guards)
- Arm thickness: 4mm (truss arms)
- Top / bottom plate thickness: 2mm / 2mm
- VTX mounting: 20x20mm / 25.5x25.5mm
- Camera fit: 19–20mm
- Recommended motor size: 2004
- Motor mounting: 9x9mm to 12x12mm
- Weight: 134g
Standoffs, carbon hardware and mounting screws are included, so the kit is ready to build once you add your motors, flight stack, camera and FPV system.
| Prop Size | 3.5" |
|---|---|
| Wheelbase | 161.5 mm |
| Camera Size | 19mm, 20mm |
| Made in India | No |
| Brand | iFlight |
| Weight | 134 g |
| Mounting Size | 20x20, 30.5x30.5, 25.5x25.5 |
| Motor Mount | 12x12mm, 9x9mm |
