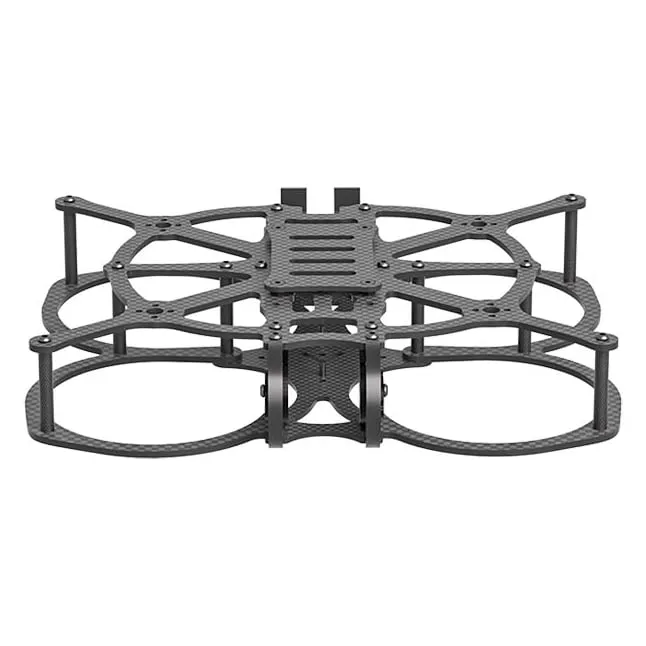

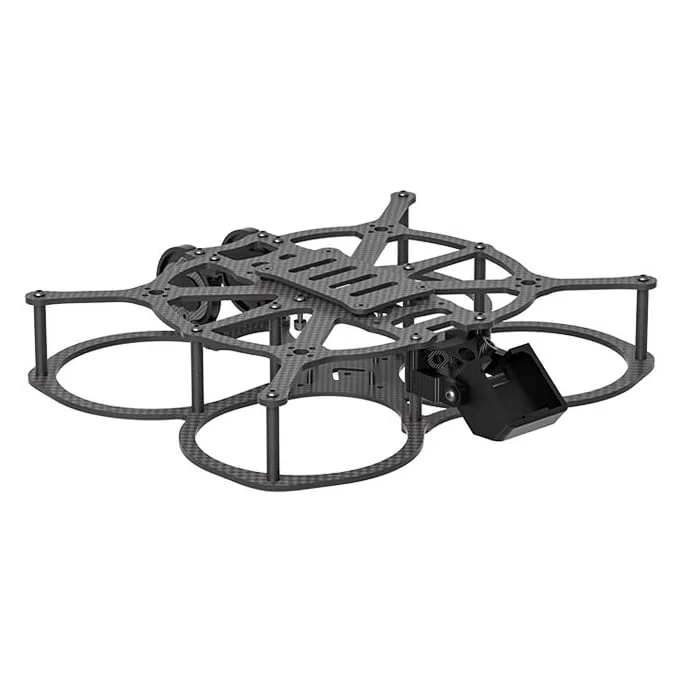

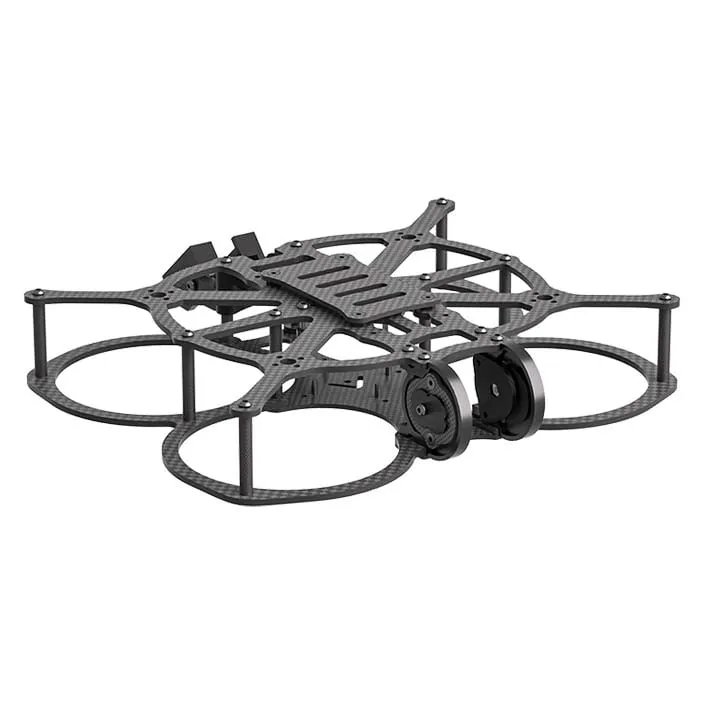

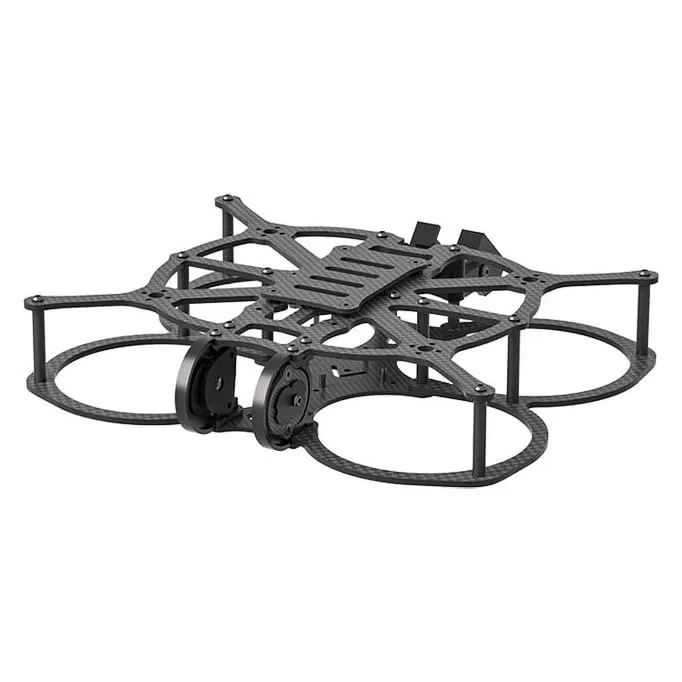

AOS CINE25 V5 Frame Kit

The AOS CINE25 V5 is a high-performance 2.5-inch cinewhoop frame engineered by Chris Rosser and manufactured by iFlight to eliminate mechanical resonance and deliver jitter-free HD footage. Designed for cinematic indoor flights and compact sub-250g builds, the V5 geometry shifts frame vibration modes well outside the flight controller's gyro passband, enabling higher D-term gains and superior prop-wash handling.

Key features

• Resonance-Free V5 Truss Arms: Features 2.5mm carbon fibre arms built with FEA-optimised truss geometry to suppress vibrations below 200Hz, providing exceptionally clean gyro data.
• Prop-Free HD Field of View: The front camera cage is precisely offset so 2.5-inch propellers remain completely invisible across ultra-wide lenses, including the DJI O3 Air Unit.
• Vibration-Isolated Camera Cage: Soft-mounted damper system isolates both 19mm and 20mm micro cameras to prevent high-frequency jello in recorded video.
• Dual Electronics Mounting: Accommodates both 25.5x25.5mm whoop-style AIO boards and 20x20mm stacks, with dedicated rear patterns for digital or analogue VTX units.
• Universal Motor Configuration: Drilled with dual 9x9mm and 12x12mm mounting patterns to support brushless motors ranging from 1404 up to 1505 stators.

Specifications

• Wheelbase: 125 mm
• Frame Dimensions: 116 × 116 × 32 mm
• Arm Thickness: 2.5 mm
• Top / Bottom Plate Thickness: 1.5 mm
• FC / VTX Mounting: 25.5x25.5 mm, 20x20 mm
• Motor Mounting Pattern: 9x9 mm, 12x12 mm
• Camera Size Compatibility: 19 mm, 20 mm (DJI O3, Caddx Walksnail, HDZero)
• Max Propeller Size: 2.5 inch

For an optimal cinematic build on this 125mm wheelbase, pair the frame with 1404 4600KV motors and a 4S LiPo battery for lightweight handling, or step up to 1505 stators when carrying a full DJI O3 Air Unit alongside a naked action camera. Ensure your AIO or ESC is rated for at least 20A to 35A continuous current.
