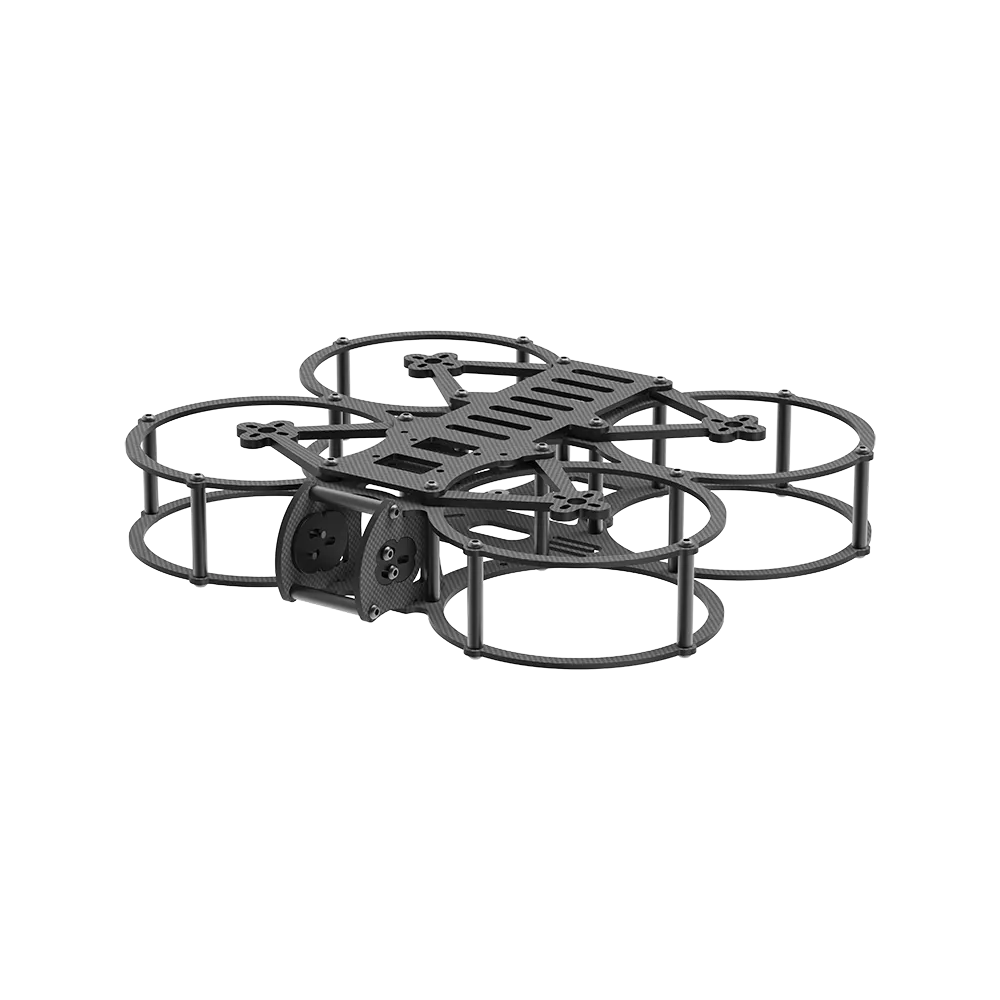

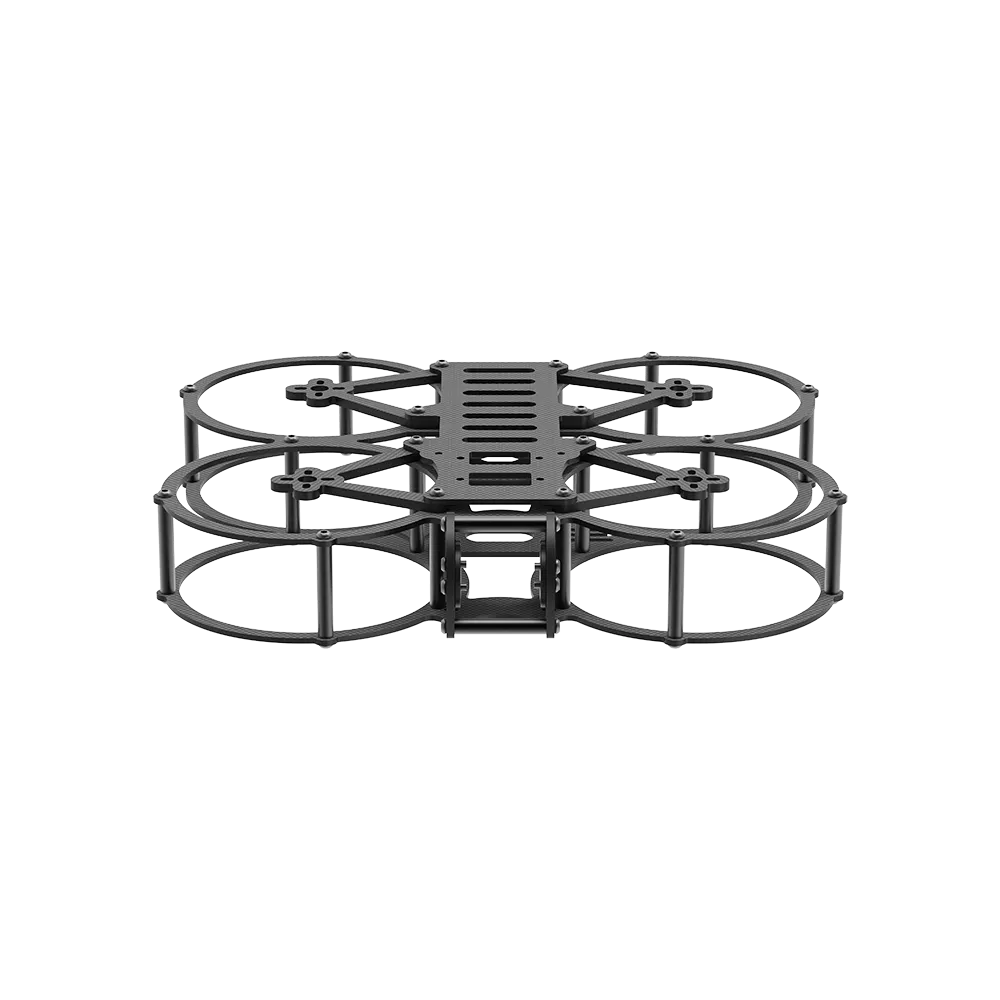

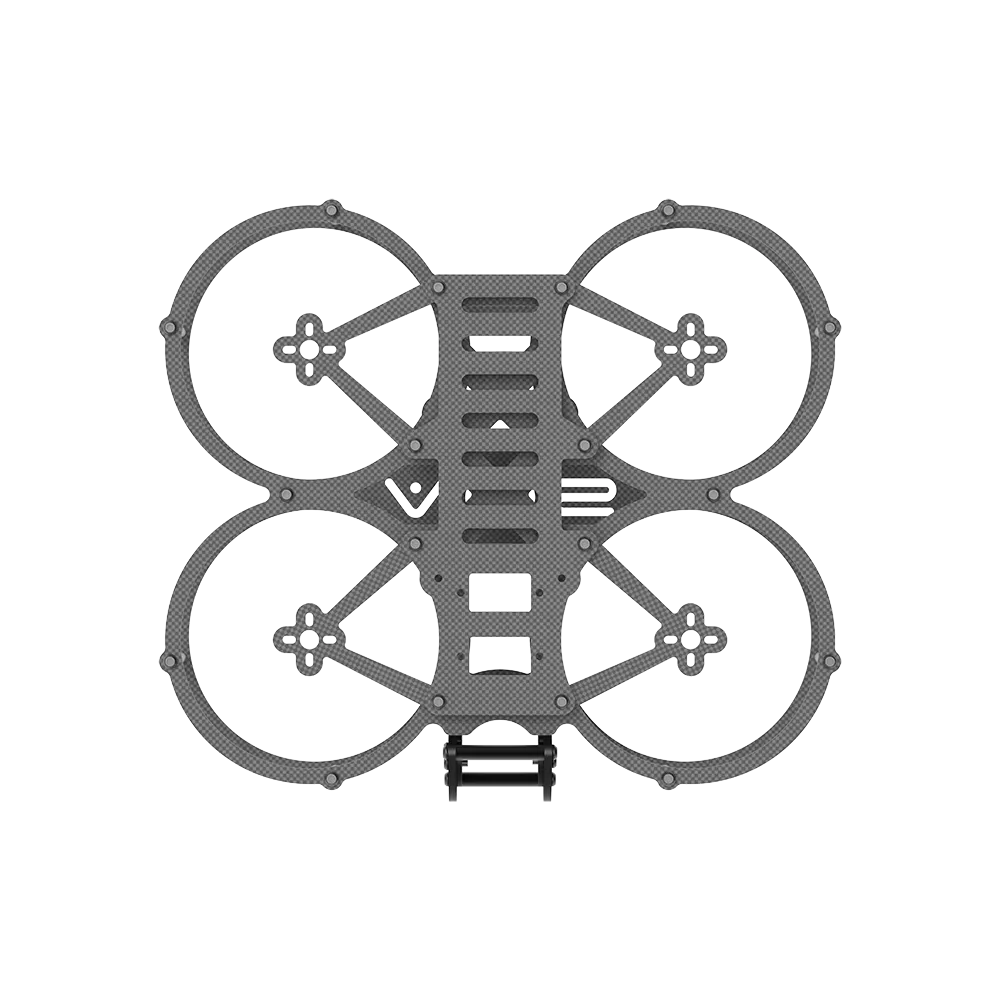

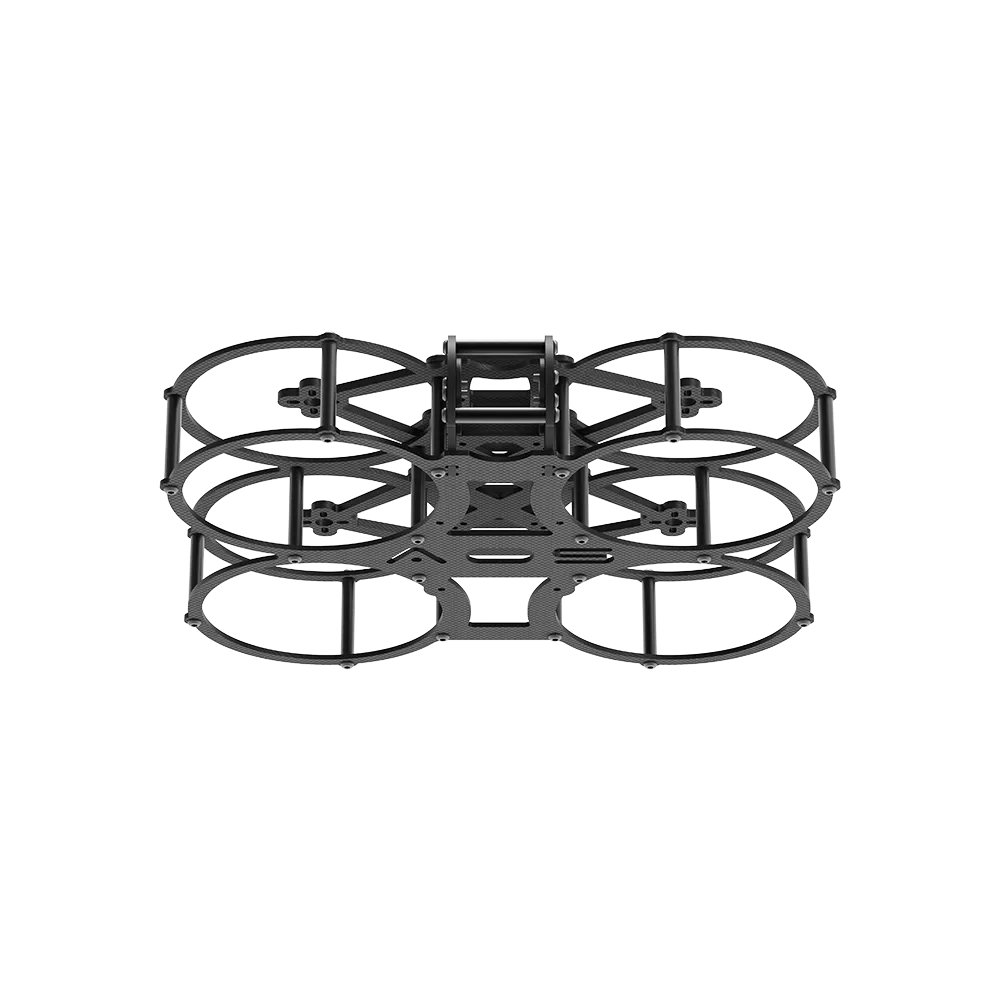

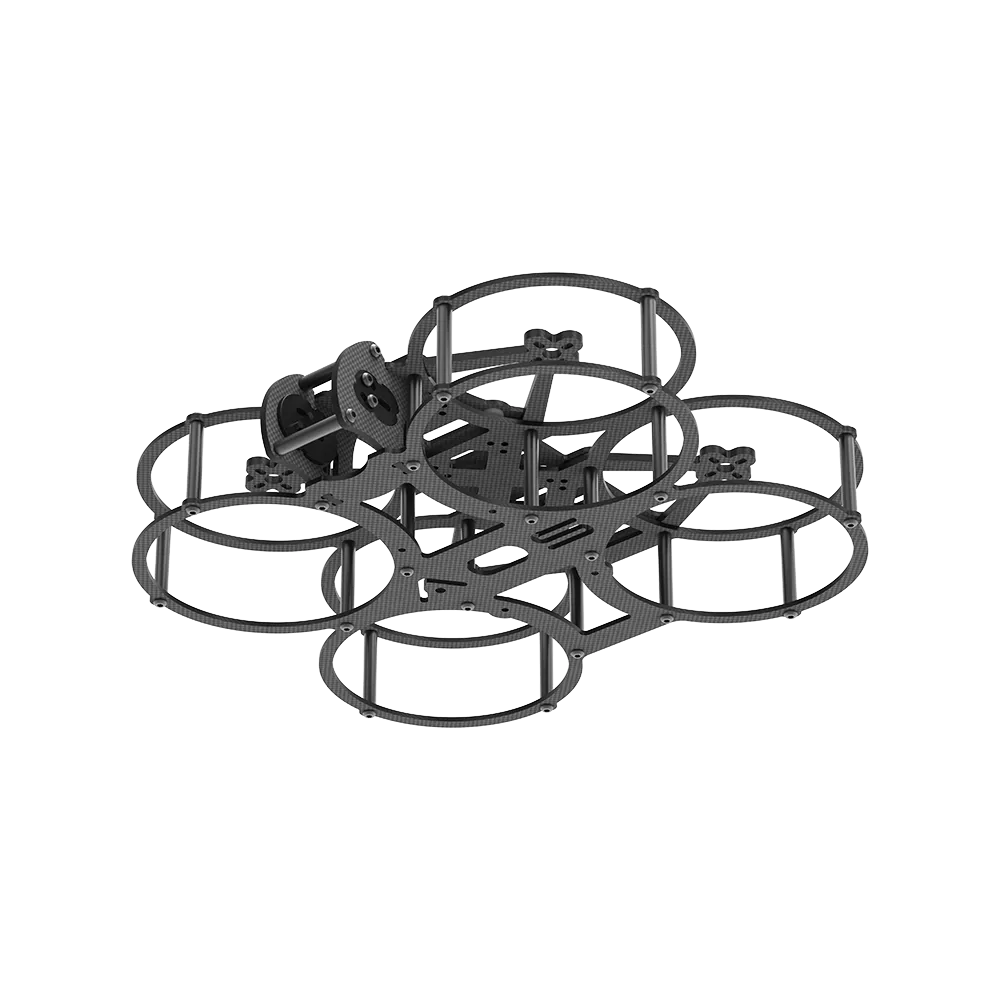

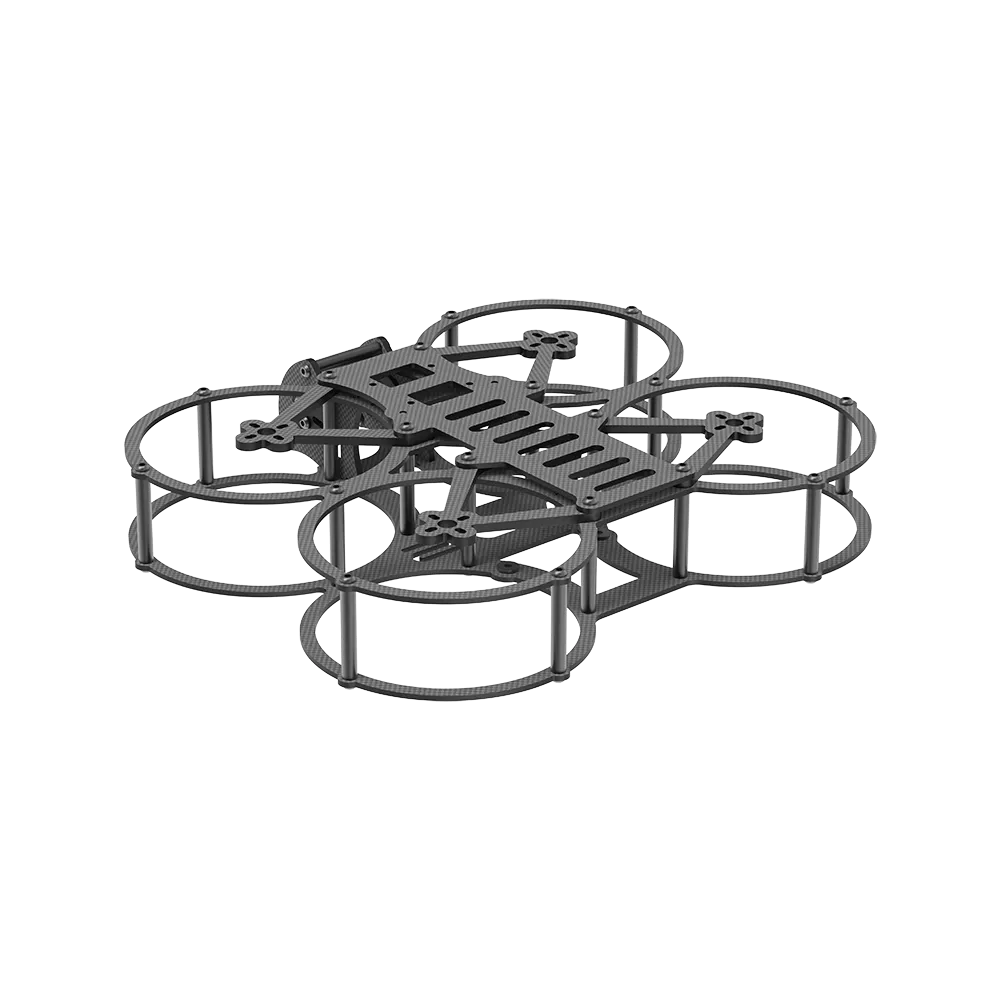

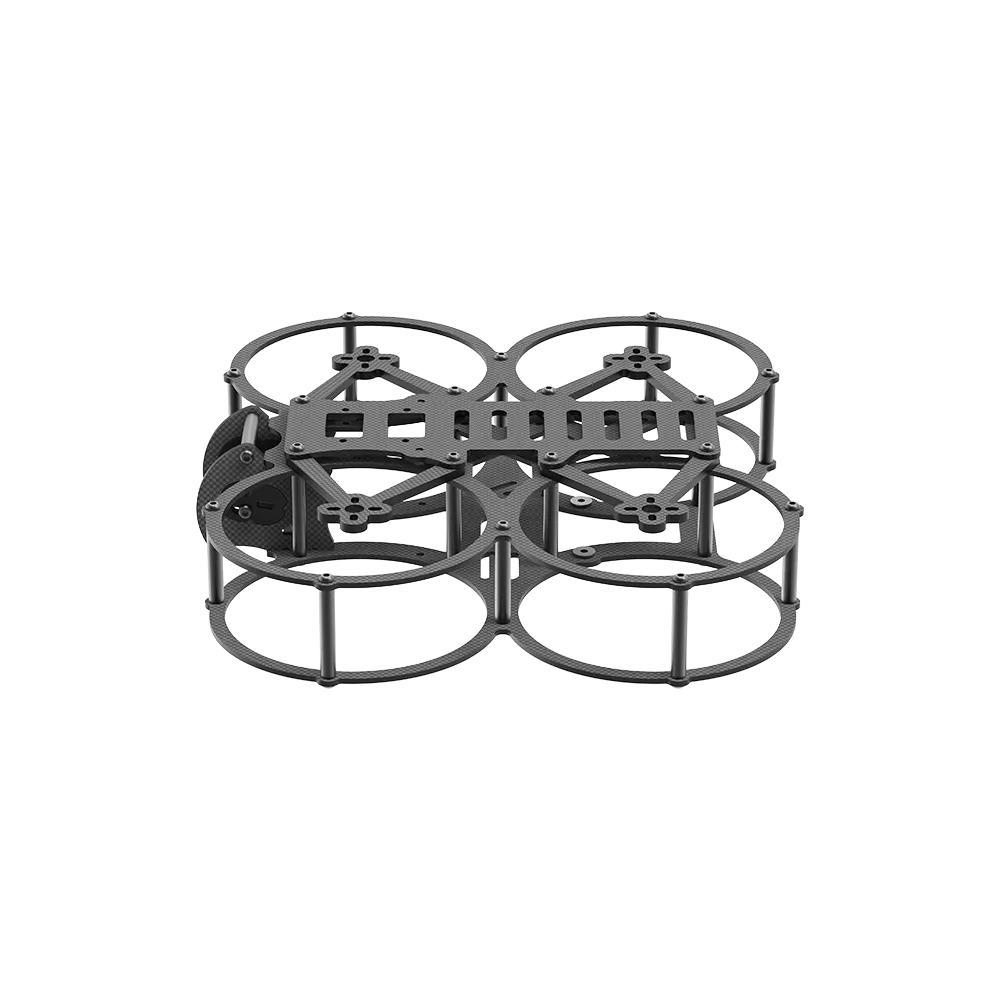

AOS CINE25 EVO V1.2 Frame Kit

The iFlight AOS CINE25 EVO V1.2 is a 2.5-inch cinewhoop frame kit designed to carry digital HD systems like the DJI O3 Air Unit. Engineered using AOS RC's signature resonance analysis, this frame minimises vibrations at the structural level, drastically reducing the need for gyro filtering and software stabilisation. The V1.2 update refines the frame's geometry and introduces a dedicated soft-mounting system specifically designed to isolate the DJI O3 camera, preventing high-frequency jello in your HD video.

Key features

• Resonance-optimised geometry: Advanced structural design eliminates mid-band frame resonance for cleaner gyro data and smoother flight characteristics.
• Dedicated O3 mounting: Integrated silicone soft-mounts are explicitly tuned for the DJI O3 camera's weight and sensor, removing the need for heavy post-stabilisation.
• Protective ducted design: Surrounds the 2.5-inch propellers with durable structural guards, allowing safe indoor flights and close-proximity cinematic tracking.
• High-power VTX compatibility: Generous internal space and dual mounting patterns accommodate the DJI O3, Walksnail Avatar, or standard analog VTX units.

Specifications

• Brand: iFlight
• Wheelbase: 125mm
• Frame dimensions: 99 x 75.5 x 32mm (175 x 151 x 32mm with prop guards)
• Propeller size: 2.5 inch
• Arm thickness: 2.5mm (truss arms)
• Top / bottom plate thickness: 1.5mm / 1.5mm
• FC mounting: 20x20mm or 25.5x25.5mm (front, centre and rear stack positions)
• VTX mounting: 20x20mm, 25.5x25.5mm
• Motor mounting: 9x9mm, 12x12mm
• Recommended motor size: 1404
• Power lead: XT30 pass-through top plate
• Supported cameras: 19mm, 20mm (DJI O3)

Whether you are building a sub-250g indoor cruiser or a nimble outdoor cinewhoop, the AOS CINE25 EVO provides the stiff, vibration-free foundation required for professional-grade FPV cinematography.
