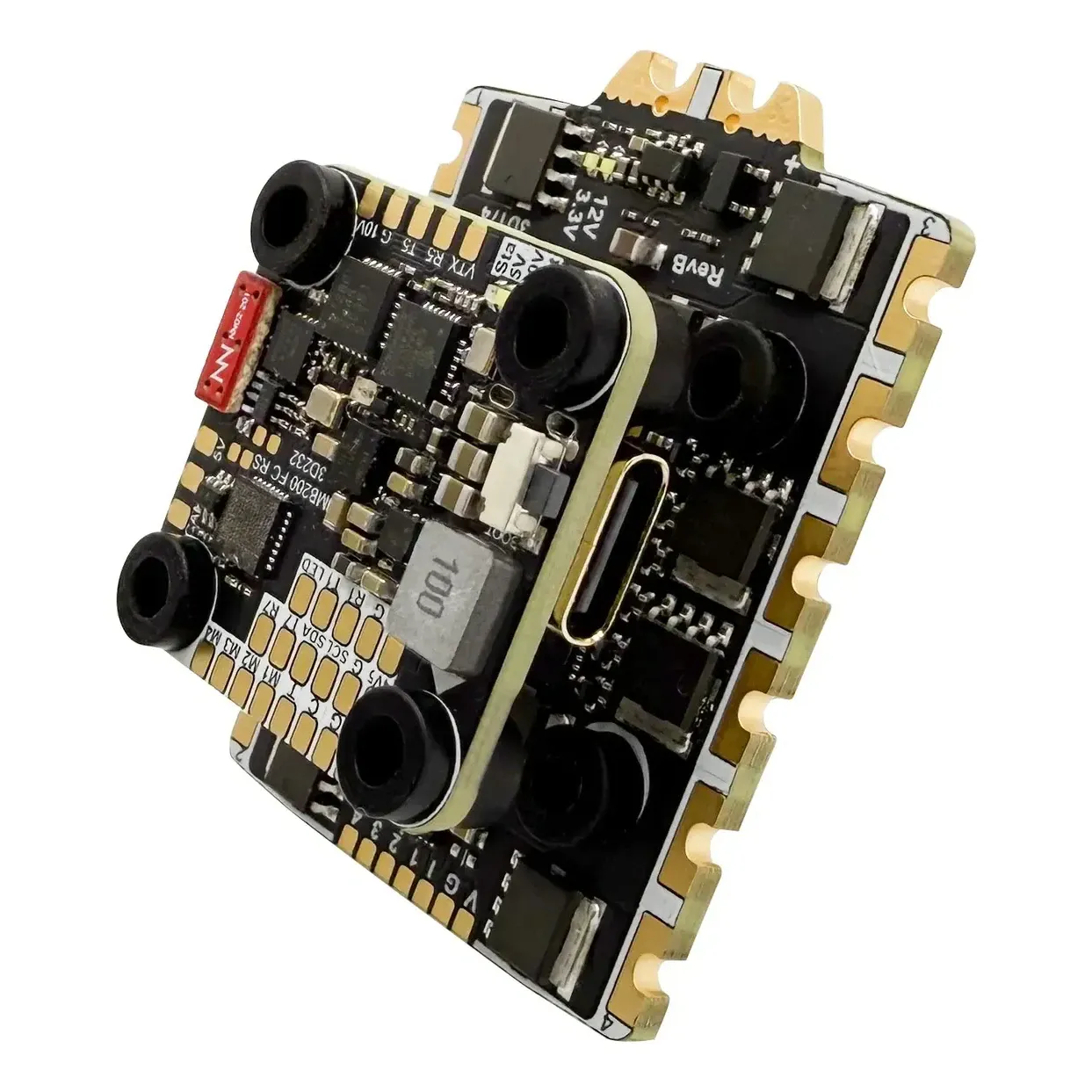

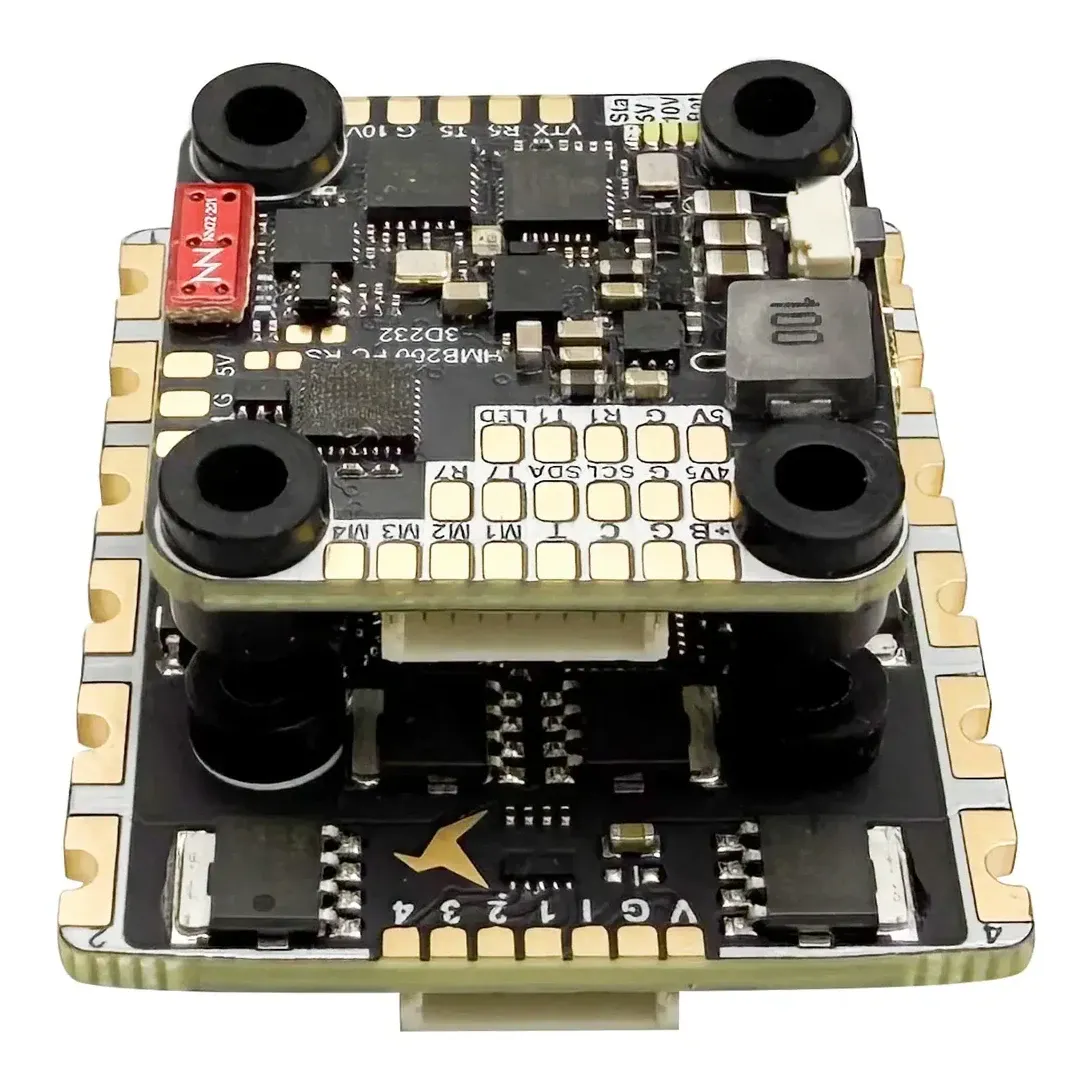

NewBeeDrone Hummingbird 200 RaceSpec Stack 20x20mm – ELRS FC + 80A AM32 ESC

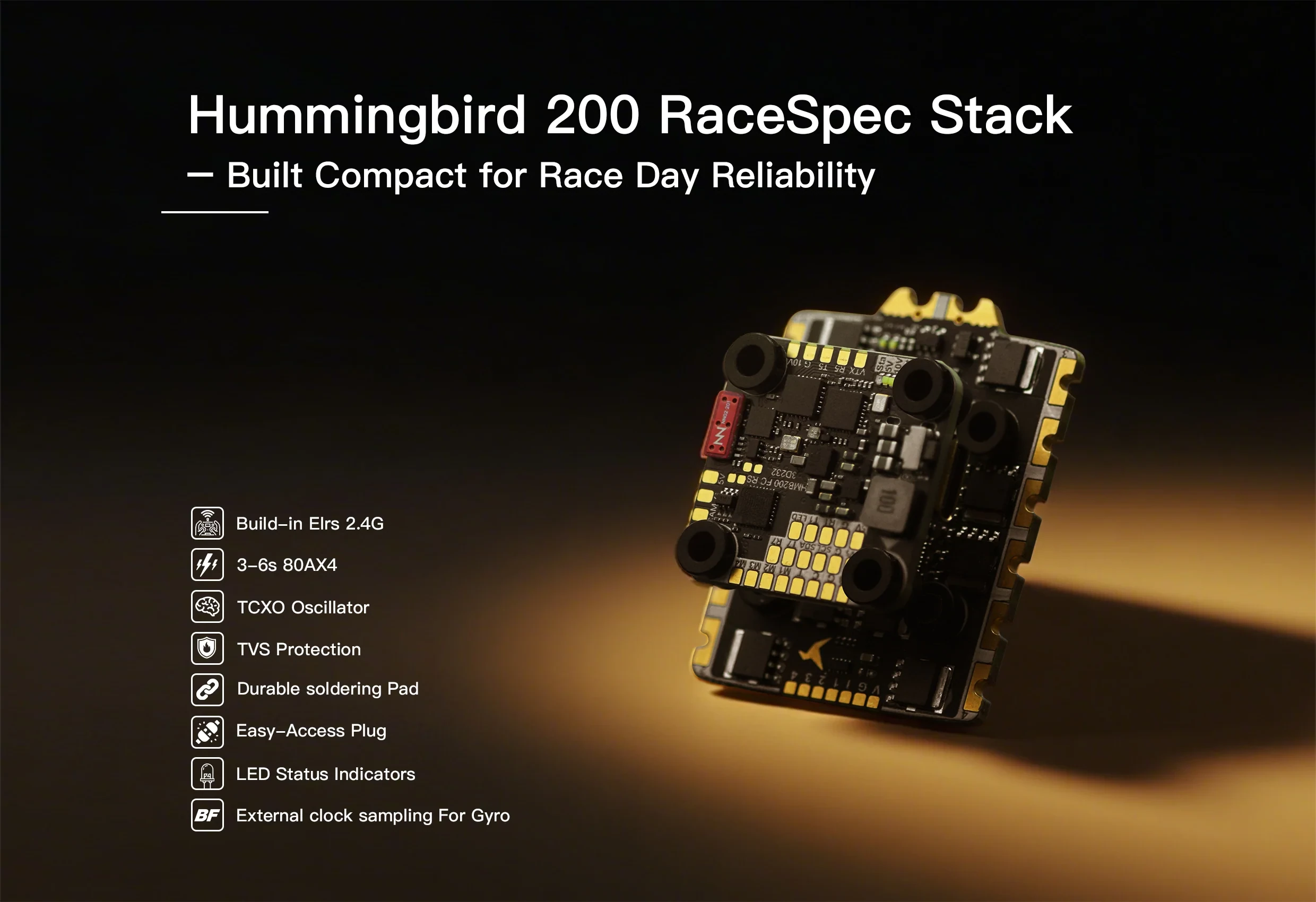

The Hummingbird 200 RaceSpec is a high-density flight stack designed for high-KV FPV racing and demanding freestyle builds. It bundles a flight controller featuring an onboard ELRS receiver with a massive 80A AM32 4-in-1 ESC, delivering extreme current capacity within a compact form factor. This stack minimises external components and wiring, making it highly effective for narrow race chassis and low-profile canopies.

Key features

• Integrated ELRS receiver eliminates the need for an external module and saves internal frame space.

• 80A continuous current overhead handles the aggressive amp spikes associated with large-stator racing motors.

• AM32 ESC firmware enables variable PWM frequency, dynamic timing, and native bidirectional DShot telemetry.

• Compact physical footprint avoids the need to step up to a heavier 30.5x30.5mm stack for high-amperage applications.

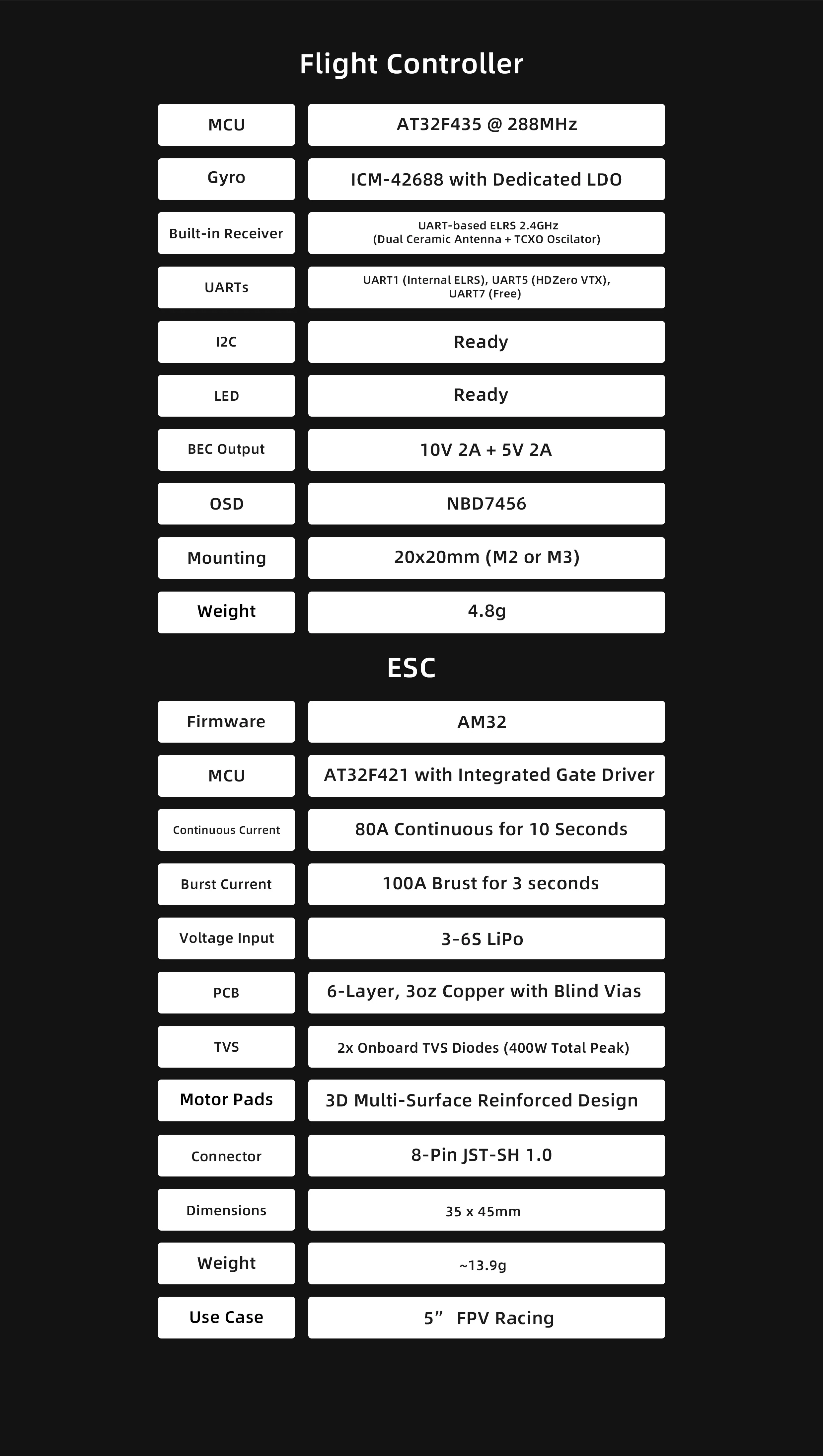

Specifications

• Component type: FC and 4-in-1 ESC Stack

• Mounting pattern: 20x20 mm

• Input voltage: 3-6S LiPo

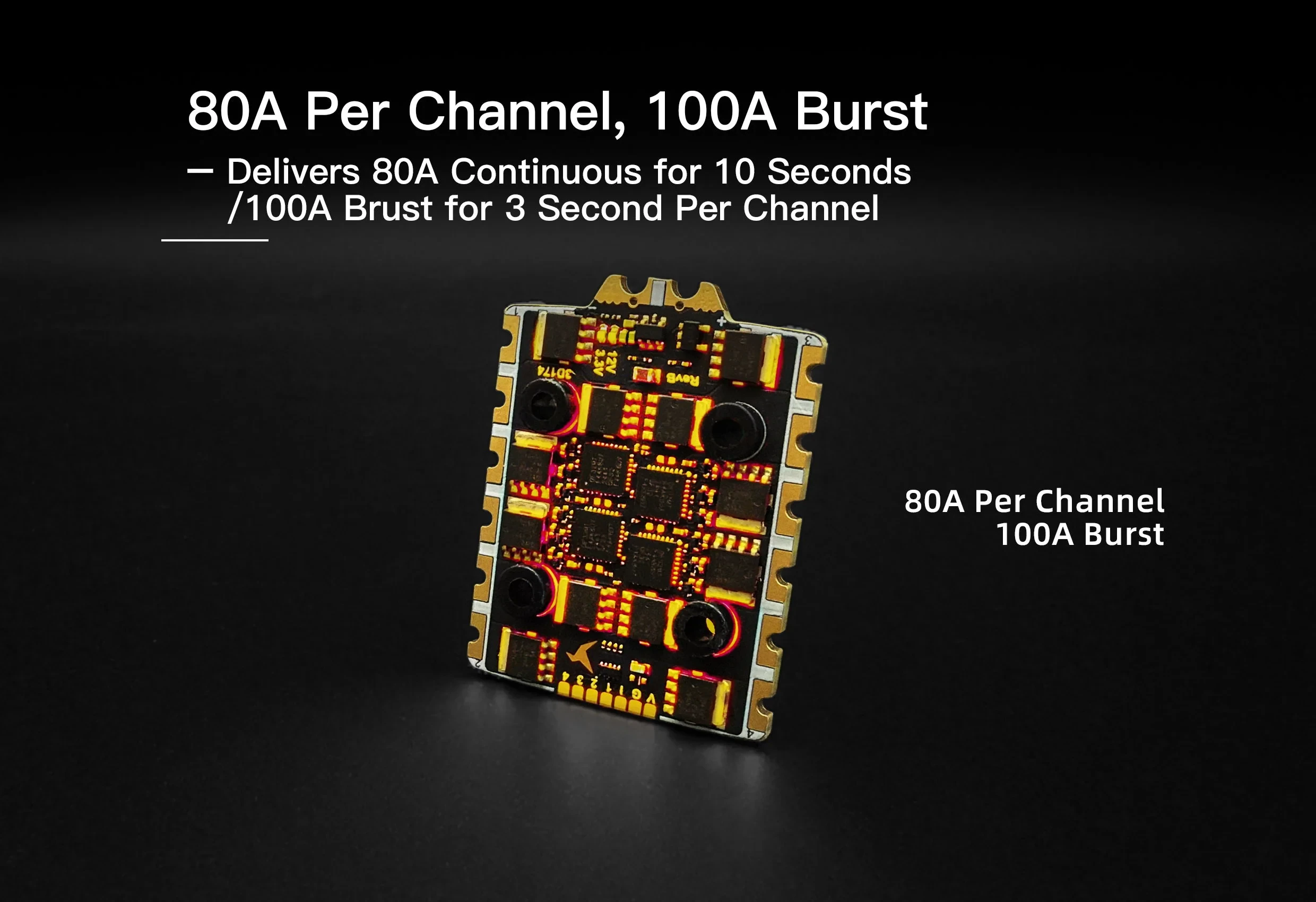

• Continuous current: 80 A

• Burst current: 100 A (3 s)

• ESC firmware: AM32

• Receiver: Integrated ELRS

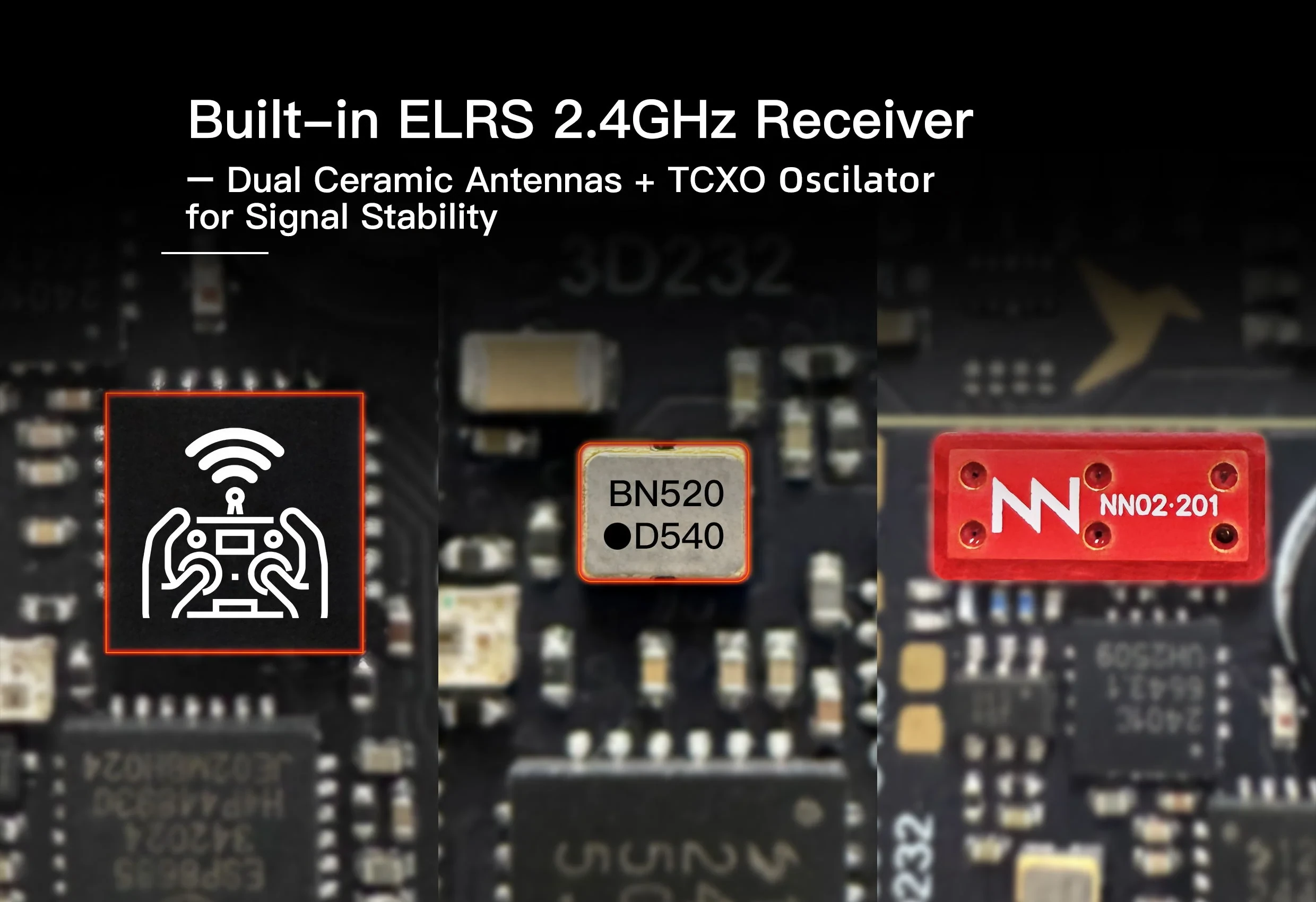

• Receiver details: 2.4 GHz, dual ceramic patch antennas, TCXO, on UART1

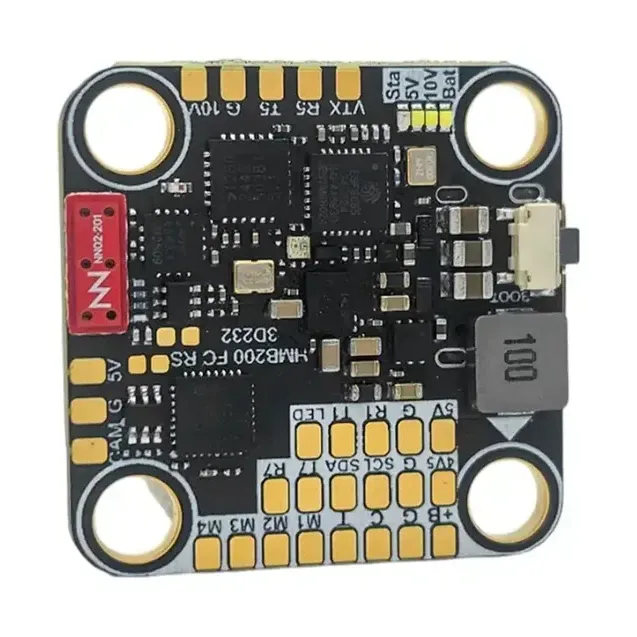

• FC MCU: AT32F435, 288 MHz

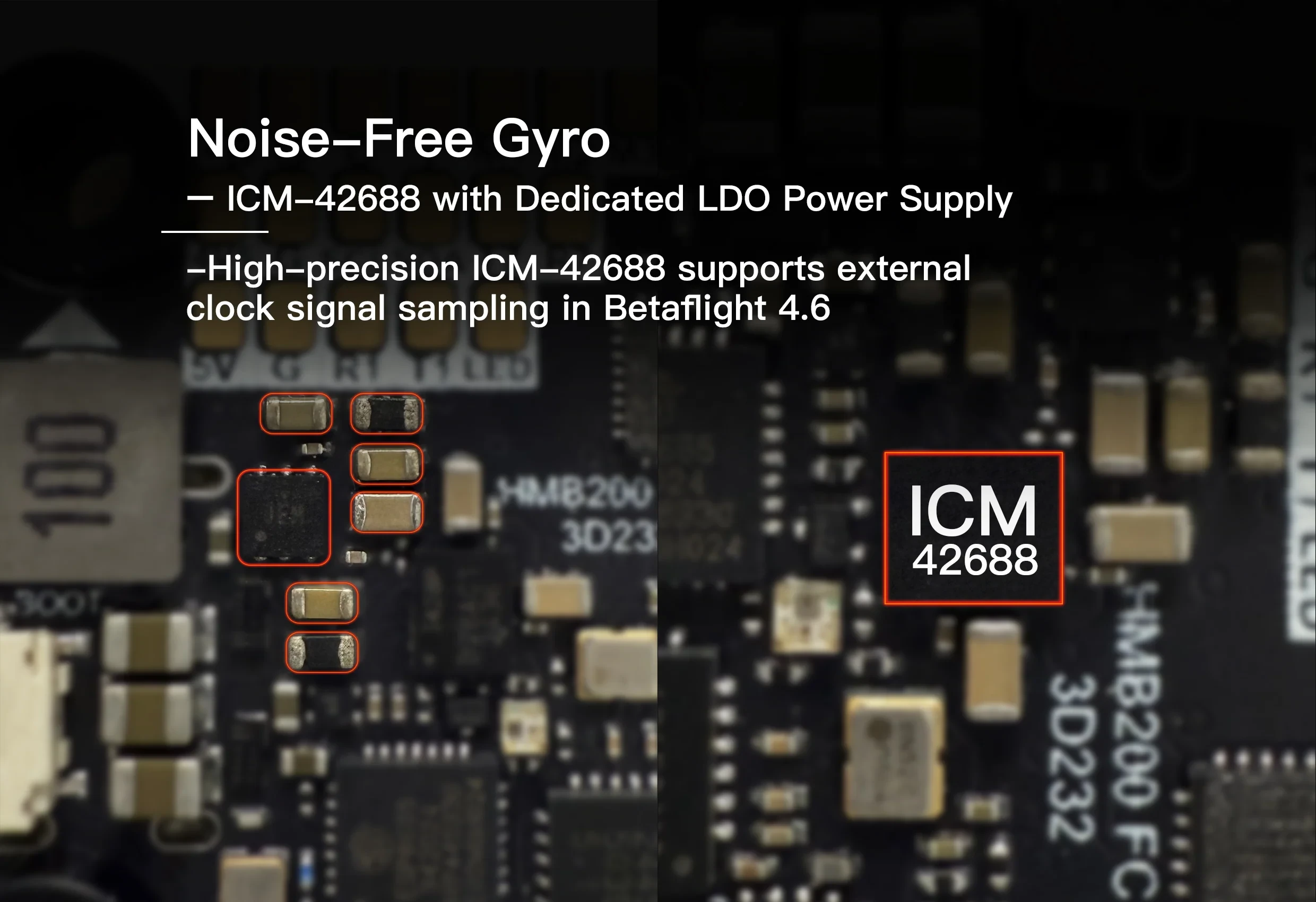

• Gyro: ICM42688P with dedicated LDO

• OSD chip: NBD7456

• BEC output: 10 V 2 A, 5 V 2 A

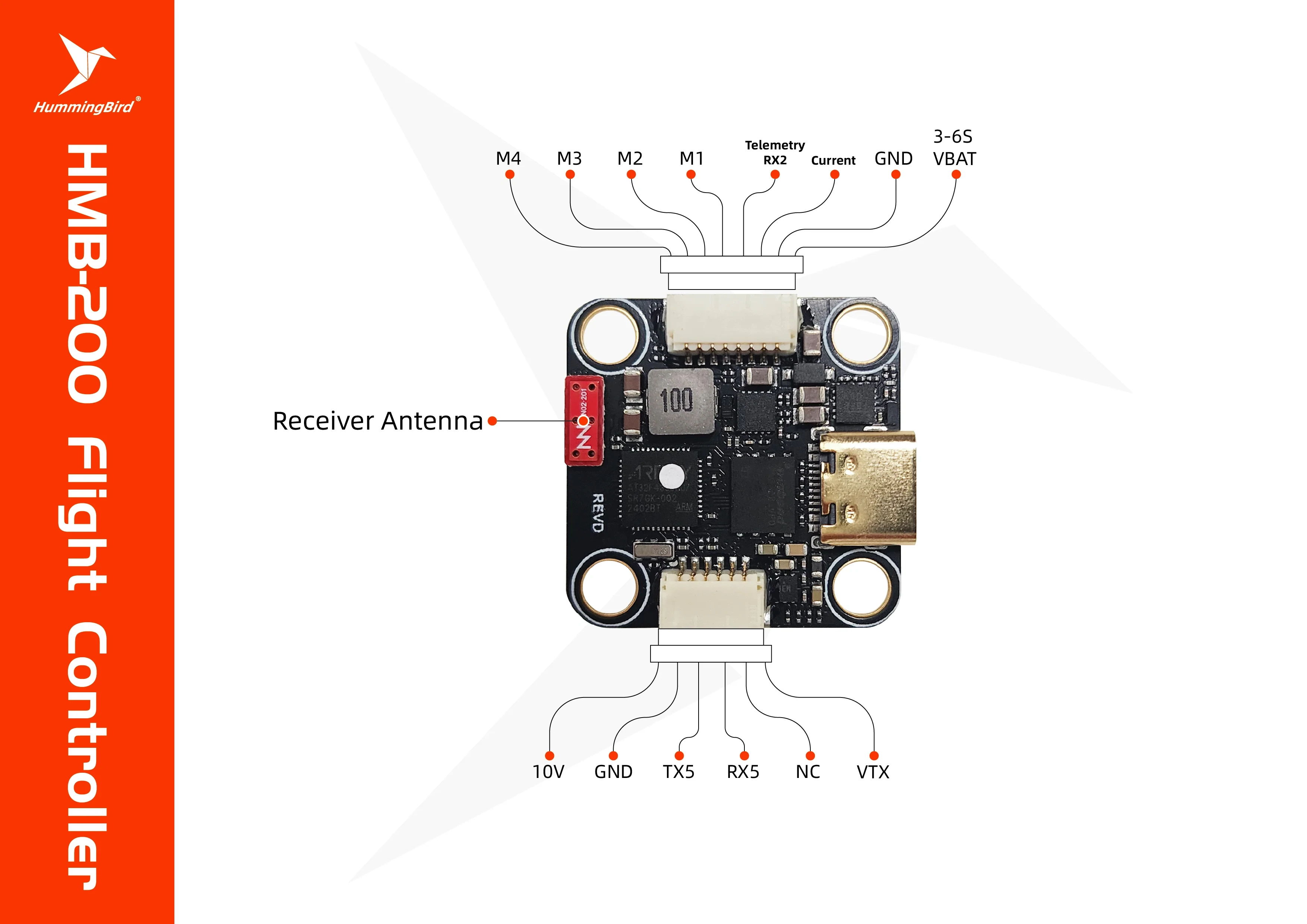

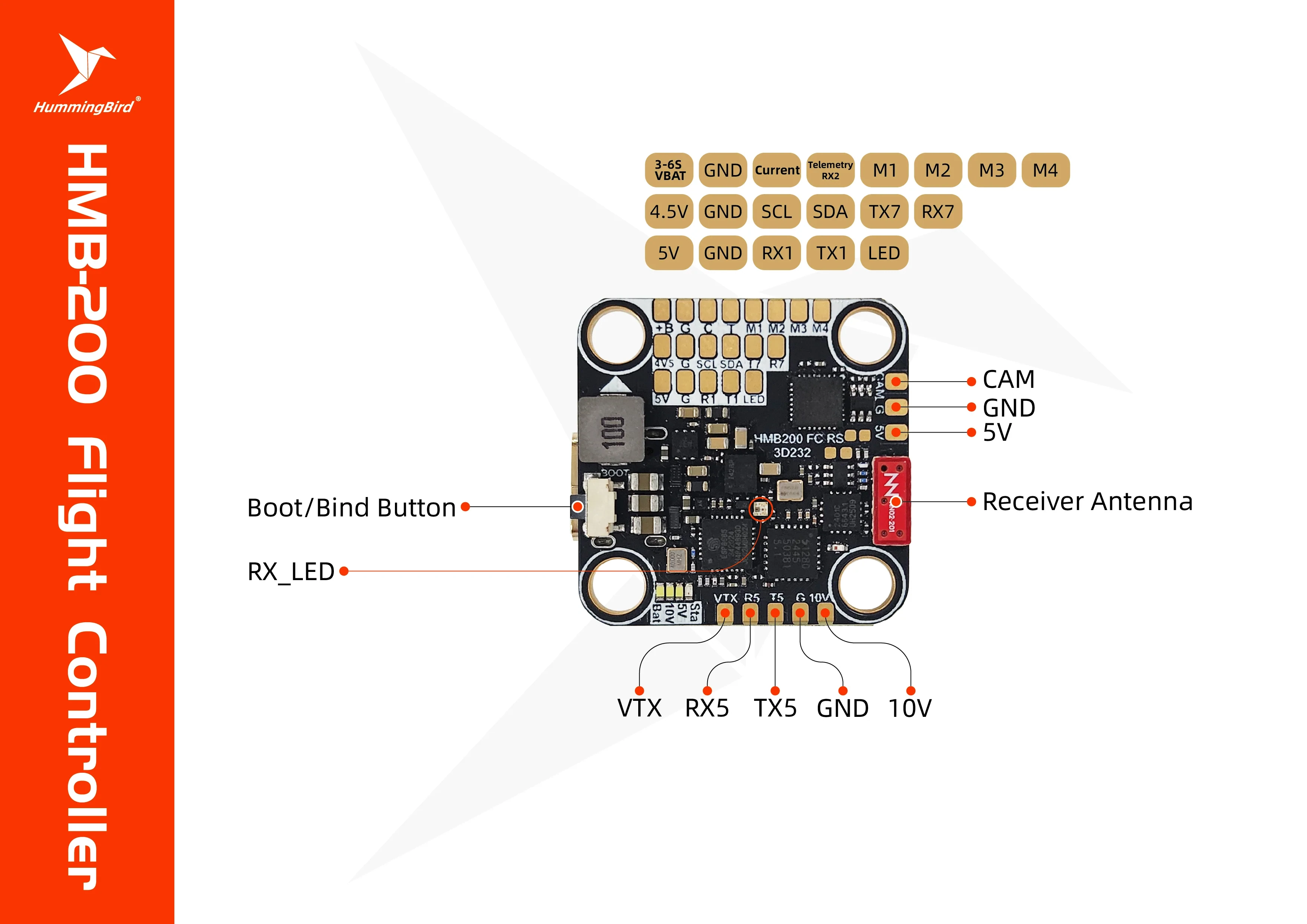

• UARTs: UART1 internal ELRS, UART5 HD VTX plug, UART7 free

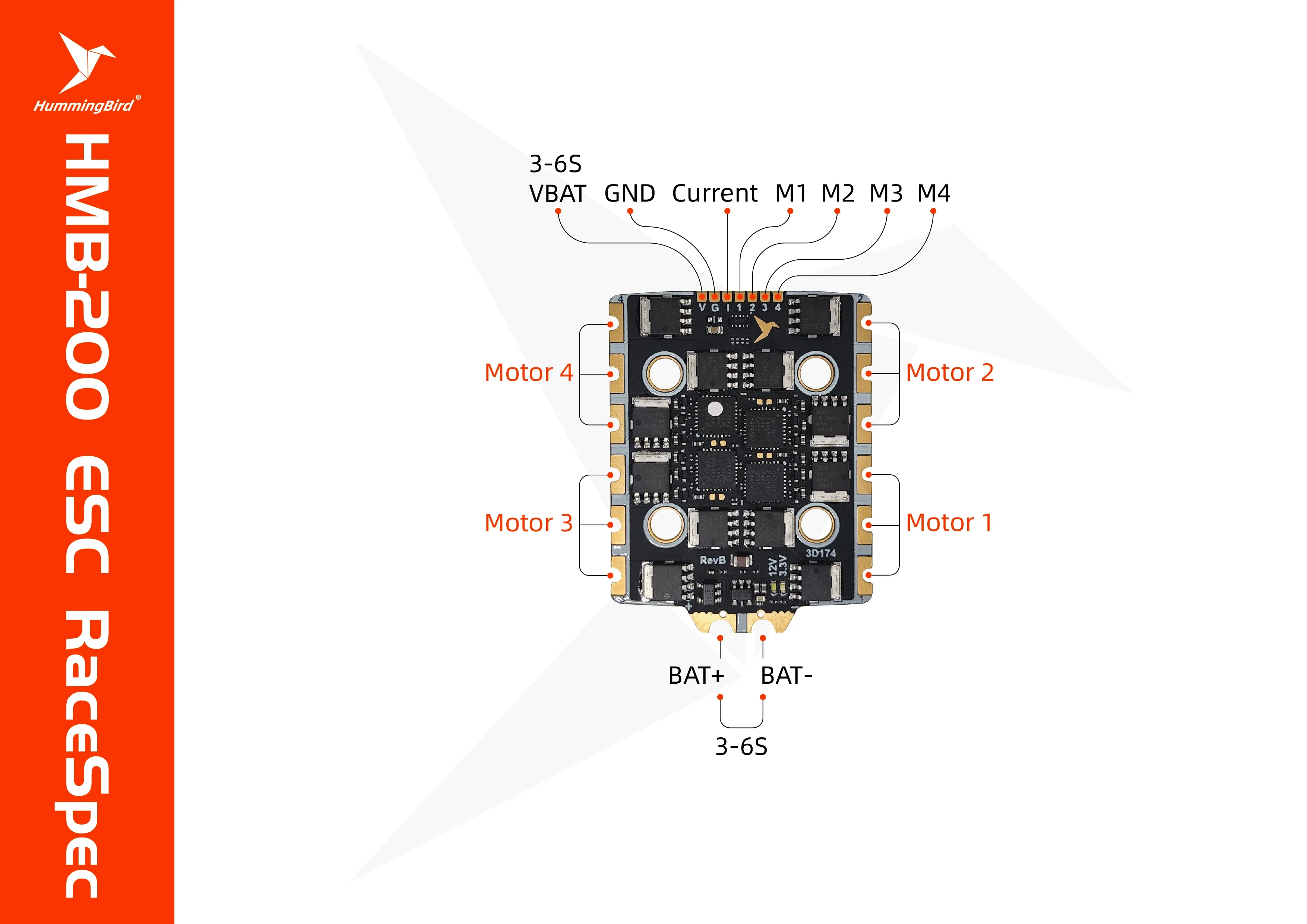

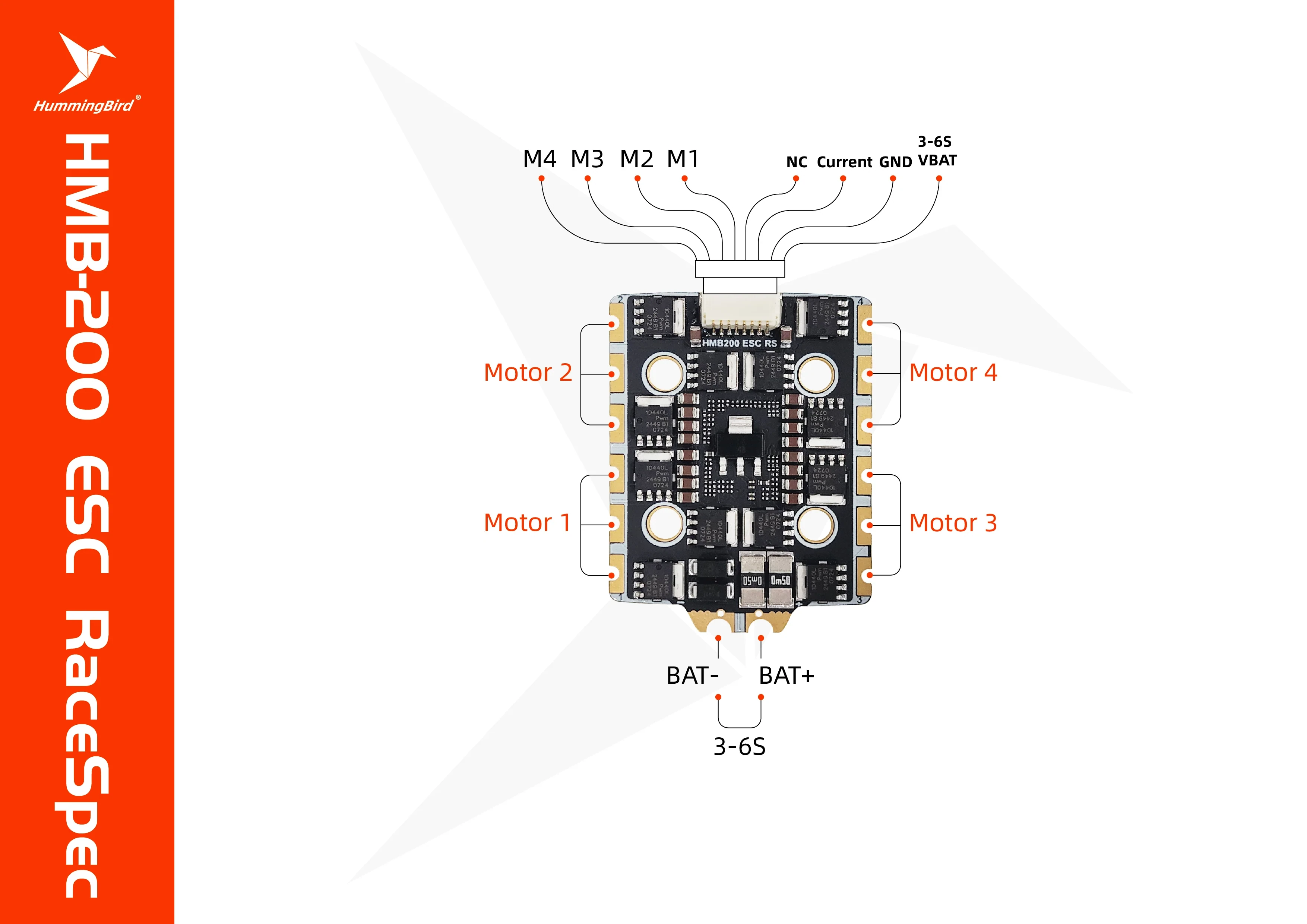

• ESC MCU: AT32F421

• ESC size: 35 x 45 mm (including pads)

• Weight: FC 4.8 g, ESC approx. 13.9 g

• In the box: FC, ESC, grommets, DJI O3/O4/HDZero plug-and-play cable, FC-to-ESC 8-pin cables, 14 AWG power lead, XT60 plug, 1000 uF capacitor

This stack is suited for 5-inch and 6-inch high-performance rigs where pilots require maximum amperage overhead in a space-constrained layout.
