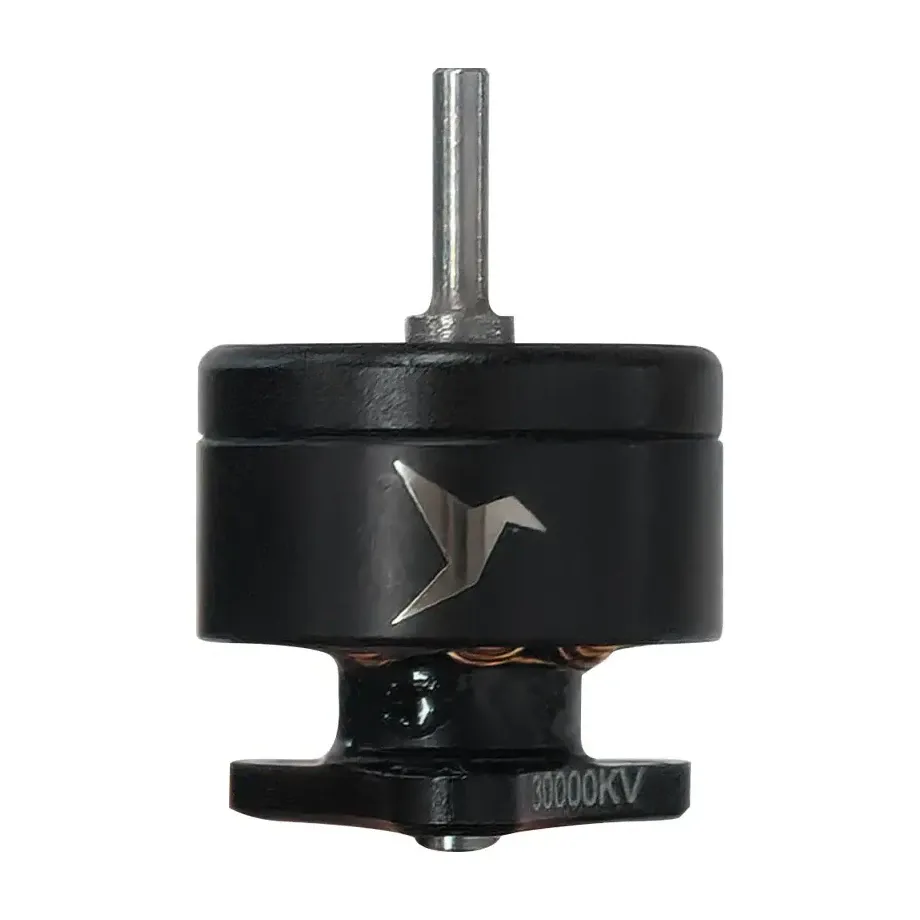

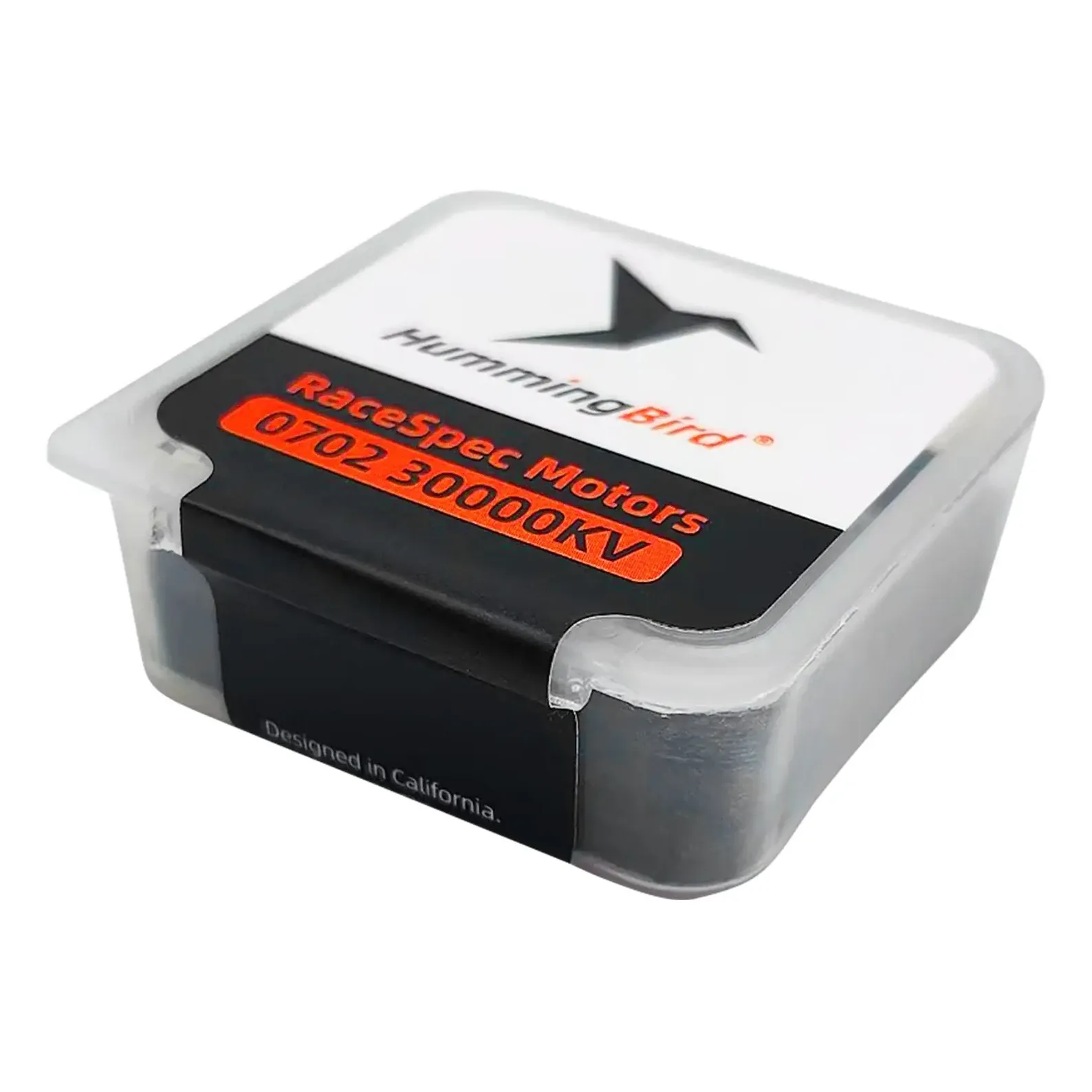

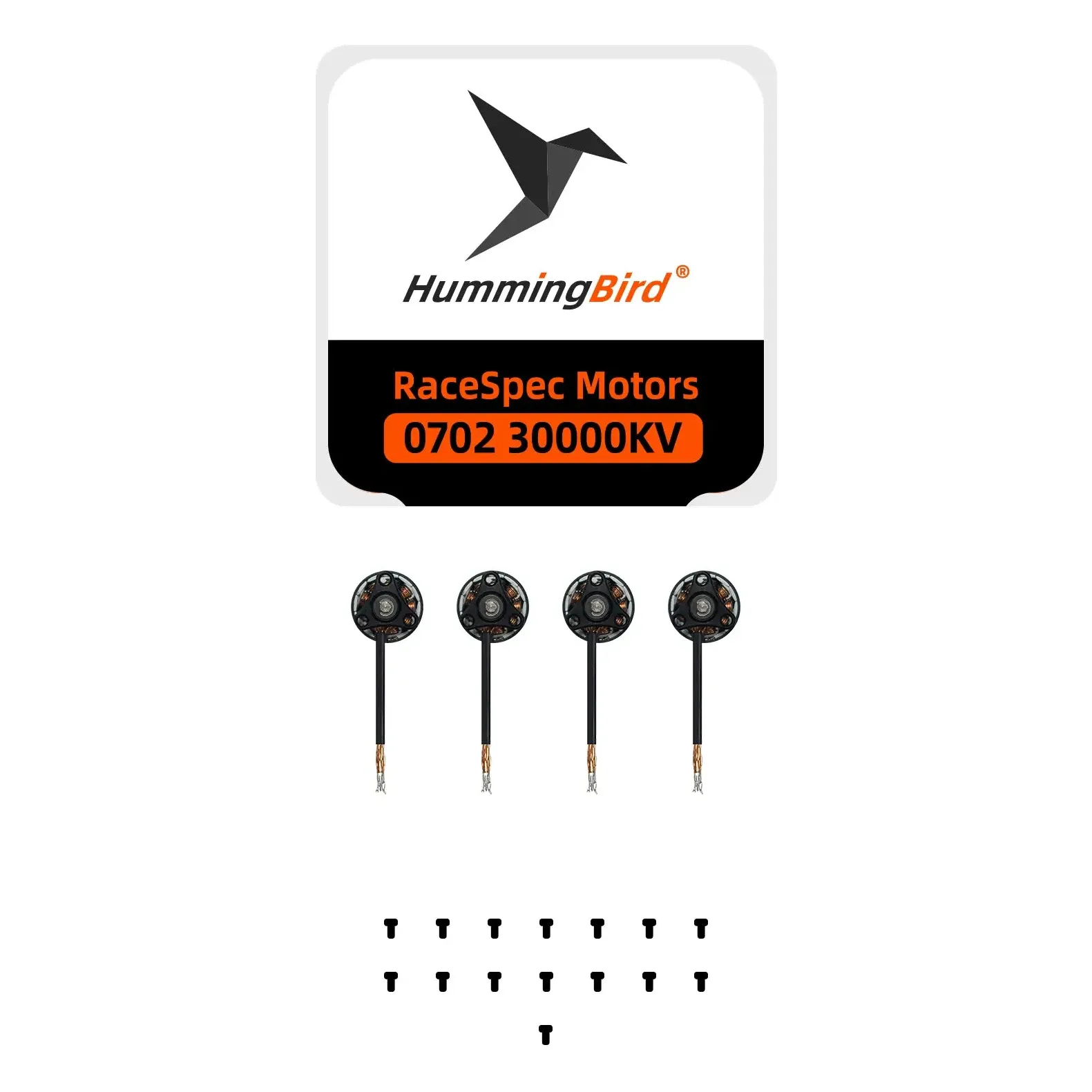

NewBeeDrone Hummingbird 0702 True 30000KV RaceSpec Brushless Motors (Set of 4)

The Hummingbird 0702 True 30000KV RaceSpec motors are built specifically for NewBeeDrone's Hummingbird V3.1 RaceSpec BNF/DIY kit, delivering extreme top-end speed for 1S indoor whoop racing. This set of four is not intended as a drop-in upgrade for other whoop frames.

Key features

• True 30,000KV rating for maximum RPM on 1S packs — for experienced pilots only, as this KV can stress batteries, ESCs and the motors themselves.

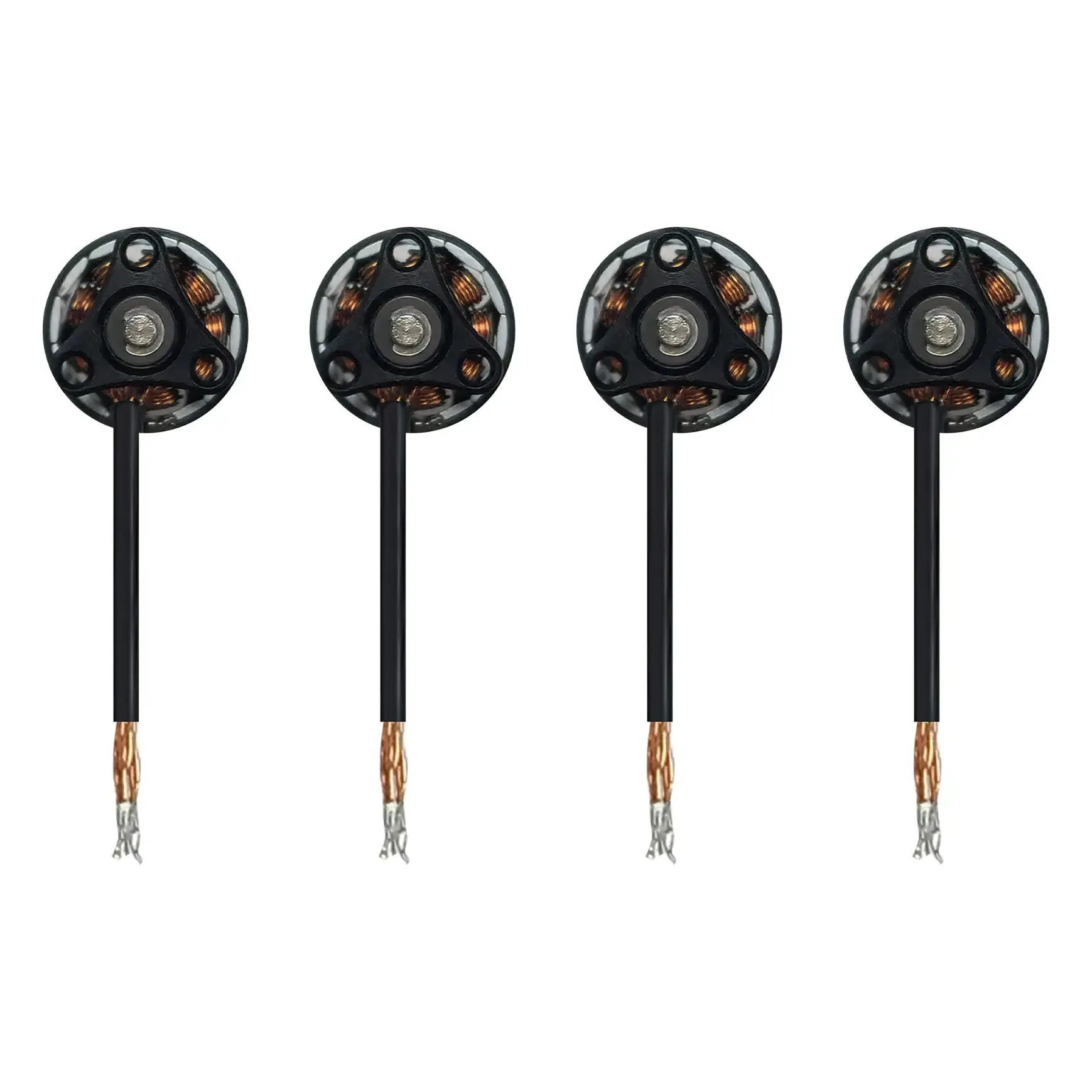

• Just 1.29g per motor, including straight enamel wire with heat-shrink, for minimal all-up weight.
• Straight enamel wire solders directly to the ESC pads rather than through a connector, saving further weight.

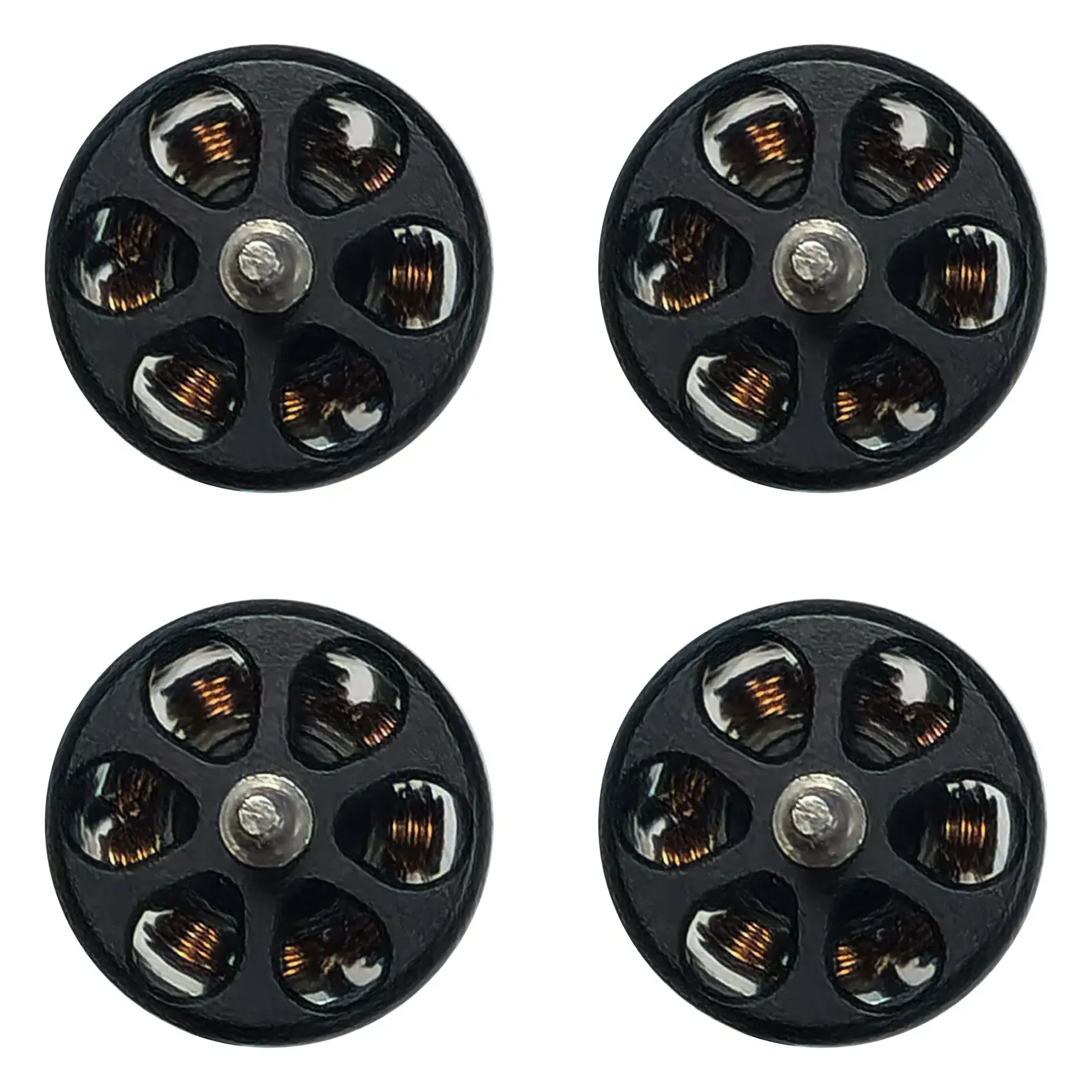

• 0702 stator size keeps the footprint tight for agile cornering.

Specifications

• Stator size: 0702
• KV: 30000
• Input voltage: 1S LiPo/LiHV
• Shaft diameter: 1.0mm
• Weight: 1.29g per motor

Each phase carries two enamel wires — keep wires from different phases separate when soldering, as mixing them can burn out the motor. Only fit these to a build designed around this specific KV rating.
