Flywoo FlyLens 75 O3 Frame Kit
SKU FLYWOO-FLYLENS75-O3-CLR-BLK
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

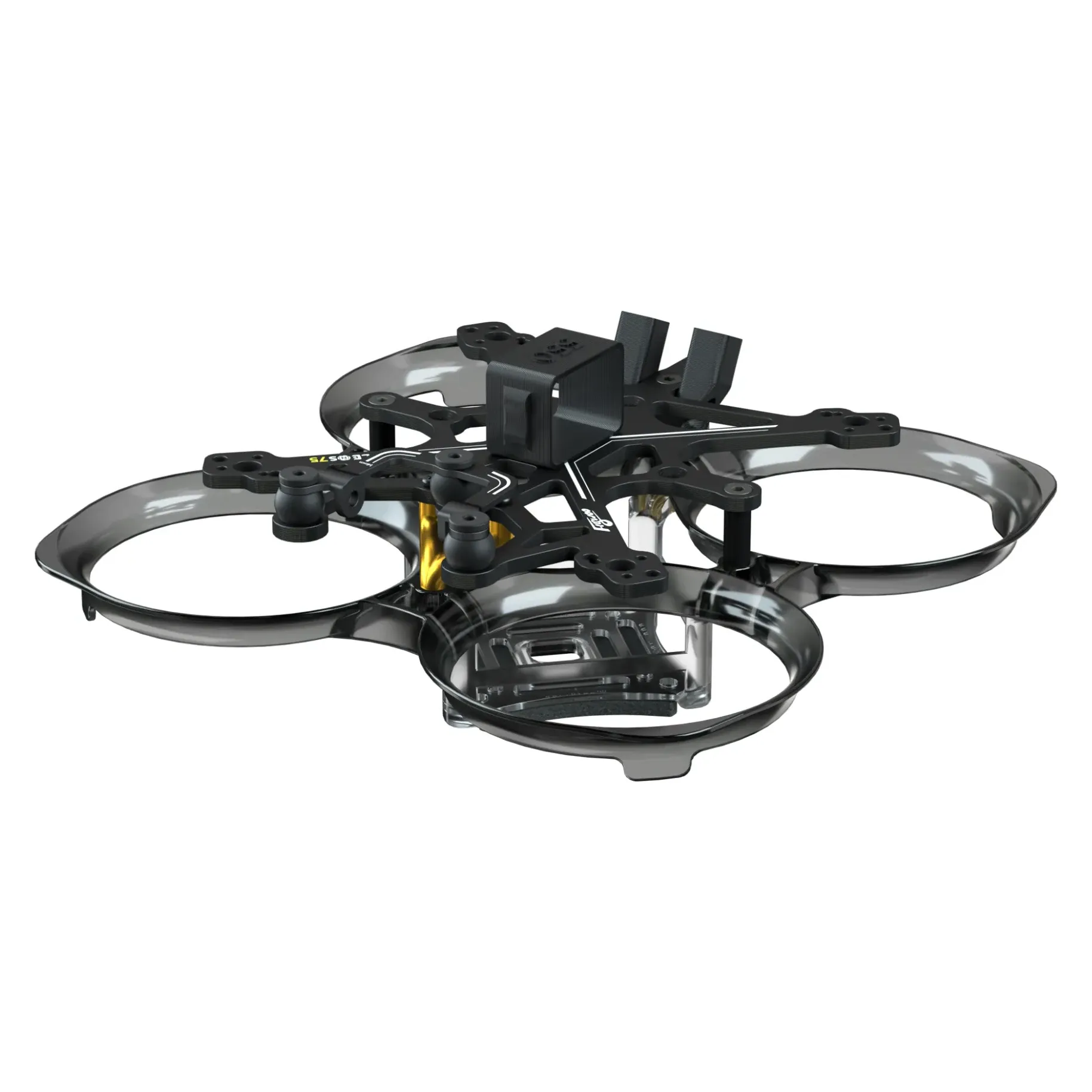

The Flywoo FlyLens 75 O3 Frame Kit is an ultra-compact 75mm cinewhoop frame engineered specifically to carry the DJI O3 Air Unit. By utilizing a unique bottom-mount design for the VTX and a rigid carbon fibre main plate, it keeps the centre of gravity exceptionally low while saving critical space. The integrated ducted design offers robust propeller protection, making it ideal for indoor filming and close-proximity HD cinematic flights on 40mm props.
Key features
- Purpose-built for the DJI O3 Air Unit with a space-saving bottom VTX mounting tray
- Durable injection-moulded polycarbonate ducts for safe indoor flight and crash resilience
- CNC-machined aluminium camera mount dampens high-frequency vibrations for jello-free footage
- Optimised for 40mm (1.6-inch) micro propellers and lightweight HD whoop builds
- Supplied in a clear-black colourway
Specifications
- Wheelbase: 75 mm
- Supported prop size: 40 mm

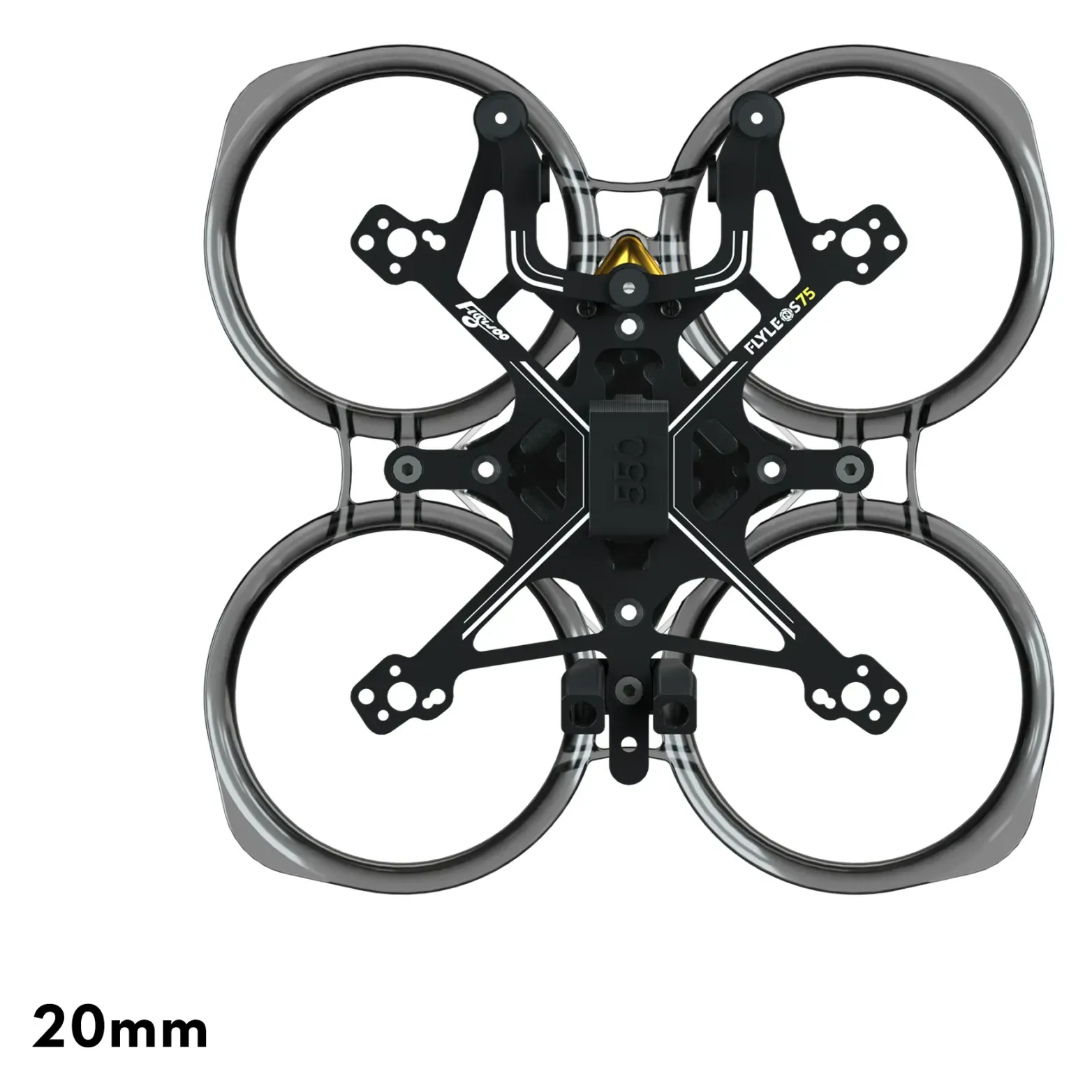

- Camera mounting: 20 mm (DJI O3)
- FC mounting pattern: 25.5x25.5 mm
- VTX mounting pattern: 20x20 mm / 25.5x25.5 mm
- Motor mounting: 6.6 mm / 9 mm hole spacing
- Main board thickness: 2 mm
- CNC gimbal thickness: 1 mm
- Frame materials: Carbon fibre, polycarbonate, CNC aluminium
Pair this kit with 1003-sized brushless motors and a 25.5x25.5mm AIO flight controller to complete a high-performance micro HD build.
| Prop Size | 40mm, 1.6" |
|---|---|
| Wheelbase | 75 mm |
| Camera Size | 20mm |
| Made in India | No |
| Brand | Flywoo |
| Mounting Size | 25.5x25.5 |
| Motor Mount | 9x9mm, 6.6mm 3-hole |
