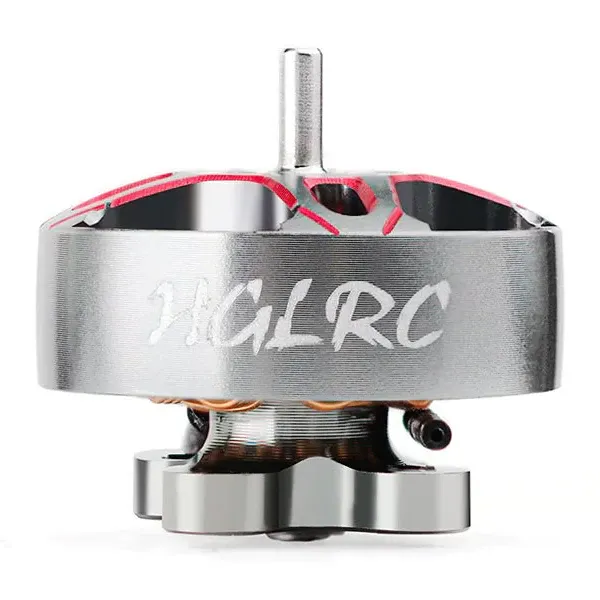

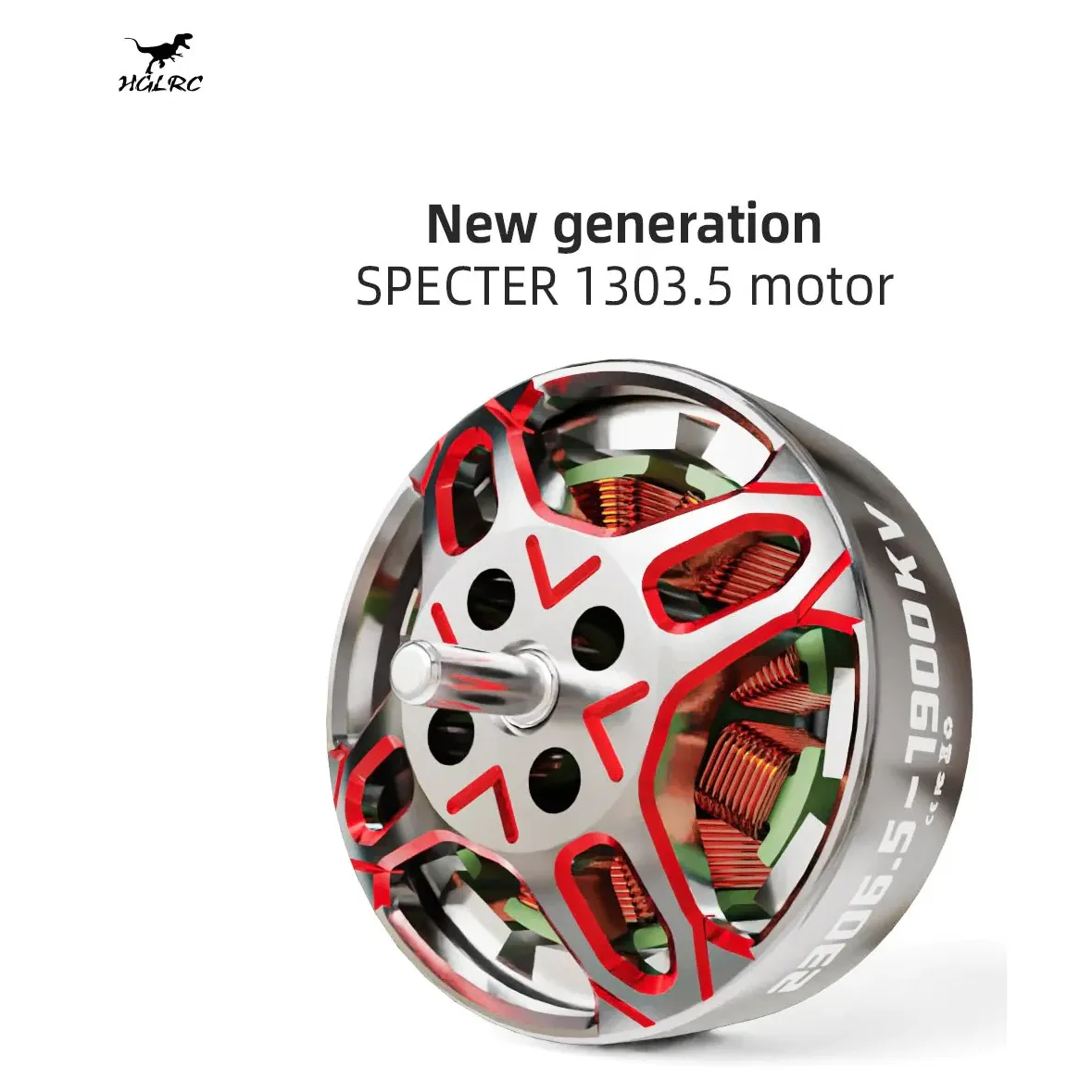

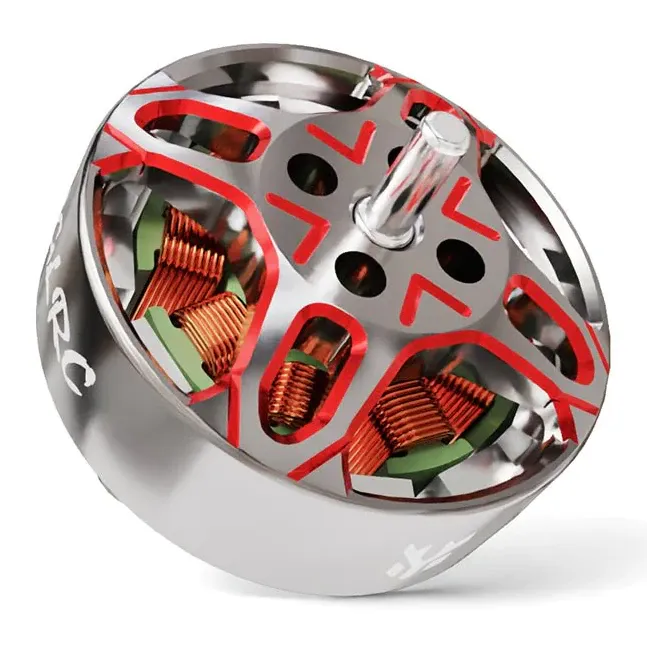

HGLRC SPECTER 1303.5 5500KV Brushless FPV Motor

The HGLRC SPECTER 1303.5 5500KV is a lightweight brushless motor engineered for 2-inch to 3-inch toothpicks, micro freestyle builds, and sub-250g cinewhoops. Weighing just 6.5g, it delivers an excellent power-to-weight ratio for sharp throttle response on 2S to 4S setups. By increasing the stator width to 13mm, this motor provides significantly more torque than traditional 110x and 120x equivalents, giving you the low-end authority needed to drive aggressive pitch propellers without bogging down.

Key features

• Wider 1303.5 stator volume provides the torque required for 2.5-inch and 3-inch props on micro builds.
• Constructed with high-temperature N52H magnets to maintain consistent magnetic field strength under heavy loads.
• Unibody bell design maximises impact resistance during crashes.
• Standard 1.5mm output shaft ensures broad compatibility with press-fit and T-mount micro propellers.

Specifications

• KV: 5500
• Configuration: 9N12P
• Stator dimensions: 13mm diameter × 3.5mm height
• Motor dimensions: Φ17.3mm × 11.2mm
• Shaft diameter: 1.5mm
• Wire length: 80mm
• Mounting pattern: 9x9mm, M2
• Input voltage: 2-4S LiPo
• Weight: 6.5g (including wire)

This motor pairs perfectly with a 15A to 25A AIO flight controller and 2.5-inch bi-blade or tri-blade propellers for an efficient, highly responsive ultralight build.
