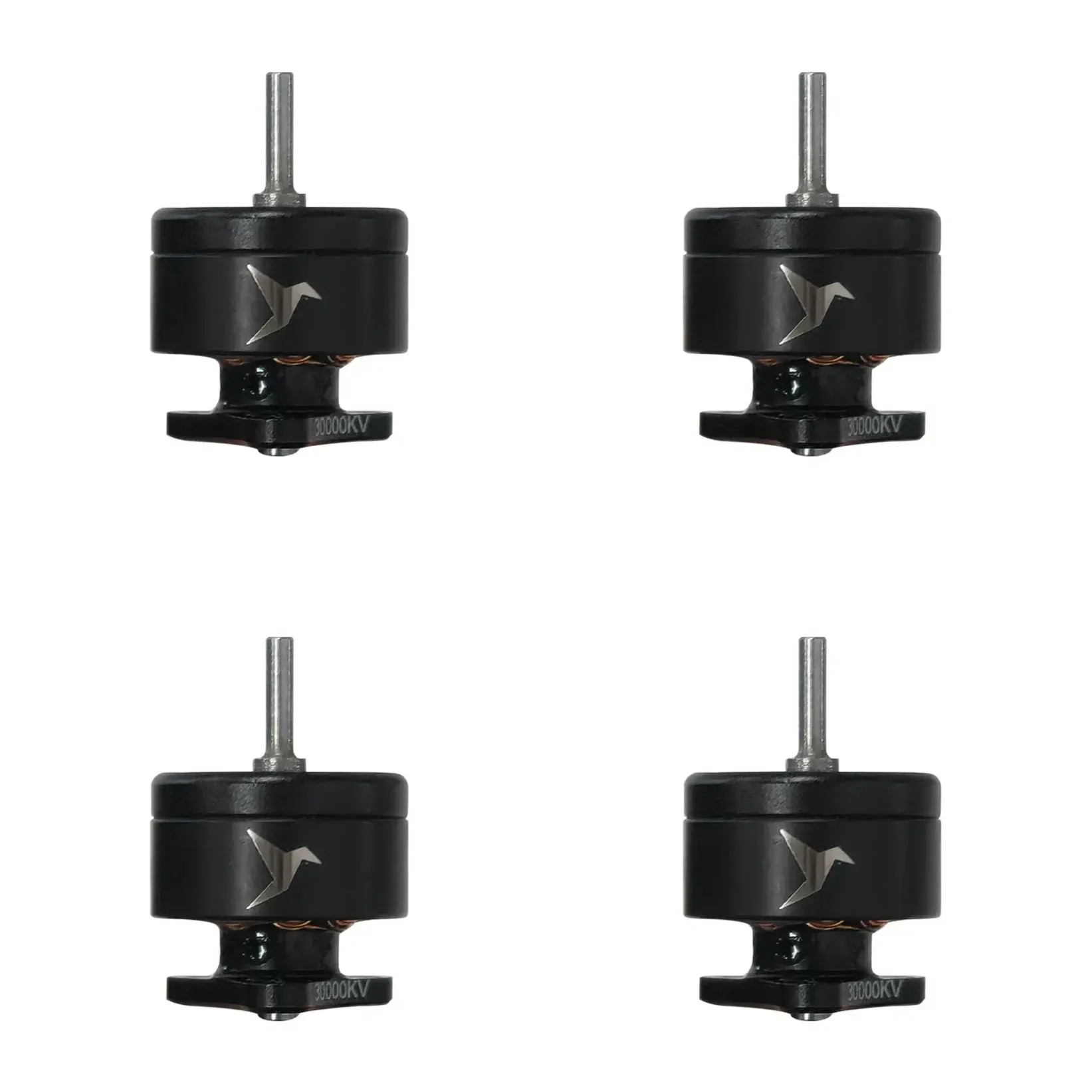

NewBeeDrone HummingBird 0702 30000KV Motor Standard Version

This NewBeeDrone HummingBird 0702 Standard is a 1S brushless motor for micro whoops, with a true 30000KV wind and a 1.0mm shaft for builds that need very fast response in a compact 0702 package. Unlike the RaceSpec edition, the Standard version has solder pads on a small PCB base and ships with a pre-soldered 25mm wire terminated in a JST1.0 plug, making it a direct drop-in replacement for the Hummingbird V4 BNF.

Key features

• True 30000KV rating for the high-RPM feel expected from a fast 1S whoop motor
• 0702 stator size keeps the motor compact for tight micro frames and light builds
• 1.0mm shaft matches common tiny whoop prop fitment

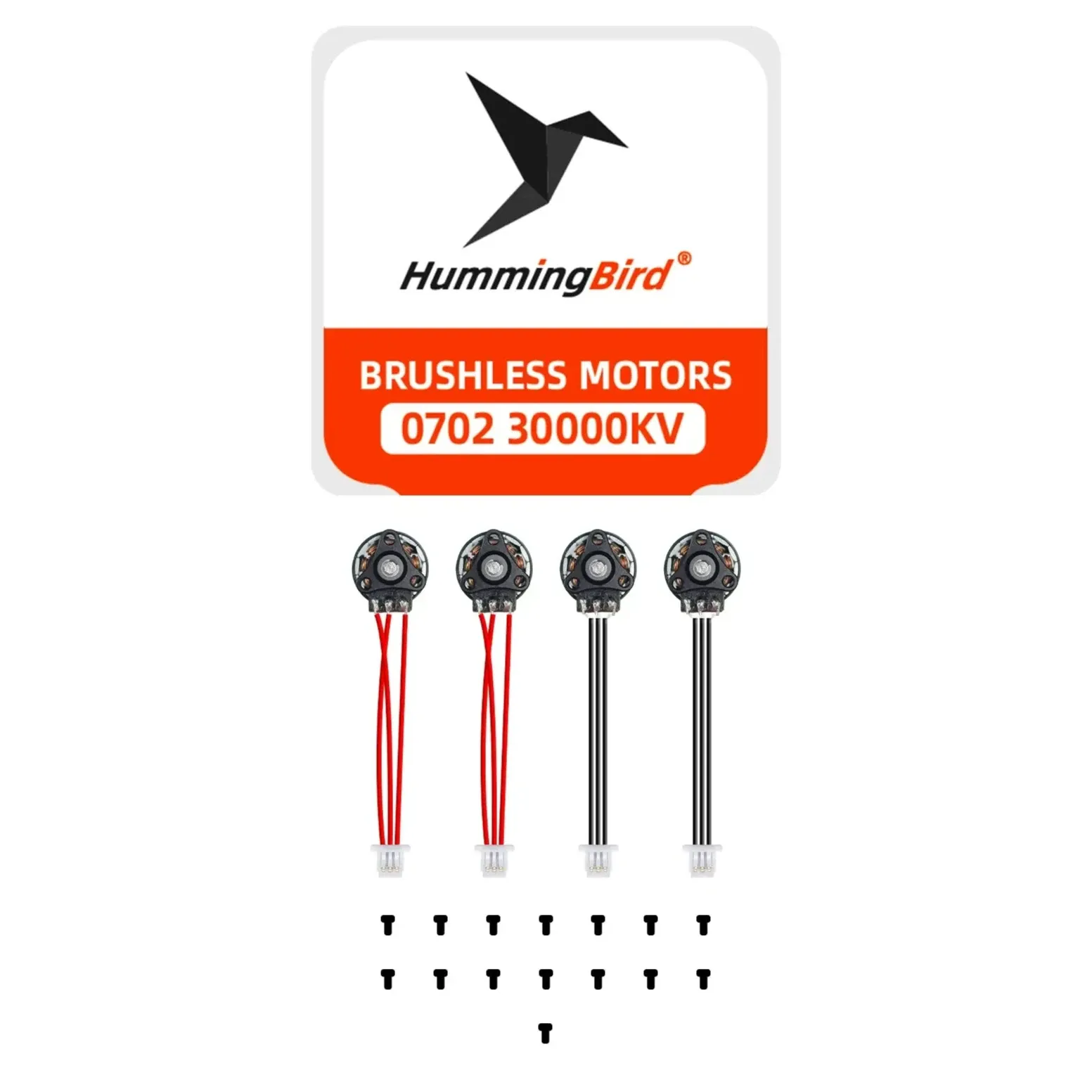

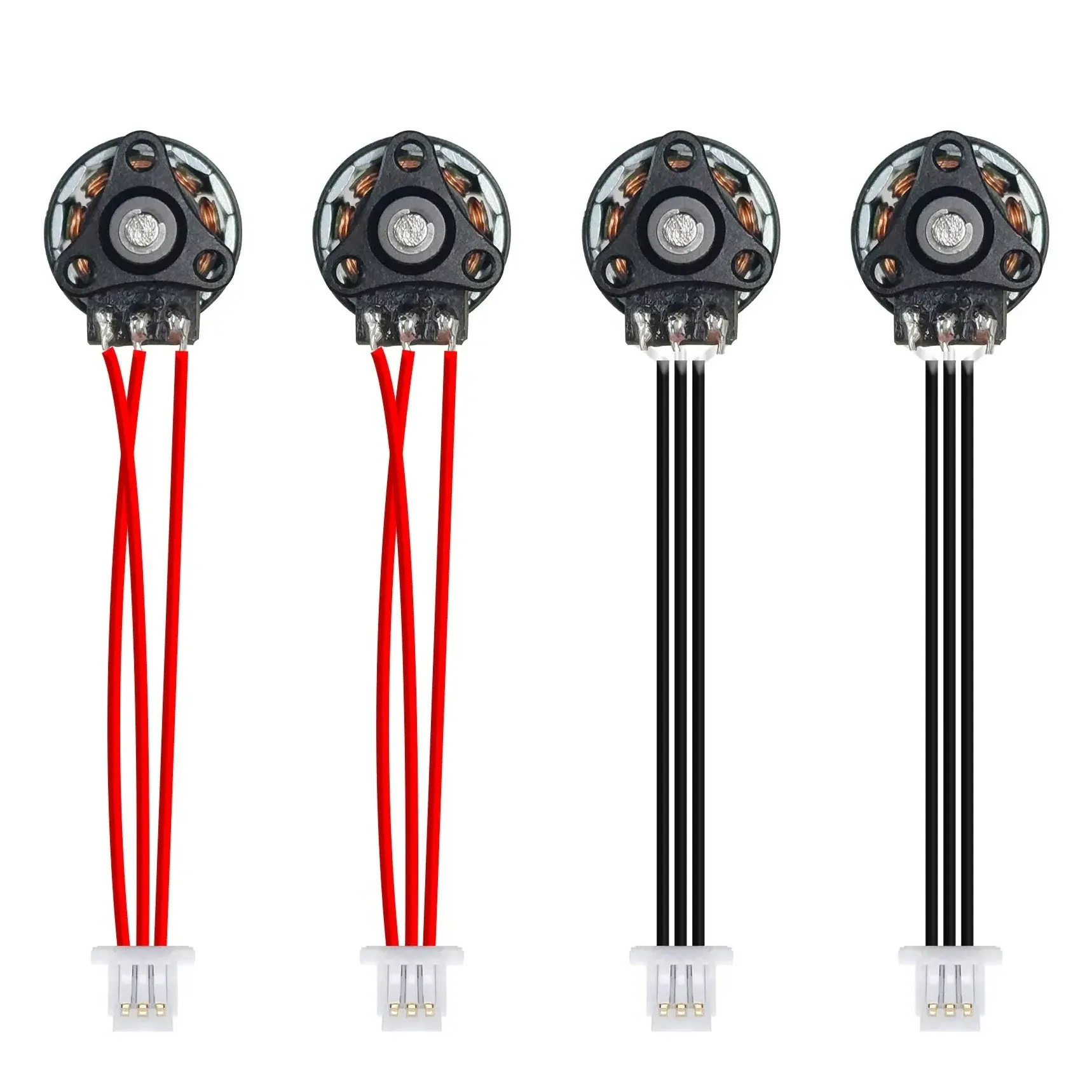

• Pre-soldered 25mm wire with a JST1.0 plug for quick BNF-style swaps, with bottom PCB pads if you prefer to solder your own leads
• Best suited to 1S tiny whoops and other ultra-light micro quads that need quick throttle changes

Specifications

• Brand: NewBeeDrone
• Input Voltage: 1S
• Stator Size: 0702
• KV: 30000
• Shaft: 1.0mm
• Connector: JST1.0, 25mm wire

Use this motor if your build is set up around 1S power and you want a compact, high-KV option that drops straight into a Hummingbird V4 BNF. Check prop fitment and frame mount clearance before ordering, especially if you are replacing a different 0702 motor.
