EFT X2300 Heavy-Lift Industrial Drone Frame (100kg Payload)

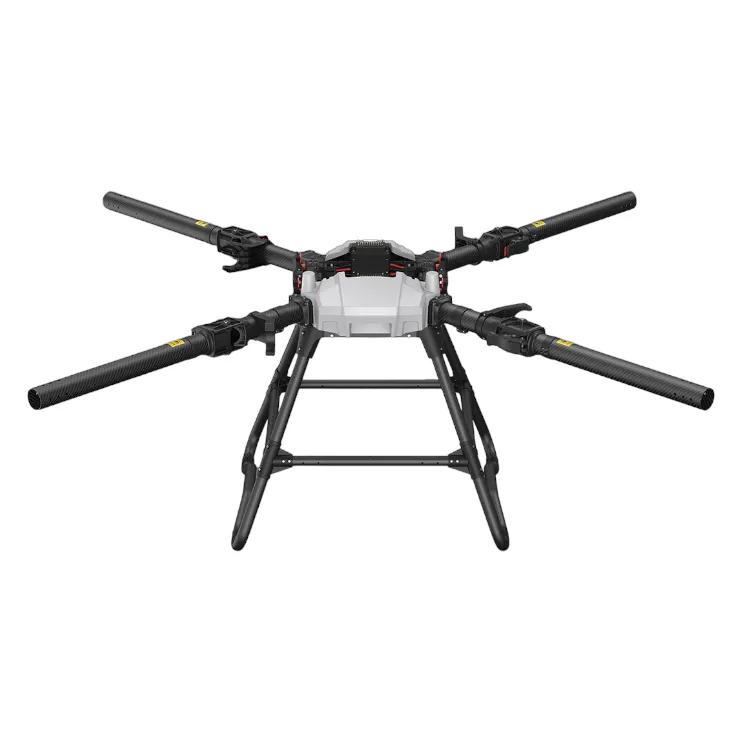

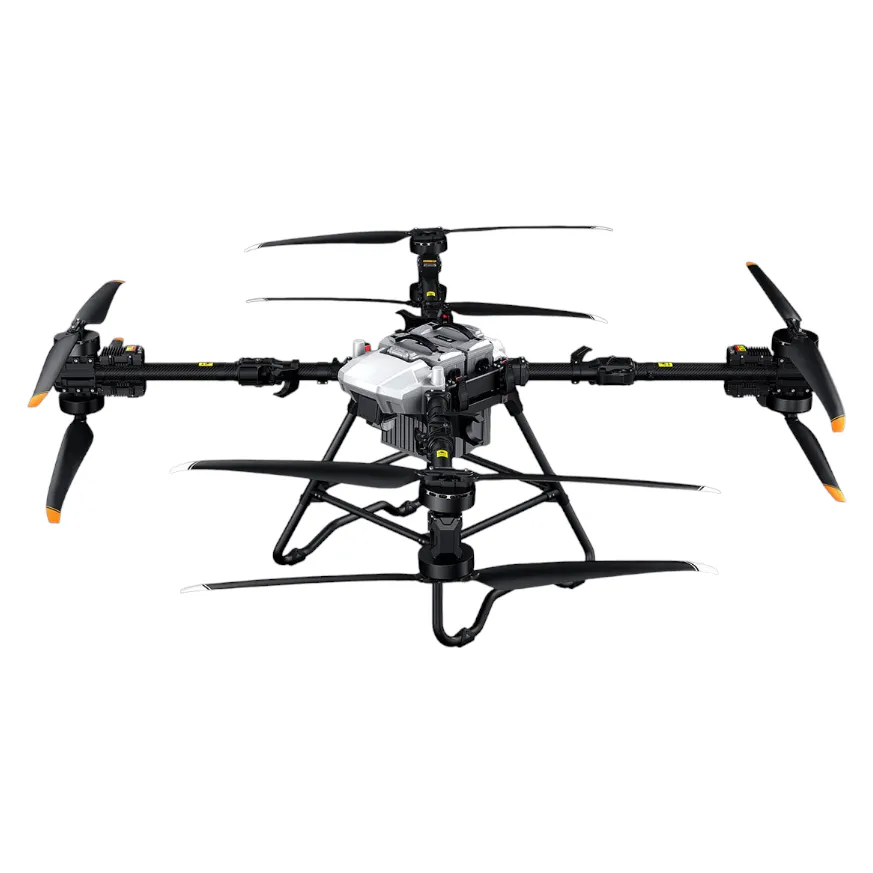

The EFT X2300 is a foldable quadcopter (4-axis) frame for industrial heavy-lift drones that carry up to 100 kg: cargo and material lifting, logistics, emergency response and firefighting platforms. Its 2317 mm wheelbase and truss aluminium-alloy structure are sized for large propulsion systems such as the recommended Hobbywing X15.

Key features

• 60 mm diameter arms on a reinforced, modular truss frame that can be serviced section by section

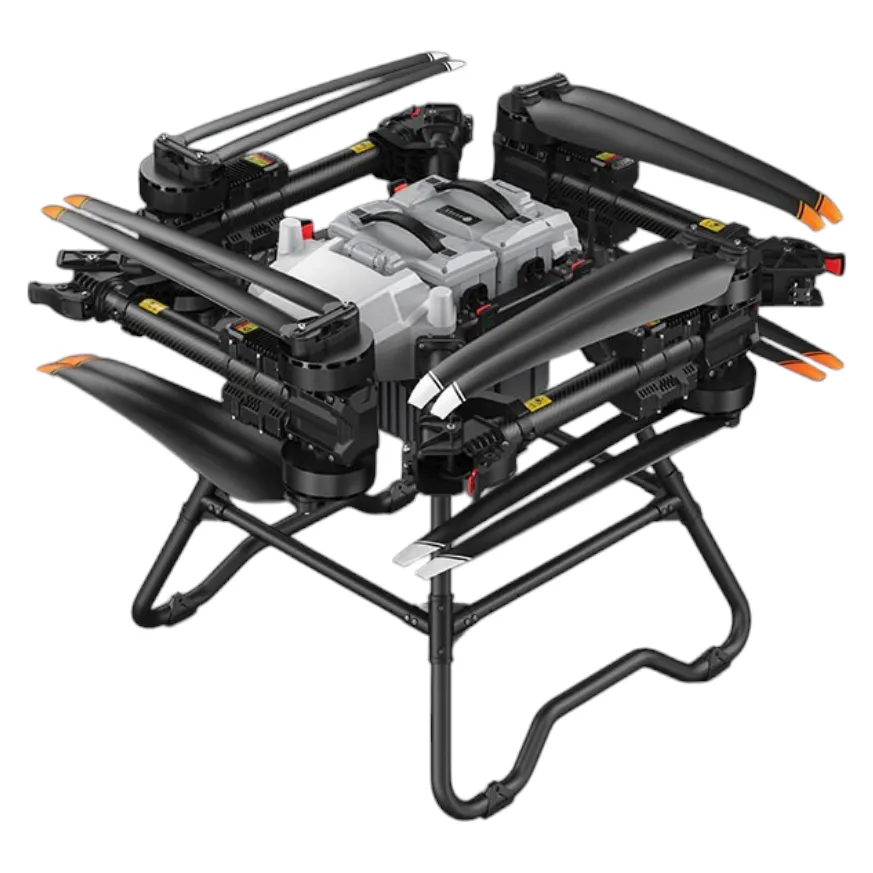

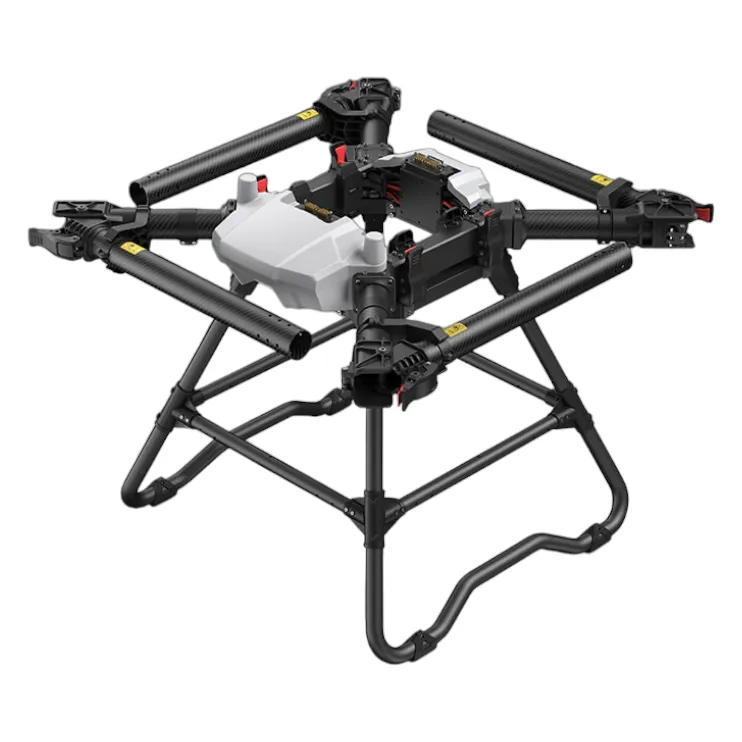

• Folds from 1758 x 1758 mm to 1146 x 1146 mm for transport
• 250 x 260 mm battery compartment with room for dual high-capacity packs
• Battery interface specified for a 500 A QS10 plug for high-current power systems
• 888 mm landing-gear height for ground clearance
• Rated for operation from -10 to 50 deg C

Specifications

• Layout: Quadcopter (4-axis), foldable
• Wheelbase: 2317 mm
• Max payload: 100 kg
• Frame weight: 18 kg
• Unfolded size: 1758 x 1758 x 846 mm
• Folded size: 1146 x 1146 x 846 mm
• Arm diameter: 60 mm
• Landing gear height: 888 mm
• Battery compartment: 250 x 260 mm
• Battery plug: 500 A QS10
• Material: Truss aluminium alloy
• Colour: White
• Operating temperature: -10 to 50 deg C
• Recommended power system: Hobbywing X15

The X2300 is supplied as the frame alone: motors, ESCs, propellers, flight controller, GNSS and batteries are separate. At 18 kg bare, budget the all-up weight against the power system's rated take-off weight, and size the battery around the QS10 plug and the 250 x 260 mm bay.
