Radiolink RTK F9P GNSS Rover Kit with ANT-M7 Antenna
SKU RADIOLINK-RTK-F9P-ROVER
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

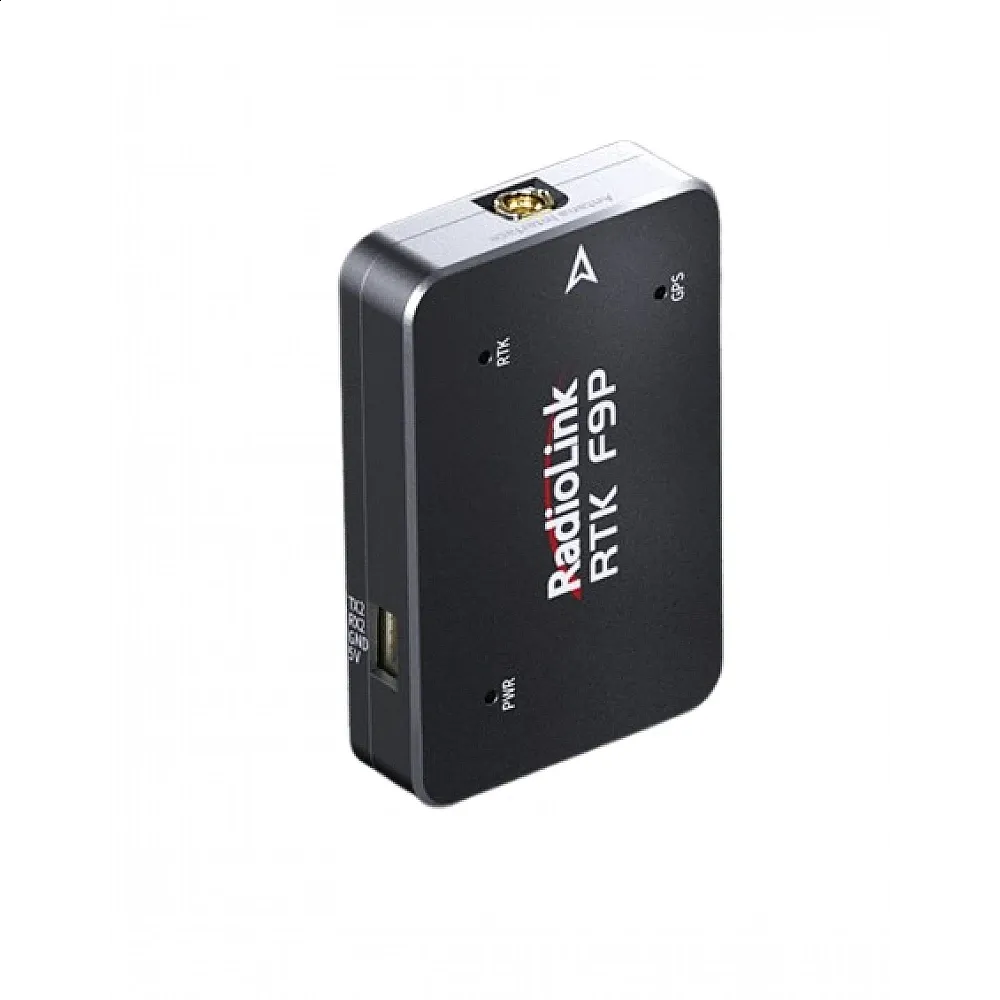

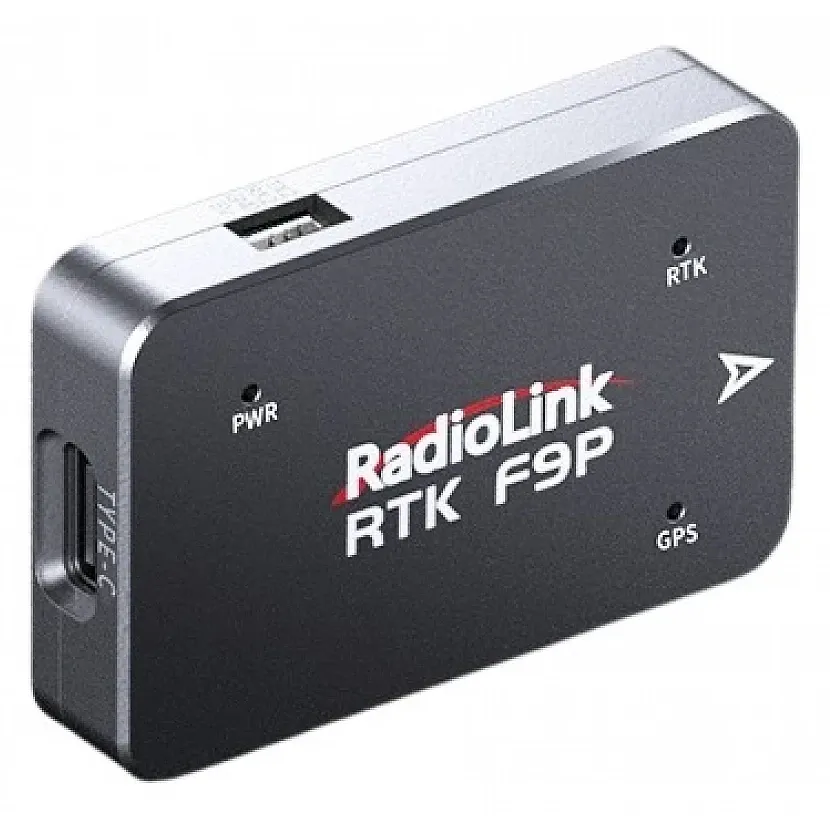

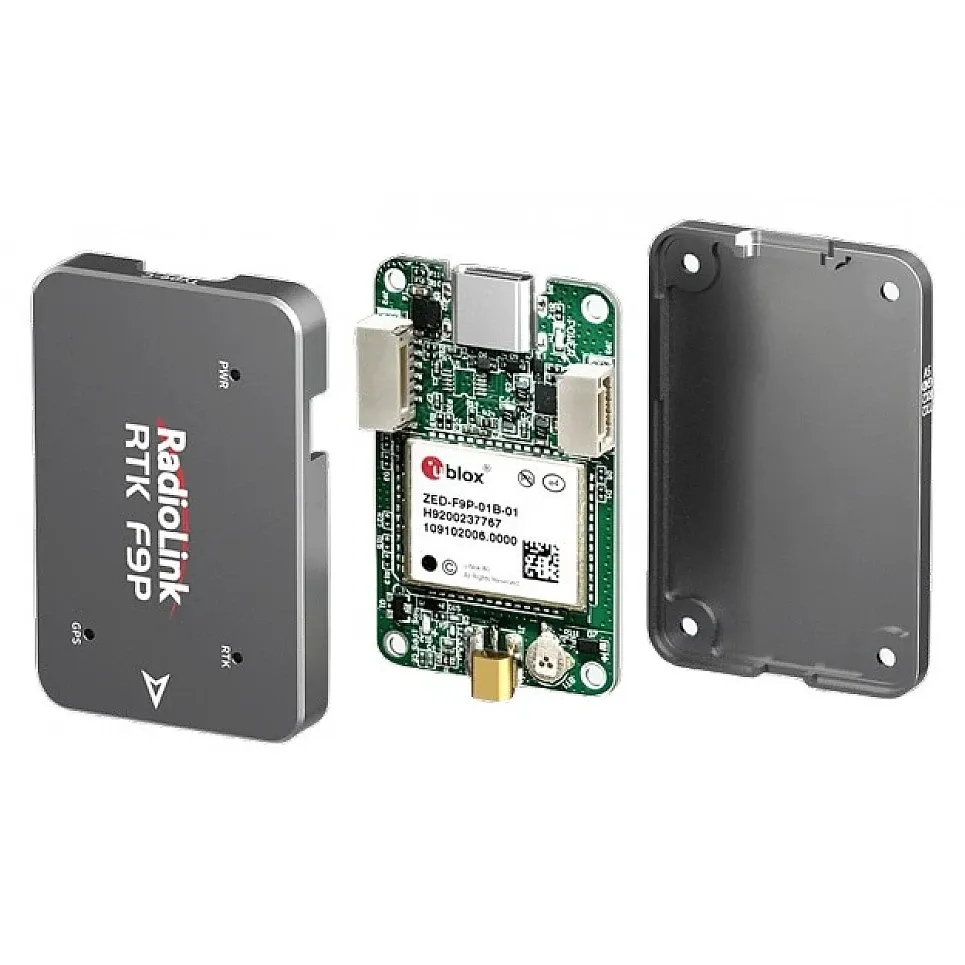

The Radiolink RTK F9P rover kit gives a drone, ground robot or survey rig centimetre-level positioning. It pairs the u-blox ZED-F9P multi-constellation receiver with Radiolink's ANT-M7 rover antenna; corrections come from a separate RTK base station or another correction source.
Key features
u-blox F9P RTK engine with navigation updates at up to 20 Hz
RTK fix converges in under 10 seconds

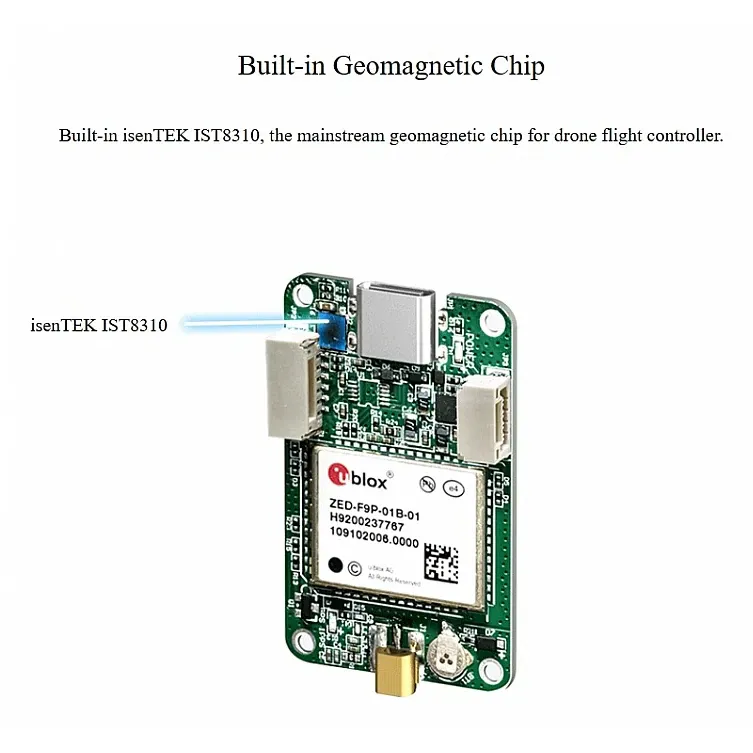

Built-in IST8310 compass for heading

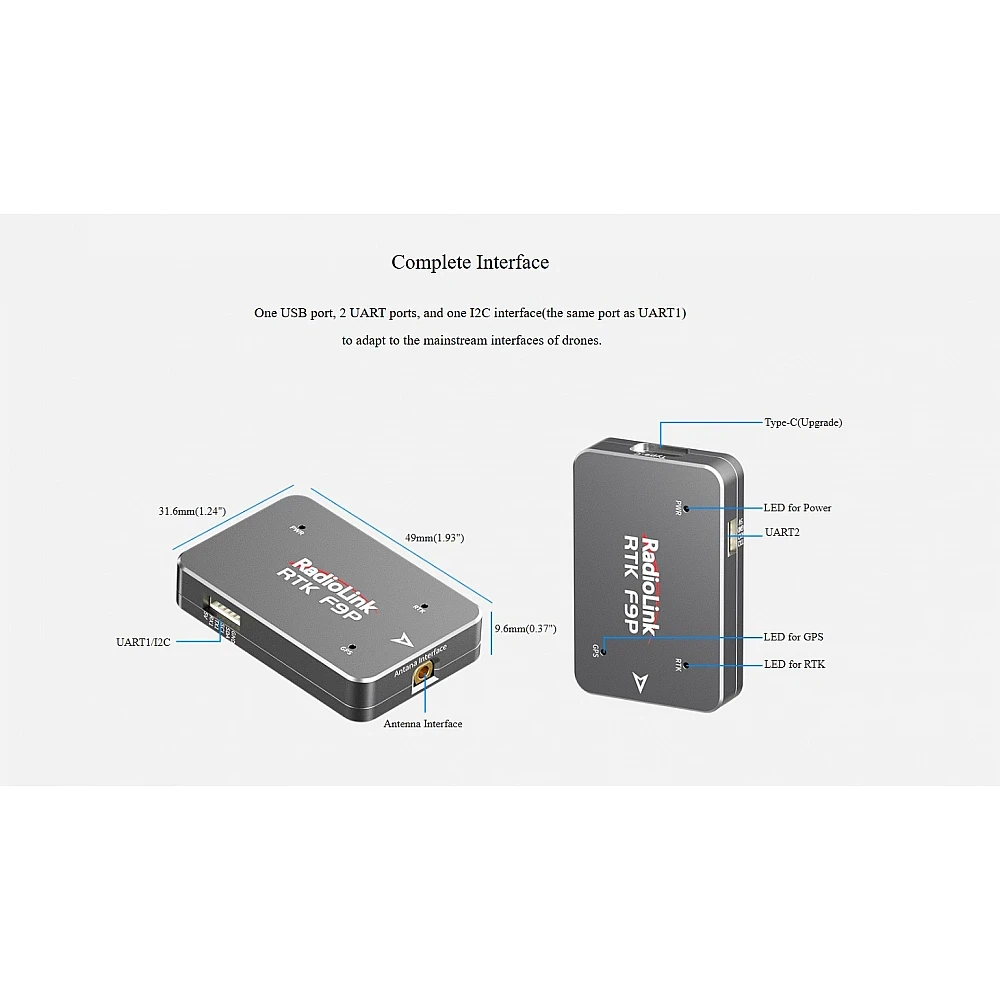

2 UARTs (one shared with I2C) plus USB-C for configuration and firmware updates
SMA antenna connector with an impedance-matched PCB feed and TVS/ESD protection on antenna and data ports
Power and RTK status LEDs
Specifications
GNSS module: u-blox ZED-F9P
Update rate: up to 20 Hz
RTK convergence: under 10 s
Compass: IST8310
Interfaces: 2 UART, I2C (shared with UART1), USB-C
Antenna connector: SMA

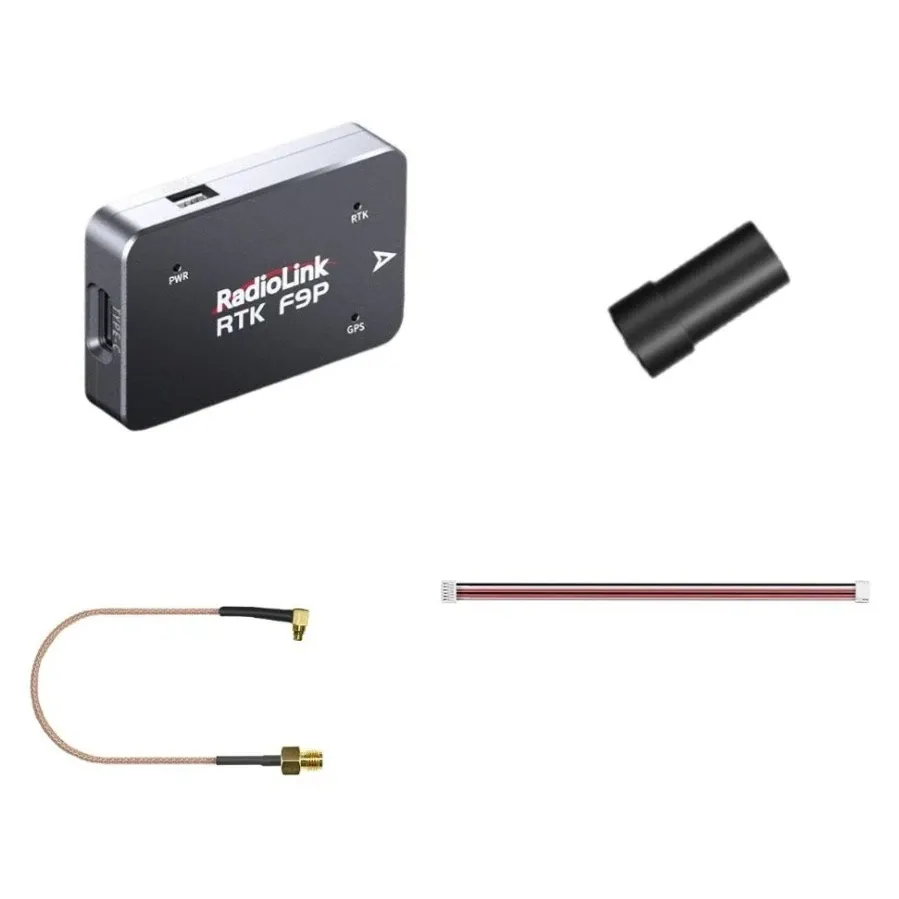

In the box: RTK F9P receiver, ANT-M7 rover antenna, antenna cable
This is the rover half only: for your own base station, Radiolink's base setup uses the ANT-B10 antenna, while a network correction feed can replace the base altogether.
| Compass Included | Yes |
|---|---|
| Made in India | No |
| Brand | Radiolink |
| RTK Support | Yes |
| GNSS Chipset | u-blox F9P |
| Antenna Connector | SMA |
