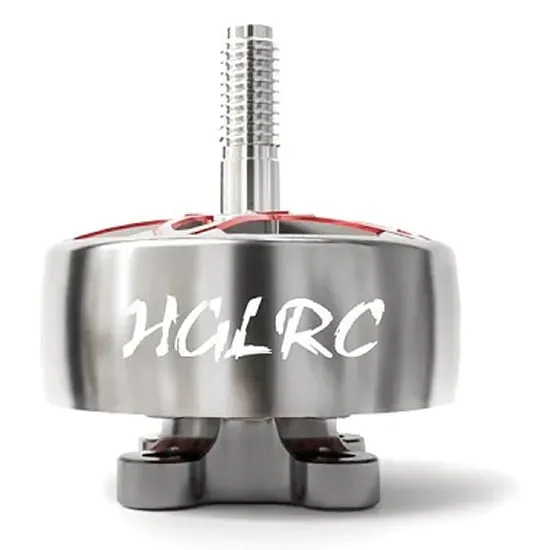

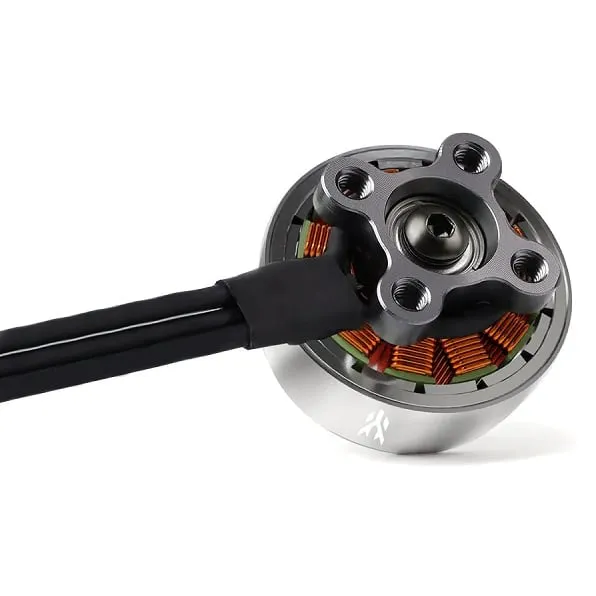

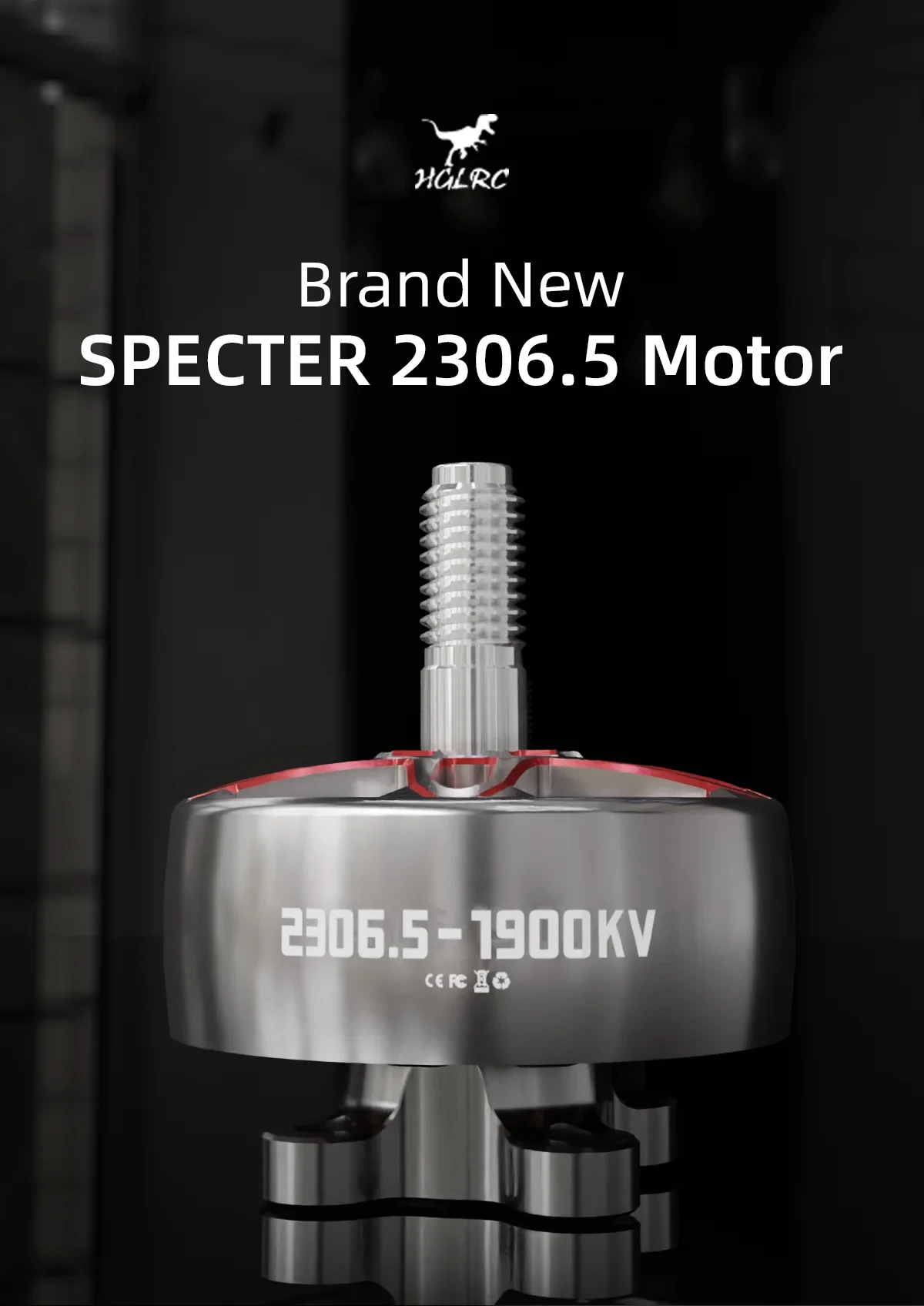

HGLRC Specter 2306.5 1900KV Motor

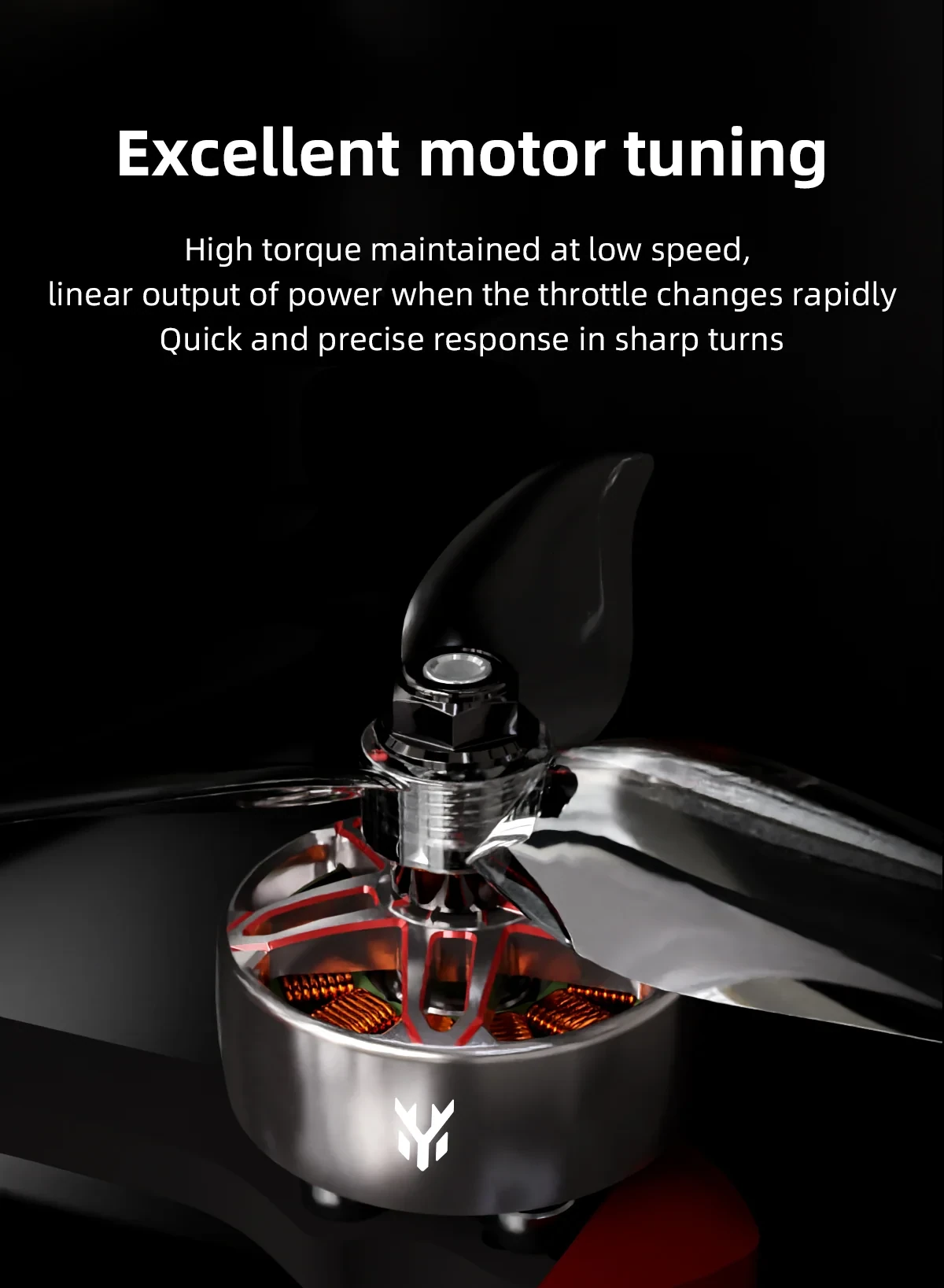

The HGLRC Specter 2306.5 is a 5-inch freestyle and racing motor with a 1900KV winding rated for 5-6S power. Its 7075 aluminium rotor and titanium shaft are built for high-torque, high-efficiency flying.

Key features

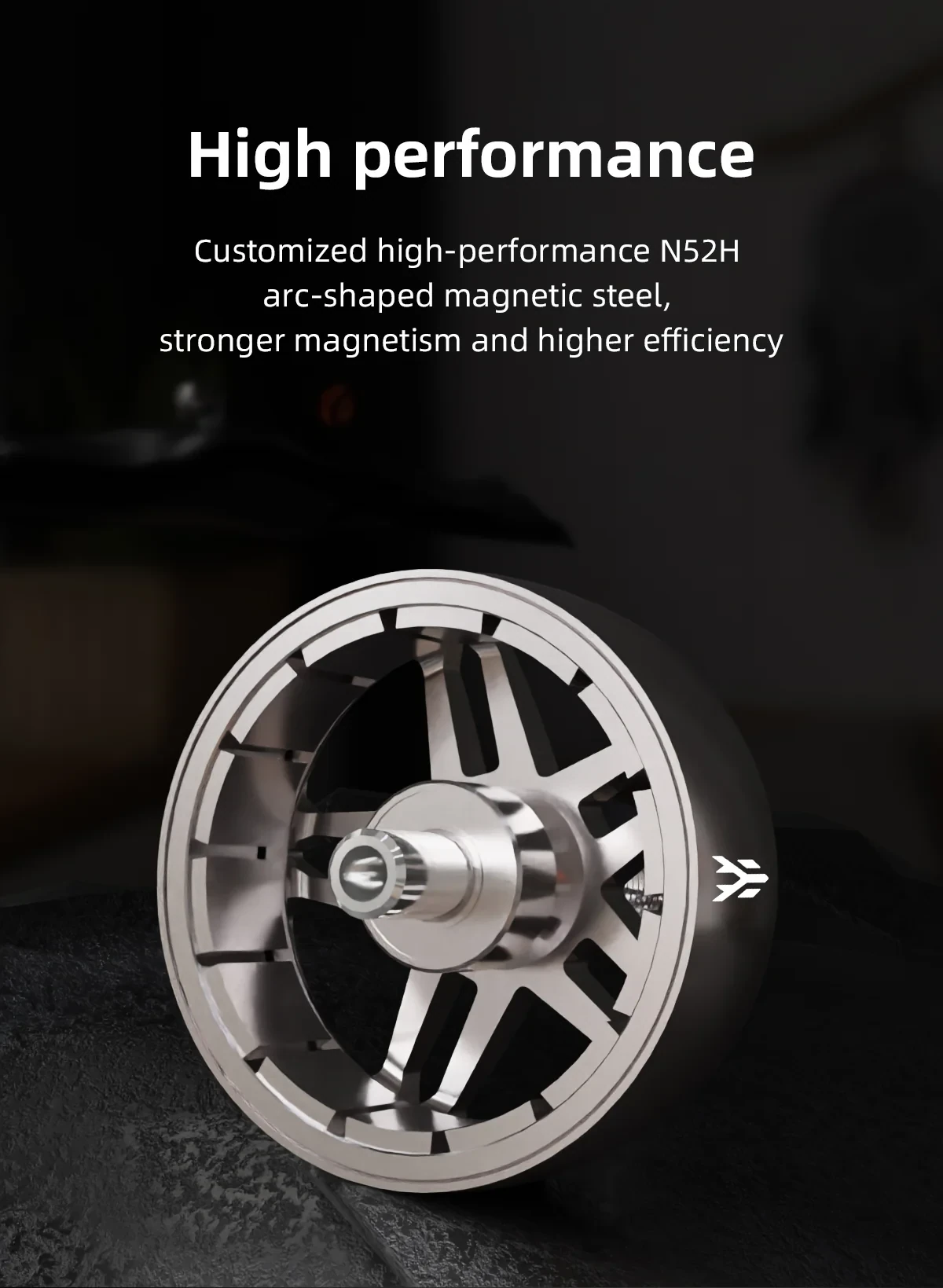

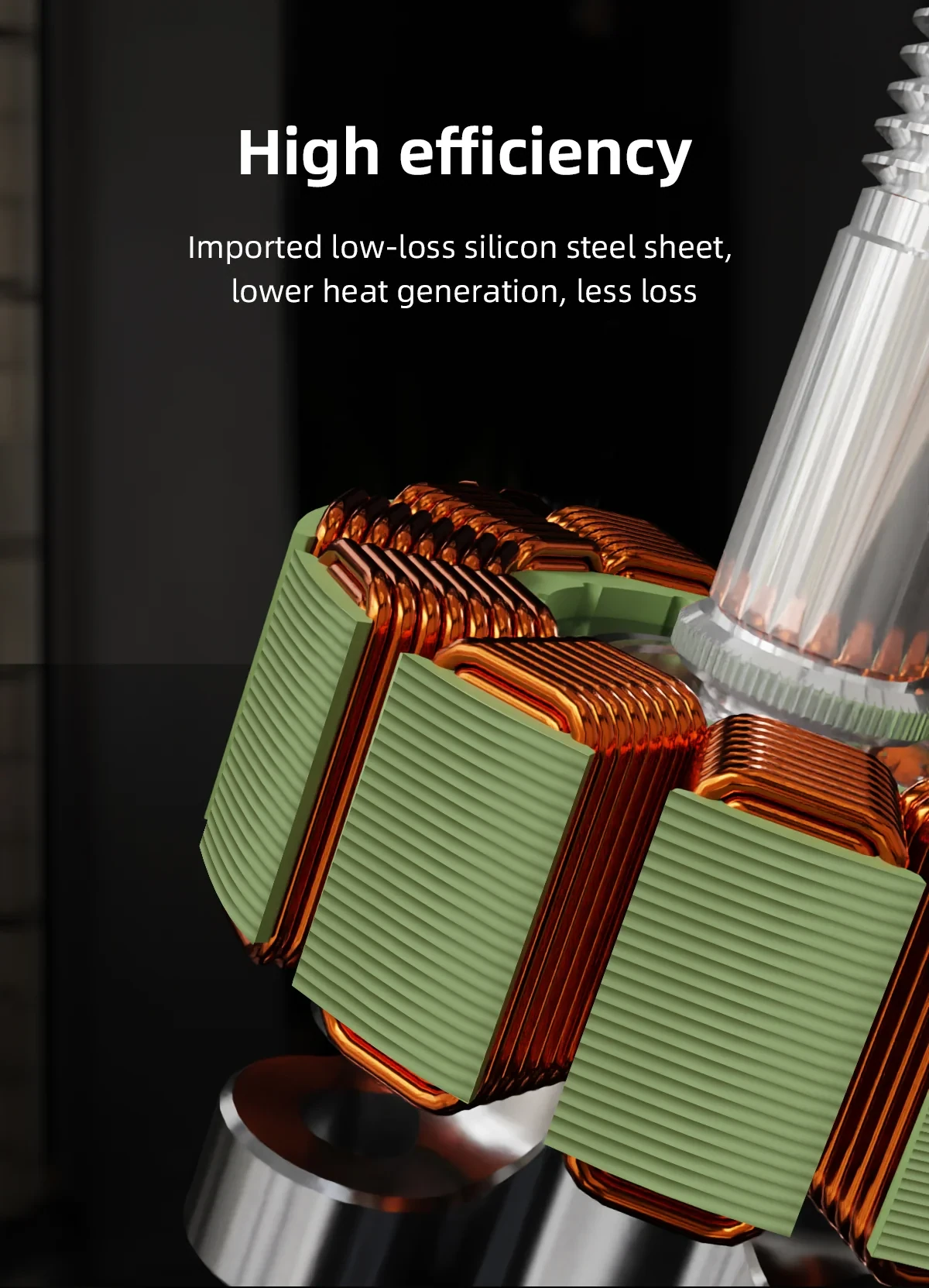

• N52H arc magnets and Kawasaki silicon-steel stator laminations give strong torque with low heat build-up.

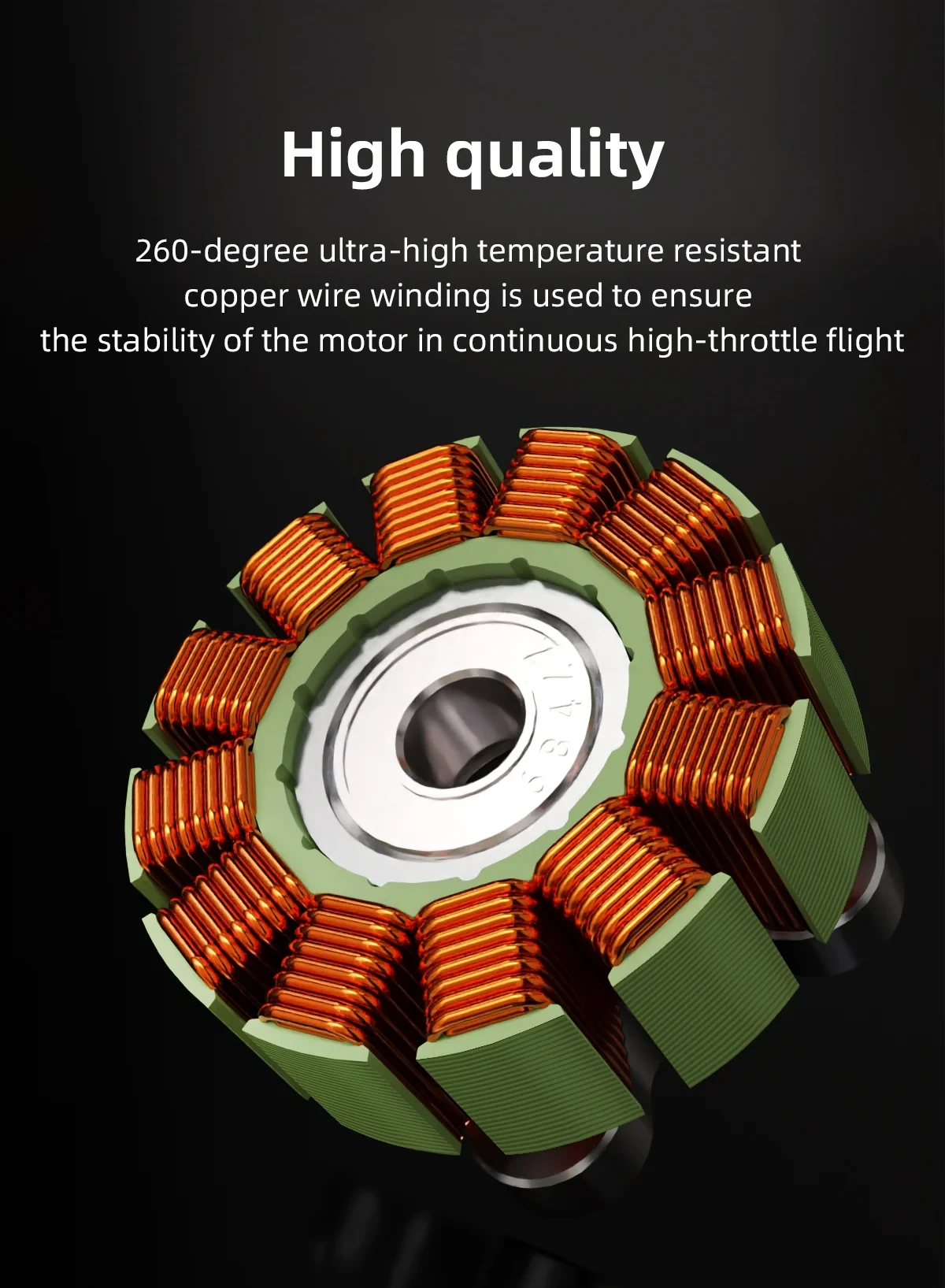

• 260°C high-temperature copper winding keeps output stable during sustained hard flying.

• Rated for 5-6S LiPo power with 5-6 inch propellers, drawing up to 47.7A and 1145W peak.

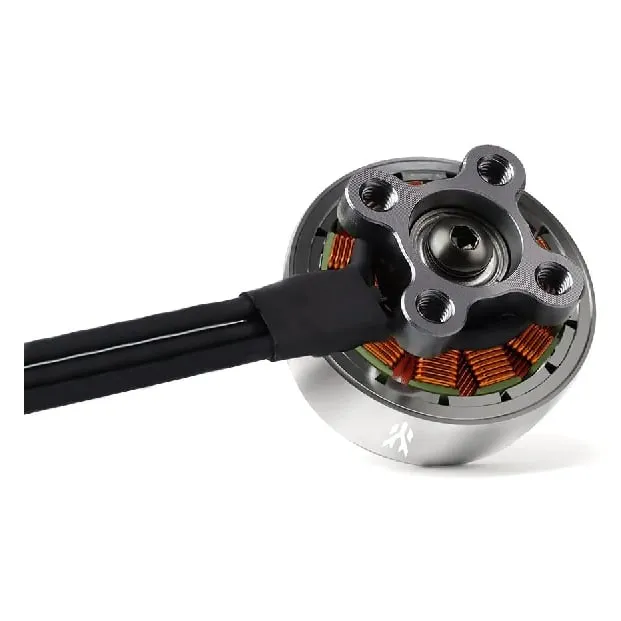

• Weighs 34.2g including wire, with a titanium alloy M5 output shaft and 16x16mm (M3) mounting.

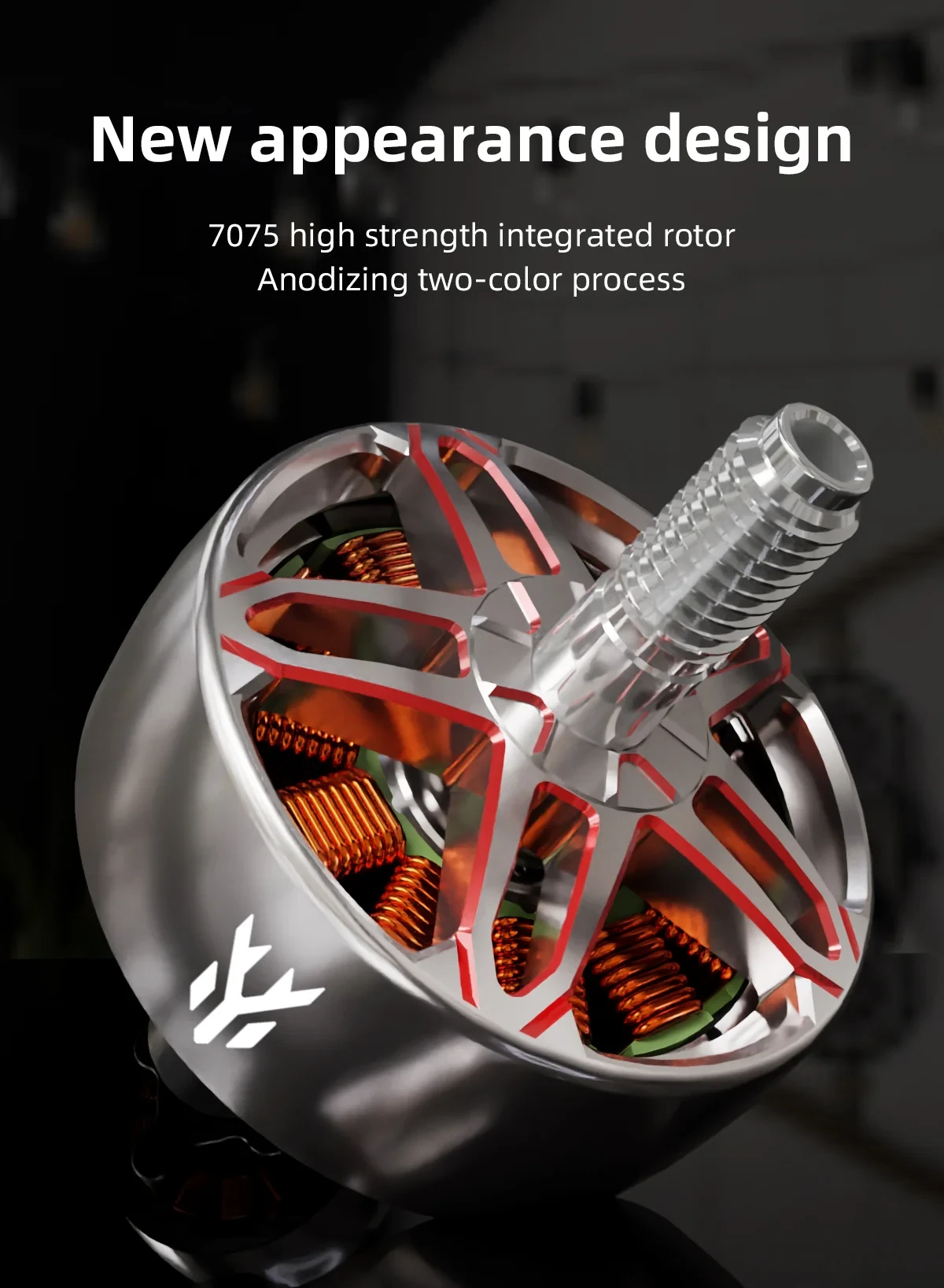

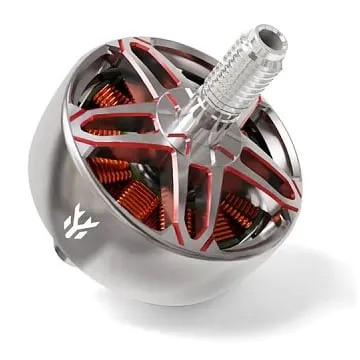

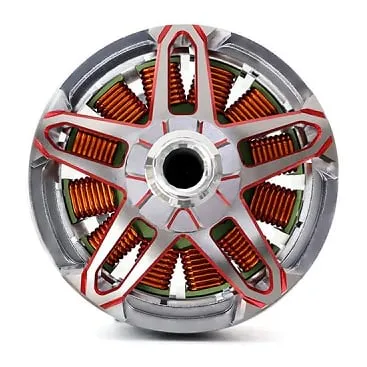

• Two-tone anodised titanium and red finish on a one-piece 7075 rotor.

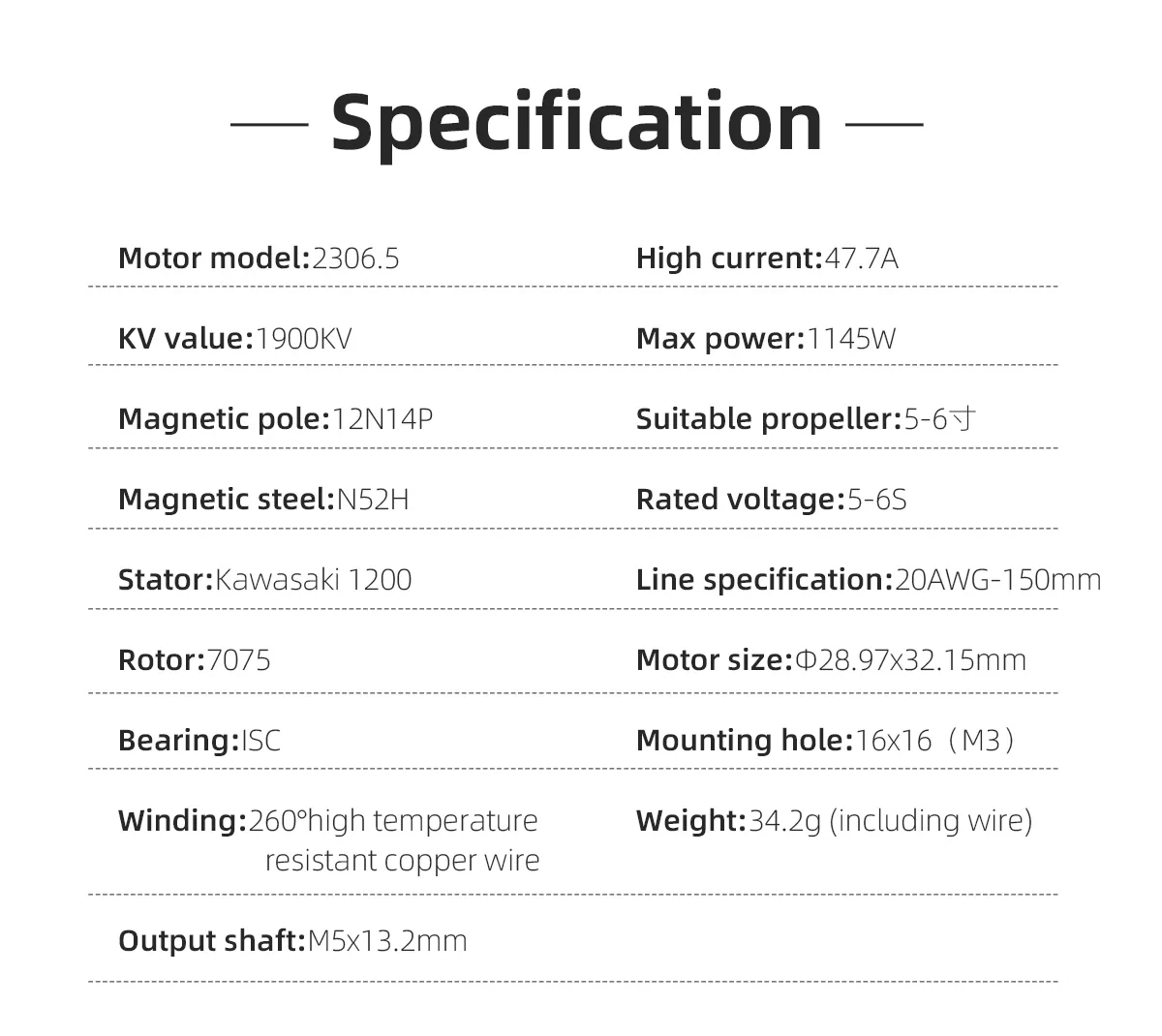

Specifications

• Stator size: 2306.5

• KV: 1900KV

• Configuration: 12N14P

• Input voltage: 5-6S

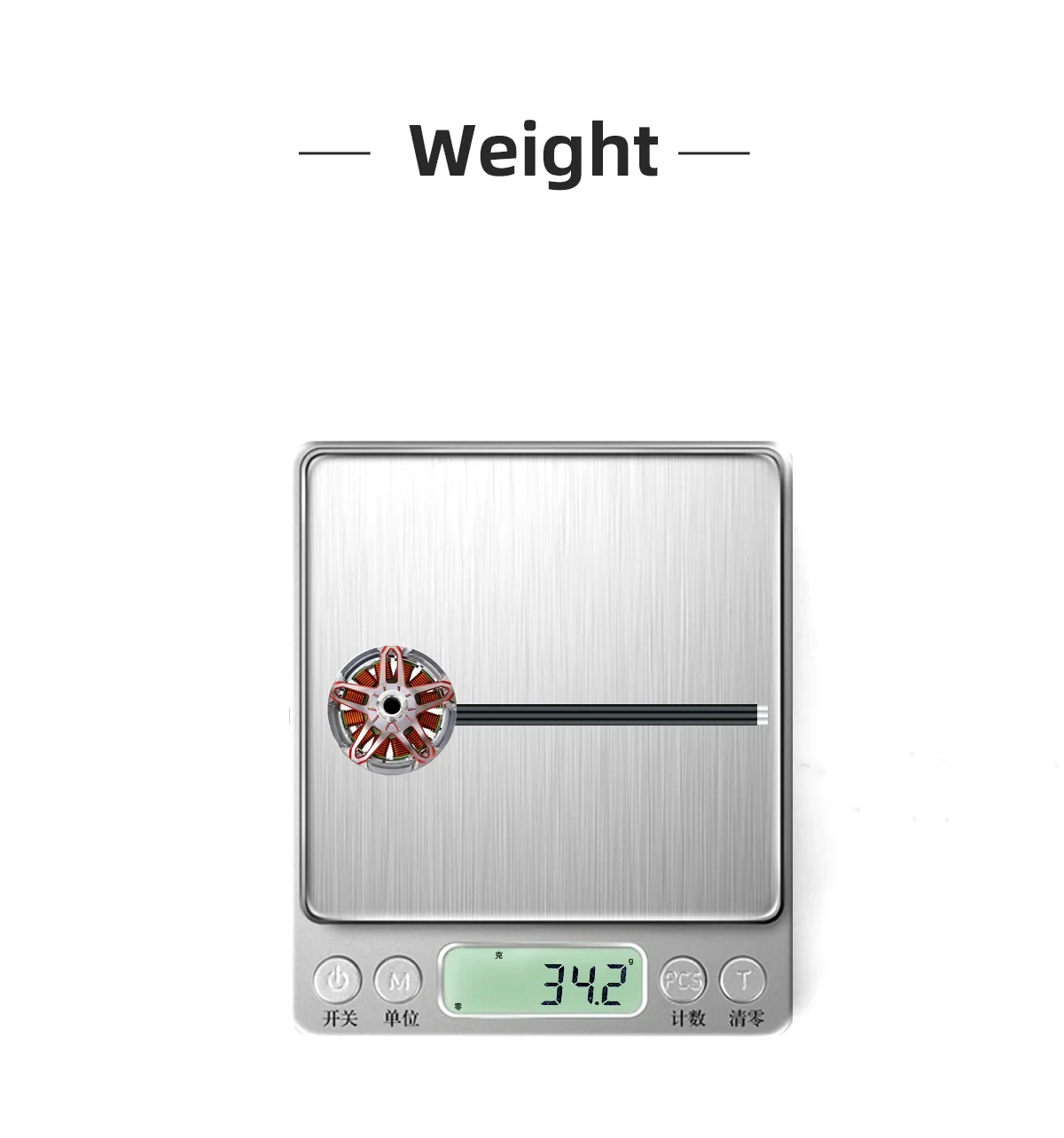

• Weight: 34.2g (including wire)

• Max current: 47.7A

• Max power: 1145W

• Mounting: 16x16mm (M3)

• Output shaft: M5 x 13.2 mm

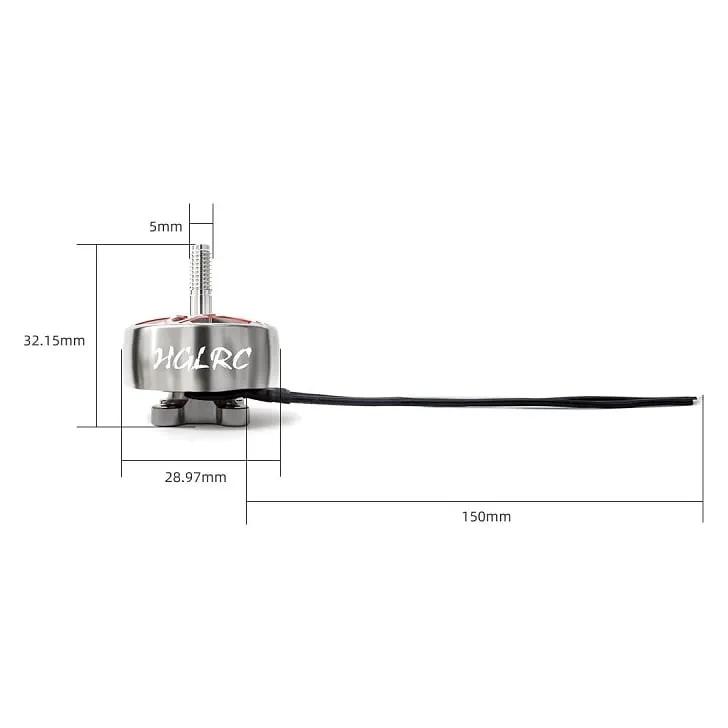

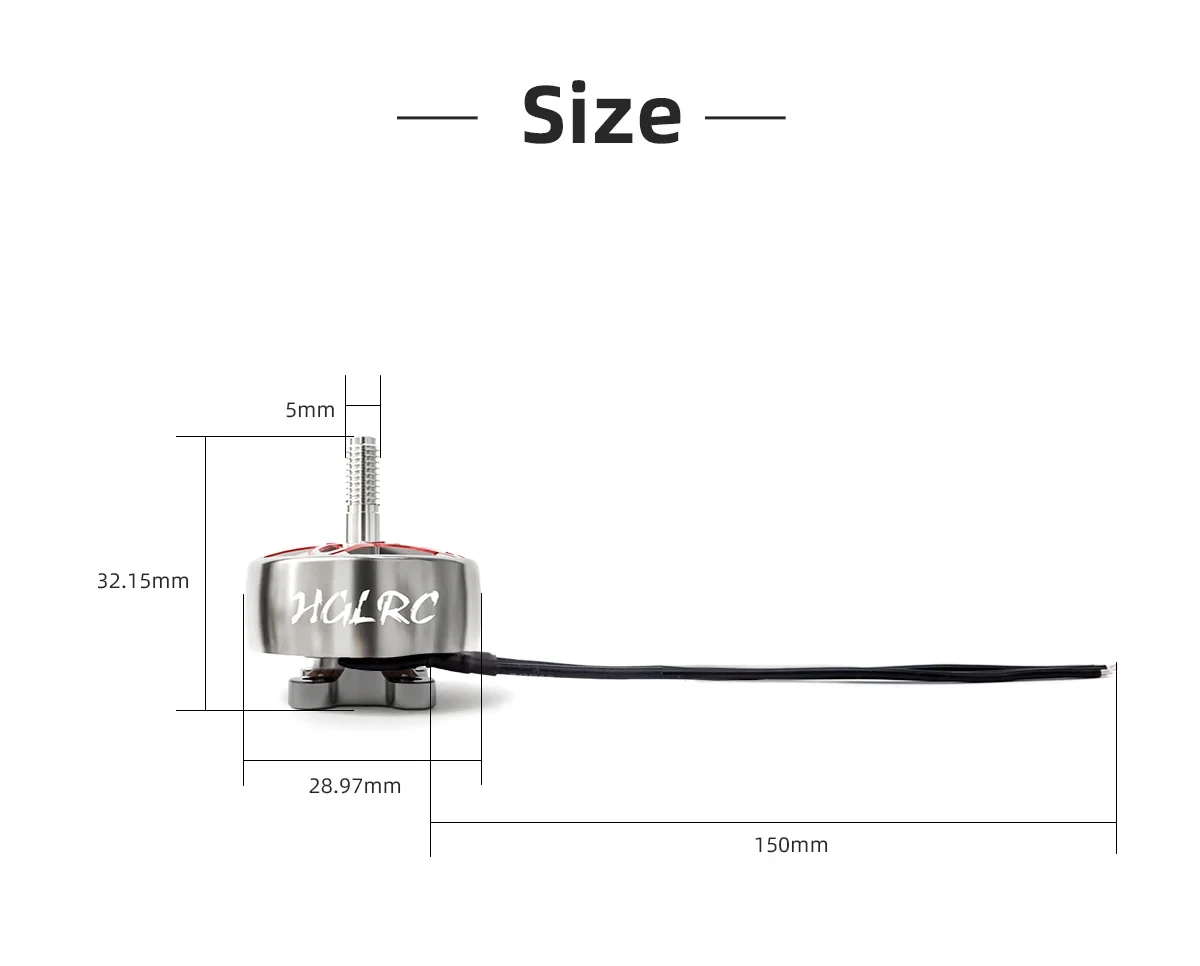

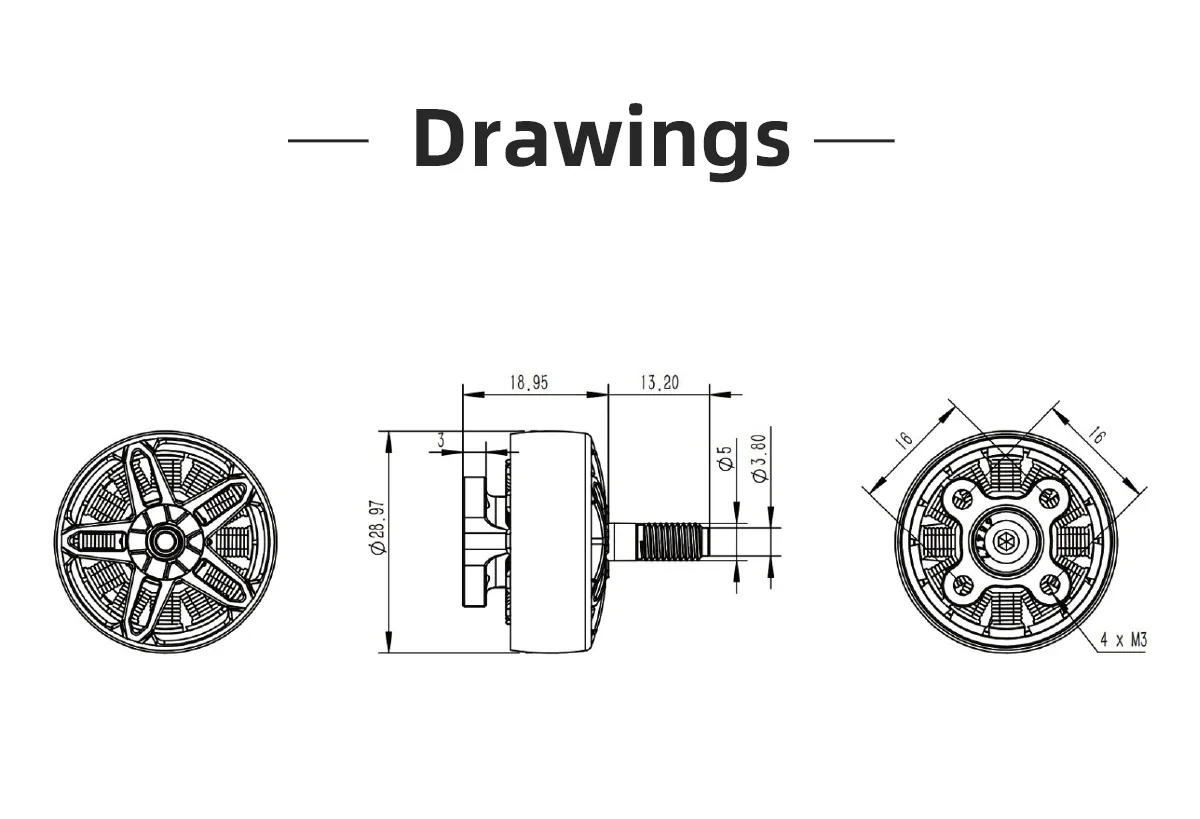

• Dimensions: 28.97 x 32.15 mm

• Leads: 20AWG, 150 mm

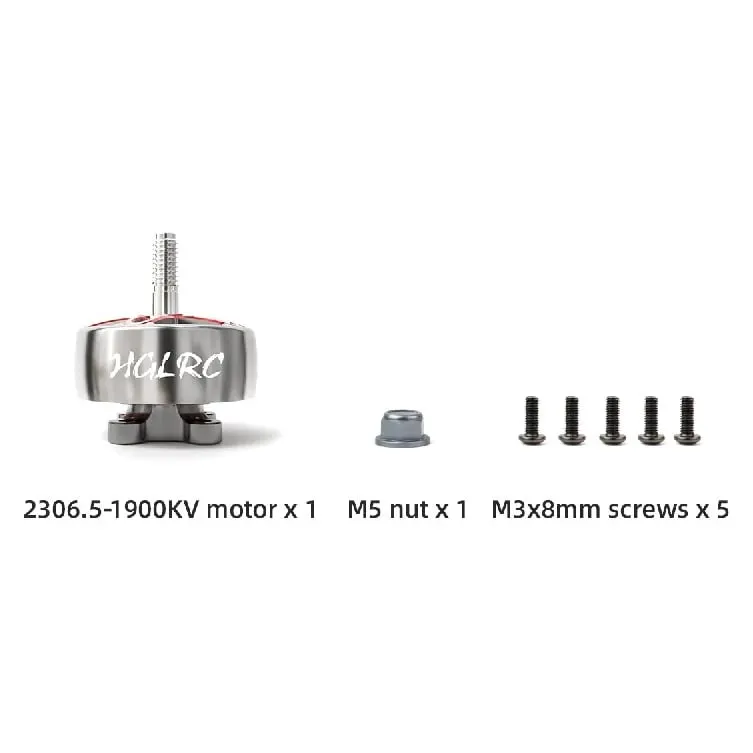

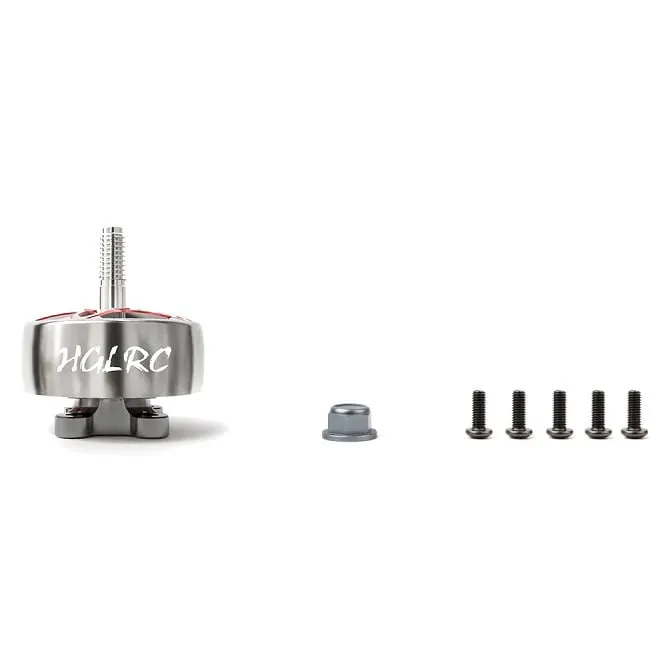

• In the box: 1 x motor, 1 x M5 anti-loosening nut, 5 x M3 x 8 mm screws

This motor is specified for 5-6S packs, not 4S — check your battery voltage and pair it with propellers and an ESC rated for the same current before fitting. Fit all four motors on a build with the same KV rating for balanced, predictable handling.
