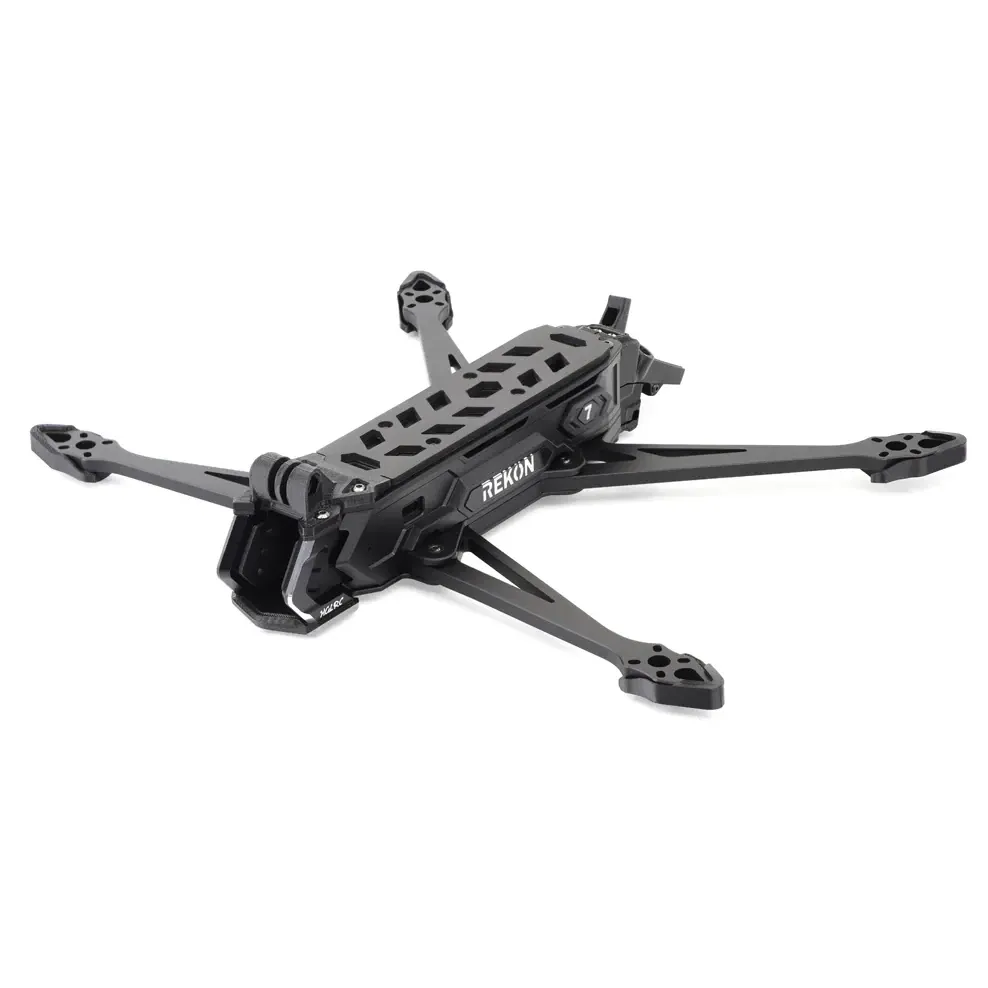

HGLRC Rekon 7 Pro V2 7" Long Range Frame Kit (324mm)

The HGLRC Rekon 7 Pro V2 is a 7-inch carbon fibre frame kit engineered for long-range FPV builds. Built around a 324mm wheelbase with structural triangular reinforcement ribs, it creates a stiff platform that minimises resonance and suppresses noise in gyro data. This V2 revision introduces CNC-machined aluminium front plates for impact protection, alongside a redesigned vertical antenna mount sized specifically for modern dual-band ELRS receivers.

Key features

• Stiff 6mm carbon fibre arms braced with a unique triangular rib structure to eliminate low-frequency vibrations.

• CNC aluminium front cage safeguards 19mm and 20mm FPV cameras from direct frontal strikes.

• Extensive electronics compatibility with 20x20mm and 30.5x30.5mm flight controller stacks, plus M2 holes for 25.5x25.5mm VTX boards.

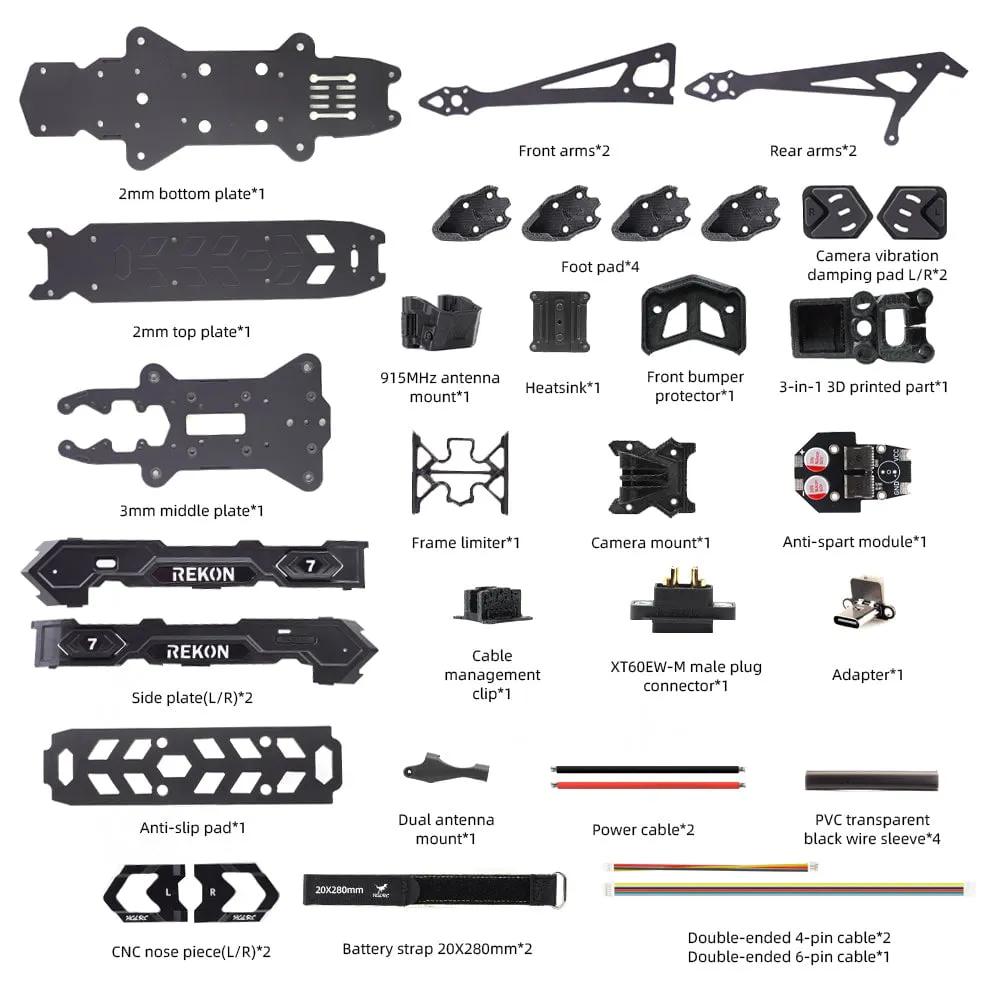

• Comprehensive TPU mounting kit included for GPS modules, action cameras, buzzers and digital air units.

• Integrated RGB lighting system allows customisable colours for line-of-sight tracking.

Specifications

• Class: 7" long range

• Wheelbase: 324 mm

• Arm thickness: 6 mm

• Plate thickness: 3 mm (middle), 2 mm (top and bottom)

• FC mounting: 20x20 mm, 30.5x30.5 mm (M3)

• VTX mounting: 20x20 mm, 25.5x25.5 mm (M2) / 30.5x30.5 mm (M3)

• Motor mounting: 19x19 mm (M3)

• Camera spacing: 19-20 mm

• Dimensions: 254 x 341 mm

• Weight: 383 g (including TPU and hardware)

When selecting your powertrain, pair this frame with 2806.5 or similar motors using a 19x19mm M3 mounting pattern. Ensure your motor wires are adequately long to accommodate the extended 7-inch arm geometry.
