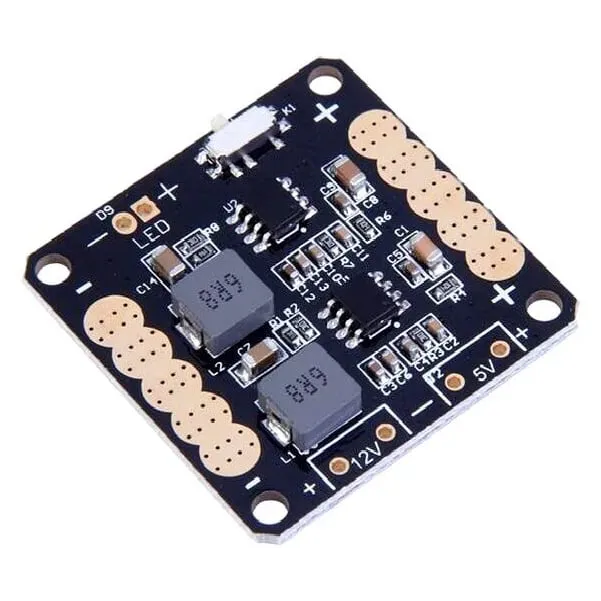

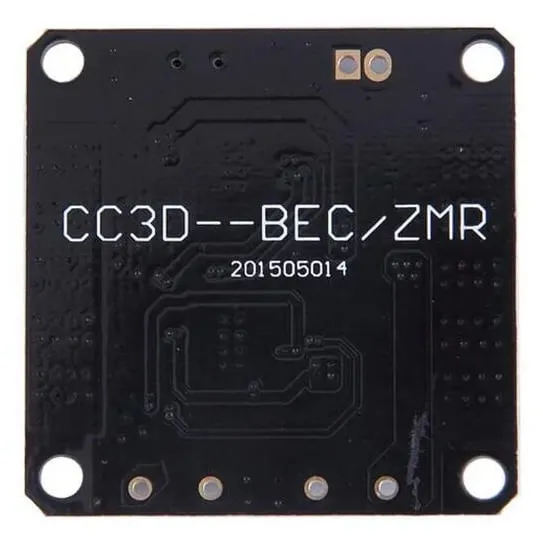

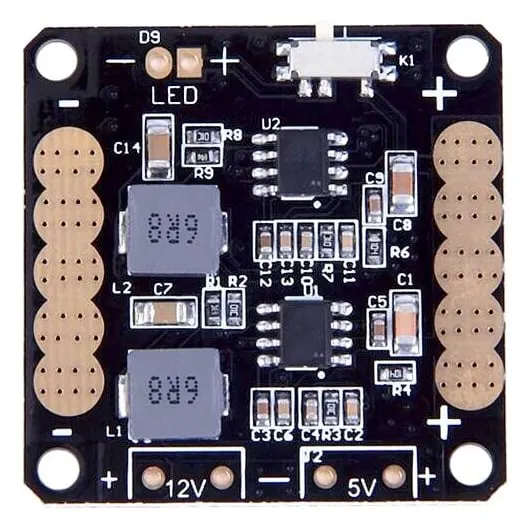

CC3D V2 ZMR PDB with 5V/12V Dual BEC, LC Filter & LED Switch

The CC3D V2 ZMR power distribution board feeds battery power to your ESCs and adds two regulated outputs: 5 V for the flight controller or receiver, and 12 V for FPV gear or lighting. It is the updated version of the classic CC3D/ZMR-style PDB, keeping the V1 layout but with the BECs surface-mounted on the board for better reliability.

Key features

• Dual BEC with 5 V and 12 V outputs, each rated for up to 3 A continuous
• Integrated LC filter for cleaner power to FPV gear and a clearer analog video feed
• Switchable unregulated LED output, so lights can be turned off to save power
• 2–6S LiPo input
• Standard 36 mm board that stacks cleanly with CC3D, Naze32, SP F3 and similar flight controllers
• 9 g including the connector

Specifications

• Input voltage: 2–6S LiPo (7.4–22.2 V nominal)
• BEC outputs: 5 V and 12 V, 3 A each
• Filter: LC
• LED output: unregulated, switchable
• Board size: 36 mm
• Weight: 9 g (with connector)

For a steady 12 V rail, run 4S or higher: on 2S and 3S the pack voltage sits at or below 12 V. The 5 V rail is the one to use for the flight controller and receiver.
